1996 serpentine help
i've been searching here and online looking for a belt diagram, there isn't one listed under the hood and it seems like the ones i find online are just completely wrong i have a 1996 4l sport. here is a very crude drawing of how mine is set up.
is this correct? it tossed the belt off and i didn't get a drawing of how it was supposed to be set up.
is this correct? it tossed the belt off and i didn't get a drawing of how it was supposed to be set up.
Last edited by Snuffleupawhat; 02-20-2012 at 07:00 PM. Reason: sorry the top left pulley would be the fan, picture is wrong.
#7
Newbie
Join Date: Nov 2011
Location: Powhatan, Va.
Posts: 11
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L

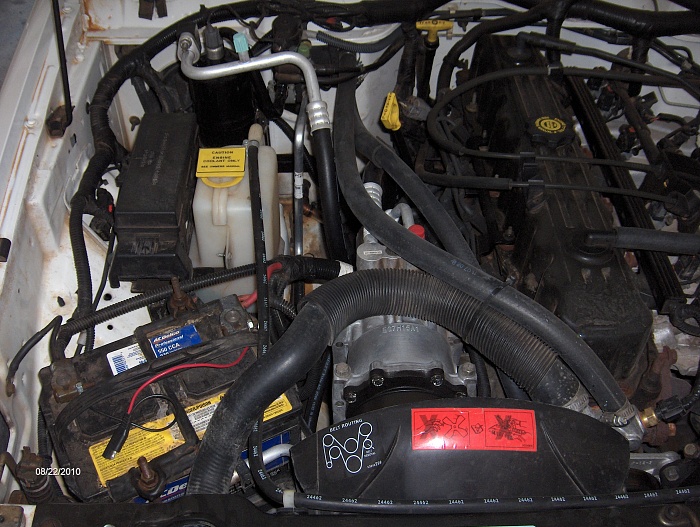

You can replace the missing sticker for about $3 shipped here. That's what I did for my 96 w/AC.
http://www.conversionradiators.com/s...ROUTINE/Detail
http://www.conversionradiators.com/s...ROUTINE/Detail
Trending Topics
#8
Junior Member
Thread Starter
Join Date: Nov 2011
Posts: 47
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Well I'm taking it to a local auto shop to have it looked over, I drove it today and it all seemed fine except I forgot to screw on the radiator cap last night... I'll puck up one if those stickers, I need a new fan housing to attach it to.
#9
Newbie
Join Date: Nov 2011
Location: Powhatan, Va.
Posts: 11
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L
Glad to be of some help. Need a fan shroud? I bought one of those too, this was the best deal I could find. http://www.autopartswarehouse.com/sk...gs+Best+Seller and it was a nice piece that fit perfectly.
