1988 Jeep Cherokee XJ 2 Door Rebuild
I've got a lot of work to do...so lets get started
I got my first Jeep back. It was also my first vehicle. She is REALLY rough and needs some serious help but I want to make sure I do it right.
I've been Googling and looking and I can't get a solid answer to a couple of questions so I thought I'd ask here!
Picture of the project after I pulled it out of the tree line...
I got my first Jeep back. It was also my first vehicle. She is REALLY rough and needs some serious help but I want to make sure I do it right.
- Rear Passenger Floorpan is gone above the muffler. Big hole that leaks exhaust back into cab. I don't drive it because of this.
- Carpet is trashed, the lady I sold it to stored it in a barn and then outside with the rear wing windows not sealed shut.
- Front Seats are in bad shape but nothing a seat cover didn't fix before.
- Need to go through Cruisers tips for the Renix XJ.
I've been Googling and looking and I can't get a solid answer to a couple of questions so I thought I'd ask here!
- The carpet needs to be replaced, and I'd like to have carpet again. This Jeep will become a daily driver not doing anything crazy. Every single carpet I find states it will NOT fit the 2 door Cherokee. What are my options? Has anybody just tried ordering it and making it fit? What doesn't fit about it?
- Floor pans and cargo pan, what can I do to seal them up real good? I live in Iowa and they LOVE spreading salt on the roads. I'd like replacement pans to last more than a couple of years. Should I weld them in or rivet them in? Should I cut out the floor under them even if it isn't rusted through or should I leave it be and lay in the new pan over it?
Picture of the project after I pulled it out of the tree line...
Last edited by ndolph; 04-16-2020 at 07:13 PM.
#2
CF Veteran
Join Date: Sep 2017
Location: MO
Posts: 1,548
Received 303 Likes
on
252 Posts
Year: 1996
Model: Cherokee (XJ)
Engine: 4.0
1. There was a recent thread discussing carpet and I believe the consensus was the 4 door carpet will fit 2 doors, however, I can't say for sure.
2. Cut out all the rust and any metal in the way of fitting new pans unless you want to cut the new pans. Weld in the new pans, maybe use weld through primer, prep all the surfaces well and coat with a good paint like chassis saver, por15, or steel it. Then use seam sealer around all the edges and where you removed any old seam sealer. I used this, cheaper than real seam sealer. Then I would topcoat with something like this. If you're really committed to keeping rust away you can use fluid film or corrosion blocker as well.
2. Cut out all the rust and any metal in the way of fitting new pans unless you want to cut the new pans. Weld in the new pans, maybe use weld through primer, prep all the surfaces well and coat with a good paint like chassis saver, por15, or steel it. Then use seam sealer around all the edges and where you removed any old seam sealer. I used this, cheaper than real seam sealer. Then I would topcoat with something like this. If you're really committed to keeping rust away you can use fluid film or corrosion blocker as well.
Last edited by Spencer_P; 04-14-2020 at 10:14 PM.
The following users liked this post:
ndolph (04-14-2020)
#3
Newbie
Thread Starter
Join Date: Apr 2020
Location: Waterloo, IA
Posts: 7
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee (XJ)
Engine: 4.0L
2. Cut out all the rust and any metal in the way of fitting new pans unless you want to cut the new pans. Weld in the new pans, maybe use weld through primer, prep all the surfaces well and coat with a good paint like chassis saver, por15, or steel it. Then use seam sealer around all the edges and where you removed any old seam sealer. I used this, cheaper than real seam sealer. Then I would topcoat with something like this. If you're really committed to keeping rust away you can use fluid film or corrosion blocker as well.
#4
CF Veteran
Join Date: Sep 2017
Location: MO
Posts: 1,548
Received 303 Likes
on
252 Posts
Year: 1996
Model: Cherokee (XJ)
Engine: 4.0
The following users liked this post:
ndolph (04-14-2020)
#5
Newbie
Thread Starter
Join Date: Apr 2020
Location: Waterloo, IA
Posts: 7
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee (XJ)
Engine: 4.0L
Soooo.....here is the biggest rust hole, and looking at the pictures of the floor pans, nothing covers this area I think....
I'm aware its a giant mess, I'll be working on it this weekend, cleaning it out and taking out the seats and remaining carpet so I can see what I'm working with.
Am I out of luck for a pan for that area? Custom fab?
I'm aware its a giant mess, I'll be working on it this weekend, cleaning it out and taking out the seats and remaining carpet so I can see what I'm working with.
Am I out of luck for a pan for that area? Custom fab?
#6
CF Veteran
Join Date: Sep 2017
Location: MO
Posts: 1,548
Received 303 Likes
on
252 Posts
Year: 1996
Model: Cherokee (XJ)
Engine: 4.0
I can’t say I’ve ever seen a replacement panel for there, I imagine it being a 2 door makes it even less likely. The problem with that area is they smothered it in seam sealer and it just lets rust grow.
The following users liked this post:
ndolph (04-16-2020)
#7
CF Veteran
Join Date: Jun 2017
Location: Hangover, PA
Posts: 2,215
Likes: 0
Received 624 Likes
on
466 Posts
Year: 1998
Model: Cherokee(XJ)
Engine: 4.0L
Yeah your either gunna have to make your own replacement panels or get very lucky at a pick n pull and find a good section to cut out and use.
I suggest dropping the gas tank you are going to be cutting and welding pretty close to it. Too close for my comfort anyway
I suggest dropping the gas tank you are going to be cutting and welding pretty close to it. Too close for my comfort anyway
The following users liked this post:
ndolph (04-16-2020)
Trending Topics
#8
Newbie
Thread Starter
Join Date: Apr 2020
Location: Waterloo, IA
Posts: 7
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee (XJ)
Engine: 4.0L
Well..........crud.... not the news I really wanted but I'll see what I can do. Now I remember why it got parked.
The following users liked this post:
ndolph (04-16-2020)
#10
Newbie
Thread Starter
Join Date: Apr 2020
Location: Waterloo, IA
Posts: 7
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee (XJ)
Engine: 4.0L
#11
CF Veteran
Join Date: Jun 2017
Location: Hangover, PA
Posts: 2,215
Likes: 0
Received 624 Likes
on
466 Posts
Year: 1998
Model: Cherokee(XJ)
Engine: 4.0L
There is no way around welding if you ask me. That is a large area and you are going to have to cut it even larger to get to all the rust out.
It's easier to make patch panels for areas like that because it is out of sight so it doeant have to be pretty, just strong
It's easier to make patch panels for areas like that because it is out of sight so it doeant have to be pretty, just strong
The following users liked this post:
ndolph (04-17-2020)
#12
CF Veteran
I had to replace my '88's passenger floor from pretty much firewall to hatch and that spot was not fun. Lots of bending and using my body as a press to form and tack it in place.
The following users liked this post:
ndolph (04-17-2020)
#13
CF Veteran
Join Date: Oct 2018
Location: United Kingdom
Posts: 1,576
Received 278 Likes
on
242 Posts
Year: 1995 RHD
Model: Cherokee (XJ)
Engine: 4.0l

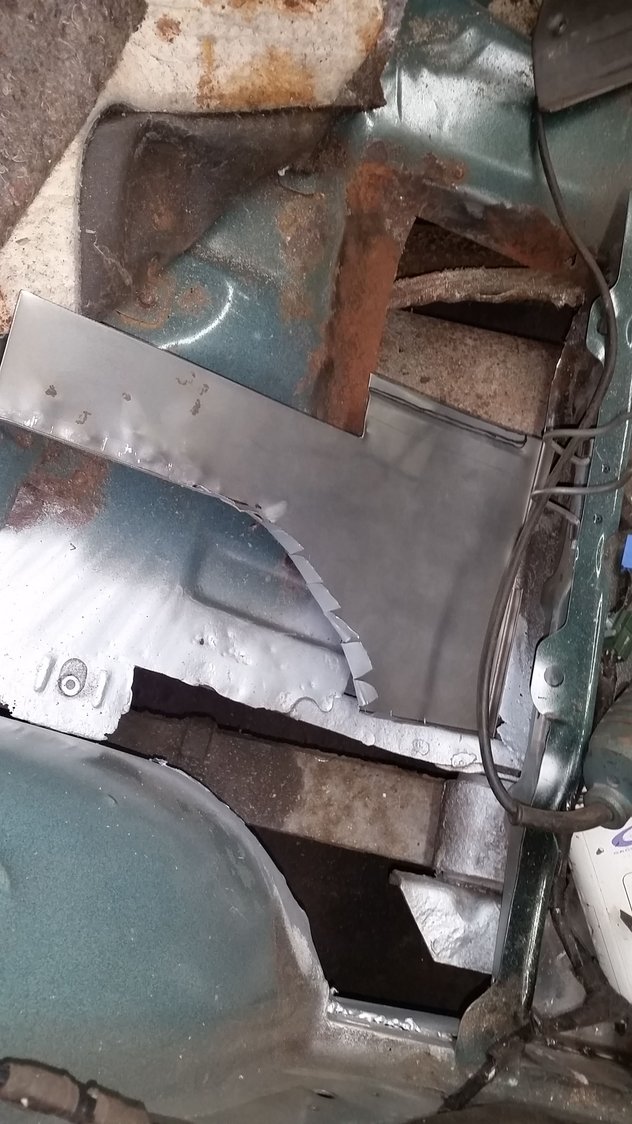

I found it easy to use cardboard to make a template. Split the job into 2 parts if you need to having the first stop at one of the frame edges, then the second continue on from there.
#14
Newbie
Thread Starter
Join Date: Apr 2020
Location: Waterloo, IA
Posts: 7
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee (XJ)
Engine: 4.0L
I'll update the thread with my progress.
Appreciate all the input! Very helpful community.
#15
CF Veteran
Join Date: Oct 2018
Location: United Kingdom
Posts: 1,576
Received 278 Likes
on
242 Posts
Year: 1995 RHD
Model: Cherokee (XJ)
Engine: 4.0l

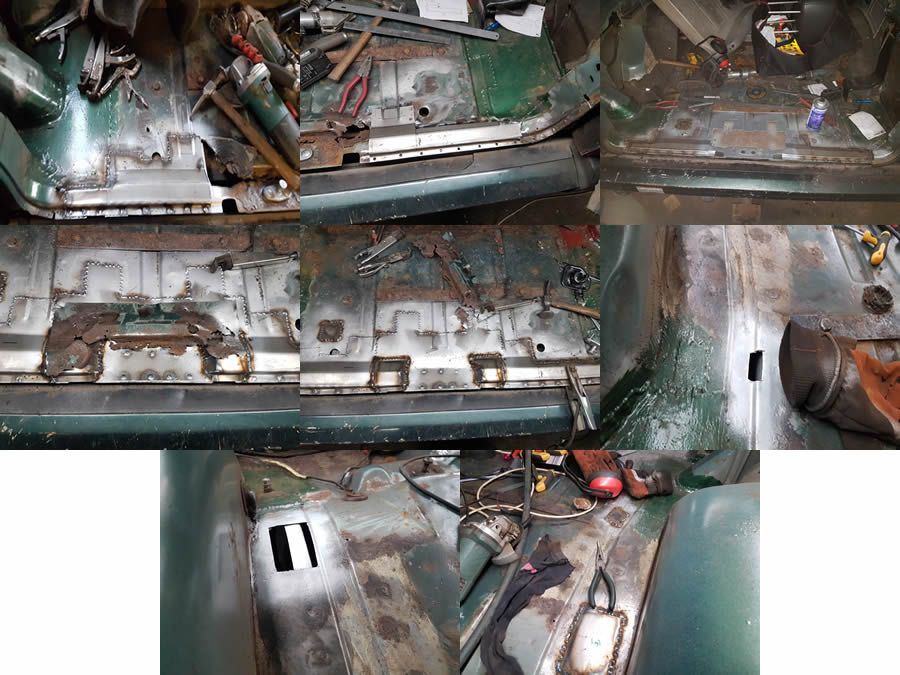

I have plenty more. Panels for these aren't as easy to come by in the UK so I've had to fab a lot. I would honestly say coming up to 50% of my floor is panels I've had to make.
