rotten carrier bearing seat fix
I recently ran into a bit of a grinding going on in the rear. Checked it out and discovered the massacre of a carrier bearing. Short on funds and time, I decided that a well planned fix would save me $ in the short term to get my DD back on the road before Monday. So spending a few hours in the shop one late Saturday night was well worth the hassle to fix the carrier on my d35. For how long, we will see, but it runs a hell of a lot smoother now and i am now preparing for an axle swap or beef up as soon as I get some time.
I found the bearings were trashed on one side of the carrier. So bad that my gear oil looked like espresso spiked with a bottle of anti seize. the bearing seat was trashed, more than an 1/8" total removed from the diameter.

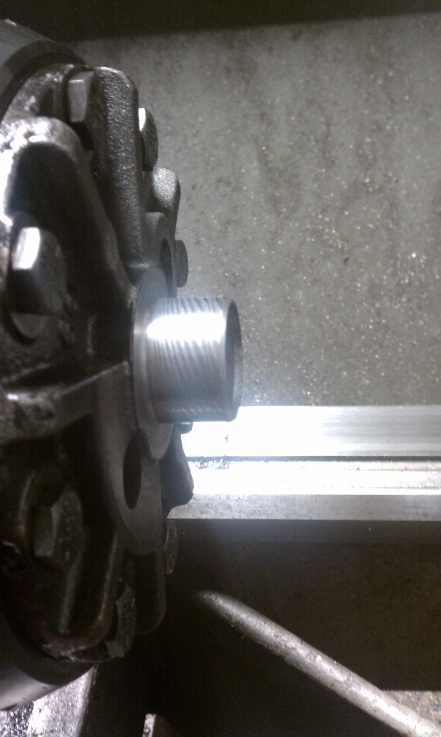

I had to turn some bar stock to fit snug within the inner splines of the carrier that host the axle shafts. This was the best way I could think of to ensure that both of my bearing seats were running true. I then tapped a 1/2"-13 thread in the end to snug up a "cap" to hold the diff while I turned back the gnarly bearing seat to create a clean surface to apply my new sleeve for the OE bearing.

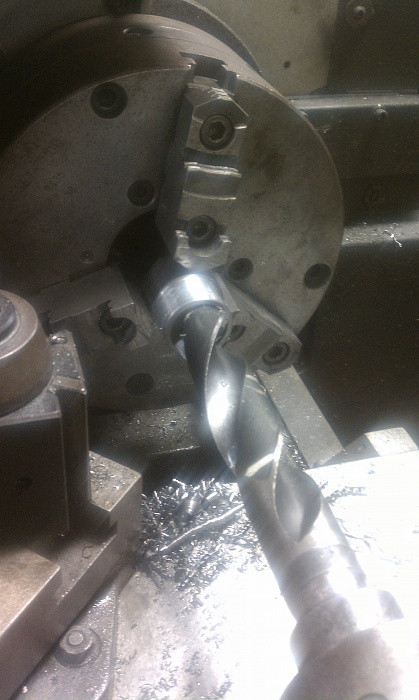

I only had to turn about .007 off the seat to get a good surface. I then made a sleeve out of some 4140 with .0015 press fit on ID, .001 PF on OD for the bearing. I kept it cool, and it pressed together better than I expected.
Cost me $25 for new bearings and cups, 3 hours of no beer drinking on a Saturday night but was totally worth it. I assembled it when i got home from the shop. A little RTV and a day of rest later I was filling the pig up with some new gear oil and on the road again. I expect it to last, but I do plan an axle swap or a serious beef up soon no matter what.
I found the bearings were trashed on one side of the carrier. So bad that my gear oil looked like espresso spiked with a bottle of anti seize. the bearing seat was trashed, more than an 1/8" total removed from the diameter.
I had to turn some bar stock to fit snug within the inner splines of the carrier that host the axle shafts. This was the best way I could think of to ensure that both of my bearing seats were running true. I then tapped a 1/2"-13 thread in the end to snug up a "cap" to hold the diff while I turned back the gnarly bearing seat to create a clean surface to apply my new sleeve for the OE bearing.
I only had to turn about .007 off the seat to get a good surface. I then made a sleeve out of some 4140 with .0015 press fit on ID, .001 PF on OD for the bearing. I kept it cool, and it pressed together better than I expected.
Cost me $25 for new bearings and cups, 3 hours of no beer drinking on a Saturday night but was totally worth it. I assembled it when i got home from the shop. A little RTV and a day of rest later I was filling the pig up with some new gear oil and on the road again. I expect it to last, but I do plan an axle swap or a serious beef up soon no matter what.
