92 2 door XJ budget daily/weekend wheeler build
#16
Newbie
Join Date: Sep 2016
Location: Concord, CA
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0L
I wish this healed quicker haha. It's been a lot worse than anyone expected unfortunately, so just been stuck inside! Next week assuming this is all fine and dandy, I'll start posting updates. Will clean the rear axle and get the parts I need.
But that's fair enough! My bike has been sitting without use for most of the year. Just don't have the time it seems, just been put on the backburner for now which is too bad. Love riding still.
But yeah you should definitely remove the rear swaybar and make quick discos for the front! You'll be glad you did.
But that's fair enough! My bike has been sitting without use for most of the year. Just don't have the time it seems, just been put on the backburner for now which is too bad. Love riding still.
But yeah you should definitely remove the rear swaybar and make quick discos for the front! You'll be glad you did.
Yes yes, should be quick and easy to get the rear off, probably get that done this weekend, and researching the front.
#17
Junior Member
Thread Starter
Join Date: Sep 2016
Location: Comox, BC, Canada
Posts: 63
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L
Yeah the rear sway bar shouldn't be an issue to get off. The front I've seen some designs people did, but not sure how well the design functions. Give it a shot anyways! Worth it.
#18
CF Veteran
Join Date: Jan 2010
Location: St Augustine Florida
Posts: 1,087
Likes: 0
Received 1 Like
on
1 Post
Year: 1992
Model: Cherokee
Engine: 4.0
Love the build... I have a 92 2dr 5speed love it as my DD .. yet to take off road lol.. We got it more for a 4x4 suv but it came with 4.5 Rubicon superflex and other upgrades with only a few hundred miles on them.. including tires and rims... dude blew #6 piston .. all said and done.. 145k mile junkyard motor new rad and other stuff $2300 in it.. that was 7 years ago 70k miles later ... 2 doors just look so much cooler.. but the lack of that 2nd post for the 4door does make the body twist more .. why you popped the window out... now the fact you are 19 ? had 2 years.. ? wow.. you did real good for your first ride..
#19
Junior Member
Thread Starter
Join Date: Sep 2016
Location: Comox, BC, Canada
Posts: 63
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L
Love the build... I have a 92 2dr 5speed love it as my DD .. yet to take off road lol.. We got it more for a 4x4 suv but it came with 4.5 Rubicon superflex and other upgrades with only a few hundred miles on them.. including tires and rims... dude blew #6 piston .. all said and done.. 145k mile junkyard motor new rad and other stuff $2300 in it.. that was 7 years ago 70k miles later ... 2 doors just look so much cooler.. but the lack of that 2nd post for the 4door does make the body twist more .. why you popped the window out... now the fact you are 19 ? had 2 years.. ? wow.. you did real good for your first ride..
But yeah thank you! I've done pretty good for the 2 years I've had it just working a very part time job through highschool and college welding course! Had some lucky deals and such that got me here. But I enjoy it a ton, and lots more to come!
#20
Seasoned Member
#21
CF Veteran
Join Date: Jan 2010
Location: St Augustine Florida
Posts: 1,087
Likes: 0
Received 1 Like
on
1 Post
Year: 1992
Model: Cherokee
Engine: 4.0
When I was researching jeeps before we bought ours.. I read that on one of these sites.. not sure where.. but.. it made sense to me.. it is an extra support going to roof and being a unibody they flex anyway..
#22
Junior Member
Thread Starter
Join Date: Sep 2016
Location: Comox, BC, Canada
Posts: 63
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L
Well finally got the new U-joints done in the front driveshaft. Was rolling around without one for quite a while haha. Here's what cane out of one of the caps lol
Well this cap sure as hell wasn't getting any grease! Rust and dry as a bone, gross.
Aaaand no more bluetooth driveshaft!
3 new MOOG HD U-joints
Also, for the bumper, these are the brackets I'm starting with! Will be welding with these and C-channel for the bumper itself.

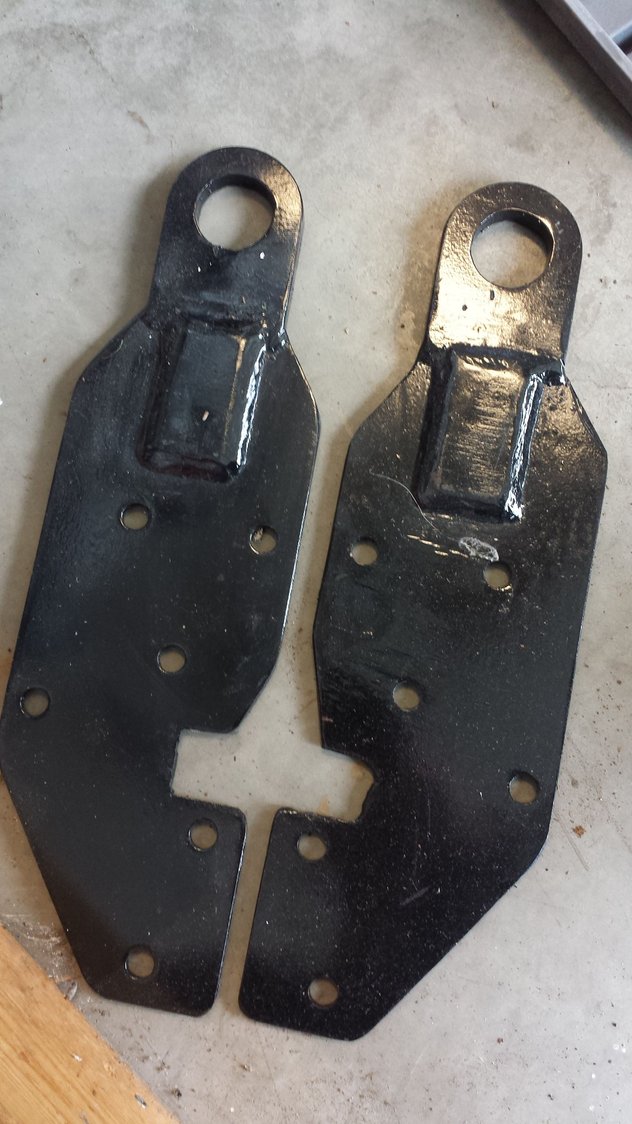

Frame tie in/recovery brackets that I'm going to build my bumper off of.
Well this cap sure as hell wasn't getting any grease! Rust and dry as a bone, gross.
Aaaand no more bluetooth driveshaft!
3 new MOOG HD U-joints
Also, for the bumper, these are the brackets I'm starting with! Will be welding with these and C-channel for the bumper itself.
Frame tie in/recovery brackets that I'm going to build my bumper off of.
#23
Junior Member
Thread Starter
Join Date: Sep 2016
Location: Comox, BC, Canada
Posts: 63
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L
Picked up some parts for the C8.25 end to be swapped in.
Drum brake "rebuild" kit, wheel cylinders, and brake shoes. Also pinion seal.
Then a 87-96 Dodge Dakota rear brake softline, they're much longer, about 6" I think it is. So no stretched brake line! Raybestos part #BH38576.
Also waiting on 2X passenger side E-brake cables from a 91-95 Jeep YJ, waaay longer than stock XJ ones, and mine are stretched bad. So those will be super nice to have.
Parts for C8.25
Drum brake "rebuild" kit, wheel cylinders, and brake shoes. Also pinion seal.
Then a 87-96 Dodge Dakota rear brake softline, they're much longer, about 6" I think it is. So no stretched brake line! Raybestos part #BH38576.
Also waiting on 2X passenger side E-brake cables from a 91-95 Jeep YJ, waaay longer than stock XJ ones, and mine are stretched bad. So those will be super nice to have.
Parts for C8.25
#24
CF Veteran
Tires
Yup haha already have the axles! Out of a 98 XJ, rear is a LSD 29 spline 8.25, which is what I was looking for, and 3.55s. Front is just a HP D30. Rear doesn't need much to get going. The front needs axle shafts/seals+ujoints, hubs, brakes, steering I'll figure out haha. But I'm planning to have them in before winter hits, having the LSD for the ****ty snow/ice driving will be nice!
Plus I'll be getting 33s when I find a nice deal and/or trade my 31s. I think I'll go to 33s at least, they'd help for the wheeling. 31s just are a bit too small and like to drop down in between rocks, where a 33x12.5 wouldn't have. Went out for a run with the local Jeep club, and boy my poor XJ got abused. Open diffs and 31s didn't cut it.
Plus I'll be getting 33s when I find a nice deal and/or trade my 31s. I think I'll go to 33s at least, they'd help for the wheeling. 31s just are a bit too small and like to drop down in between rocks, where a 33x12.5 wouldn't have. Went out for a run with the local Jeep club, and boy my poor XJ got abused. Open diffs and 31s didn't cut it.
#25
CF Veteran
Quote; 4BangerDanger:
Is this true? I have a 2 door 5 speed myself and this is the first I've heard of the 2 door body twisting more. I suppose that makes sense... I just never thought about it.
I believe that. My XJ even with everything Disconnected My XJ when articulating You can barely open the hatch to get to recovery gear, let alone close it until it is on level ground. I really need to do mid stiffeners when I can.
#26
CF Veteran
Quote; 4BangerDanger:
Is this true? I have a 2 door 5 speed myself and this is the first I've heard of the 2 door body twisting more. I suppose that makes sense... I just never thought about it.
I believe that. My XJ even with everything Disconnected My XJ when articulating You can barely open the hatch to get to recovery gear, let alone close it until it is on level ground. I really need to do mid stiffeners when I can.
#27
Junior Member
Thread Starter
Join Date: Sep 2016
Location: Comox, BC, Canada
Posts: 63
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L
Quote; 4BangerDanger:
Is this true? I have a 2 door 5 speed myself and this is the first I've heard of the 2 door body twisting more. I suppose that makes sense... I just never thought about it.
I believe that. My XJ even with everything Disconnected My XJ when articulating You can barely open the hatch to get to recovery gear, let alone close it until it is on level ground. I really need to do mid stiffeners when I can.
Is this true? I have a 2 door 5 speed myself and this is the first I've heard of the 2 door body twisting more. I suppose that makes sense... I just never thought about it.
I believe that. My XJ even with everything Disconnected My XJ when articulating You can barely open the hatch to get to recovery gear, let alone close it until it is on level ground. I really need to do mid stiffeners when I can.
#28
Junior Member
Thread Starter
Join Date: Sep 2016
Location: Comox, BC, Canada
Posts: 63
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L
Picked up the E-brake cables today for the rear end. 2x 91-95 Jeep YJ passenger side cables.
Another thing to add to the list. Going to do this once I get my axles in. Just easier doing setting it up and everything with it installed. Raising the rear axle side shock mounts, the way done in this forum. Then run probably Bilstein 5100s for a 3" lift (21.85" extended, 8.17" travel. Should be a good setup, and I can add BPEs if I want a bit more)
http://www.jeepforum.com/forum/f11/r...e-pics-736516/
Another thing to add to the list. Going to do this once I get my axles in. Just easier doing setting it up and everything with it installed. Raising the rear axle side shock mounts, the way done in this forum. Then run probably Bilstein 5100s for a 3" lift (21.85" extended, 8.17" travel. Should be a good setup, and I can add BPEs if I want a bit more)
http://www.jeepforum.com/forum/f11/r...e-pics-736516/
#30
Junior Member
Thread Starter
Join Date: Sep 2016
Location: Comox, BC, Canada
Posts: 63
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L
Oh funny haha, I'm up in Comox! I got the axles from down in Nanaimo. Down there every once in a while, plan to come wheeling down there once I've got the axles under it and done a few other things.
