Transmission Shifting Issues
#1
Newbie
Thread Starter
Join Date: Jun 2015
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0L i6
Transmission Shifting Issues
Howdy - new user here and was hoping someone can help me with an issue I'm having with my '88 Cherokee Laredo XJ 4.0L i6 Automatic 4x4
The issue seems to be with the automatic transmission shifting (AW4 4-speed).
When accelerating from a dead stop in "D", there is almost no power, like it's stuck in 3rd gear, and I have to floor it to get going.
But if I accelerate from a dead stop while in "1-2", it takes off no problem, and I can then shift up to "3", and finally up to "D" as I get going.
I having limited knowledge of transmissions, but it seems like it is getting stuck in 3rd, and not shifting back down to 1st or 2nd?
I have tried adjusting the throttle valve cable using my FSM proceedure, but it had no effect.
Any thoughts? Thanks!
The issue seems to be with the automatic transmission shifting (AW4 4-speed).
When accelerating from a dead stop in "D", there is almost no power, like it's stuck in 3rd gear, and I have to floor it to get going.
But if I accelerate from a dead stop while in "1-2", it takes off no problem, and I can then shift up to "3", and finally up to "D" as I get going.
I having limited knowledge of transmissions, but it seems like it is getting stuck in 3rd, and not shifting back down to 1st or 2nd?
I have tried adjusting the throttle valve cable using my FSM proceedure, but it had no effect.
Any thoughts? Thanks!
#2
Seasoned Member
Join Date: Sep 2013
Location: Santa Clara, CA
Posts: 280
Likes: 0
Received 1 Like
on
1 Post
Year: 1987
Model: Cherokee
Engine: 4.0
That sounds to me like your TCM (Transmission Control Module) is not functioning. This could be due to one or more issues.
*Fuse is blown
*TCM is bad
*Wiring is bad
The fuse is located under the dashboard on the passenger side. (its a single fuse holder attached on the harness) The TCU is also located in the vicinity and if you follow the harness, it should lead you to it mounted on the inside of the lower dashboard.
There is also a fusible link feeding the TCM as well, but it also feeds the engine controls. So if your engine is running fine, I wouldn't suspect it.
*Fuse is blown
*TCM is bad
*Wiring is bad
The fuse is located under the dashboard on the passenger side. (its a single fuse holder attached on the harness) The TCU is also located in the vicinity and if you follow the harness, it should lead you to it mounted on the inside of the lower dashboard.
There is also a fusible link feeding the TCM as well, but it also feeds the engine controls. So if your engine is running fine, I wouldn't suspect it.
Last edited by SuperRA; 06-06-2015 at 04:30 PM.
#4
CF Veteran
Join Date: May 2012
Location: Lost in the wilds of Virginia
Posts: 7,964
Received 952 Likes
on
767 Posts
Year: 1998 Classic (I'll get it running soon....) and 02 Grand
Model: Cherokee (XJ)
Engine: 4.0
Really weird!
What's this? A new thread from a newbie with a sensible, informative title. No groveling, either. ("Oh, PLEASE HELP!")
Not only that, but it was followed by a clear, readable, lucid explanation of the problem, along with information on the troubleshooting you've done.
Really, really weird!
Not only that, but it was followed by a clear, readable, lucid explanation of the problem, along with information on the troubleshooting you've done.
Really, really weird!
#5
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
What's this? A new thread from a newbie with a sensible, informative title. No groveling, either. ("Oh, PLEASE HELP!")
Not only that, but it was followed by a clear, readable, lucid explanation of the problem, along with information on the troubleshooting you've done.
Really, really weird!
Not only that, but it was followed by a clear, readable, lucid explanation of the problem, along with information on the troubleshooting you've done.
Really, really weird!

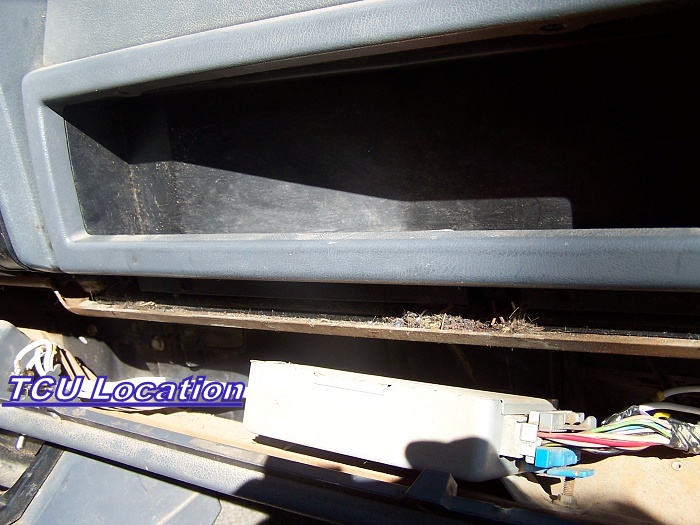

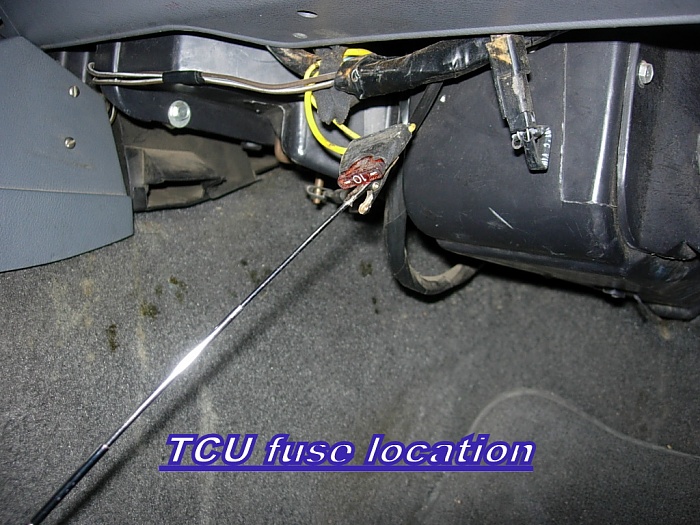

Now I'll muddy the waters with a photo showing said fuse and TCU.
libengan: Might also perform Tip 10 in my Pink Link below.
#6
Newbie
Thread Starter
Join Date: Jun 2015
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0L i6
So I finally had the time today to get the lower dash off and access the TCU.
At least by appearances, the TCU actually appears to be the newest part on my Jeep (I've only had the Cherokee for about a month now). The wires and connector all look good and clean, and the circuit inside the TCU is clean enough to see my reflection in. I also checked the fuse, and it's also intact. In fact I checked all fuses, and they're all good.
I haven't done the trans plug refreshing like cruiser54 suggested, but I'll be getting some electrical contact cleaner this week and hit that too.
All that to say, I took it all out and put it back together, and still having the shifting issues.
Any other thoughts? One other thing that I'm noticing is getting worse is the engine goes into a high idle speed every time I throw it into park (but not necessarily when I start it up). I'm wondering if this is a throttle issue, and if it isn't also affecting the shifting?
At least by appearances, the TCU actually appears to be the newest part on my Jeep (I've only had the Cherokee for about a month now). The wires and connector all look good and clean, and the circuit inside the TCU is clean enough to see my reflection in. I also checked the fuse, and it's also intact. In fact I checked all fuses, and they're all good.
I haven't done the trans plug refreshing like cruiser54 suggested, but I'll be getting some electrical contact cleaner this week and hit that too.
All that to say, I took it all out and put it back together, and still having the shifting issues.
Any other thoughts? One other thing that I'm noticing is getting worse is the engine goes into a high idle speed every time I throw it into park (but not necessarily when I start it up). I'm wondering if this is a throttle issue, and if it isn't also affecting the shifting?
#7
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Do my Tip #1. You'll see why these symptoms may have one thing in common. The engine dipstick grounds.
Trending Topics
#8
Newbie
Thread Starter
Join Date: Jun 2015
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0L i6
Ok so I completed tip #1 (including adding the new grounds), and tip #10 cleaning out the electrical connectors.
Still having the same shifting issues. Any other thoughts?
Thanks.
Still having the same shifting issues. Any other thoughts?
Thanks.
#9
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Your TPS may be shot.....
Couple of ways to go about this.
Clean both it's plugs and do Tip 5 at this point. Needs to be done anyway.
Couple of ways to go about this.
Clean both it's plugs and do Tip 5 at this point. Needs to be done anyway.
#10
Newbie
Thread Starter
Join Date: Jun 2015
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0L i6
Ok so I cleaned the TPS plugs, and did the sensor ground test, and was getting readings like 1-4 Kohm. That is Kilo ohms by the way. And it would change every time I wiggled the C101 connector. So I did the C101 connector elimination in tip #27.
After the C101 elimination, I am now getting resistance more in the range I shoud (I think) Sensor Ground Test now shows 1.1ohm to 1.5ohm resistance
I also did the TPS test just for kicks and found the following:
Flat 3-wire connector:
.57V(OUTPUT) / 4.83V(REFERENCE) = 11.8%
Square connector:
4V(OUTPUT) / 4.53V(REFERENCE) = 88.3%
So in conclusion, the sensor ground test showed that the resistance is a little high.
The TPS values are a bit off too, but I need to clean my throttle body before trying to adjust it.
Would these things be enough to make the TCU flat out not function?
Thanks!
After the C101 elimination, I am now getting resistance more in the range I shoud (I think) Sensor Ground Test now shows 1.1ohm to 1.5ohm resistance
I also did the TPS test just for kicks and found the following:
Flat 3-wire connector:
.57V(OUTPUT) / 4.83V(REFERENCE) = 11.8%
Square connector:
4V(OUTPUT) / 4.53V(REFERENCE) = 88.3%
So in conclusion, the sensor ground test showed that the resistance is a little high.
The TPS values are a bit off too, but I need to clean my throttle body before trying to adjust it.
Would these things be enough to make the TCU flat out not function?
Thanks!
#11
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Ok so I cleaned the TPS plugs, and did the sensor ground test, and was getting readings like 1-4 Kohm. That is Kilo ohms by the way. And it would change every time I wiggled the C101 connector. So I did the C101 connector elimination in tip #27.
After the C101 elimination, I am now getting resistance more in the range I shoud (I think) Sensor Ground Test now shows 1.1ohm to 1.5ohm resistance
I also did the TPS test just for kicks and found the following:
Flat 3-wire connector:
.57V(OUTPUT) / 4.83V(REFERENCE) = 11.8%
Square connector:
4V(OUTPUT) / 4.53V(REFERENCE) = 88.3%
So in conclusion, the sensor ground test showed that the resistance is a little high.
The TPS values are a bit off too, but I need to clean my throttle body before trying to adjust it.
Would these things be enough to make the TCU flat out not function?
Thanks!
After the C101 elimination, I am now getting resistance more in the range I shoud (I think) Sensor Ground Test now shows 1.1ohm to 1.5ohm resistance
I also did the TPS test just for kicks and found the following:
Flat 3-wire connector:
.57V(OUTPUT) / 4.83V(REFERENCE) = 11.8%
Square connector:
4V(OUTPUT) / 4.53V(REFERENCE) = 88.3%
So in conclusion, the sensor ground test showed that the resistance is a little high.
The TPS values are a bit off too, but I need to clean my throttle body before trying to adjust it.
Would these things be enough to make the TCU flat out not function?
Thanks!
Clean the throttle body and adjust the TPS on the Engine side. Flat 3 wire connector.
Then, check the Trans side connector and report back.
#12
Newbie
Thread Starter
Join Date: Jun 2015
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0L i6
I happened to be at a salvage yard this weekend, and found a transmission control module on a '92 cherokee. Just for kicks, I swapped it out with mine, and now it's shifting in automatic again!
I think the shifting could be smoother, so I do intend to clean the throttle body and fix the sensor issues, but at least it's shifting again!
Thanks again for your help!
I think the shifting could be smoother, so I do intend to clean the throttle body and fix the sensor issues, but at least it's shifting again!
Thanks again for your help!
#13
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
I happened to be at a salvage yard this weekend, and found a transmission control module on a '92 cherokee. Just for kicks, I swapped it out with mine, and now it's shifting in automatic again!
I think the shifting could be smoother, so I do intend to clean the throttle body and fix the sensor issues, but at least it's shifting again!
Thanks again for your help!
I think the shifting could be smoother, so I do intend to clean the throttle body and fix the sensor issues, but at least it's shifting again!
Thanks again for your help!
