Since I can't work on my Jeep I decided to pimp my Xbox 360 >

Since I can't work on my Jeep I decided to pimp my Xbox 360

Since I can't work on my Jeep I decided to pimp my Xbox 360

Old 06-29-2010, 09:37 PM
  #1
Seasoned Member
Thread Starter

MadMike's Avatar

Join Date: Mar 2010
Location: North, Ga
Posts: 388
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0
Default Since I can't work on my Jeep I decided to pimp my Xbox 360

I got board and decided to tear my 360 to pieces. I ordered a few parts for it also. I bought a clear wind tunnel, clear fans with red LEDs and red LED strips to light up the inside.

So I tore it apart and cut a hole in the top.



I also decided to cut the DVD drive lid.


Well I painted the xbox, the face plate, the hard drive, the DVD drive cover and the top and bottom covers all satin black.
(still wet)







Since I'm putting red LEDs in it I decided to paint the front and rear XBOX360 red.(bad pics)



All thats left after the paint dries, is get a piece of plexi glass for the window and wait for the parts to come in. I really hope it works after I get it back together.

I'll update the pics as I get more work done to it.
MadMike is offline
Old 06-29-2010, 11:27 PM
  #2
Seasoned Member

ZaKingHunter's Avatar

Join Date: Mar 2010
Location: Milwaukee, WI
Posts: 352
Likes: 0
Received 0 Likes on 0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0L I6 H.O.
Default

Sweet. I love seeing custom work on computers and consoles. Can't wait to see it finished and lit up.
ZaKingHunter is offline
Old 06-30-2010, 04:03 AM
  #3
CF Veteran

91 limited owner's Avatar

Join Date: Aug 2009
Location: Oshkosh, WI.
Posts: 4,118
Likes: 0
Received 0 Likes on 0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0
Default

Mine gets the "Ring of Death" about every year, and a half. So I don't do too much to it. Play it while I still have it.
91 limited owner is offline
Old 06-30-2010, 05:39 AM
  #4
Seasoned Member
Thread Starter

MadMike's Avatar

Join Date: Mar 2010
Location: North, Ga
Posts: 388
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0
Default

I've gotten the Red Ring of Death too. Microsoft replaced it with this xbox but the warranty ran out on it a year ago so if it does RRoD then I'm going to get the new Xbox 360 slim.
MadMike is offline
Old 06-30-2010, 05:54 AM
  #5
CF Veteran

superj's Avatar

Join Date: Feb 2010
Location: corpus christi, texas
Posts: 1,885
Likes: 0
Received 0 Likes on 0 Posts
Year: 1987
Model: Cherokee
Engine: 4.0 I6
Default

both of my halo editions got the red ring. microsoft repaired them for free. then the video card went out on one and they fixed it for 90 bucks. they covered the red rings even though mine were way out of warranty and one i was not the original owner for. i also have a regular white model and i am going to send it to them here soon because its having a hard time reading disks. they take care of you when you call them and send your unit back. it comes home like a brand new one plus they give you a free xboxlive card.

i love my xbox 360s
superj is offline
Old 06-30-2010, 06:12 AM
  #6
CF Veteran

91 limited owner's Avatar

Join Date: Aug 2009
Location: Oshkosh, WI.
Posts: 4,118
Likes: 0
Received 0 Likes on 0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0
Default

Originally Posted by MadMike View Post
I've gotten the Red Ring of Death too. Microsoft replaced it with this xbox but the warranty ran out on it a year ago so if it does RRoD then I'm going to get the new Xbox 360 slim.
Same here, I just replaced it last year. And the last time, I had one fixed. It came back with parts missing. I was pissed!
91 limited owner is offline
Old 06-30-2010, 07:13 AM
  #7
Senior Member

tactical40cal's Avatar

Join Date: Jan 2010
Location: South Louisiana
Posts: 846
Likes: 0
Received 0 Likes on 0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
Default

i'm actually kind of curious as to how this turns out
tactical40cal is offline
Old 06-30-2010, 11:23 AM
  #8
CF Veteran

superj's Avatar

Join Date: Feb 2010
Location: corpus christi, texas
Posts: 1,885
Likes: 0
Received 0 Likes on 0 Posts
Year: 1987
Model: Cherokee
Engine: 4.0 I6
Default

Originally Posted by 91 limited owner View Post
Same here, I just replaced it last year. And the last time, I had one fixed. It came back with parts missing. I was pissed!

it came back without the face plate? that is normal because you are supposed to remove it send the unit in, wonder how i found out? same way you did. since they couldn't find my original one though, they sent me a brand new halo green faceplate, which is cool.
superj is offline
Old 06-30-2010, 11:44 AM
  #9
Seasoned Member

ZaKingHunter's Avatar

Join Date: Mar 2010
Location: Milwaukee, WI
Posts: 352
Likes: 0
Received 0 Likes on 0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0L I6 H.O.
Default

Didn't you know the RRoD was an achievement? See here: http://www.thinkgeek.com/tshirts-app...x/gaming/c3da/
ZaKingHunter is offline
Old 06-30-2010, 04:33 PM
  #10
Seasoned Member
Thread Starter

MadMike's Avatar

Join Date: Mar 2010
Location: North, Ga
Posts: 388
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0
Default

Some updated pics its not done yet and the top is just sitting on it. (sorry for the crappy cell phone pics its my only camera right now.)
Top cover

Bottom cover

Hard drive
MadMike is offline
Old 07-03-2010, 10:00 AM
  #11
Seasoned Member
Thread Starter

MadMike's Avatar

Join Date: Mar 2010
Location: North, Ga
Posts: 388
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0
Default

Got the glass mounted on the top cover last night. I cheated a bit on it and used some acrylic instead of plexiglass. I found the acrylic picture holders at wal-mart for $2.50 and cut them to size with my dremel. I hot glued them in and it came out great. I'm still waiting on my LED fan, LED lights and clear wind tunnel to come in(they should be here today).



MadMike is offline
Old 07-03-2010, 10:10 AM
  #12
Senior Member

BigVaz's Avatar

Join Date: Jan 2008
Location: Kenosha, Wi
Posts: 551
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0L I-6
Default

Wow, thats pretty cool looking. I'll probably end up doing the same thing if one of mine break & it's out of warranty.
BigVaz is offline
Old 07-03-2010, 10:30 AM
  #13
Seasoned Member
Thread Starter

MadMike's Avatar

Join Date: Mar 2010
Location: North, Ga
Posts: 388
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0
Default

thanks I'm pretty happy with it. Now if the USPS would hurry up and deliver the final parts I can be done with it and clean the inside really good. I'm amazed at the amount of dust on the inside of it. Should run a lot cooler with the whisper fans and no dust built up on the inside.

specs on the new fan
The new Talismoon Whisper Xbox 360 Replacement Fan moves 58% more air than the original, yet is 7% quieter.
DC Power: 12V (at 5v)- Original Fan: 12V (at 5v)

Current: 160mA - Original Fan: 250mA

Speed: 4100RPM - Original Fan: 4600RPM
Air flow: 46CFM - Original Fan: 29CFM

Loudness: 38d(B)a - Original Fan: 41d(B)a
MadMike is offline
Old 07-06-2010, 05:28 PM
  #14
Seasoned Member
Thread Starter

MadMike's Avatar

Join Date: Mar 2010
Location: North, Ga
Posts: 388
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0
Default Its done

I got the rest of the parts I ordered today and installed them in my xbox.
The last 2 parts I needed. The clear wind tunnel and the red LED lights.


Her she is all done and lit up.



MadMike is offline
Old 07-09-2010, 01:32 AM
  #15
Senior Member

EMAXX620's Avatar

Join Date: Dec 2009
Location: Southeast Michigan
Posts: 598
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: i-6 4.0
Default

nice, i like how it came out. the red on the XBOX360 looks neat
heres a few things ive done, let me know what you think

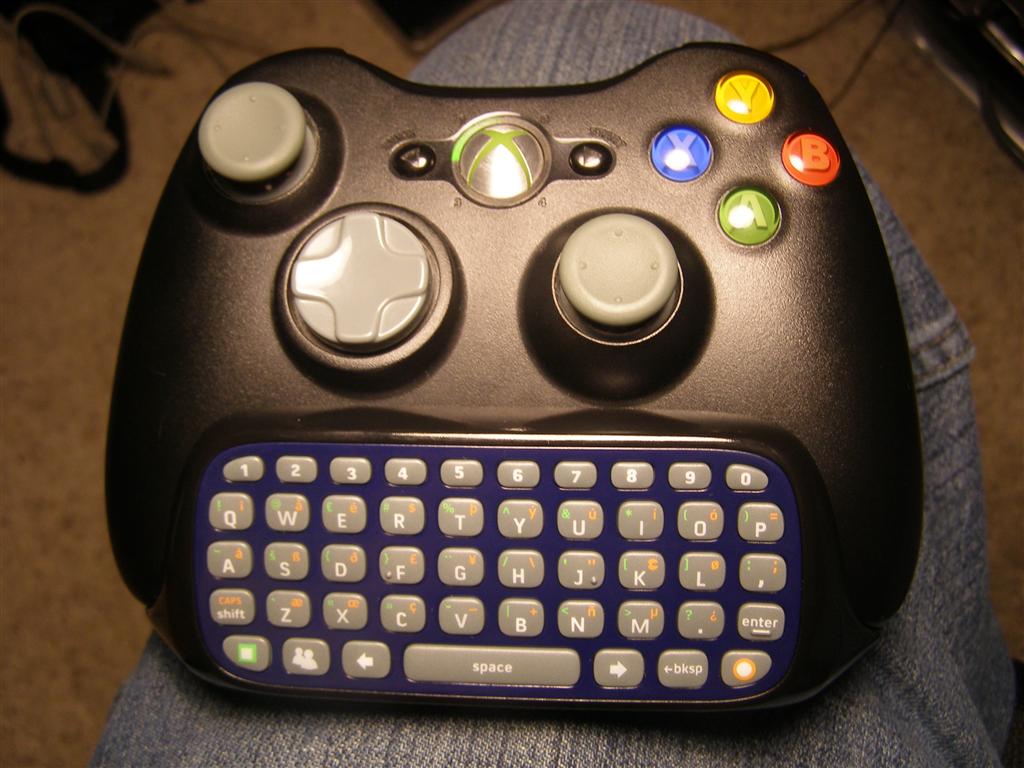

^^360 chatpad

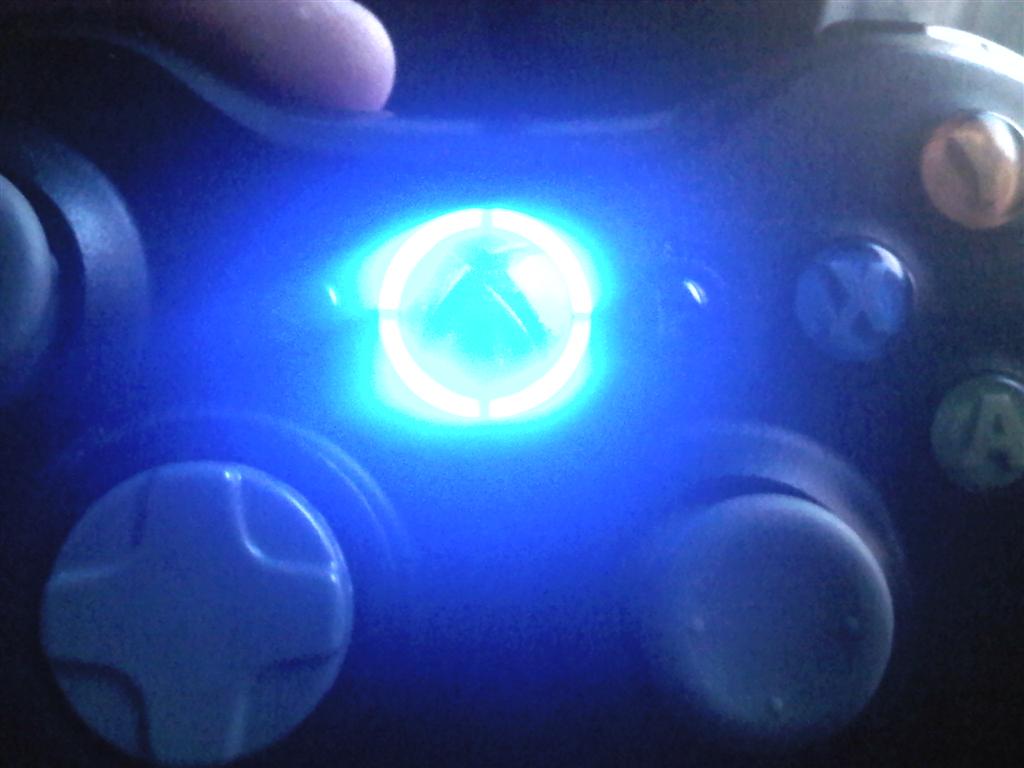

^^controler lights, not as bright as they appear in this pic, thank god

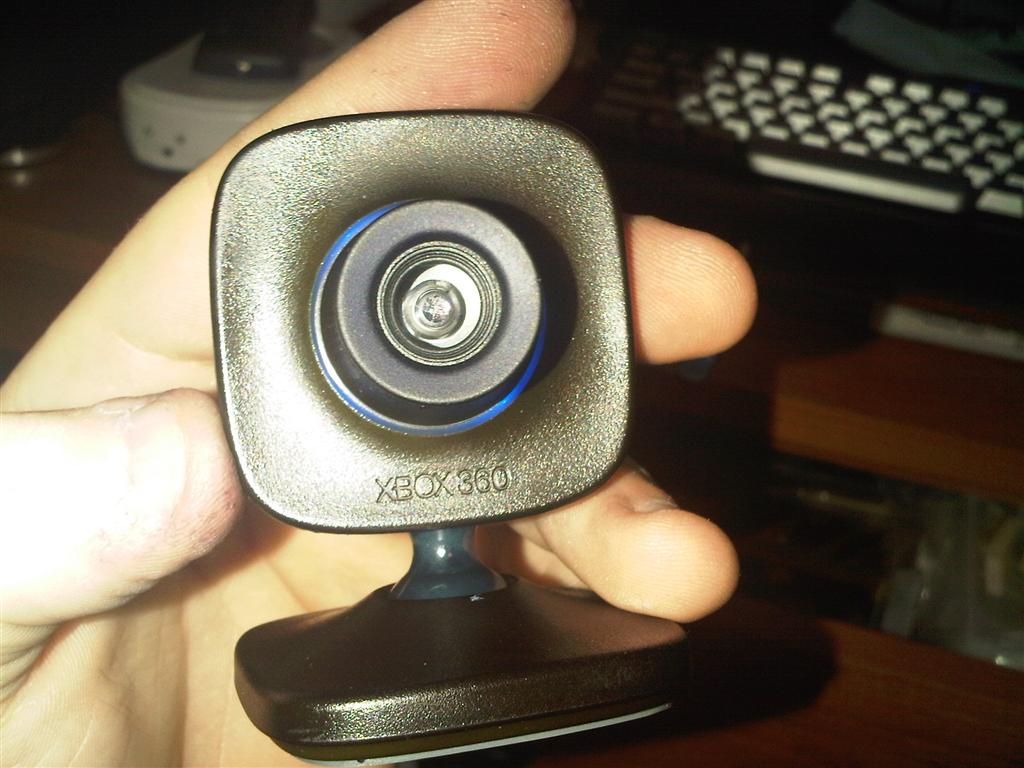

^^vision cam, dyed black and blue (not painted) and blue lights

^^a mistake... lol


^^ 0603 SMD LED's used for the light mods

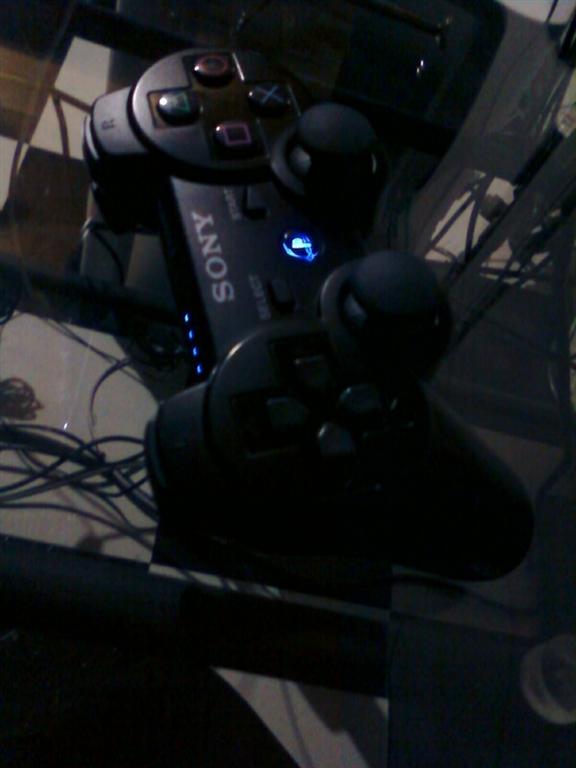

^^my friends PS3 controler that i swapped the LEDs out and added one under the PS button


also did a memory card, and a few ring of lights (ROL) boards, i dont have a pic of my favorite ROL board right now, but its blue on the outside and a white LED in the middle.
EMAXX620 is offline
