Fuse Tap or Bus Bar?

Reply



Thread Tools Search this Thread
Old 11-16-2017, 04:38 PM   #1
Some guy with a toolbox
Thread Starter

Ozark Mountain Ranger's Avatar

Join Date: Apr 2017
Location: China Lake, CA
Posts: 185

View Ozark Mountain Ranger's Photo Album My Photos
Year: 1996
Model: Cherokee(XJ)
Engine: 4.0L HO
Default Fuse Tap or Bus Bar?

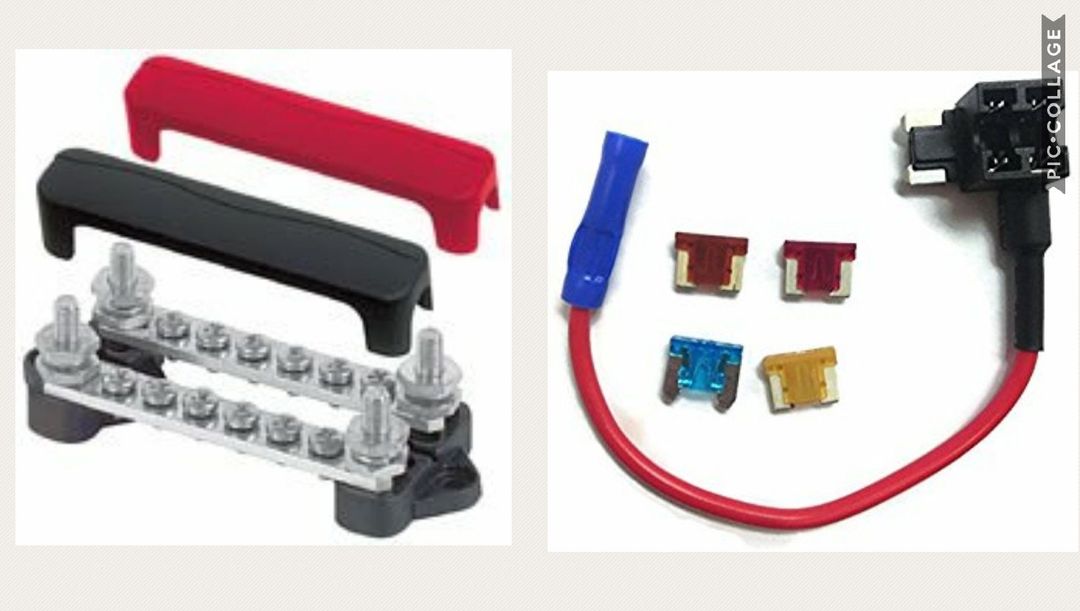

Bus bars and Fuse tap

Hi all,
I have been planning a lot of electrical work on my cherokee for a while now. I was working on my wiring diagram and got to thinking which I should use, a Bus Bar with inline fuses, or a fuse tap?

This guy I work with (hardcore wrangler unlimited, prob $100k build) is an advocate for fuse taps, even for his winch.

The cop cars I work on (2011+ Imapalas) all have bus bars and inline fuses from the factory.

Which is better?

Last edited by Ozark Mountain Ranger; 11-16-2017 at 04:41 PM.
Ozark Mountain Ranger is offline   Reply With Quote
Old 11-17-2017, 03:34 PM   #2
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,899

View freegdr's Photo Album My Photos
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

Bus bar here direct feed from battery post. Each accesory has its own feed.
freegdr is offline   Reply With Quote
Old 11-21-2017, 11:05 AM   #3
Junior Member

NEcherokee's Avatar

Join Date: Apr 2017
Posts: 37

View NEcherokee's Photo Album My Photos
Model: Cherokee
Default

I used a fuse tap for my CB it works well and I don't get too much noise from it. I could see fuse taps being an issue once you start adding multiple taps, its already very crowded in there from one tap.
NEcherokee is offline   Reply With Quote
Old 12-07-2017, 01:30 AM   #4
CF Veteran

Waynerd's Avatar

Join Date: Jan 2015
Location: North canaan Connecticut
Posts: 1,048

View Waynerd's Photo Album My Photos
Year: 01, 99, 98, 98,98
Model: Cherokee
Engine: 4.0
Default

There are fused bus bars in boxes available. Amazon is one place to find them. Ones with covers and labels. I would much rather do something like that. Cleaner and more professional looking.
Waynerd is offline   Reply With Quote
Old 03-27-2018, 06:04 AM   #5
Seasoned Member

Join Date: Nov 2013
Posts: 461

View skife's Photo Album My Photos
Model: Cherokee
Default

This is probably my favorite modification I've done.
with this, I built a switch box for the inside of my XJ out of a pic lighting/switch gangbox from Menards, it's ugly, but effective. All of my accessories are on relays, all of the relays are fused, the only wire I had to run into the cab of my Jeep was a couple foot length of cat5e, the cat5e has 1 wire powered to light the 4 LEDs in my switch panel, the rest just ground the relays in the fuse box.
https://youtu.be/aG37G9dBXv8

Last edited by skife; 03-27-2018 at 06:09 AM.
skife is offline   Reply With Quote
Old 05-20-2018, 11:14 PM   #6
Some guy with a toolbox
Thread Starter

Ozark Mountain Ranger's Avatar

Join Date: Apr 2017
Location: China Lake, CA
Posts: 185

View Ozark Mountain Ranger's Photo Album My Photos
Year: 1996
Model: Cherokee(XJ)
Engine: 4.0L HO
Default

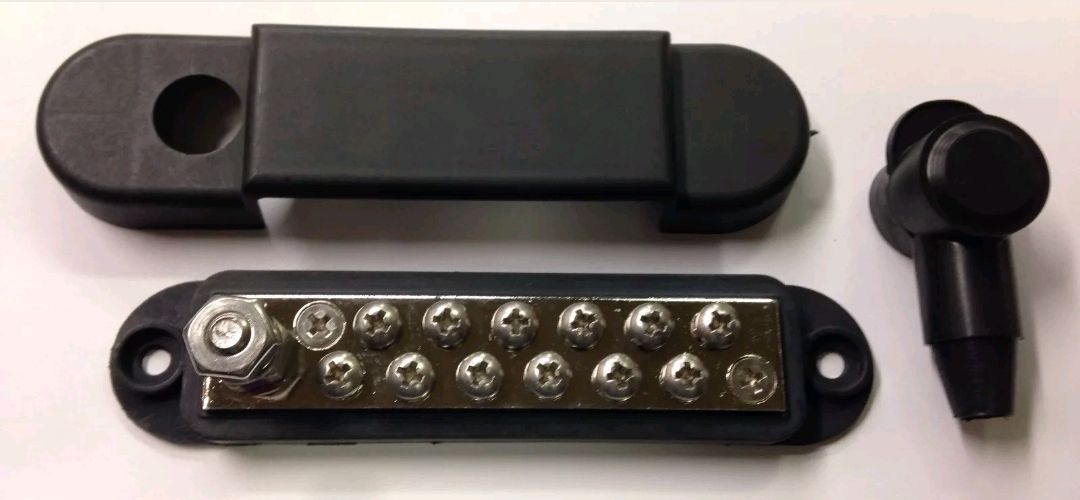

I ended up getting these. Fuse tap was fine when I had 1 thing custom wired, but now I will be having multiple.

Ozark Mountain Ranger is offline   Reply With Quote
Old 05-25-2018, 07:36 PM   #7
CF Veteran

Join Date: May 2012
Location: Lost in the wilds of Virginia
Posts: 4,202

View BlueRidgeMark's Photo Album My Photos
Year: 1994 (parting out) and 1998 Classic (under restoration)
Model: Cherokee (XJ)
Engine: 4.0
Default

Much mo' bettah.
BlueRidgeMark is offline   Reply With Quote
Old 06-08-2018, 11:02 PM   #8
CF Veteran

JeepingDan's Avatar

Join Date: Apr 2009
Location: CT.
Posts: 18,720

View JeepingDan's Photo Album My Photos
Year: 88
Model: Comanche
Engine: 4.0 HO
Default

Fuse tap for 1 or 2 things. A bar if you have multiple accessories. I did a bar on my old jeep and it worked fine.
JeepingDan is offline   Reply With Quote
Old 06-11-2018, 04:52 PM   #9
Member

Freerider15's Avatar

Join Date: Nov 2012
Location: Fort Collins, Colorado
Posts: 226

View Freerider15's Photo Album My Photos
Year: 1998 (buggy), 1998 DD
Model: Cherokee
Default

Quote:
Originally Posted by Ozark Mountain Ranger View Post
This guy I work with (hardcore wrangler unlimited, prob $100k build) is an advocate for fuse taps, even for his winch.
Must not have built it himself.

Fuse taps are "ok" for small amperage things, but are really for someone too lazy to do it right.

Not sure how he's using it on his winch, since fuse taps would be too small.

Bus Bars and fuse holders like those above are the way to go.

Bus bars are a little better for several higher draw items.

Otherwise feeding one power to the fuse block and going from there is much cleaner and easier to deal with.
Freerider15 is offline   Reply With Quote
Old 06-14-2018, 08:59 PM   #10
CF Veteran

Join Date: May 2012
Location: Lost in the wilds of Virginia
Posts: 4,202

View BlueRidgeMark's Photo Album My Photos
Year: 1994 (parting out) and 1998 Classic (under restoration)
Model: Cherokee (XJ)
Engine: 4.0
Default

Quote:
Originally Posted by Freerider15 View Post
Must not have built it himself.

Fuse taps are "ok" for small amperage things, but are really for someone too lazy to do it right.

Not sure how he's using it on his winch, since fuse taps would be too small.

Bus Bars and fuse holders like those above are the way to go.

Bus bars are a little better for several higher draw items.

Otherwise feeding one power to the fuse block and going from there is much cleaner and easier to deal with.

Yep. All of the above.
BlueRidgeMark is offline   Reply With Quote
Old 06-17-2018, 12:47 PM   #11
Some guy with a toolbox
Thread Starter

Ozark Mountain Ranger's Avatar

Join Date: Apr 2017
Location: China Lake, CA
Posts: 185

View Ozark Mountain Ranger's Photo Album My Photos
Year: 1996
Model: Cherokee(XJ)
Engine: 4.0L HO
Default

Quote:
Originally Posted by Freerider15 View Post
Must not have built it himself.

Fuse taps are "ok" for small amperage things, but are really for someone too lazy to do it right.

Not sure how he's using it on his winch, since fuse taps would be too small.

Bus Bars and fuse holders like those above are the way to go.

Bus bars are a little better for several higher draw items.

Otherwise feeding one power to the fuse block and going from there is much cleaner and easier to deal with.
Its self built, but He's more of a parts changer.

I went with them because I want a central point where I'm not disassembling half the body panels to change a fuse, or just disconnect a lead.
Ozark Mountain Ranger is offline   Reply With Quote
