Old 12-12-2016, 09:43 PM   #61
HUH? WHAT?
Thread Starter

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 17,160

View XJwonders's Photo Album My Photos
Default

Quote:
Originally Posted by bad_idea
I envy the shop. Do yourself a favor and build a small shed, 8x10 or so, for lawn equipment and storage of wife's junk. Don't let her in the shop or she will take it over. I learned that from my father's example, poor bastard has a 2.5 car garage and can barely fit a YJ in it.
Haha there's already a big shed on the property.The tale of SuperMJ-photo574.jpg
XJwonders is online now   Reply With Quote
Old 12-12-2016, 09:51 PM   #62
HUH? WHAT?
Thread Starter

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 17,160

View XJwonders's Photo Album My Photos
Default

So last few weeks was really busy for me, fixing up the place. Etc.

Moved the parts MJ into the garage, took the axle out & prep it. Ordered new e-cables for it. Brakes look good, everything else look good.
Attachment 297190Attachment 297191Attachment 297192

I eyeballed the pinion angle and copied it on the other axle. I even used the angle finder on the iPhone to try and make it little more uniform. Since most of my tools were still in storage, I needed a way to hold the perches on it.
Attachment 297189. Well this works. LOL

Drove the other MJ in, and started disconnecting the axle. Only things left is to disconnect the brake soft hose.Attachment 297187

Traded a set of cables for a 1996 brake booster, master cylinder, and prop valve along with 97+ windshield washer bottle.
Attachment 297188
XJwonders is online now   Reply With Quote
Old 12-12-2016, 10:00 PM   #63
CF Veteran

SatiricalHen's Avatar

Join Date: Oct 2013
Location: Greenville, SC
Posts: 3,413

View SatiricalHen's Photo Album My Photos
Default

Quote:
Originally Posted by XJwonders
So last few weeks was really busy for me, fixing up the place. Etc.

Moved the parts MJ into the garage, took the axle out & prep it. Ordered new e-cables for it. Brakes look good, everything else look good.
Attachment 297190Attachment 297191Attachment 297192

I eyeballed the pinion angle and copied it on the other axle. I even used the angle finder on the iPhone to try and make it little more uniform. Since most of my tools were still in storage, I needed a way to hold the perches on it.
Attachment 297189. Well this works. LOL

Drove the other MJ in, and started disconnecting the axle. Only things left is to disconnect the brake soft hose.Attachment 297187

Traded a set of cables for a 1996 brake booster, master cylinder, and prop valve along with 97+ windshield washer bottle.
Attachment 297188
Pictures don't work for me
SatiricalHen is offline   Reply With Quote
Old 12-12-2016, 10:01 PM   #64
CF Veteran

Mr. Pink's Avatar

Join Date: Oct 2012
Location: Capac, Mi
Posts: 1,125

View Mr. Pink's Photo Album My Photos
Default

Neal none of the attachments work in your most recent post.
Mr. Pink is offline   Reply With Quote
Old 12-12-2016, 10:03 PM   #65
HUH? WHAT?
Thread Starter

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 17,160

View XJwonders's Photo Album My Photos
Default

Ugh. This blow
XJwonders is online now   Reply With Quote
Old 12-13-2016, 04:12 AM   #66
Senior Member

Join Date: Apr 2016
Location: Virginia Beach, VA
Posts: 881

View bad_idea's Photo Album My Photos
Default

Quote:
Originally Posted by XJwonders View Post
Haha there's already a big shed on the property.
Lucky Bastard! Good find.
bad_idea is offline   Reply With Quote
Old 12-13-2016, 09:14 PM   #67
HUH? WHAT?
Thread Starter

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 17,160

View XJwonders's Photo Album My Photos
Default

So let's hope the pics work this time

Today I disconnected the brake line, pulled the axle out.
The tale of SuperMJ-photo590.jpg

Checked the brakes. Well there aren't any.
The tale of SuperMJ-photo496.jpgThe tale of SuperMJ-photo748.jpg

Moved the 8.25 under the axle. Pinion angle is perfect, width perfect, and I set it down on the pins.

XJ rear brake line terminate just front of the axle. MJ rear brake line terminate at the rear of the axle. The way the flexible hose was bolted on the axle wouldn't work. I simply unbolted the solid brake lines then turned it around & hooked it back up again.

The tale of SuperMJ-photo37.jpgThe tale of SuperMJ-photo236.jpg

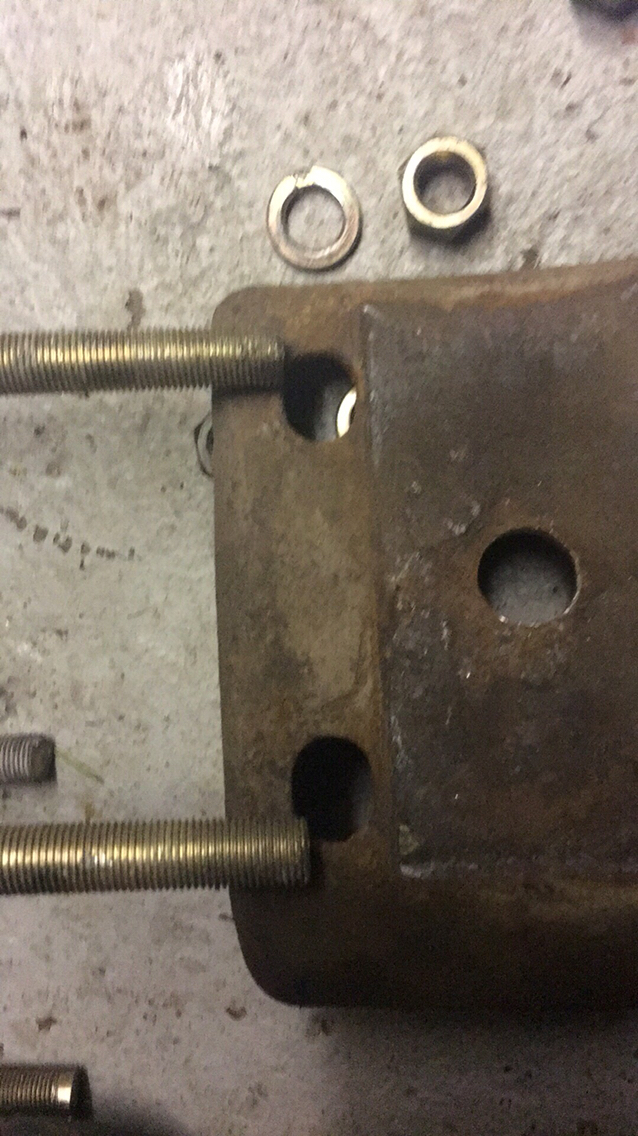

The 8.25 u bolts are too wide to fit through the spring plates so I had to unbolt the bottom shock nuts. I ll bring them to work in the morning and slot the holes.

The tale of SuperMJ-photo305.jpg

I also pulled the driveshaft because when I unbolted the yoke straps, the caps fell out and there's no needles at all. The trunions on the yoke was eaten up. I ll have to press the joint out at work and put in new one also.

That's it for now
XJwonders is online now   Reply With Quote
Old 12-13-2016, 09:17 PM   #68
HUH? WHAT?
Thread Starter

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 17,160

View XJwonders's Photo Album My Photos
Default

So hopefully in the other post where my pics didn't work. I'm gonna post it here instead of trying to edit that post. Because the app is being a retard.

The tale of SuperMJ-photo89.jpgThe tale of SuperMJ-photo883.jpgThe tale of SuperMJ-photo105.jpgThe tale of SuperMJ-photo235.jpgThe tale of SuperMJ-photo579.jpgThe tale of SuperMJ-photo872.jpgThe tale of SuperMJ-photo940.jpg

Pics aren't in order but hopefully y'all can figure it out
XJwonders is online now   Reply With Quote
Old 12-13-2016, 11:07 PM   #69
CF Veteran

cleenrob's Avatar

Join Date: Jul 2012
Location: San Antonio, TX
Posts: 3,942

View cleenrob's Photo Album My Photos
Default

i dig the 97+ washer bottle. was plug in play in my 96
cleenrob is offline   Reply With Quote
Old 12-13-2016, 11:22 PM   #70
CF Veteran

Mr. Pink's Avatar

Join Date: Oct 2012
Location: Capac, Mi
Posts: 1,125

View Mr. Pink's Photo Album My Photos
Default

yes Neal they work lol. and looks good, i need to get the trans replaced on my Zj then i can start bolting parts on...
Mr. Pink is offline   Reply With Quote
Old 12-14-2016, 12:56 PM   #71
Someone stole my badge!

Basslicks's Avatar

Join Date: Mar 2011
Location: Ocala, FL
Posts: 8,561

View Basslicks's Photo Album My Photos
Default

Looks like some great progress, Neal.
Basslicks is offline   Reply With Quote
Old 12-18-2016, 03:39 PM   #72
HUH? WHAT?
Thread Starter

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 17,160

View XJwonders's Photo Album My Photos
Default

Today I finally welded hangers on the 2.5 exhaust tailpipe and secured the entire exhaust to the convertor. No more zip ties LOL.

Took it out for 1/2 hour spin around town. It feels like a new truck, save for occasional rough idle whenever at a ref light. I think it's probably due from a broken knock sensor that I cracked when I installed the exhaust manifold.

Also. There's been hard clunks/thumps whenever letting go of gas pedal when I drove it home from New Jersey. After noticing that the needle bearings were absent from the driveshaft ujoint, I went ahead and replaced it.

No more clunks. It also brakes better now. However it still take a second longer than it did for my XJ. Probably due to inferior brake booster design. Well good thing I got the 96 booster. That ll happen soon.

The rear proportioning valve linkage fell off before I had it inspected and they said I gotta either eliminate it or find a replacement. I didn't find one yet and I don't feel like making a DIY linkage. Since I'm gonna upgrade the booster eventually, I ll also use a XJ proportioning valve later on. For now I hung up the proportioning valve with a wire. Hopefully they won't notice it this time. Ha.
XJwonders is online now   Reply With Quote
Old 12-19-2016, 07:28 AM   #73
Someone stole my badge!

Basslicks's Avatar

Join Date: Mar 2011
Location: Ocala, FL
Posts: 8,561

View Basslicks's Photo Album My Photos
Default

Isn't the knock sensor on the other side of the block from the exhaust manifold?
Basslicks is offline   Reply With Quote
Old 12-19-2016, 07:35 AM   #74
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 33,925

View cruiser54's Photo Album My Photos
Default

Quote:
Originally Posted by Basslicks View Post
Isn't the knock sensor on the other side of the block from the exhaust manifold?
No.
Attached Thumbnails
The tale of SuperMJ-knock-sensor.jpg
cruiser54 is offline   Reply With Quote
Old 12-19-2016, 10:01 AM   #75
Someone stole my badge!

Basslicks's Avatar

Join Date: Mar 2011
Location: Ocala, FL
Posts: 8,561

View Basslicks's Photo Album My Photos
Default

Quote:
Originally Posted by cruiser54 View Post
No.
Oh.... lol... well that certainly sucks!
