T and A, Softcore MJ build

Old 12-05-2018, 01:15 PM
  #31
CF Veteran

SatiricalHen's Avatar

Join Date: Oct 2013
Location: Greenville, SC
Posts: 5,324
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

Originally Posted by XJwonders
Comanches never had external slave originally lol
Oops, didn't know what year they swapped to external, but basically 5 speed with a 4.0 that's external slave works for bell housing and then you just need the front bearing retainer.
SatiricalHen is online now
Old 12-05-2018, 01:29 PM
  #32
HUH? WHAT?

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 19,033
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

Originally Posted by mikebravo
From my research XJ and MJ 88-93 were internal slaves and 94-01 XJ were external slave. Not sure on YJ or TJ.
Correct. All 94+ ax15's were external slave regardless of vehicle.
XJwonders is offline
Old 12-06-2018, 06:37 PM
  #33
Member
Thread Starter

Join Date: Nov 2016
Location: KTUL
Posts: 148
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Got the bellhousing! Need to find a bearing retainer.

​​​​​​
mikebravo is online now
Old 12-08-2018, 04:10 PM
  #34
Member
Thread Starter

Join Date: Nov 2016
Location: KTUL
Posts: 148
Year: 1996
Model: Cherokee
Engine: 4.0
Default





Got the aw4 out!

Went to the junk yard this morning and got a 96 xj master cylinder and booster. Also got a rear disk set from a Liberty for the D44
mikebravo is online now
Old 12-09-2018, 03:05 PM
  #35
Member
Thread Starter

Join Date: Nov 2016
Location: KTUL
Posts: 148
Year: 1996
Model: Cherokee
Engine: 4.0
Default

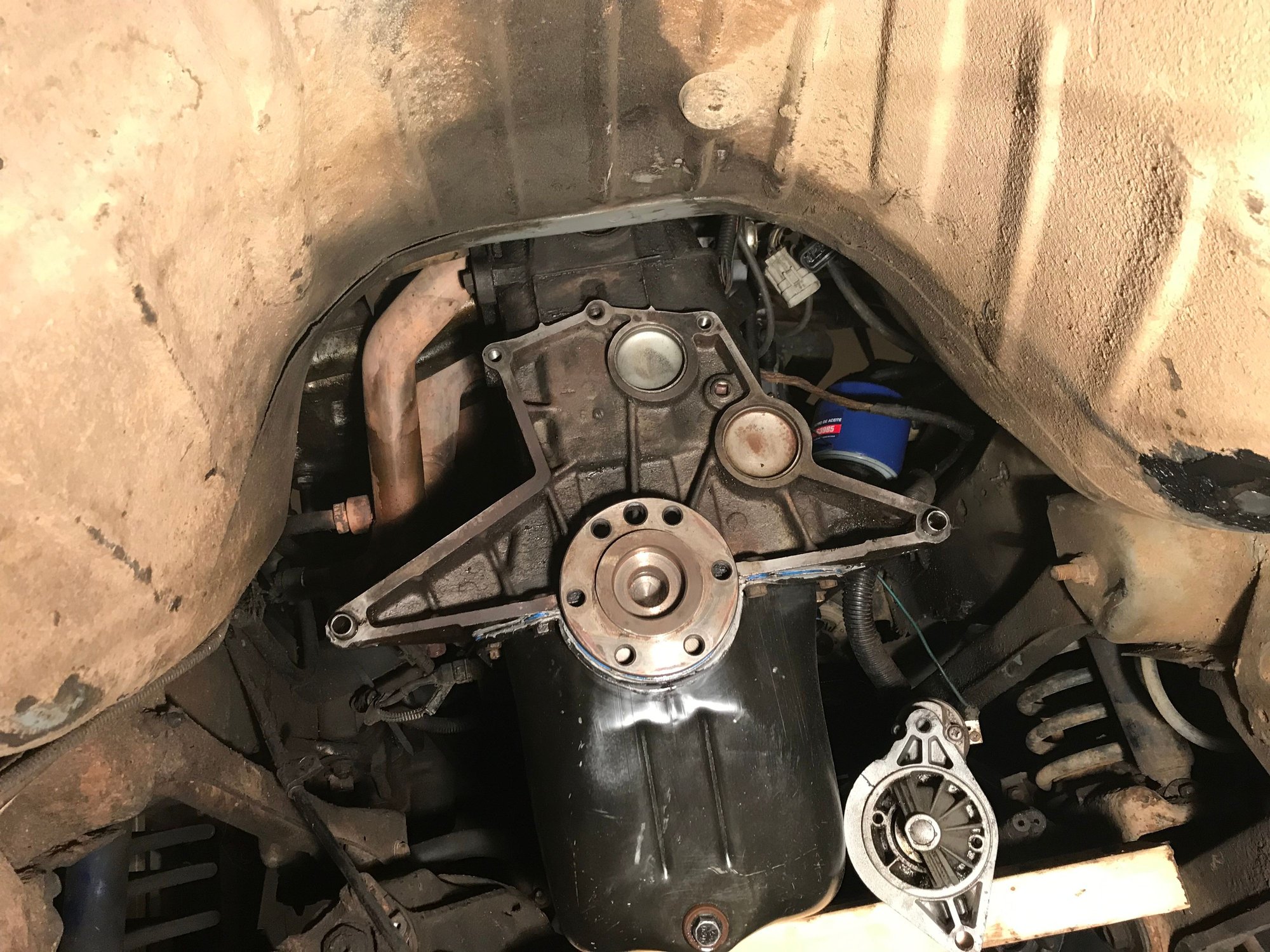

Got the engine cleaned up and ready to go for the ax15, just need the bellhousing and clutch parts to show up.

Also got the pedals, new brake master and drilled the firewall for the clutch master.






Last edited by mikebravo; 03-31-2019 at 07:27 AM.
mikebravo is online now
Old 03-06-2019, 05:14 AM
  #36
Member
Thread Starter

Join Date: Nov 2016
Location: KTUL
Posts: 148
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Got the disk brakes on the D44. Also got some parts. Should have the ax15 swap done shortly.






mikebravo is online now
Old 03-07-2019, 08:18 PM
  #37
Member
Thread Starter

Join Date: Nov 2016
Location: KTUL
Posts: 148
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Tore down the axle shafts. Wire wheeled them and put a coat of tractor paint on them. Also pressed in the seal and installed the new bearing retainer.






mikebravo is online now
Old 03-10-2019, 08:38 PM
  #38
Member
Thread Starter

Join Date: Nov 2016
Location: KTUL
Posts: 148
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Rebuilt the shifter.





Finshed the axle shafts added extended studs for the disk brakes used dorman 610-449





Installed the bellhousing and drilled the trans to clock the t-case up. I found out that the input shaft on the older ax15s is smaller so I had to order the correct pilot bearing.




mikebravo is online now
Old 03-11-2019, 08:39 PM
  #39
Member
Thread Starter

Join Date: Nov 2016
Location: KTUL
Posts: 148
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Got the pilot bearing and installed the clutch. If you’re doing an external slave conversion to an internal slave ax15 the pilot bearing that comes with the clutch kit will not work. I used national P/N: FC-66426

I overlooked the clutch pivot fork spring so I ordered one and will get the trans installed once that comes in.




mikebravo is online now
Old 03-15-2019, 08:39 PM
  #40
Member
Thread Starter

Join Date: Nov 2016
Location: KTUL
Posts: 148
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Slowly but surely getting there. Only able to work an hour or so each night. Got the trans in. Hopefully test drive this weekend




mikebravo is online now
Old 03-22-2019, 09:00 PM
  #41
Member
Thread Starter

Join Date: Nov 2016
Location: KTUL
Posts: 148
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Got the ax15 swap done. She drives just doesn’t have any brakes right now,lol. I bought a 231 from a 96’ xj with 100k miles from the junkyard as mine was a 21 spline input. I had to swap the output shafts and now I have a nice t case. I did the valve cover gasket and the cruiser54 mod also.









mikebravo is online now
Old 03-22-2019, 09:09 PM
  #42
Member
Thread Starter

Join Date: Nov 2016
Location: KTUL
Posts: 148
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Now on to the fun part!

D44 rear SOA
3 link front with home brew crossmember, 1.25” heims, 2” DOM links.
1.5” DOM steering with gm TRE
Trac bar 1.5” DOM with 7/8” heims
Frame stiffeners front and mid
2x6 sliders





mikebravo is online now
Old 03-23-2019, 05:15 PM
  #43
CF Veteran

unidentifiedbomb's Avatar

Join Date: May 2011
Location: DE
Posts: 5,547
Year: 1988
Model: Cherokee
Engine: I6 4.0
Default

Nice!
unidentifiedbomb is offline
Old 03-23-2019, 06:28 PM
  #44
Member
Thread Starter

Join Date: Nov 2016
Location: KTUL
Posts: 148
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Took the Dana 35 out and gave it away on Facebook within 15 minutes it was gone, lol.

Took the leaf springs apart, wire wheeled them, scotchbrite with acetone and a coat of tractor paint.

Installed the axle shafts and brakes on the Dana 44. Hope to get the leafs back together and set the pinion angle tonight.









Last edited by mikebravo; 03-23-2019 at 08:23 PM.
mikebravo is online now
Old 03-23-2019, 06:37 PM
  #45
Member
Thread Starter

Join Date: Nov 2016
Location: KTUL
Posts: 148
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Originally Posted by unidentifiedbomb View Post
Nice!
Thanks man
mikebravo is online now
