[FS] Premium Battery Cable / Alternator Kits - 2 AWG 240 AMP Dual Layer ETFE 200*C Rated - Jeep Cherokee Forum

Go Back  Jeep Cherokee Forum > Buy, Sell, Trade > Accessories
Premium Battery Cable / Alternator Kits - 2 AWG 240 AMP Dual Layer ETFE 200*C Rated >

[FS] Premium Battery Cable / Alternator Kits - 2 AWG 240 AMP Dual Layer ETFE 200*C Rated

Accessories Post any Cherokee accessories you wish to sell.
Sponsored by:
Sponsored by:

[FS] Premium Battery Cable / Alternator Kits - 2 AWG 240 AMP Dual Layer ETFE 200*C Rated

Reply




Old 03-12-2018, 12:11 AM
  #1
Member
Thread Starter

Join Date: Nov 2016
Location: Idaho
Posts: 161
Year: 1990
Model: Cherokee(XJ)
Engine: 4.0
Default 2 AWG Premium BATTERY CABLE KITS - 240 AMP NICKEL PLATED



Built To Last A Lifetime!




For use with upgraded alternators in the most extreme environments.
Built to be the very best in quality, reliability, and performance.


Conservatively Rated For 100 - 240 AMP Alternators.


Made To order:
1987 - 1990 Jeep Cherokee XJ / Comanche MJ / Wagoneer XJ 4.0L I6 or 2.46
1991 - 1996 Jeep Cherokee XJ / Comanche MJ 4.0L I6
1997 - 2001 Jeep Cherokee XJ 4.0L I6


Custom Orders Available. Please Contact For Details & Pricing

Made To Order XJ & MJ Kits $397.99 $195.00 Shipped

Now Until September 1st



Full Upgrade Kit Includes:

Battery+ To Starter Motor Cable
Battery+ To PDC Cable
Battery+ To MEGA Fuse Holder

MEGA Fuse Holder To Alternator Cable
MIL-SPEC A52425-1 (Positive) Battery Terminal + Terminal Boot

MIL-SPEC A52425-2 (Negative) Battery Terminal + Terminal Boot
Battery- To Engine Block Cable
Battery- To Fenderwell Cable
Engine Block To Firewall Cable
Littelfuse SN Series MEGA / ANL Fuse Holder
1 MEGA Fuse (Please Specify Rating)

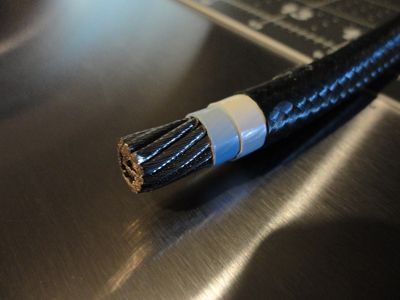

Raychem MIL-SPEC 22759/41 Cable - 2 Gauge (665 Strand) Nickel-Plated Copper
- Nickel Plated Copper Conductors Resist Corrosion In The Most Extreme Conditions
- Dual Layer Cross Linked ETFE (Ethylene Tetrafluoroethylene) Jacket Insulates And Prevents Damage To Inner Conductors
- Treated Aromatic Polyamide Braid Outer Shield Resists Heat, Chemicals, And Abrasion
- Operating Temperature: -85*F to 392*F

This wire is commonly used in avionics due to superior resistance to abrasion,
fire, smoke, solvents, chemicals, and moisture.

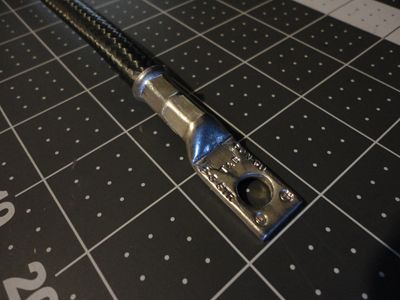

Heavy Duty Thomas & Betts Long Barrel Lugs
- Tin Plated Pure Copper Lugs Maintain A Solid Connection
- Flared Barrel Reduces Strain On Conductors
- 12 Ton Double Crimped Long Barrel Lugs Hold Cables Securely Without Soldering
- Windowless Lugs Lock Out Moisture Preventing Corrosion And Premature Failure

The lugs are intentionally double crimped, and are not soldered.
These cables can operate at 392*F. Solder melts at 370*F!

Heavy Duty Silicone Heat Shrink Tubing
- Operating Temperature: -76*F to 392*F
- Silicone Adhesive Locks Out Moisture And Chemicals
- Flexible Tubing Reduces Strain On Conductors

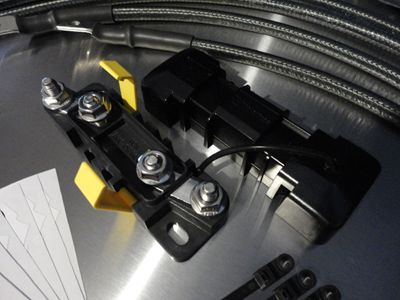

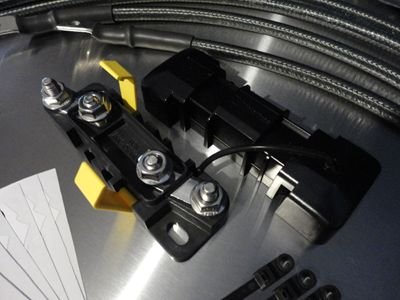

Littelfuse MEGA SN 500A Fuse Block
- Waterproof Fuse Compartment Provides Superior Protection Against Fuse Corrosion
- Ignition Protected For Installation In A Battery Box
- Stainless Steel Hardware And Tin Plated Pure Copper For Corrosion Protection








Very Limited Quantity Available
Paypal Only - Contact Via Private Message



Last edited by craigjacob1; 08-17-2018 at 09:46 PM.
craigjacob1 is offline
Reply With Quote
Old 03-13-2018, 08:19 AM
  #2
TIME TO GET SCHWIFTY

roninofako's Avatar

Join Date: Feb 2011
Location: Apple Valley, CA
Posts: 12,482
Year: 97
Model: Cherokee
Engine: 4.6 stroker
Default

At $400, it better come with an automatic ******* machine

Good luck
roninofako is offline
Reply With Quote
Old 03-13-2018, 08:30 AM
  #3
☠CF-K9 Unit☠

Dumajones's Avatar

Join Date: Apr 2012
Location: Alaska
Posts: 5,059
Year: 2000 sport
Engine: New 4.0l from s&j engines
Default

But they come with a cool carry case Roni..

Last edited by Dumajones; 03-13-2018 at 10:15 AM.
Dumajones is offline
Reply With Quote
Old 03-13-2018, 08:43 AM
  #4
Member
Thread Starter

Join Date: Nov 2016
Location: Idaho
Posts: 161
Year: 1990
Model: Cherokee(XJ)
Engine: 4.0
Default

Originally Posted by roninofako View Post
At $400, it better come with an automatic ******* machine

Good luck

Well the wire alone is over $14. per foot. The kicker is that you have to buy a 500' roll.

This is more of an offer to anybody who may be interested in this kind of quality.

I wanted a set. They didn't exist, so I made them. The price is fair.
craigjacob1 is offline
Reply With Quote
Old 03-13-2018, 08:54 AM
  #5
TIME TO GET SCHWIFTY

roninofako's Avatar

Join Date: Feb 2011
Location: Apple Valley, CA
Posts: 12,482
Year: 97
Model: Cherokee
Engine: 4.6 stroker
Default

So I just gotta ask, are you a legitimate business? There's a reason I'm asking.
roninofako is offline
Reply With Quote
Old 03-13-2018, 05:10 PM
  #6
CF Veteran

Martlor13's Avatar

Join Date: Feb 2016
Location: Northern New Mexico
Posts: 3,491
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Originally Posted by craigjacob1 View Post
Well the wire alone is over $14. per foot. The kicker is that you have to buy a 500' roll.

This is more of an offer to anybody who may be interested in this kind of quality.

I wanted a set. They didn't exist, so I made them. The price is fair.
differrence between these and xj wonders kits? Legit question, i dont know the cable industry haha.
Martlor13 is offline
Reply With Quote
Old 03-13-2018, 05:56 PM
  #7
Member

Freerider15's Avatar

Join Date: Nov 2012
Location: Fort Collins, Colorado
Posts: 231
Year: 1998 (buggy), 1998 DD
Model: Cherokee
Default

The kit looks great, but:

- At $400, you're at over twice the XJ crowd's budget. I'd cater more to JK and JL crowd. I'd say higher end clientele (like trophy trucks, racing teams, etc.), but they're already going to have their own means.

- The carrying case, while "cool", doesn't really matter to most anyone. Once you get it installed...that's it. A cardboard box like most others, would suffice.

- While the cable is very impressive, it's going to be far overkill for most (when compared to regular fine strand 2AWG).

Very nice stuff, just a bit off the mark in markets.
Freerider15 is offline
Reply With Quote
Old 03-13-2018, 10:21 PM
  #8
Member
Thread Starter

Join Date: Nov 2016
Location: Idaho
Posts: 161
Year: 1990
Model: Cherokee(XJ)
Engine: 4.0
Default

Originally Posted by roninofako View Post
So I just gotta ask, are you a legitimate business? There's a reason I'm asking.

No, this is just a hobby for me. Funded out of pocket.


Originally Posted by Martlor13 View Post
differrence between these and xj wonders kits? Legit question, i dont know the cable industry haha.
Most custom kits are made with welding wire.
Welding wire is fine strand copper.
The jacket of welding wire is EPDM rubber (ethylene propylene diene monomer).
EPDM is usually rated for either -40*C to 90*C or -50*C to 105*C temperatures.
It is actually incompatible with most hydrocarbons, such as oils, kerosene, aromatic, gasoline, as well halogenated solvents.


These kits are 665 strands of 30 gauge wire. Each of the 665 strands is individually nickel plated. Nickel is extremely resistant to corrosion (if moisture even manages to break the seal).

The jacket is two separate cross linked ETFE (Ethylene tetrafluoroethylene) layers. Sometimes ETFE wire called Tefzel. It is common in race cars.
ETFE will operate at -65*C to 200*C. The melting point is much higher.
It has chemical, electrical, and high-energy radiation resistance properties. It corrosion resistant as well.



Originally Posted by Freerider15 View Post
The kit looks great, but:

- At $400, you're at over twice the XJ crowd's budget. I'd cater more to JK and JL crowd. I'd say higher end clientele (like trophy trucks, racing teams, etc.), but they're already going to have their own means.

- The carrying case, while "cool", doesn't really matter to most anyone. Once you get it installed...that's it. A cardboard box like most others, would suffice.

- While the cable is very impressive, it's going to be far overkill for most (when compared to regular fine strand 2AWG).

Very nice stuff, just a bit off the mark in markets.

Many of the custom cable sets available are $170 - $200. There is really $20 - $30 worth of welding wire in those sets.
These are in the $400. range, but the profit margin is significantly lower.

I do totally agree though. These are a bit expensive for most XJ owners. Ideally they are for desert racing, search & rescue, and arctic vehicles.
They are available for other vehicles as well, and will be listed for sale elsewhere.
They will still remain here for sale until the stock is gone.
There are only 20 sets available (total).

The case is actually a real gun case.
I personally took a hit here, and decided to include them at a very low cost. I can ship them in a box, but it will only be a 3% discount.


Either way I'm glad you appreciate them!



*Just a heads up the $200.00 discount is still up for grabs.

Last edited by craigjacob1; 03-14-2018 at 02:00 AM.
craigjacob1 is offline
Reply With Quote
Old 03-14-2018, 10:51 PM
  #9
TIME TO GET SCHWIFTY

roninofako's Avatar

Join Date: Feb 2011
Location: Apple Valley, CA
Posts: 12,482
Year: 97
Model: Cherokee
Engine: 4.6 stroker
Default

Thanks for your response, I'll let it ride.

Good luck with sales.
roninofako is offline
Reply With Quote
Old 03-16-2018, 01:16 PM
  #10
Newbie

Join Date: May 2017
Posts: 14
Model: Cherokee
Default

Make it a $300 discount and Iíll buy one.
Repose is offline
Reply With Quote
Old 08-17-2018, 09:47 PM
  #11
Member
Thread Starter

Join Date: Nov 2016
Location: Idaho
Posts: 161
Year: 1990
Model: Cherokee(XJ)
Engine: 4.0
Default

Glacier Premium Battery Cable Kits Are On Sale

Now Until September 1st

$195.00 Shipped

craigjacob1 is offline
Reply With Quote
