What brand lift do I have?

Old 03-14-2017, 12:26 PM
  #1
Member
Thread Starter

Join Date: Jun 2016
Location: Florida
Posts: 206
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Default What brand lift do I have?

My Jeep came with a lift and the previous owner did not say which brand he used. I measured from the front center wheel hub to the fender flare and it looks to be a three inch lift (20 inches). I found a Rough Country sticker between the seats while cleaning it this weekend, so it looks like it may be that. The front springs and shocks (all 4) are silver.

Also, it looks like the rear leafs are going bad. They measured 19.75 inch from center wheel hub to flare, with the left rear side sitting lower (about 0.25 inch) than the right. They should be sitting at 20.5 inches, correct?

How can I tell if an add-a-leaf was installed vs. a full leaf pack?
Are there markings on the springs or shocks that I can find to determine the brand of lift?

I'll upload some pics when I get home from work.
fijicorey25 is offline
Old 03-14-2017, 12:28 PM
  #2
CF Veteran

LACK's Avatar

Join Date: Oct 2016
Location: CA
Posts: 1,524
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default

Pictures are worth a thousands words.
LACK is offline
Old 03-14-2017, 12:39 PM
  #3
Member
Thread Starter

Join Date: Jun 2016
Location: Florida
Posts: 206
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Originally Posted by LACK View Post
Pictures are worth a thousands words.
My bad, I'll upload some in a few hours when I get home.
fijicorey25 is offline
Old 03-14-2017, 12:44 PM
  #4
CF Veteran

LACK's Avatar

Join Date: Oct 2016
Location: CA
Posts: 1,524
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default

Originally Posted by fijicorey25 View Post
My bad, I'll upload some in a few hours when I get home.
No problem
LACK is offline
Old 03-14-2017, 05:01 PM
  #5
Member
Thread Starter

Join Date: Jun 2016
Location: Florida
Posts: 206
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Default

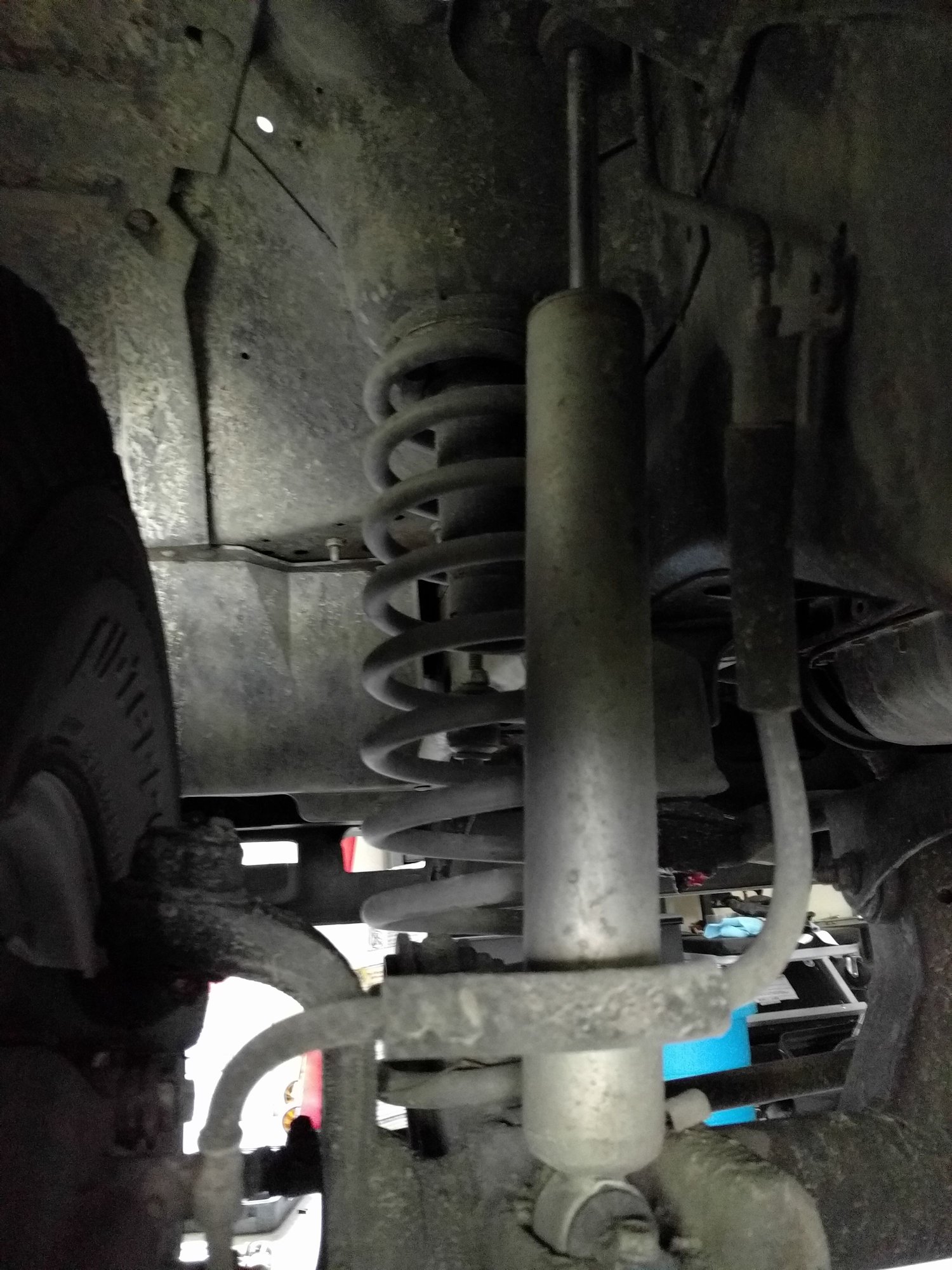

Pics. The shock is from the rear. See how the springs look different from right to left?





fijicorey25 is offline
Old 03-14-2017, 08:00 PM
  #6
Senior Member

mikesignal's Avatar

Join Date: Aug 2009
Location: north carolina
Posts: 844
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Default

just did a google search on the numbers that are on the shocks and Rough Country comes up.

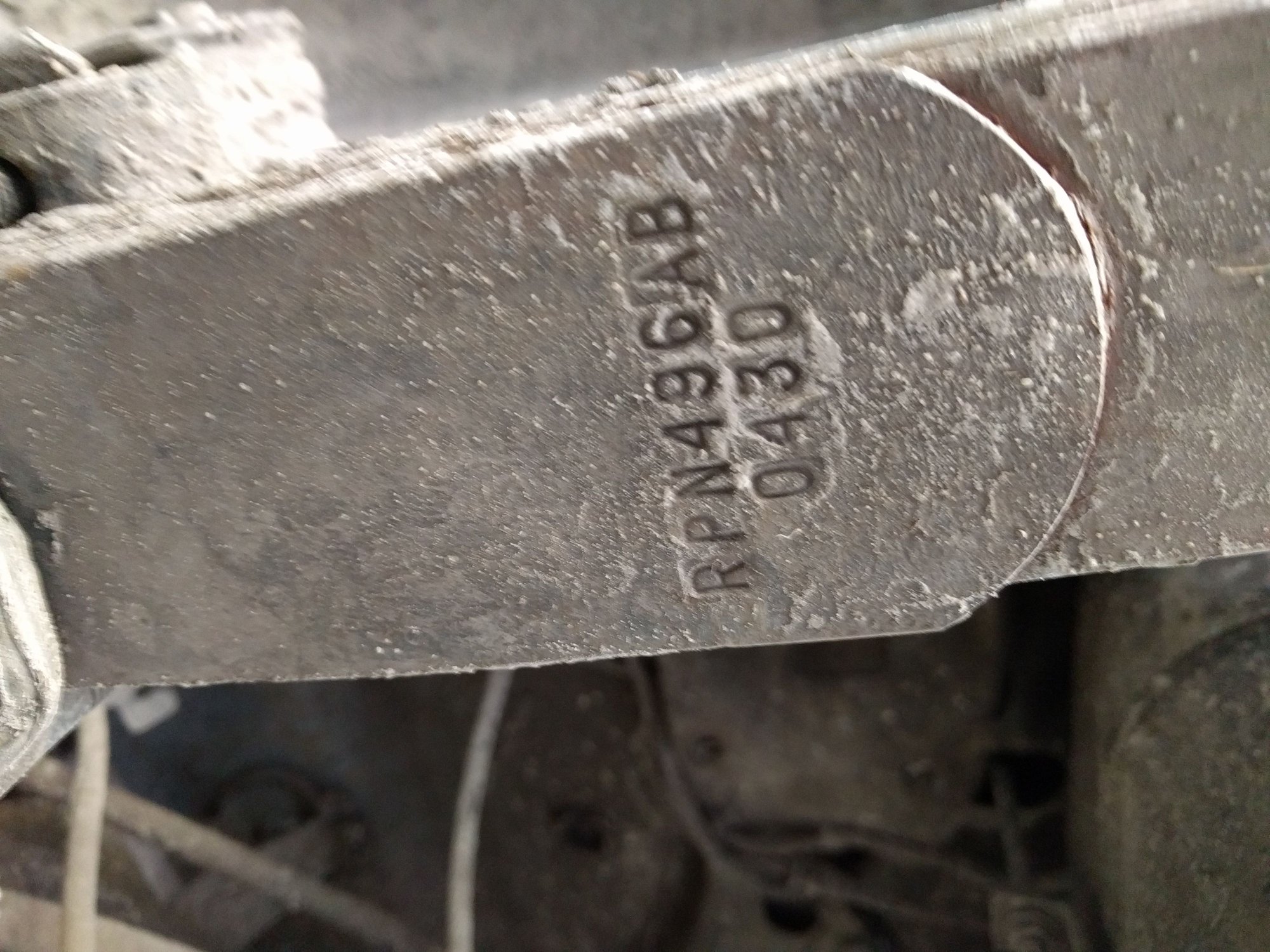

The numbers on the leafs don't really get any results except a NAXJA thread that the guy thinks they are upcountry leafs but is not sure.
mikesignal is offline
Old 03-15-2017, 03:03 AM
  #7
Seasoned Member

Constantine's Avatar

Join Date: Nov 2015
Location: North Louisiana
Posts: 373
Likes: 0
Received 0 Likes on 0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0 HO
Default

An add-a-leaf was used.
One side looks to be longer than the other?

If it were mine, I'd be looking into replacing leaf springs and shocks atleast.
Constantine is offline
Old 03-15-2017, 06:45 AM
  #8
Member
Thread Starter

Join Date: Jun 2016
Location: Florida
Posts: 206
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Constantine View Post
An add-a-leaf was used.
One side looks to be longer than the other?

If it were mine, I'd be looking into replacing leaf springs and shocks atleast.
I'm replacing the shocks now with JK shocks. I'll plan on replacing the leafs as well.

Would Rough Country sell me just the leaf pack for a three inch lift? Who else would sell a three inch lift leaf pack? I searched and couldn't find a solid answer to either question.

Thanks!
fijicorey25 is offline
Old 03-15-2017, 07:09 AM
  #9
CF Veteran

caged's Avatar

Join Date: Nov 2008
Location: Northern Ontario, Canada
Posts: 7,509
Received 0 Likes on 0 Posts
Year: 1990, 1999, 2000
Model: Cherokee
Engine: 4.0
Default

you could either go to a local spring shop (they're not just for trucks) and get them to make you up a set.

or buy some rubicon express leafs (they will be 3.5 but are good quality) or rustys has some nice leaf packs too.

there are others as well, you don't need to use rough country in particular.
caged is offline
Old 03-15-2017, 08:23 AM
  #10
Member
Thread Starter

Join Date: Jun 2016
Location: Florida
Posts: 206
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Default

I've read that a lot of these 3.5 packs actually give more lift than advertised. I don't want the rear sitting a lot higher than the front.

If I get a 3.5 pack, do I need to make any mods like new u-bolts or shackles? I'm trying to keep the cost low, though I don't mind paying for a quality leaf pack.
fijicorey25 is offline
Old 03-15-2017, 06:27 PM
  #11
Seasoned Member

Constantine's Avatar

Join Date: Nov 2015
Location: North Louisiana
Posts: 373
Likes: 0
Received 0 Likes on 0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0 HO
Default

Here is a pair of 3" springs with u-bolts which are required.
Just need to know which rear axle you have.
http://zoneoffroad.com/zone-offroad-...herokee/j0308k
Constantine is offline
Old 03-15-2017, 07:10 PM
  #12
CF Veteran

chipmaker's Avatar

Join Date: Feb 2013
Location: Belton S.C.
Posts: 1,280
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Default

That's a RC 3" add-a-leaf kit. Ditch the leafs and get some quality ones from Rusty's, IRO, or , Zone. Pick up a set of Bilstein 5100's if cash allows if just grab some generic white body's and call it done
chipmaker is offline
Old 03-16-2017, 04:31 AM
  #13
CF Veteran

Join Date: Apr 2016
Location: Pasquotank, NC
Posts: 1,606
Likes: 0
Received 0 Likes on 0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
Default

I just installed some
Old Man Emu leafs Old Man Emu leafs
in my 90 4 door. I can't really tell you how much lift they provided as I have shackle relocation brackets and longer shackles. It's also difficult to accurately measure lift as I have installed front flares on the rear to open up the wheel well. BUT... you can check http://www.arbusa.com/uploads/PDF/accessorizeYourRig/jeepCherokeeXJ.pdf for their listed lift heights. They also offer a CS033RB that provides less lift. Also gives the option to remove the third leaf from the pack to drop the lift 1/2-1". I am very happy with the ride.

Last edited by bad_idea; 03-16-2017 at 04:39 AM.
bad_idea is offline
Old 03-16-2017, 06:53 AM
  #14
Member
Thread Starter

Join Date: Jun 2016
Location: Florida
Posts: 206
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Default

I'm thinking either Zone (#J0308k) or OME (CS033RB).

Here's to hoping my bolts play nice
fijicorey25 is offline
Old 03-20-2017, 10:02 PM
  #15
Junior Member

Join Date: Dec 2016
Location: Birmingham
Posts: 71
Likes: 0
Received 0 Likes on 0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L
Default

If you are interested in upgrading leaf springs don't settle for rough country. Buy a nice high quality pair. 4wheel Parts has nothin but the good stuff. Pair of rubicon express 3.5" is about 174.99 and a pair of coil springs for the same price. very high quality and well worth the money.
cgeiss97 is offline
