Modified XJ Cherokee Tech XJ (84-01)
All modified tech questions. If it modifies your XJ beyond stock parts ask it here.

Squeaking and chirping

Old 04-20-2019, 09:36 PM
  #1
Newbie
Thread Starter

Join Date: Sep 2018
Posts: 6
Model: Cherokee (XJ)
Default Squeaking and chirping

Hey yíall. So Iíve been having this chirping and squeaking sounds going on for awhile. Since it came up Iíve done the hubs and brakes but I still have no clue where itís coming from. Itís only noticeable while accelerating from 0-25 mph. After that itís kicks in and out but isnít constant. Any ideas on what it could be?
Jonthekidd is offline
Old 04-21-2019, 07:24 AM
  #2
CF Veteran

Join Date: Nov 2015
Location: syracuse ny
Posts: 1,644
Year: 1997
Model: Grand Cherokee
Engine: 4.0
Default

U joints
97grand4.0 is offline
Old 04-22-2019, 03:40 PM
  #3
Newbie
Thread Starter

Join Date: Sep 2018
Posts: 6
Model: Cherokee (XJ)
Default

I checked the drive line and it all seems solid to me maybe Iíll do the u-joints anyways. Thanks

Jonthekidd is offline
Old 04-22-2019, 03:52 PM
  #4
CF Veteran

Join Date: Nov 2015
Location: syracuse ny
Posts: 1,644
Year: 1997
Model: Grand Cherokee
Engine: 4.0
Default

Seems solid isn't good enough. To check the ujoints rotate the driveshaft back and forth and look and feel with your finger very very closely for movement.
97grand4.0 is offline
Old 04-22-2019, 04:27 PM
  #5
Seasoned Member

Join Date: Dec 2014
Location: Oregon (Wetside)
Posts: 352
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0l
Default

Might be the angry sparrows from the front driveline centering ball. Remove front driveline and see if noise goes away. The ball assembly stock is not greasable , but spicer and others make a greasable one. I did mine a few years back and it was dry as a bone and rusty powder for bearings inside.
Oswalla is offline
Old 04-22-2019, 04:49 PM
  #6
CF Veteran

Big David's Avatar

Join Date: Jun 2011
Location: Murrayville,Ga.
Posts: 2,635
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Oswalla View Post
Might be the angry sparrows from the front driveline centering ball. Remove front driveline and see if noise goes away. The ball assembly stock is not greasable , but spicer and others make a greasable one. I did mine a few years back and it was dry as a bone and rusty powder for bearings inside.
This.
If the center ball locks up it can take out the t case.
Big David is offline
Old 04-22-2019, 05:47 PM
  #7
Senior Member

TrailerTrash's Avatar

Join Date: Jun 2017
Location: Hangover, PA
Posts: 502
Year: 1998
Model: Cherokee(XJ)
Engine: 4.0L
Default

I'll suggest the centering yoke aswell. Takes longer to get the driveshaft out then it does to replace it assuming the ujoints arent rusted in there. But while your at it replace the ujoints if you haven't done so recently
TrailerTrash is offline
Old 04-22-2019, 05:55 PM
  #8
Senior Member

TRCM's Avatar

Join Date: Jan 2016
Location: Newport News, VA
Posts: 915
Year: 96 & 88 4 dr Cherokees
Default

Don't forget the front axle u-joints either
TRCM is offline
Old 04-22-2019, 06:53 PM
  #9
Newbie
Thread Starter

Join Date: Sep 2018
Posts: 6
Model: Cherokee (XJ)
Default

Thanks for all the replies. Is there a specific way to check the axle u joints? Also Iím unsure on what the angry sparrows are. Is it on the end of the driveshaft that goes into the front differential?
Jonthekidd is offline
Old 04-22-2019, 06:54 PM
  #10
Senior Member

TRCM's Avatar

Join Date: Jan 2016
Location: Newport News, VA
Posts: 915
Year: 96 & 88 4 dr Cherokees
Default

Originally Posted by Jonthekidd View Post
Thanks for all the replies. Is there a specific way to check the axle u joints? Also I’m unsure on what the angry sparrows are. Is it on the end of the driveshaft that goes into the front differential?

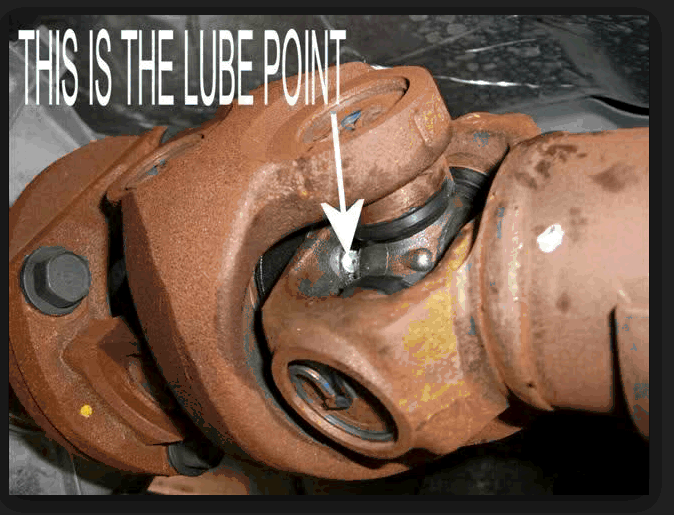

the chirping noise

the centering ball is inside this......should be at the t-case...not diff


Last edited by TRCM; 04-22-2019 at 06:56 PM.
TRCM is offline
