The importance of recovery points.

Thread Tools

Search this Thread

Old 09-09-2016, 01:53 AM
  #16
No, I don't lick fish.
Thread Starter

Basslicks's Avatar

Join Date: Mar 2011
Location: Northern Kentucky
Posts: 11,166
Received 20 Likes on 19 Posts
Year: 1999
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by andrewmp6
You are right a set of tow hooks is like 100 bucks new and a used trailer hitch is 50 bucks or less at a junkyard.Recovery and armor are always first to me those two are needed more then most think.Its not if you get stuck its when and how you get it out.Or they think they have triple A or roadside they can get towed,Well off the road more then a few feet they won't tow you or charge you a lot of money.
Yes, definitely! I was stuck in a nice rut literally 20 yards from a paved road. Tow truck company was going to charge me 85 dollars because it was considered an "offroad recovery". I said, "Ma'am, I can LITERALLY spit and hit pavement. The winch on the tow truck could extend half way out and still make it past my Jeep and you're telling me it's extra because it's an 'offroad recovery'?".

She replied, "Is your Jeep off the roadway?"

Touche' towtruck dispatcher, touche'.
Old 09-09-2016, 04:46 AM
  #17
Seasoned Member

4BangerDanger's Avatar

Join Date: Dec 2015
Location: Sioux Falls, SD
Posts: 467
Received 6 Likes on 3 Posts
Year: 2001
Model: Cherokee (XJ)
Engine: 4.0l
Default

I have a front and a rear hitch reciever that I picked up over the summer. Are these "good enough" recovery points or should I get some tow hooks too?
Old 09-09-2016, 05:41 AM
  #18
Banned

Jeep Driver's Avatar

Join Date: Jan 2014
Posts: 1,054
Likes: 0
Received 2 Likes on 1 Post
Model: Cherokee
Default

Originally Posted by 4BangerDanger
I have a front and a rear hitch reciever that I picked up over the summer. Are these "good enough" recovery points or should I get some tow hooks too?




Pintle ring/tow eye or a hook and you are GTG.
Old 09-09-2016, 09:47 AM
  #19
CF Veteran

Fred/N0AZZ's Avatar

Join Date: Jul 2013
Location: Monett, MO.
Posts: 7,554
Likes: 0
Received 14 Likes on 14 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Default

D-Ring hook-ups are the very best way to go for safety and strength. My rear bumper has 2 built-into it and the receiver has another one mounted for the center of the bumper, its a Class IV hitch. Avoid hooks as they encourage the use of chains and that combo can get you killed, use straps only for recovery.


The front/ winch and rear bumpers were the first things I bought for my XJ after I purchased it.

Last edited by Fred/N0AZZ; 09-09-2016 at 09:49 AM.
Old 09-09-2016, 06:40 PM
  #20
Member

AceWhite's Avatar

Join Date: Aug 2013
Location: behind the Orange Curtain- Cali
Posts: 248
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0
Default

Set of tow hooks and installation: $ 125.00
Getting your XJ stuck wheelin' with the bro's and destroying it in the process: PRICELESS
Old 09-09-2016, 09:20 PM
  #21
No, I don't lick fish.
Thread Starter

Basslicks's Avatar

Join Date: Mar 2011
Location: Northern Kentucky
Posts: 11,166
Received 20 Likes on 19 Posts
Year: 1999
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by 4BangerDanger
I have a front and a rear hitch reciever that I picked up over the summer. Are these "good enough" recovery points or should I get some tow hooks too?
As Fred stated, it's really better to have the hooks and brackets (I'll explain), but having the hitch is absolutely better than nothing and as long as you're smart and not trying to ****** the hell out of it, you'll be fine.

The reason I say the hooks and brackets are better:

Hitch mounts to the bottom of the frame rails and the force of recovery is then spread out in a single line against the bottom of the rail. The effort of recovery is shared by both frame rails, however it's still all on the bottom of the rail where there is less surface area. (For those questioning it, yes I am aware that the hitch on the back of the Jeep is the same concept. This is why I say be careful).

Tow hook brackets mount to the SIDE of the frame rails using 4 attachment points. 2 top and bottom up front and then 2 directly in a line going down the frame rail. This spreads out the stress of the recovery effort and also adds rigidity to the frame up front - especially in combination with frame siffeners and/or an aftermarket bumper.

Old 09-09-2016, 10:02 PM
  #22
Seasoned Member

4BangerDanger's Avatar

Join Date: Dec 2015
Location: Sioux Falls, SD
Posts: 467
Received 6 Likes on 3 Posts
Year: 2001
Model: Cherokee (XJ)
Engine: 4.0l
Default

Originally Posted by Basslicks

As Fred stated, it's really better to have the hooks and brackets (I'll explain), but having the hitch is absolutely better than nothing and as long as you're smart and not trying to ****** the hell out of it, you'll be fine.

The reason I say the hooks and brackets are better:

Hitch mounts to the bottom of the frame rails and the force of recovery is then spread out in a single line against the bottom of the rail. The effort of recovery is shared by both frame rails, however it's still all on the bottom of the rail where there is less surface area. (For those questioning it, yes I am aware that the hitch on the back of the Jeep is the same concept. This is why I say be careful).

Tow hook brackets mount to the SIDE of the frame rails using 4 attachment points. 2 top and bottom up front and then 2 directly in a line going down the frame rail. This spreads out the stress of the recovery effort and also adds rigidity to the frame up front - especially in combination with frame siffeners and/or an aftermarket bumper.
Thank you, that was very informative. I see those tow hooks mount up front. Is there a way to mount them in the rear with a stock bumper?
Old 09-09-2016, 11:07 PM
  #23
No, I don't lick fish.
Thread Starter

Basslicks's Avatar

Join Date: Mar 2011
Location: Northern Kentucky
Posts: 11,166
Received 20 Likes on 19 Posts
Year: 1999
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by 4BangerDanger
Thank you, that was very informative. I see those tow hooks mount up front. Is there a way to mount them in the rear with a stock bumper?

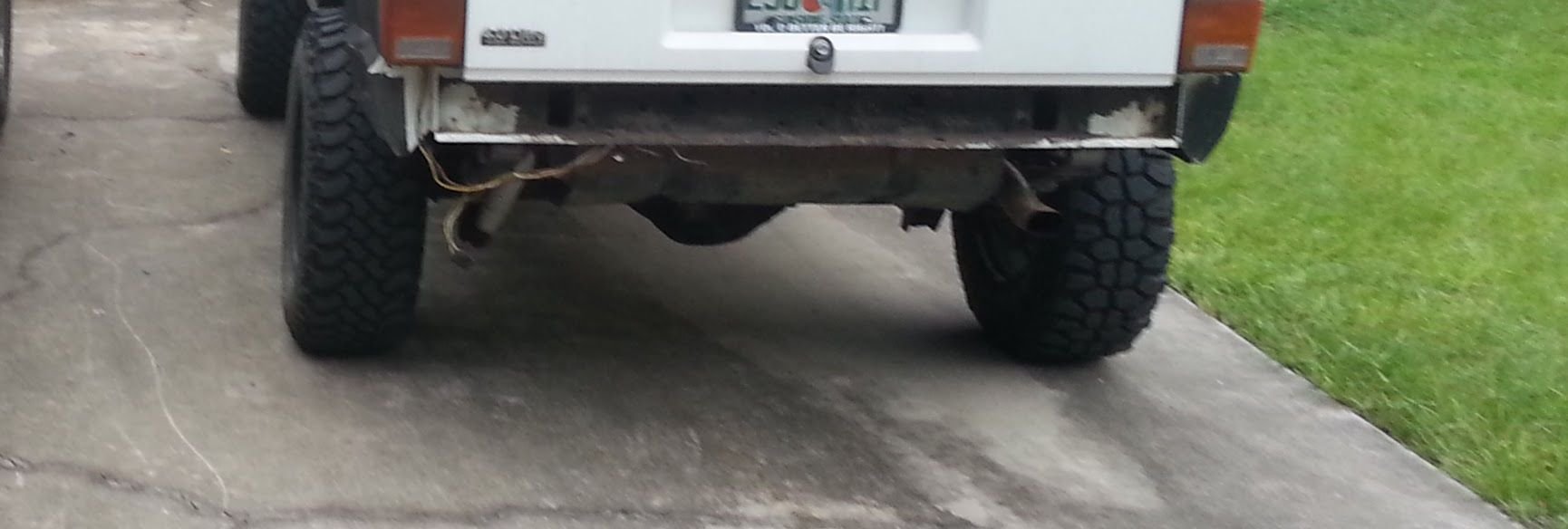

No way to mount them in the rear at all. Stock bumper or not. There is a cross-brace in the way:




Best way to have stronger recovery in the rear than just a hitch, it so build a bumper that sandwiches the frame rail (or at least the underside of it) and uses the stock bumper mounting holes, and has d-ring shackle tabs.
Old 09-10-2016, 02:02 AM
  #24
CF Veteran

andrewmp6's Avatar

Join Date: Jun 2011
Location: Louisville,KY
Posts: 8,014
Likes: 0
Received 14 Likes on 14 Posts
Model: Cherokee
Default

The rear you get a trailer hitch you can buy a d ring receiver for it like https://www.amazon.com/Smittybilt-29.../dp/B001CF1A7O or in a pinch you can put a tow strap inside the hitch and use the pin to lock it in place.
