Modified XJ Cherokee Tech XJ (84-01)
All modified tech questions. If it modifies your XJ beyond stock parts ask it here.

H.O. Intake swap on Renix

Old 03-27-2017, 09:16 PM
  #1
Newbie
Thread Starter

Join Date: Mar 2017
Posts: 6
Model: Cherokee
Default H.O. Intake swap on Renix

I have a 88 Renix XJ and was trying to install a Header for a H.O. engine I bought only to find the Renix manifold will not bolt on. What problems would I face if I changed the Renix intake manifoldb for a H.O. ?
88XJ2132 is offline
Old 03-27-2017, 11:55 PM
  #2
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 37,874
Year: 1990
Model: Comanche
Engine: 4.0
Default

Originally Posted by 88XJ2132 View Post
I have a 88 Renix XJ and was trying to install a Header for a H.O. engine I bought only to find the Renix manifold will not bolt on. What problems would I face if I changed the Renix intake manifoldb for a H.O. ?
It's not the intake manifold's fault. It's the exhaust manifold's fault. See below:
Attached Thumbnails H.O. Intake swap on Renix-intake-filing.jpg
cruiser54 is offline
Old 03-28-2017, 07:32 PM
  #3
Newbie
Thread Starter

Join Date: Mar 2017
Posts: 6
Model: Cherokee
Default

So all I would need to do is file my Renix intake manifold and the header for the H.O. should bolt up? I thought I would have to use a H.O. intake manifold, which would of led to a lot more problems.
88XJ2132 is offline
Old 03-28-2017, 07:34 PM
  #4
Newbie
Thread Starter

Join Date: Mar 2017
Posts: 6
Model: Cherokee
Default

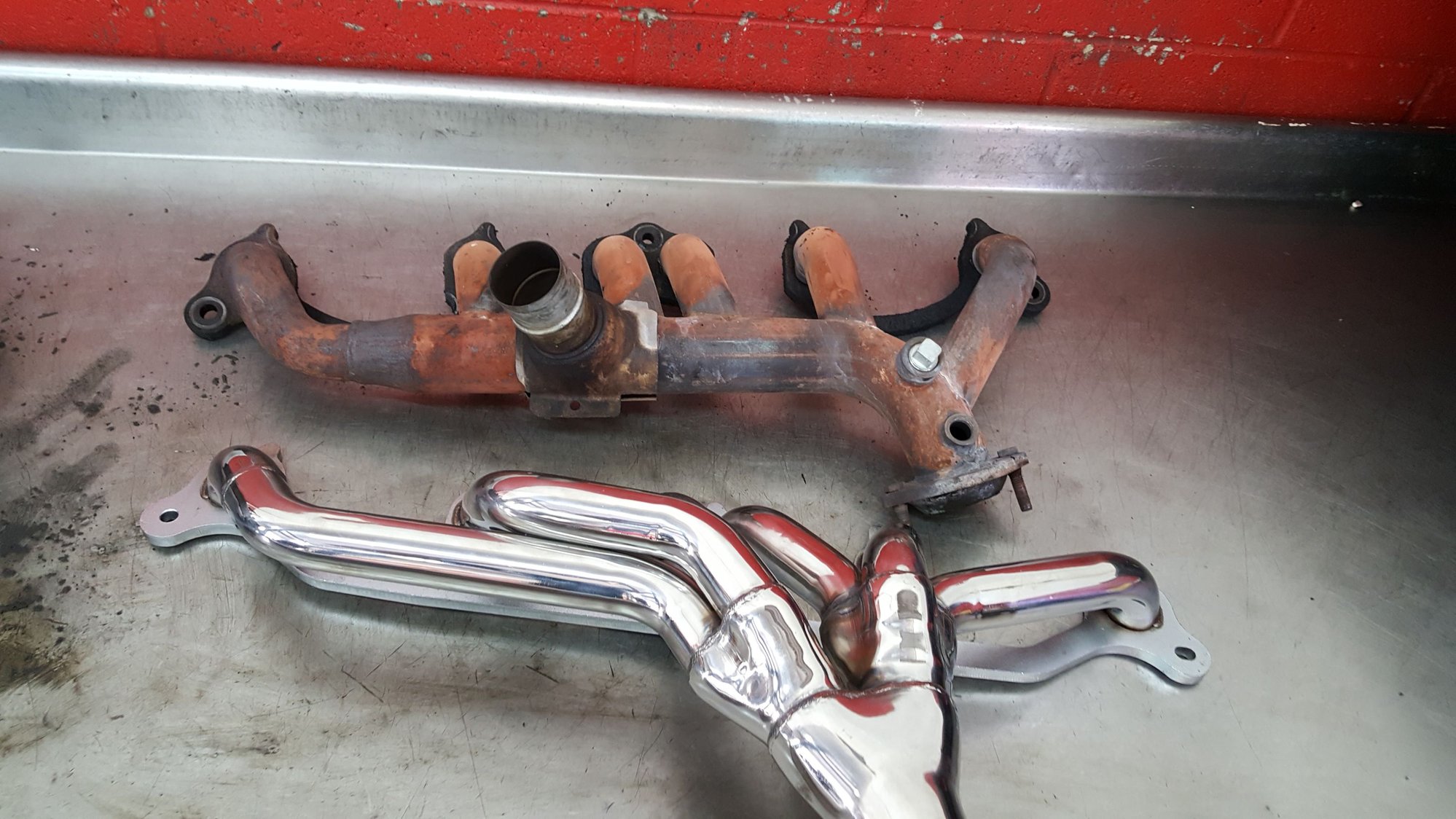

This is the header I'm trying to use vs my old manifold
88XJ2132 is offline
Old 03-28-2017, 09:37 PM
  #5
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 37,874
Year: 1990
Model: Comanche
Engine: 4.0
Default

As long as the only interference spot is between the FLANGES of the intake and exhaust, yes.
cruiser54 is offline
Old 03-28-2017, 09:56 PM
  #6
Newbie
Thread Starter

Join Date: Mar 2017
Posts: 6
Model: Cherokee
Default

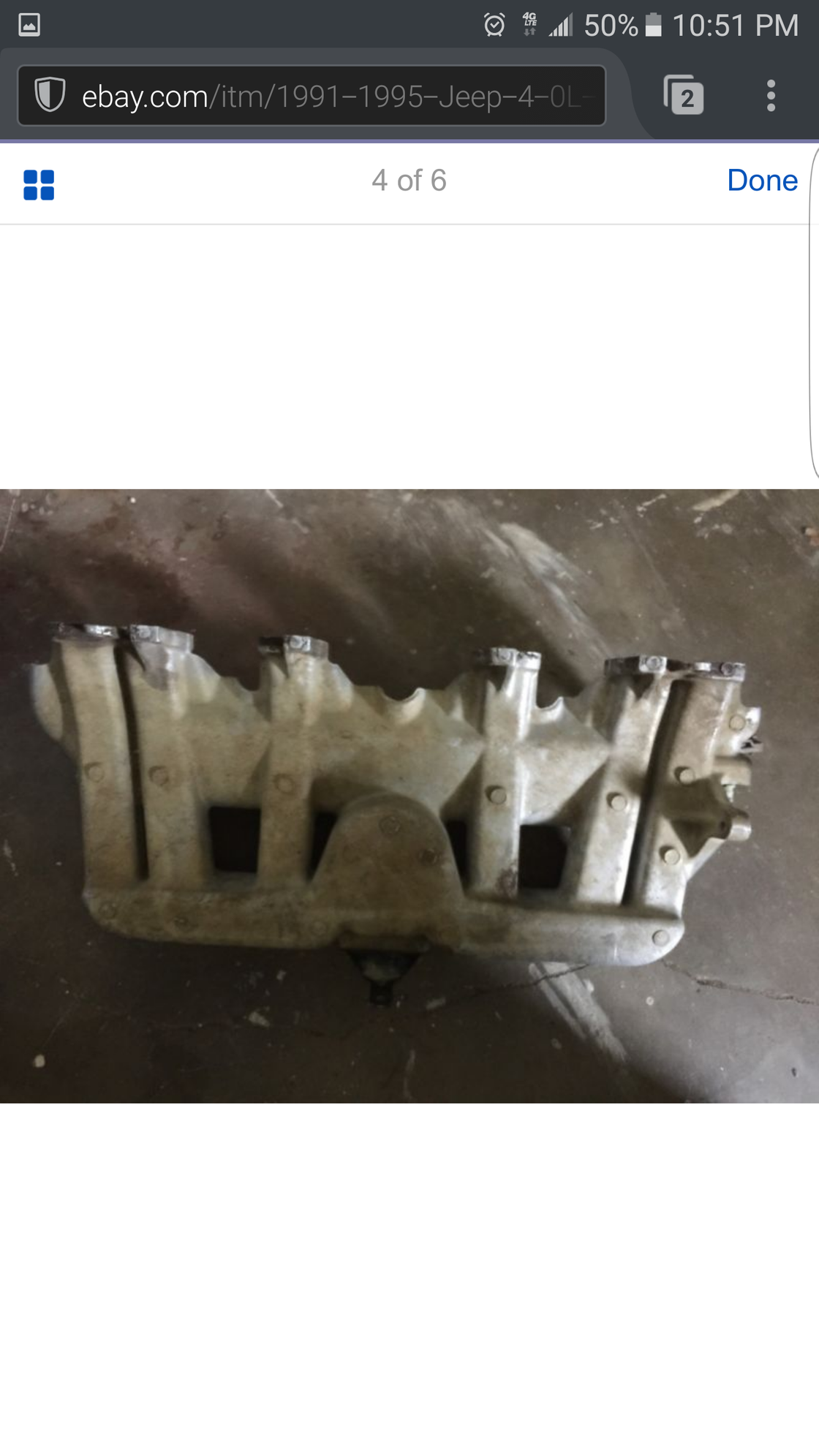

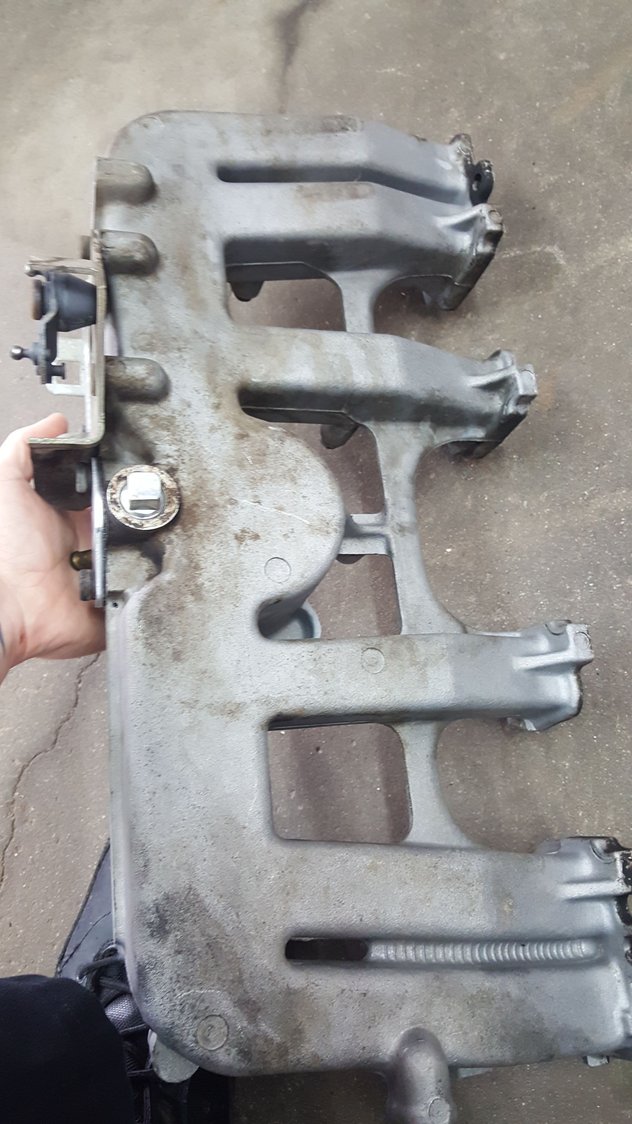

After going back and checking two of the intake runners are hitting on the header pipe not allowing it to "sit low enough" to bolt up it seems. The H.O. looks like the runners would have more clearance.
88XJ2132 is offline
Old 03-28-2017, 09:57 PM
  #7
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 37,874
Year: 1990
Model: Comanche
Engine: 4.0
Default

What year is the exhaust for?
cruiser54 is offline
Old 03-28-2017, 10:06 PM
  #8
Newbie
Thread Starter

Join Date: Mar 2017
Posts: 6
Model: Cherokee
Default

91 to 99, I've already lengthened the oxygen sensor wire, got a later model downpipe and have done the EGR delete for my intake.
88XJ2132 is offline
Old 03-28-2017, 10:09 PM
  #9
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 37,874
Year: 1990
Model: Comanche
Engine: 4.0
Default

Shouldn't have to lengthen the O2 sensor wires. I never did on the slew of them I did.
cruiser54 is offline
Old 03-28-2017, 10:16 PM
  #10
Newbie
Thread Starter

Join Date: Mar 2017
Posts: 6
Model: Cherokee
Default

Once I saw the the intake wouldn't fit I put it back together with my old exhaust manifold and downpipe so I haven't actually tried the oxygen sensor. I guess that's what I get for assuming I had to lengthen it, oh well. I just don't want to have to use an H.O. intake manifold if I don't have to because of throttle body mounting issues, power steering, and fuel rail.
88XJ2132 is offline
Old 03-29-2017, 08:46 AM
  #11
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 37,874
Year: 1990
Model: Comanche
Engine: 4.0
Default

Originally Posted by 88XJ2132 View Post
Once I saw the the intake wouldn't fit I put it back together with my old exhaust manifold and downpipe so I haven't actually tried the oxygen sensor. I guess that's what I get for assuming I had to lengthen it, oh well. I just don't want to have to use an H.O. intake manifold if I don't have to because of throttle body mounting issues, power steering, and fuel rail.
Correct.
cruiser54 is offline
Old 04-01-2017, 07:59 AM
  #12
Newbie

Join Date: Mar 2017
Posts: 1
Model: Cherokee
Default

This dude on YouTube is super smart with the Renix

Watch this video for his Renix to H.O. swap

Kaaos is offline
