Dual Battery Setup
Hey guys,
I am thinking about running a dual battery setup in my jeep! I have sen plenty of threads that heavily stress on not relocating the airbox and such. My plan is to either mount the 2nd batteyr in the pass rear corner of the cargo area or possible mount the battery sideways underneath the back seat. Any tips would be great as far as gauge wire and equipment goes. First time setting up a dual battery. Was also wondering if there is possibly a kit that comes with all the electrical hardware?
I am thinking about running a dual battery setup in my jeep! I have sen plenty of threads that heavily stress on not relocating the airbox and such. My plan is to either mount the 2nd batteyr in the pass rear corner of the cargo area or possible mount the battery sideways underneath the back seat. Any tips would be great as far as gauge wire and equipment goes. First time setting up a dual battery. Was also wondering if there is possibly a kit that comes with all the electrical hardware?
#2
Senior Member
Join Date: Feb 2015
Location: South Georgia
Posts: 514
Likes: 0
Received 15 Likes
on
15 Posts
Year: 1996
Model: Cherokee(XJ)
Engine: 4.0l
I'd prefer to move the airbox rather than buy thick expensive cable and run it all the way to the rear of the vehicle. What are you connecting to the second battery and where are these components located? If you plan on installing the battery sideways make sure that the battery is rated for such an installation.
check these threads.
https://www.cherokeeforum.com/f2/dual-batteries-3959/
https://www.cherokeeforum.com/f2/dua...y-setup-70808/
http://www.ausjeepoffroad.com/forum/...ad.php?t=46577
https://www.cherokeeforum.com/f2/xj-...estions-38053/
check these threads.
https://www.cherokeeforum.com/f2/dual-batteries-3959/
https://www.cherokeeforum.com/f2/dua...y-setup-70808/
http://www.ausjeepoffroad.com/forum/...ad.php?t=46577
https://www.cherokeeforum.com/f2/xj-...estions-38053/
#3
CF Veteran
Join Date: Jun 2011
Location: Louisville,KY
Posts: 8,014
Likes: 0
Received 14 Likes
on
14 Posts
Model: Cherokee
I believe you could get a trunk mount kit for a drag car,That will give you a box to mount it in and the wires to the battery the rest you can get online like http://www.12voltguy.com/ and others that sell a dual battery kit.Or you can do it yourself if you read up online.
#4
Junior Member
Thread Starter
Join Date: Dec 2016
Location: Birmingham
Posts: 71
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L
I'd prefer to move the airbox rather than buy thick expensive cable and run it all the way to the rear of the vehicle. What are you connecting to the second battery and where are these components located? If you plan on installing the battery sideways make sure that the battery is rated for such an installation.
check these threads.
https://www.cherokeeforum.com/f2/dual-batteries-3959/
https://www.cherokeeforum.com/f2/dua...y-setup-70808/
http://www.ausjeepoffroad.com/forum/...ad.php?t=46577
https://www.cherokeeforum.com/f2/xj-...estions-38053/
check these threads.
https://www.cherokeeforum.com/f2/dual-batteries-3959/
https://www.cherokeeforum.com/f2/dua...y-setup-70808/
http://www.ausjeepoffroad.com/forum/...ad.php?t=46577
https://www.cherokeeforum.com/f2/xj-...estions-38053/
#5
Senior Member
Join Date: Feb 2015
Location: South Georgia
Posts: 514
Likes: 0
Received 15 Likes
on
15 Posts
Year: 1996
Model: Cherokee(XJ)
Engine: 4.0l
If you make an actual tray and tie down for the battery it won't damage the radiator since the battery cannot move. Like I said before if it was me the choice to move an auxiliary battery to the rear would depend on what is going to be powered off the battery. Different strokes for different folks.

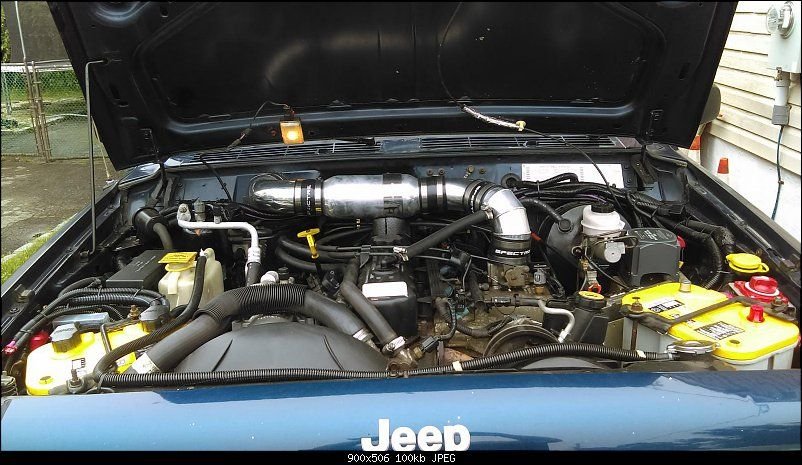

I do like this setup though
I do like this setup though
#6
CF Veteran
If you mount a battery anywhere inside the passenger area make sure to use a gel type battery so you won't get any sulphur fumes inside with you while it is charging. Right now I use 0 gauge welding cable for mine and hid the cable under the passenger door trim. You can cut down on amount of cable by grounding to the transfer case and then picking it up again at the front of the engine
