Modified XJ Cherokee Tech XJ (84-01)
All modified tech questions. If it modifies your XJ beyond stock parts ask it here.

Drive shaft out of phase?

Old 04-02-2017, 05:12 PM
  #1
Seasoned Member
Thread Starter

Join Date: Jul 2015
Location: WV
Posts: 329
Likes: 0
Received 0 Likes on 0 Posts
Year: 97
Model: Cherokee(XJ)
Engine: 4.0

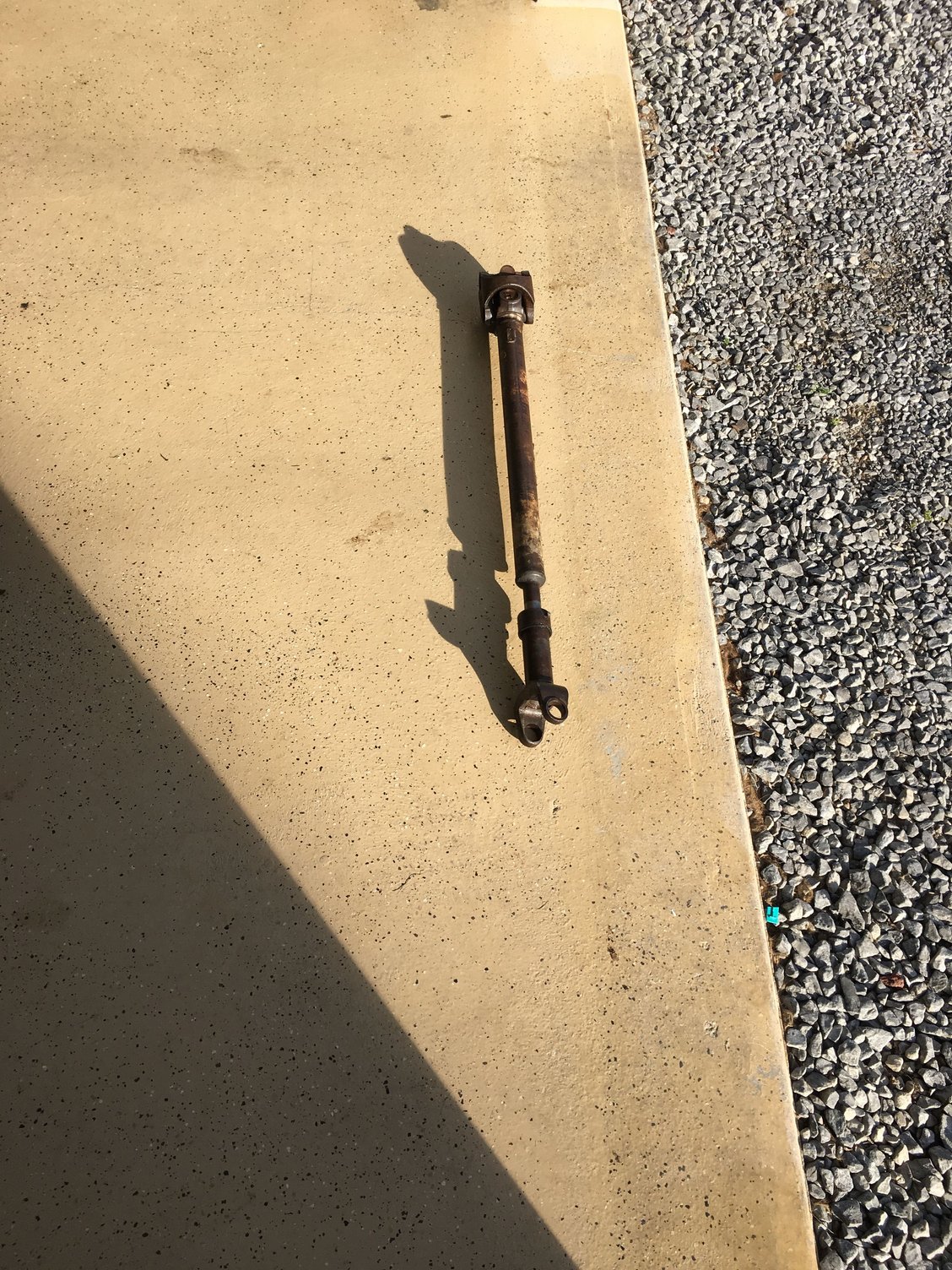

Default Drive shaft out of phase?





New to this type of joint and shaft but shouldn't the joints be in line?
samiam is offline
Old 04-02-2017, 07:25 PM
  #2
Senior Member

TRCM's Avatar

Join Date: Jan 2016
Location: Newport News, VA
Posts: 946
Likes: 0
Received 0 Likes on 0 Posts
Year: 96 & 88 4 dr Cherokees
Default

yes they should
TRCM is offline
Old 04-03-2017, 04:10 AM
  #3
CF Veteran

Join Date: Apr 2016
Location: Pasquotank, NC
Posts: 1,606
Likes: 0
Received 0 Likes on 0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
Default

The shaft has a slip joint about 6" in from the end with a single u joint. Should be able to yank that end of the shaft out, rotate it, and reinsert it.
bad_idea is offline
Old 04-03-2017, 05:10 PM
  #4
Seasoned Member

Freerider15's Avatar

Join Date: Nov 2012
Location: Fort Collins, Colorado
Posts: 314
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998 (buggy), 1998 DD
Model: Cherokee
Default

Yep, that one's out of phase.

Someone at some point in time pulled the axle end yoke off.

It shouldn't take anymore than 2 minutes to get it phased correctly again.
Freerider15 is offline
Old 04-03-2017, 07:32 PM
  #5
Seasoned Member
Thread Starter

Join Date: Jul 2015
Location: WV
Posts: 329
Likes: 0
Received 0 Likes on 0 Posts
Year: 97
Model: Cherokee(XJ)
Engine: 4.0
Default

Ok, 2minutes are up. Thing was not stuck, but not sliding the easiest. Got some slickem juice in her and she freed up a little, but still dont wanta come apart. Im working on it. Just did a little research on driveshafts and learnt that if you change it and it was balanced that way then it will be out of balance. Just thinkink since it is so hard to get apart, that is the way it was balanced from the factory. Any thoughts on that or am I just over thinking it? FYI, this was got at the junk yard and it came out of a 93 ZJ.
samiam is offline
Old 04-03-2017, 08:49 PM
  #6
CF Veteran

Join Date: Jun 2011
Location: Louisville,KY
Posts: 8,015
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default

You got a local driveshaft shop or big diesel shop ?Both can fix it for you and even fully rebuild the joint in it if you want that.
andrewmp6 is offline
Old 04-03-2017, 09:50 PM
  #7
Senior Member

TRCM's Avatar

Join Date: Jan 2016
Location: Newport News, VA
Posts: 946
Likes: 0
Received 0 Likes on 0 Posts
Year: 96 & 88 4 dr Cherokees
Default

It was NOT balanced that way at the factory !!

That driveshaft will give you all kinds of vibes cuz it is not assembled correctly, even if it is perfectly balanced.

It's likely the reason it is so hard to get apart, is the accelerated wear from being used that way has developed wear ridges in the splines, and you are having a hard time getting them apart.
TRCM is offline
Old 04-03-2017, 10:15 PM
  #8
Seasoned Member
Thread Starter

Join Date: Jul 2015
Location: WV
Posts: 329
Likes: 0
Received 0 Likes on 0 Posts
Year: 97
Model: Cherokee(XJ)
Engine: 4.0
Default

Originally Posted by TRCM View Post
It was NOT balanced that way at the factory !!

That driveshaft will give you all kinds of vibes cuz it is not assembled correctly, even if it is perfectly balanced.

It's likely the reason it is so hard to get apart, is the accelerated wear from being used that way has developed wear ridges in the splines, and you are having a hard time getting them apart.
So my question to you is it goina be alright after I re-phase it and new joints?
samiam is offline
Old 04-04-2017, 12:37 PM
  #9
Seasoned Member

Freerider15's Avatar

Join Date: Nov 2012
Location: Fort Collins, Colorado
Posts: 314
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998 (buggy), 1998 DD
Model: Cherokee
Default

Maybe, maybe not.

Might be worth finding a used one, and changing things out on it.

If you're going to be changing joints, make sure you do the centering ball stuff as well.
Freerider15 is offline
Old 04-04-2017, 02:36 PM
  #10
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,925
Likes: 0
Received 0 Likes on 0 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

BFH And clock it right.
freegdr is offline
Old 04-04-2017, 02:50 PM
  #11
Senior Member

TRCM's Avatar

Join Date: Jan 2016
Location: Newport News, VA
Posts: 946
Likes: 0
Received 0 Likes on 0 Posts
Year: 96 & 88 4 dr Cherokees
Default

Originally Posted by samiam View Post
So my question to you is it goina be alright after I re-phase it and new joints?
As was said...maybe, maybe not.....best bet is get another driveshaft from the JY that isn't out pf phase.....(or new...either way).

Kinda like a shock...you want the bolt holding it to the jeep to be oriented the same way...if they are 90 deg off from each other, then the shock has limited mobility
TRCM is offline
