Cheap rocker panel fix?
#1
Seasoned Member
Thread Starter
Join Date: Jun 2010
Posts: 434
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L I6
Cheap rocker panel fix?
Well.. the day has come the rocker panels rusted out so I started cutting, was wondering whats a good way to fix them on the low. Dont really need steel tubing. Plus i dont know how to weld
Anyway, was looking at those rocker panels to buy that fit over the old ones i believe. Has anyone tried those? Seems like a good fix and cheap.
Was thinking to put them over and use rivets to install them, what do you guys think?
Anyway, was looking at those rocker panels to buy that fit over the old ones i believe. Has anyone tried those? Seems like a good fix and cheap.
Was thinking to put them over and use rivets to install them, what do you guys think?
#4
Seasoned Member
Thread Starter
Join Date: Jun 2010
Posts: 434
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L I6
well its not a cover over the rust, cause i cut the rusted part out so just want to replace the rocker panel and i seen some people rivet a new one on.

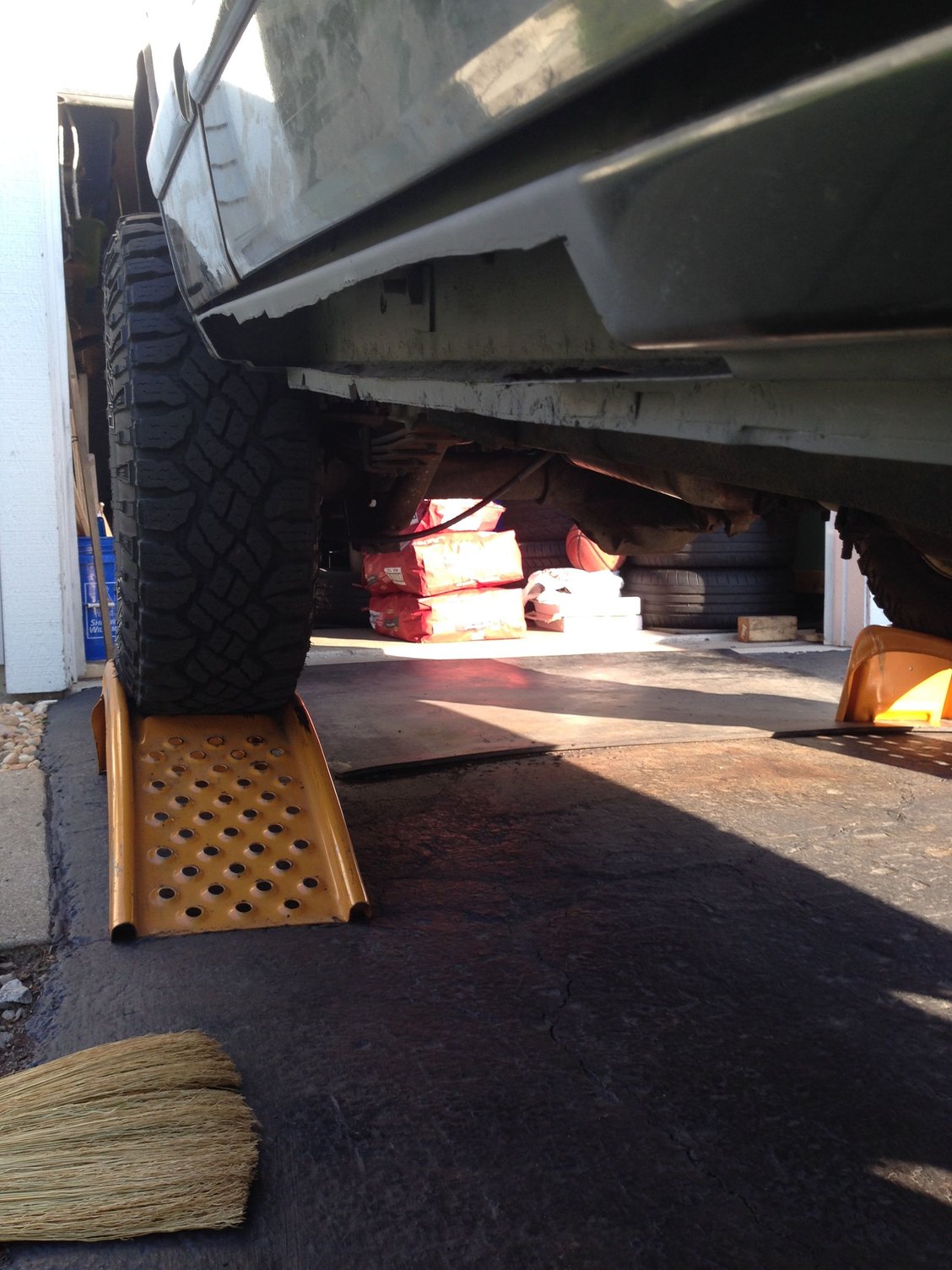

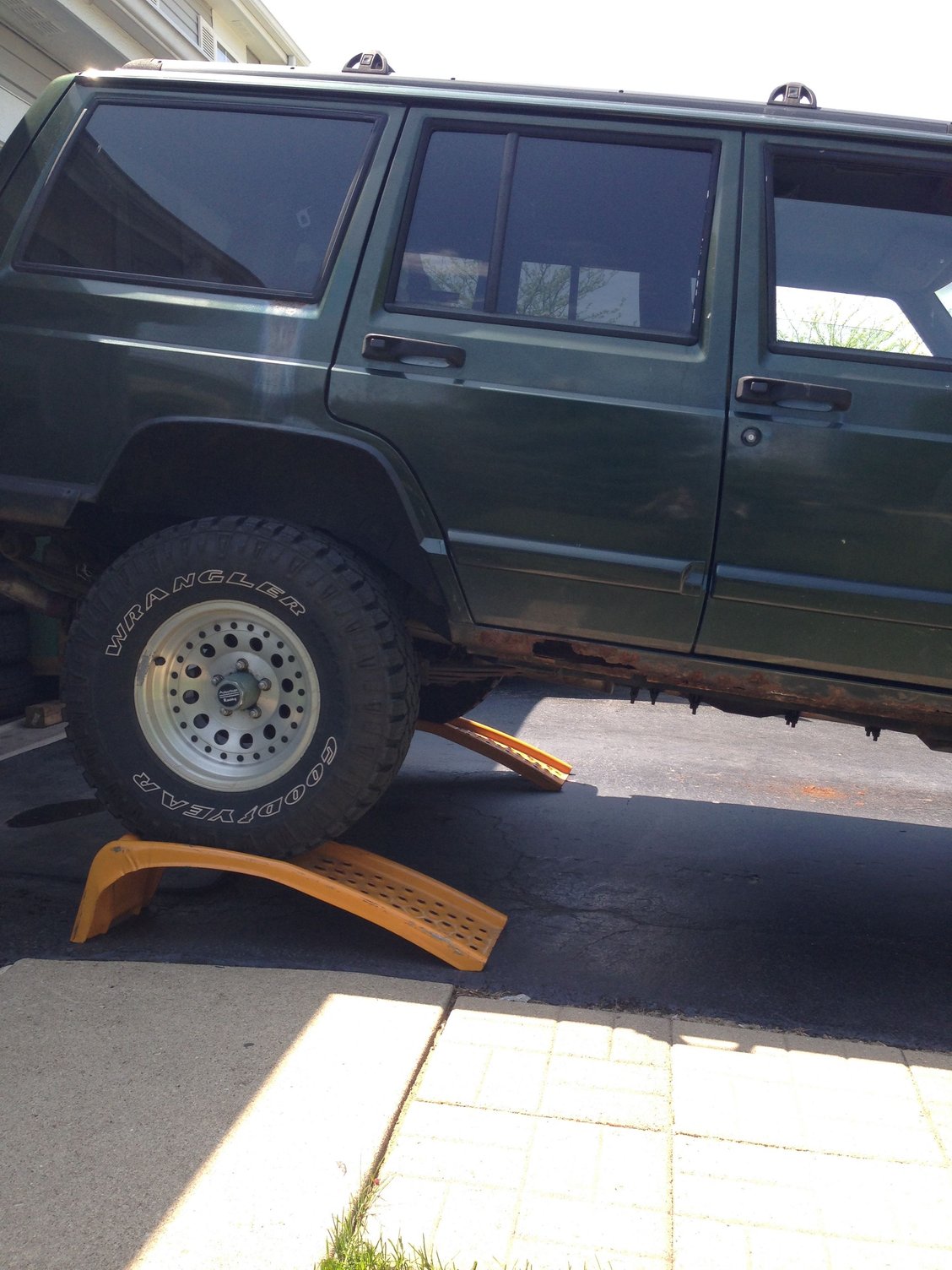

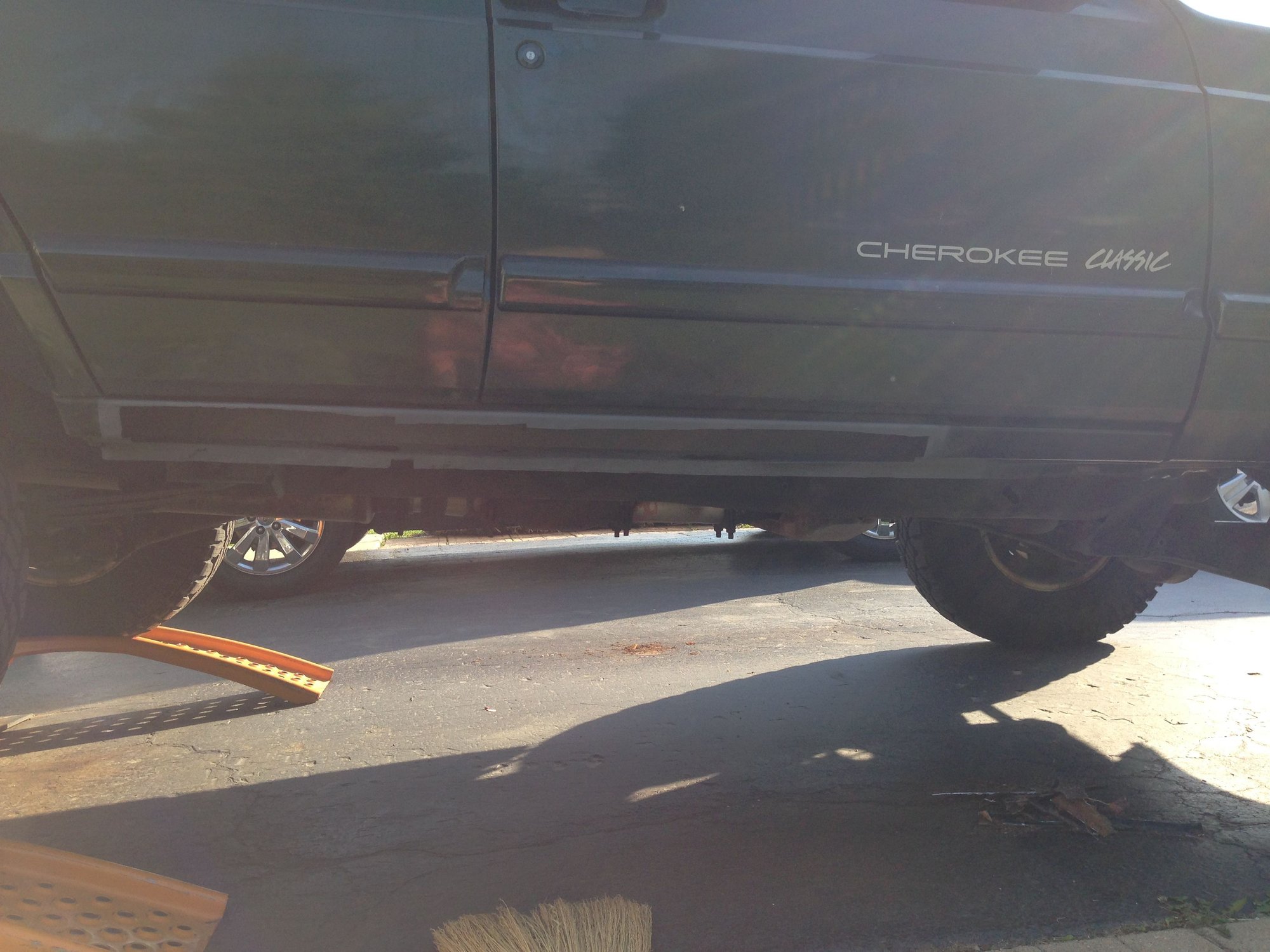

here some pics
here some pics
#5
Seasoned Member
Thread Starter
Join Date: Jun 2010
Posts: 434
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L I6
i was looking at this part one for driver side one for passenger
http://www.c2cfabrication.com/produc...r-panel-4dr-lh
http://www.c2cfabrication.com/produc...r-panel-4dr-lh
Last edited by huntsman; 05-06-2016 at 10:57 PM.
Trending Topics
#9
CF Veteran
Join Date: Oct 2010
Location: Ontario, Canada
Posts: 2,150
Likes: 0
Received 12 Likes
on
9 Posts
Year: 1989 Laredo
Model: Cherokee
Engine: 4.0 L 6 Renix
You requested cheap/on the low fix.
A good roll of duct tape.
Sand off the rust.
Apply a couple of layers.
You can spray bomb over with your favourite colour.
Will last the summer.
Start watching welding learning footage on the U Tube. Look at a moderate welder investment. Don't waste money on a cheap 100 dollar welder. You will need to spend a few hundred on the welder and a good helmet.
Then as the duct tape is falling out, you will be ready to install the steel tube rocker rails.
A good roll of duct tape.
Sand off the rust.
Apply a couple of layers.
You can spray bomb over with your favourite colour.
Will last the summer.
Start watching welding learning footage on the U Tube. Look at a moderate welder investment. Don't waste money on a cheap 100 dollar welder. You will need to spend a few hundred on the welder and a good helmet.
Then as the duct tape is falling out, you will be ready to install the steel tube rocker rails.
#11
Senior Member
Join Date: May 2014
Location: Iroquois Ontario Canada
Posts: 946
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
I am seeing more rust holes on the inner rocker panel too, the cover-up piece wont fix that.
Way up here in Canada an inner and outer rocker panel cost about $100 per side. My inner panels were good above the bend, but the outer had been covered and rotted out even more. The cheap fix for me was the 2x6x3/16 steel tubing rockers. All the steel and the welding wire cost me just shy of $100 to do both sides and I know the 3/16" steel with last a lot longer than the the replacement rocker panel.
Owning a welder and being able to weld a reasonable bead helps though.
Way up here in Canada an inner and outer rocker panel cost about $100 per side. My inner panels were good above the bend, but the outer had been covered and rotted out even more. The cheap fix for me was the 2x6x3/16 steel tubing rockers. All the steel and the welding wire cost me just shy of $100 to do both sides and I know the 3/16" steel with last a lot longer than the the replacement rocker panel.
Owning a welder and being able to weld a reasonable bead helps though.
#14
Seasoned Member
Thread Starter
Join Date: Jun 2010
Posts: 434
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L I6
yeah well the 2x6 or 2x8 is what i would like to do but considering I dont have too much free time and its my daily driver I will just use the new rocker panels and have it welded in. At least for now, it will do.
