Aussie locker install!


https://cimg1.ibsrv.net/gimg/www.che...9c3a25f7e5.jpg

the design, steering components will be glow in the dark

https://cimg8.ibsrv.net/gimg/www.che...c2d6ab7f24.jpg

https://cimg5.ibsrv.net/gimg/www.che...e80aad6378.jpg

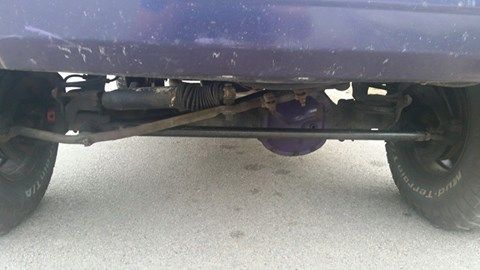

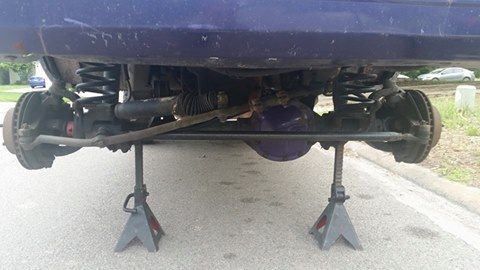

starting with old rusty dana 30

https://cimg0.ibsrv.net/gimg/www.che...93a84b7c5c.jpg
take off the brakes

https://cimg5.ibsrv.net/gimg/www.che...4b9ea47ae8.jpg

https://cimg7.ibsrv.net/gimg/www.che...8f3fb98f92.jpg

https://cimg8.ibsrv.net/gimg/www.che...084a2d0a3a.jpg

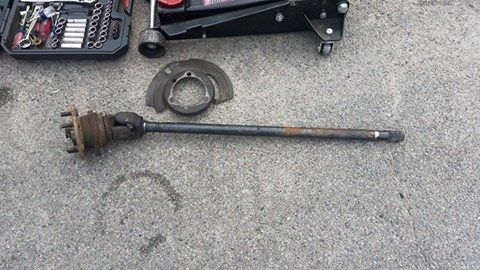

take off the hub assembly. then remove the axel shafts

https://cimg4.ibsrv.net/gimg/www.che...d0c273e334.jpg

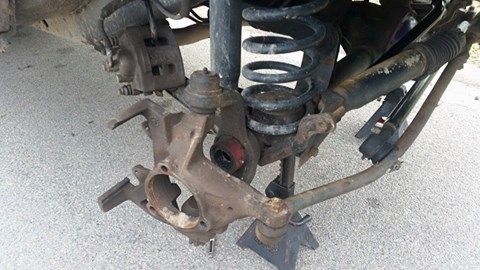

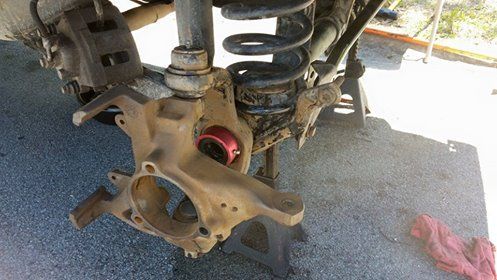

current status. brakes, bearings, and axel shafts removed. now for the steering

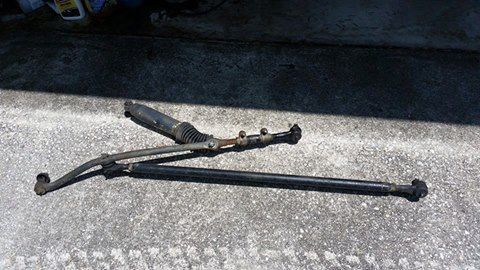

this piece of crap was giving me problems

https://cimg7.ibsrv.net/gimg/www.che...7d21644b3c.jpg

https://cimg6.ibsrv.net/gimg/www.che...cc364ad9f2.jpg

https://cimg9.ibsrv.net/gimg/www.che...d394a1329a.jpg

got it

https://cimg0.ibsrv.net/gimg/www.che...77d76fcd88.jpg

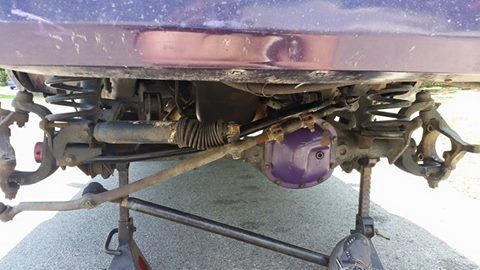

start to current

https://cimg0.ibsrv.net/gimg/www.che...9c054be907.jpg

https://cimg4.ibsrv.net/gimg/www.che...de3efb9f77.jpg

https://cimg6.ibsrv.net/gimg/www.che...7ddb5ddcfa.jpg

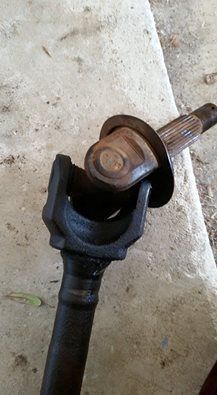

removed u-joint, sanded dow axel shafts for paint

https://cimg2.ibsrv.net/gimg/www.che...080c784b81.jpg

https://cimg4.ibsrv.net/gimg/www.che...0014f9c49f.jpg

https://cimg6.ibsrv.net/gimg/www.che...1efd2b20b9.jpg

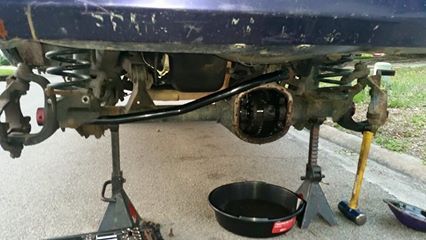

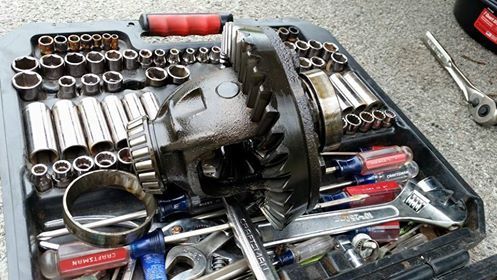

drained the diff, removed the carrier. teeth look great

https://cimg7.ibsrv.net/gimg/www.che...35eb4142e8.jpg

https://cimg8.ibsrv.net/gimg/www.che...8f4cc2f4f9.jpg

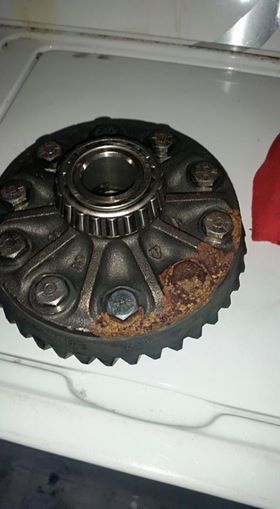

further inspection showed some rust. took a wire brush to it. came right off. no damage done

https://cimg2.ibsrv.net/gimg/www.che...932626dfad.jpg

https://cimg3.ibsrv.net/gimg/www.che...27cec4f169.jpg

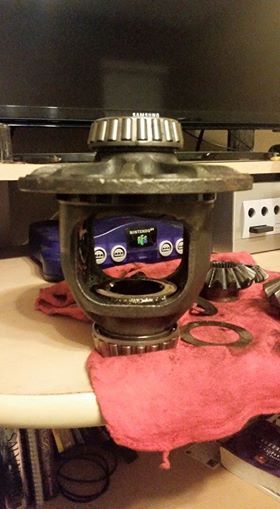

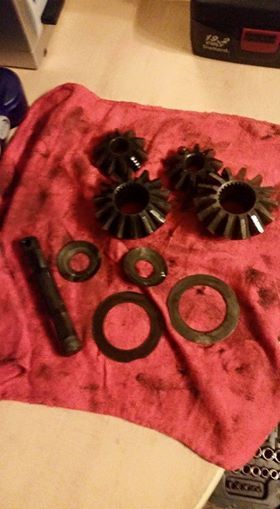

disassembled the carrier in preparation for the Aussie locker that's arriving tomorrow

https://cimg1.ibsrv.net/gimg/www.che...5ded085b03.jpg

https://cimg2.ibsrv.net/gimg/www.che...a23a13a79f.jpg

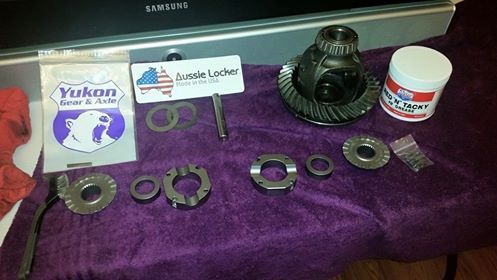

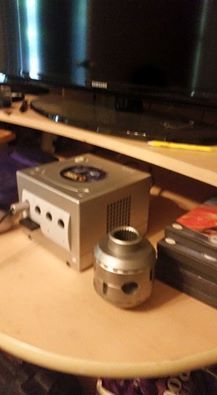

Aussie came in today, was surprised how small it was... gamecube for reference.

https://cimg8.ibsrv.net/gimg/www.che...7cb80b83a3.jpg

https://cimg9.ibsrv.net/gimg/www.che...0982489725.jpg

time to install. new thrust washers, cross shaft, and cross shaft pin. tolerances were perfect. just in the middle of the required margins.

https://cimg2.ibsrv.net/gimg/www.che...ed9519bacb.jpg

https://cimg3.ibsrv.net/gimg/www.che...7c7143cca6.jpg

https://cimg4.ibsrv.net/gimg/www.che...05a7d29b39.jpg

https://cimg5.ibsrv.net/gimg/www.che...58480a2b81.jpg

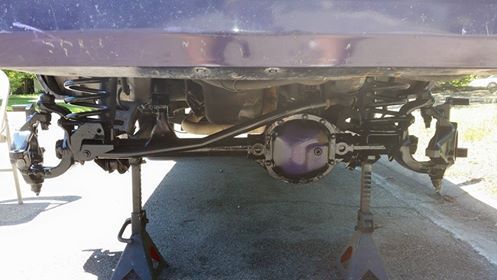

prepping and painting the axel.
