XJ uni body "blow up diagram?

Old 02-08-2018, 05:42 PM
  #1
Seasoned Member
Thread Starter

Join Date: Jan 2017
Location: Southern MD
Posts: 253
Model: Cherokee
Default XJ uni body "blow up diagram?

I "thought" I had seen a Diagram (drawing) of the XJ unibody, clearly showing all the stamped sheet metal pieces that make up the XJ unidoby?
But my searches are not finding anything,, was I dreaming it ?


Slack
Slackdaddy is offline
Old 02-08-2018, 06:05 PM
  #2
Moderator CF K9-unit

Dumajones's Avatar

Join Date: Apr 2012
Location: Alaska
Posts: 5,840
Year: 2000 sport
Model: Cherokee (XJ)
Engine: New 4.0l from s&j engines
Default

Originally Posted by Slackdaddy View Post
I "thought" I had seen a Diagram (drawing) of the XJ unibody, clearly showing all the stamped sheet metal pieces that make up the XJ unidoby?
But my searches are not finding anything,, was I dreaming it ?


Slack

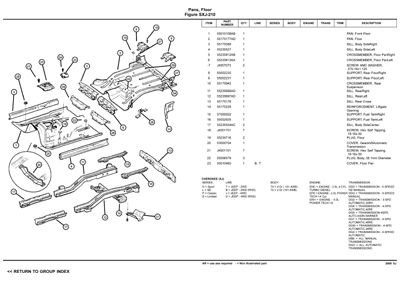

I have this one..will this work?

Dumajones is offline
Old 02-08-2018, 07:05 PM
  #3
Seasoned Member
Thread Starter

Join Date: Jan 2017
Location: Southern MD
Posts: 253
Model: Cherokee
Default

have that one,, I know I saw one that showed every component of the uni body with the part num/label
Slackdaddy is offline
Old 02-08-2018, 08:48 PM
  #4
Seasoned Member

craigjacob1's Avatar

Join Date: Nov 2016
Location: Idaho
Posts: 304
Year: 1990
Engine: Renix 4.0
Default



http://cruiser54.com/?page_id=365

This one is from the 2000 xj "parts books" section at the bottom of the page. There are around 5 more pages included.
You could also try the technical manual on the same page.
craigjacob1 is offline
Old 02-08-2018, 10:29 PM
  #5
Seasoned Member
Thread Starter

Join Date: Jan 2017
Location: Southern MD
Posts: 253
Model: Cherokee
Default

Das the one!!
Thanks!
Slackdaddy is offline
Old 02-19-2018, 10:38 PM
  #6
Member

Join Date: May 2012
Location: Th Cloud
Posts: 215
Year: 90'
Model: Cherokee
Engine: 4.0
Default

:thumbup 1: How bout MJ?
Salden Hund is offline
Old 03-13-2018, 12:43 AM
  #7
Newbie

Join Date: Feb 2018
Posts: 5
Model: Cherokee(SJ)
Default

https://www.cherokeeforum.com › ... › Fabrication & builders section.
try to check this out hope it helps
Histeland85 is offline
