Sheet Metal Fender Flairs

Reply




Old 09-18-2016, 12:16 AM
  #1
Junior Member
Thread Starter

Rojito's Avatar

Join Date: Jan 2016
Location: Las Vegas, NV
Posts: 64
Year: 1997
Model: Cherokee
Engine: 4.0L
Default Sheet Metal Fender Flares

So I made made these a while ago with my dad but I figured I would post up the the build because why not so hear is my story.

I knew I wanted, and kind of needed, new fender flares. The old stock flares, although I think they looked just fine, rubbed too much for my likes and I even managed to rip them off because of too much rubbing. I looked around everywhere and I hated every option out there. The Bushwhackers and Napier where too big for my liking, plus you could see all the shiny exposed bolts (not really my style). I don't like the look of tube fenders so that option was out for me, also the price was just too much for a set. I was about to just cut the things when I saw a post over on Pirate 4x4. The guy took some old trailer fender flares and started modifying them to work on a Cherokee.





I thought this idea was kind of cool so I took It and started playing with it. I went to a local trailer shop and had a set of single axle jeep style fenders made to custom size and bend for $50, not to bad a price. I honestly can't remember how big they where but I knew I would still need to modify them if I wanted them to work and look how I wanted.

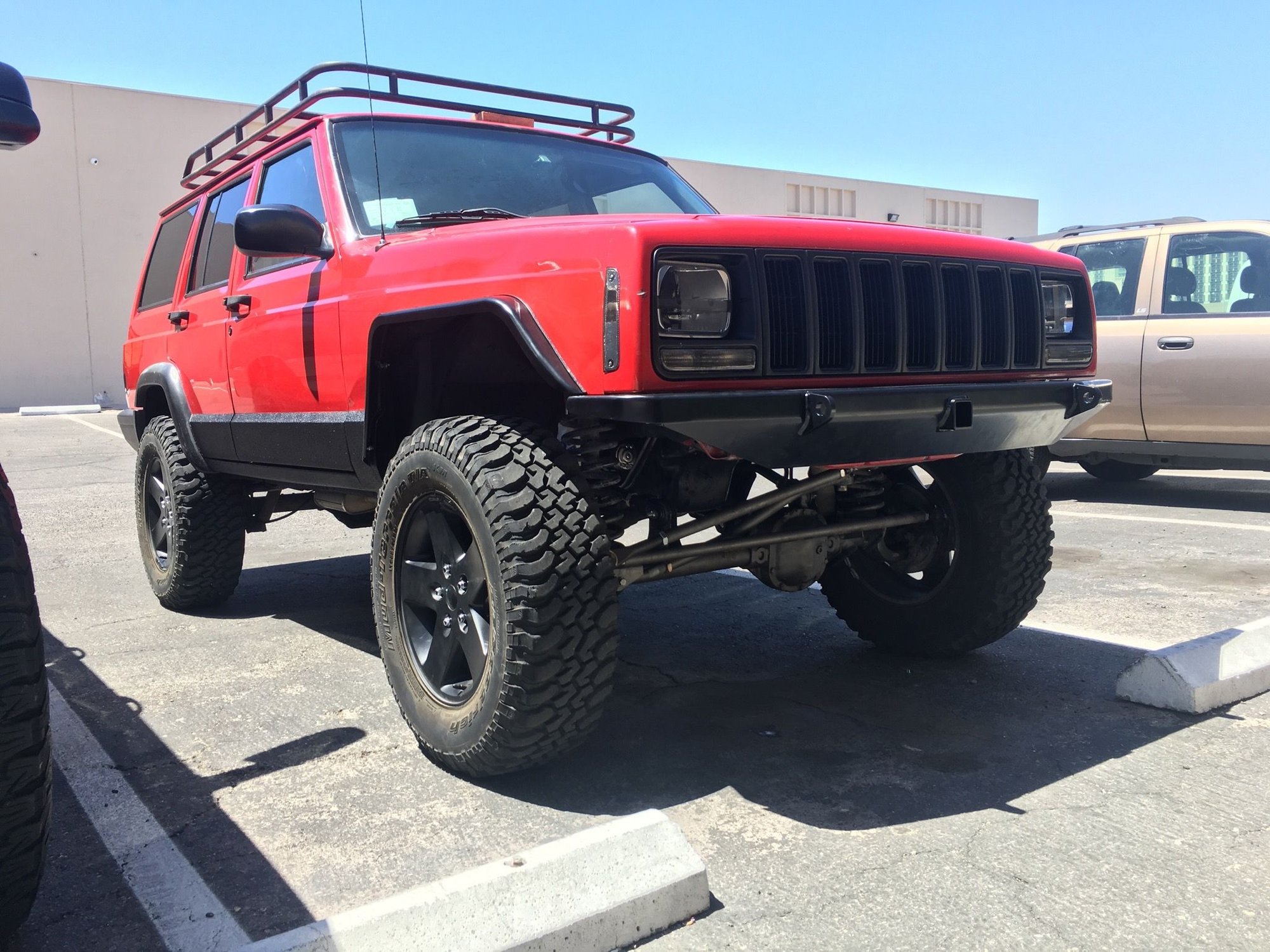

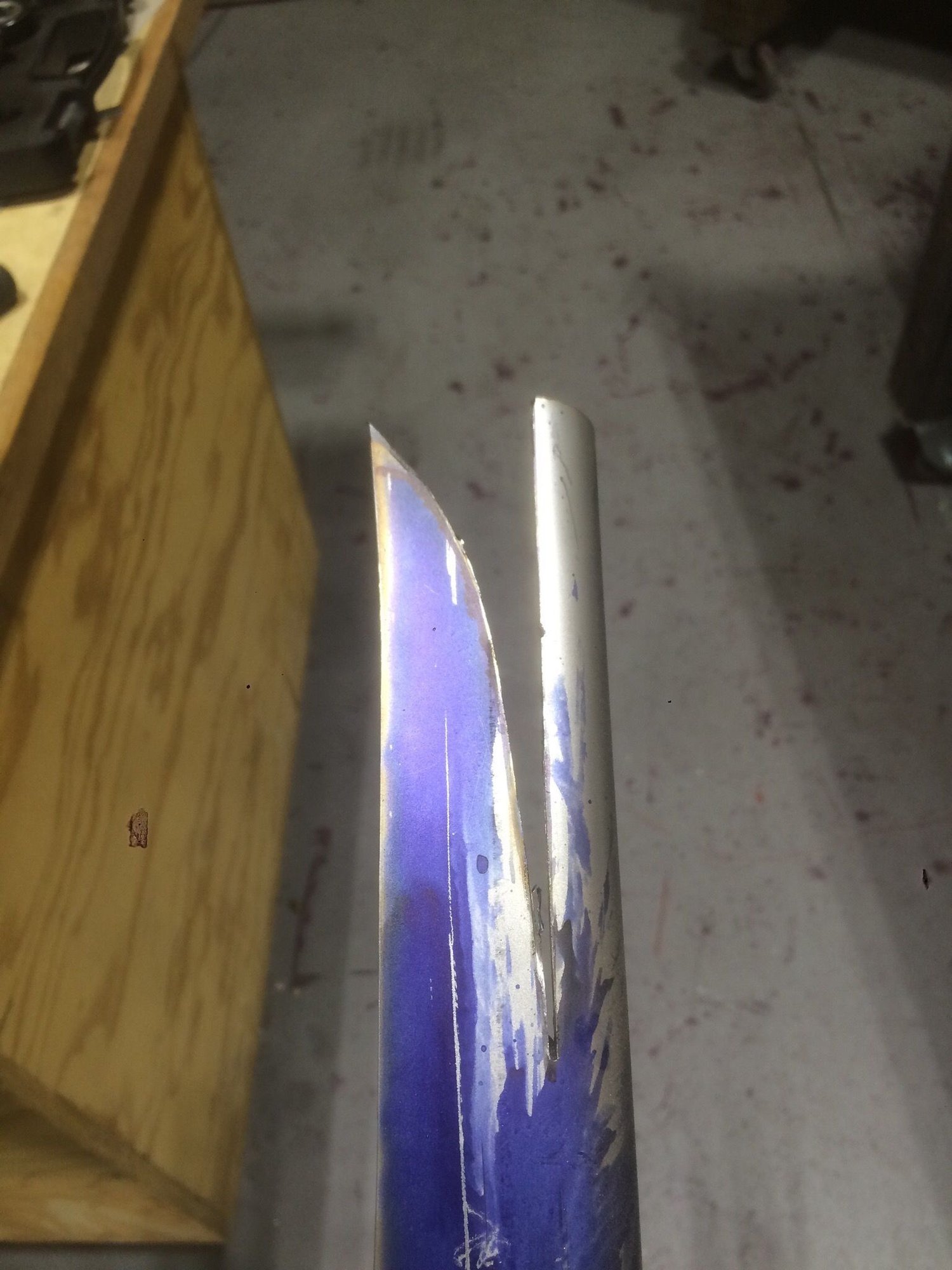

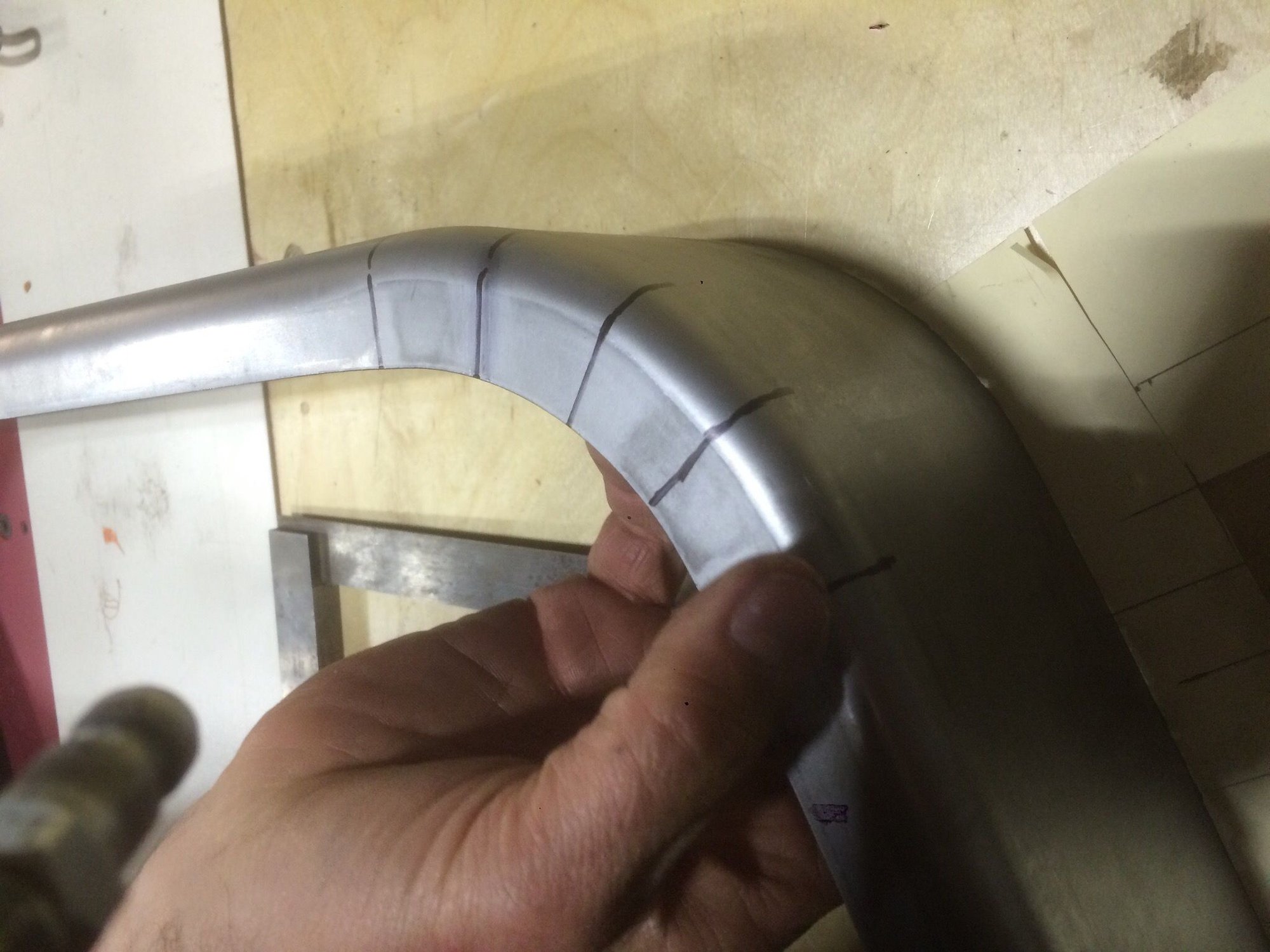

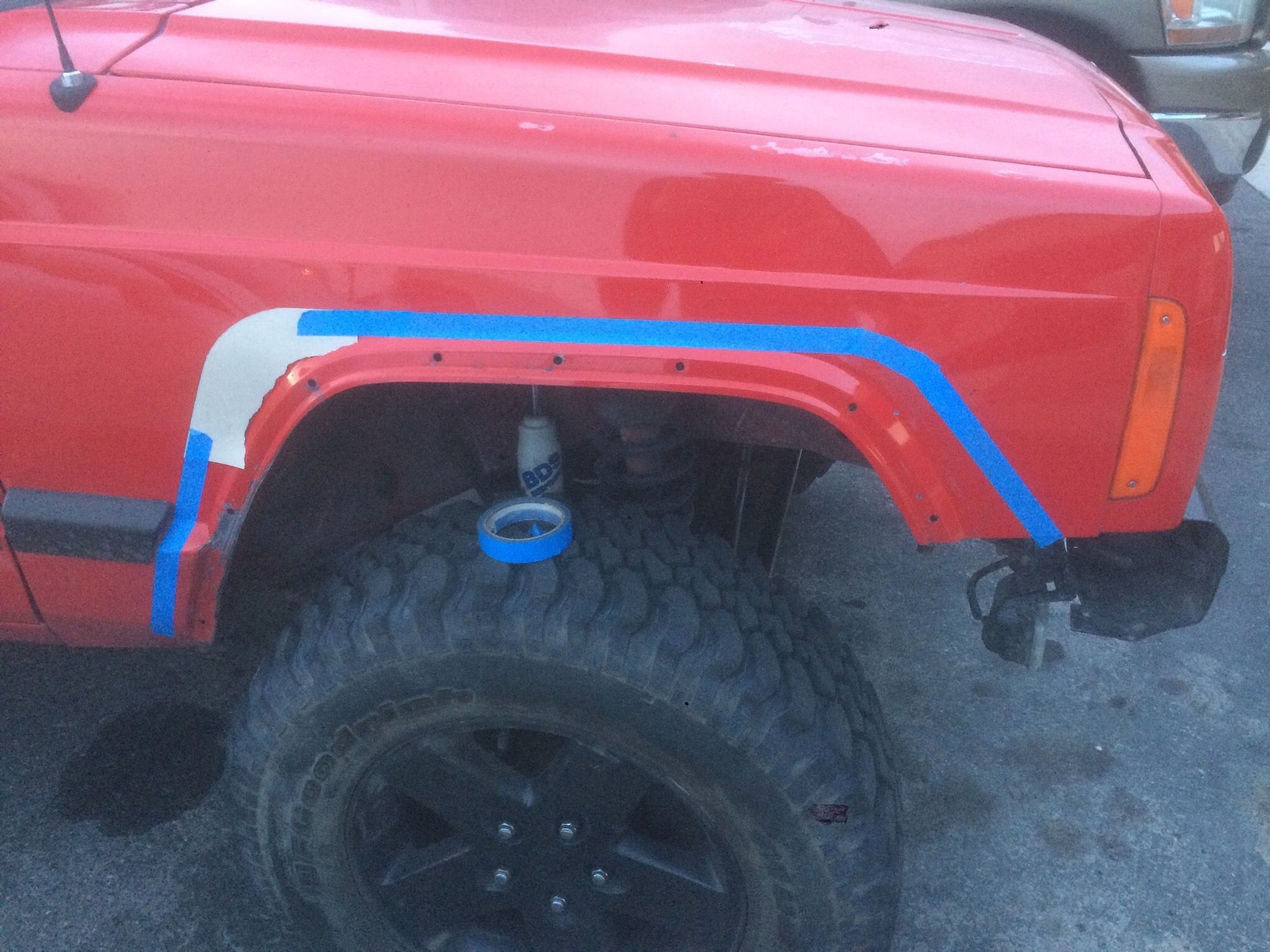

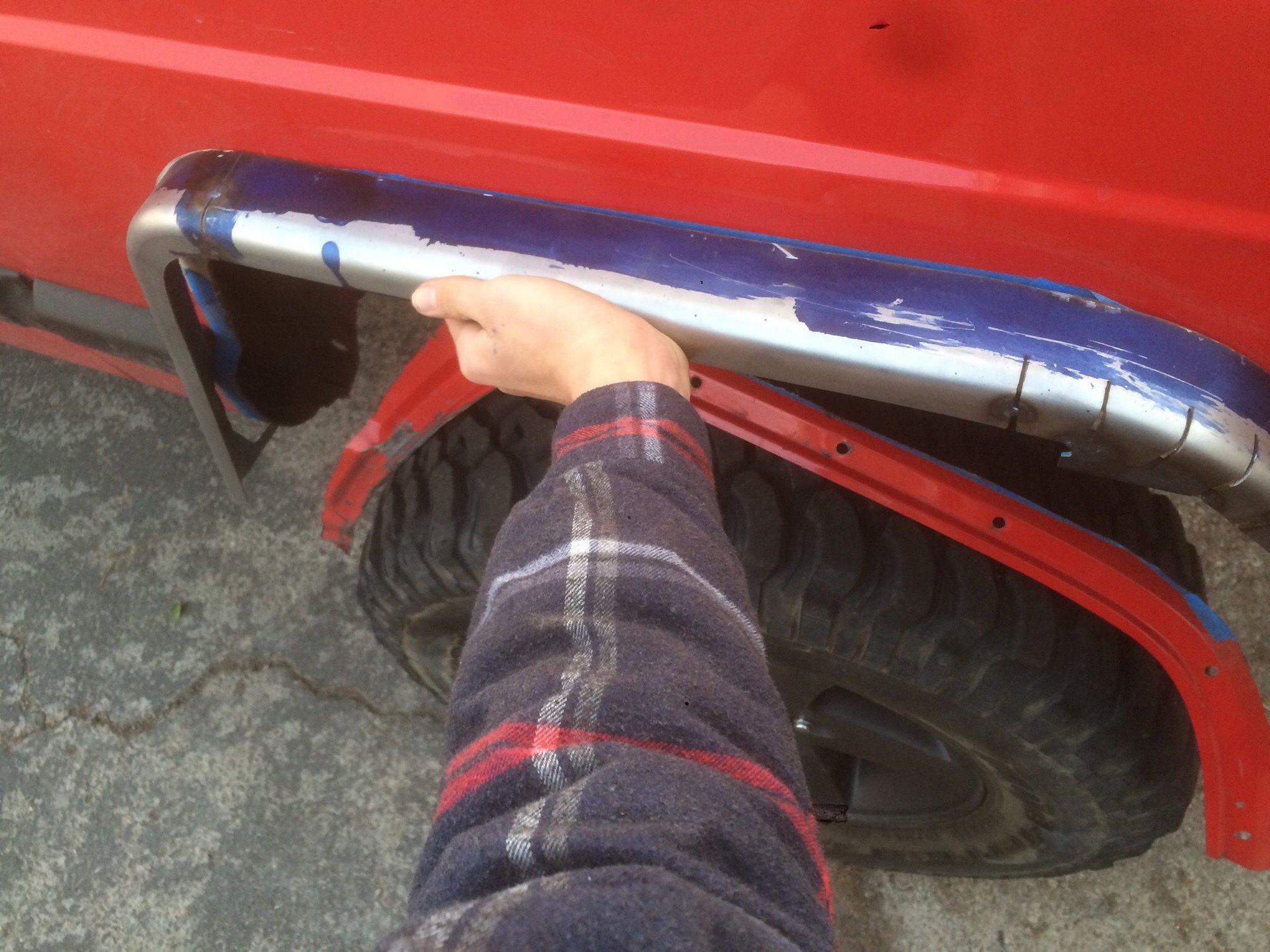

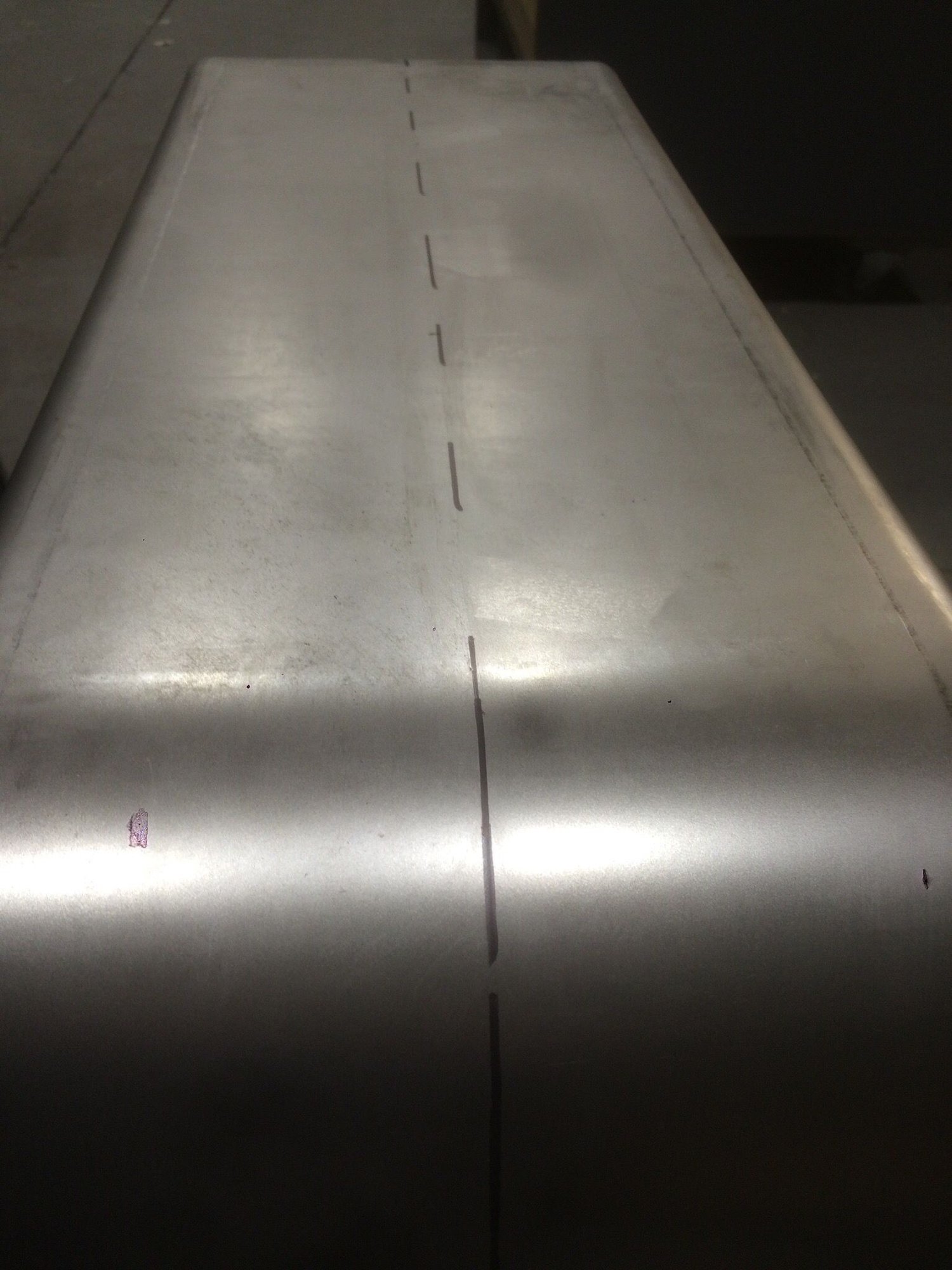

Next I went about modifying them to work. First I cut one of the flares in half. Then I taped off where I wanted the flare to be so I could get my measurements. I ended up opening up the angle of the front bend of the flare and then shortening the entire flare by a couple inches. Then I tapered the front in to line up with the body. Before I tapered the edge in I had cut the flare to match the curve of the body. I attached the flare with some tabs that allowed a nut and bolt to go through holes cut in the actual fender of the Cherokee. The last thing I did was had the flares power coated black. For the back edge I ordered some rubber u-shaped channel and pinched it between the flare and the fender. Over all I am very happy with how they came out in the end!






































Last edited by Rojito; 09-18-2016 at 12:32 AM.
Rojito is offline
Reply With Quote
Old 09-18-2016, 12:34 AM
  #2
Junior Member
Thread Starter

Rojito's Avatar

Join Date: Jan 2016
Location: Las Vegas, NV
Posts: 64
Year: 1997
Model: Cherokee
Engine: 4.0L
Default

And don't pay any attention to the misspelling of the title
Rojito is offline
Reply With Quote
Old 09-18-2016, 10:21 AM
  #3
Seasoned Member

esteem's Avatar

Join Date: Jan 2010
Location: CA
Posts: 462
Year: 1998 and 1986
Model: Cherokee
Engine: 4.0
Default

Creative idea. They look great.
esteem is offline
Reply With Quote
Old 09-18-2016, 01:49 PM
  #4
CF Veteran

chipmaker's Avatar

Join Date: Feb 2013
Location: Belton S.C.
Posts: 1,278
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Badass!! I've been having the same dilemma. I'm running the same wheels and bumper as you and want something that doesn't stick way out and make the narrow offset of the Moab's look weird. I think you just gave me the inspiration I was looking for! They look great, awesome craftsmanship!
chipmaker is offline
Reply With Quote
Old 09-18-2016, 02:17 PM
  #5
TIME TO GET SCHWIFTY

roninofako's Avatar

Join Date: Feb 2011
Location: Apple Valley, CA
Posts: 12,575
Year: 97
Model: Cherokee
Engine: 4.6 stroker
Default

X3, stellar work. Looks killer!
roninofako is offline
Reply With Quote
Old 09-18-2016, 07:57 PM
  #6
Junior Member
Thread Starter

Rojito's Avatar

Join Date: Jan 2016
Location: Las Vegas, NV
Posts: 64
Year: 1997
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by esteem View Post
Creative idea. They look great.
Originally Posted by chipmaker View Post
Badass!! I've been having the same dilemma. I'm running the same wheels and bumper as you and want something that doesn't stick way out and make the narrow offset of the Moab's look weird. I think you just gave me the inspiration I was looking for! They look great, awesome craftsmanship!
Originally Posted by roninofako View Post
X3, stellar work. Looks killer!
Thanks Everyone!
Rojito is offline
Reply With Quote
Old 09-19-2016, 07:50 AM
  #7
CF Veteran

Join Date: Apr 2016
Location: Pasquotank, NC
Posts: 1,527
Year: 1990
Model: Cherokee
Engine: 4.0
Default

How are they attached to the fender?

Look good.
bad_idea is offline
Reply With Quote
Old 09-19-2016, 02:46 PM
  #8
CF Veteran

Big David's Avatar

Join Date: Jun 2011
Location: Murrayville,Ga.
Posts: 2,608
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Very cool. You gave me a idea on how to fix my hacked up rear wheel wells.
Big David is offline
Reply With Quote
Old 09-21-2016, 03:22 PM
  #9
Member

RubenZ's Avatar

Join Date: Jun 2016
Location: South Texas
Posts: 194
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Originally Posted by bad_idea View Post
How are they attached to the fender?

Look good.
Kinda hard to tell but where fender meets overlapping body I think he put bolts. Look at 3rd pic FROM BOTTOM.
RubenZ is offline
Reply With Quote
Old 09-21-2016, 05:24 PM
  #10
CF Veteran

Join Date: Apr 2016
Location: Pasquotank, NC
Posts: 1,527
Year: 1990
Model: Cherokee
Engine: 4.0
Default

I saw that, but was unsure if OP welded tabs or a continuos flange. I was hoping he would chime in by now. I hope he hasn't died, should we send out a search party?
bad_idea is offline
Reply With Quote
Old 09-21-2016, 07:08 PM
  #11
Junior Member
Thread Starter

Rojito's Avatar

Join Date: Jan 2016
Location: Las Vegas, NV
Posts: 64
Year: 1997
Model: Cherokee
Engine: 4.0L
Default

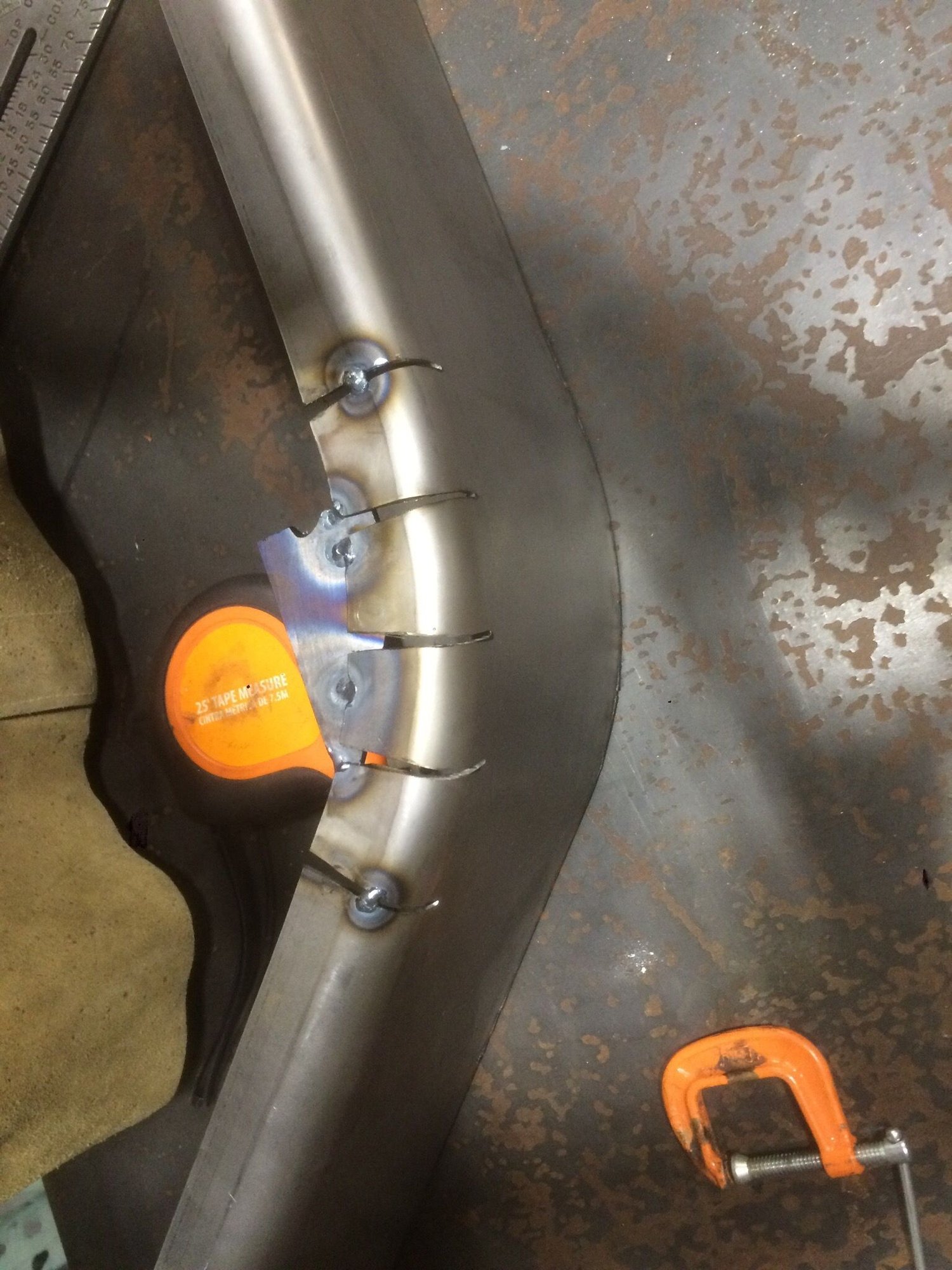

I'm here, not dead. I attached the fenders with welded tabs. I have 5 tabs spread along the fender. I drilled holes through the tabs and the edge of the fender. Then I just put some 1/4-20 bolts through





Rojito is offline
Reply With Quote
Old 09-22-2016, 07:37 AM
  #12
CF Veteran

Join Date: Apr 2016
Location: Pasquotank, NC
Posts: 1,527
Year: 1990
Model: Cherokee
Engine: 4.0
Default

I like it. I'm glad you're not dead. Excellent craftsmanship.
bad_idea is offline
Reply With Quote
Old 09-22-2016, 06:51 PM
  #13
Junior Member
Thread Starter

Rojito's Avatar

Join Date: Jan 2016
Location: Las Vegas, NV
Posts: 64
Year: 1997
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by bad_idea View Post
I like it. I'm glad you're not dead. Excellent craftsmanship.
Thank you!
Rojito is offline
Reply With Quote
Old 03-08-2017, 08:58 AM
  #14
Senior Member

kickice24's Avatar

Join Date: Jan 2012
Location: Port Richey, FL
Posts: 648
Model: Cherokee
Engine: 4.0
Default

Love the fab work. Great job man.
kickice24 is offline
Reply With Quote
Old 03-08-2017, 10:37 AM
  #15
CF Veteran

LACK's Avatar

Join Date: Oct 2016
Location: CA
Posts: 1,524
Model: Cherokee
Default

Cool idea and nice fab work. Definitely have me thinking as I was planning on building a set of flairs from scratch, this may be a direction im going to explore.
