Talking Leftover sliders, not the yummy kind

For quite awhile I've been wanting sliders and procrastining building them. Went to the scrap pile and had just enough lengths of 1x1 and 2x2 tube for a set. Played around with a piece of 1" flat bar and decided to give them a little extra flair with some dimple die work.
Attached Thumbnails Leftover sliders, not the yummy kind-img_4068.jpg
offroadordnance is offline
Old 10-30-2016, 05:01 AM
  #2
CF Veteran
Thread Starter

offroadordnance's Avatar

Join Date: Jul 2011
Location: Pompano Beach
Posts: 1,386
Year: 1998
Model: Cherokee
Engine: 4.0
Default

52 holes later and a lot of press work with the 20ton got me to this point.
Attached Thumbnails Leftover sliders, not the yummy kind-img_4079.jpg
offroadordnance is offline
Old 10-30-2016, 05:09 AM
  #3
CF Veteran
Thread Starter

offroadordnance's Avatar

Join Date: Jul 2011
Location: Pompano Beach
Posts: 1,386
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Figured this might hold up a little better than the blue tape I used during mock up. My old welder was acting up so the welds are a bit funky, but these things are made to get beat up so it'll work.
Attached Thumbnails Leftover sliders, not the yummy kind-img_4106.jpg
offroadordnance is offline
Old 10-30-2016, 05:14 AM
  #4
CF Veteran
Thread Starter

offroadordnance's Avatar

Join Date: Jul 2011
Location: Pompano Beach
Posts: 1,386
Year: 1998
Model: Cherokee
Engine: 4.0
Default

I needed some more 1" flat bar and broke down and paid to get 4x6 mounting plates cut and used my Swag brake to make the bends. So far I'm $30 out of pocket.
Attached Thumbnails Leftover sliders, not the yummy kind-img_4116.jpg
offroadordnance is offline
Old 10-30-2016, 05:21 AM
  #5
CF Veteran
Thread Starter

offroadordnance's Avatar

Join Date: Jul 2011
Location: Pompano Beach
Posts: 1,386
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Nothing like a Saturday morning rolling around on damp pavement. There were way too many metal shavings around the shop to do the fitment inside. GF can sweep and hopefully Bedline these while I'm at SEMA
Attached Thumbnails Leftover sliders, not the yummy kind-img_4123.jpg
offroadordnance is offline
Old 10-30-2016, 05:25 AM
  #6
CF Veteran
Thread Starter

offroadordnance's Avatar

Join Date: Jul 2011
Location: Pompano Beach
Posts: 1,386
Year: 1998
Model: Cherokee
Engine: 4.0
Default

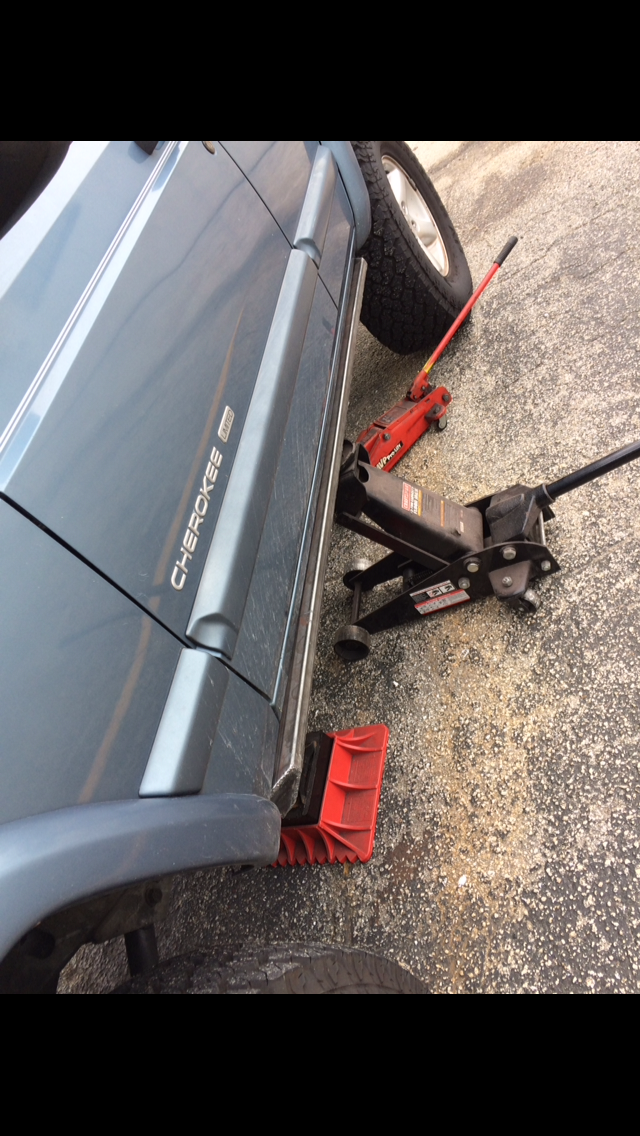

Might not get around to updates for a while so here's the fitment
Attached Thumbnails Leftover sliders, not the yummy kind-img_4126.png
offroadordnance is offline
Old 10-30-2016, 05:27 AM
  #7
CF Veteran
Thread Starter

offroadordnance's Avatar

Join Date: Jul 2011
Location: Pompano Beach
Posts: 1,386
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Rear
Attached Thumbnails Leftover sliders, not the yummy kind-img_4119.jpg
offroadordnance is offline
Old 10-30-2016, 05:39 AM
  #8
CF Veteran
Thread Starter

offroadordnance's Avatar

Join Date: Jul 2011
Location: Pompano Beach
Posts: 1,386
Year: 1998
Model: Cherokee
Engine: 4.0
Default

One thing I failed to mention in my posts was I understand the holes may pack with mud and collect moisture. Prior to welding all the pieces were sprayed with weldable zinc primer to minimize corrosion. For me, the aesthetics were worth the tradeoff in potential longevity. Hopefully these won't whistle going down the highway,,,
Attached Thumbnails Leftover sliders, not the yummy kind-img_4121.jpg
offroadordnance is offline
Old 10-30-2016, 07:43 AM
  #9
CF Veteran

chipmaker's Avatar

Join Date: Feb 2013
Location: Belton S.C.
Posts: 1,280
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Nice! They look great.
chipmaker is offline
Old 03-08-2017, 08:56 AM
  #10
Senior Member

kickice24's Avatar

Join Date: Jan 2012
Location: Port Richey, FL
Posts: 648
Model: Cherokee
Engine: 4.0
Default

They look very nice. Great job! Did they end up whistling at all?
kickice24 is offline
Old 03-24-2017, 05:21 AM
  #11
CF Veteran
Thread Starter

offroadordnance's Avatar

Join Date: Jul 2011
Location: Pompano Beach
Posts: 1,386
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Originally Posted by kickice24 View Post
They look very nice. Great job! Did they end up whistling at all?
No whistling at all, thanks.
offroadordnance is offline
Old 04-04-2017, 09:17 AM
  #12
Newbie

Join Date: Mar 2017
Location: Louisiana
Posts: 29
Year: 88
Model: Cherokee
Engine: 4.0
Default

Nice job!
Cajun1 is offline
Old 04-14-2017, 07:04 AM
  #13
Seasoned Member

nitro450exp's Avatar

Join Date: Sep 2009
Location: Here, no there, I don't know.
Posts: 432
Year: 1994
Model: Cherokee
Engine: 4.0
Default

You will need drain holes to let the water out.
The dimple strip looks cool, but will trap mud and water.
Not sure it will slide well on rocks, but then the rig looks like it sees mild use.

Nice Fab.

Nitro
