Hydro Assist mount

Reply




Old 06-02-2018, 10:13 PM
  #1
Member
Thread Starter

Join Date: Feb 2013
Location: Seattle
Posts: 214
Year: 1990
Model: Cherokee
Engine: 4.0
Default Hydro Assist mount

Adding West Texas Off-road hydro assist steering. The ram fits almost perfect in the stock stabilizer bracket but I need to reinforce it so this is what I did.
Baddad is offline
Reply With Quote
Old 06-02-2018, 10:15 PM
  #2
Member
Thread Starter

Join Date: Feb 2013
Location: Seattle
Posts: 214
Year: 1990
Model: Cherokee
Engine: 4.0
Default

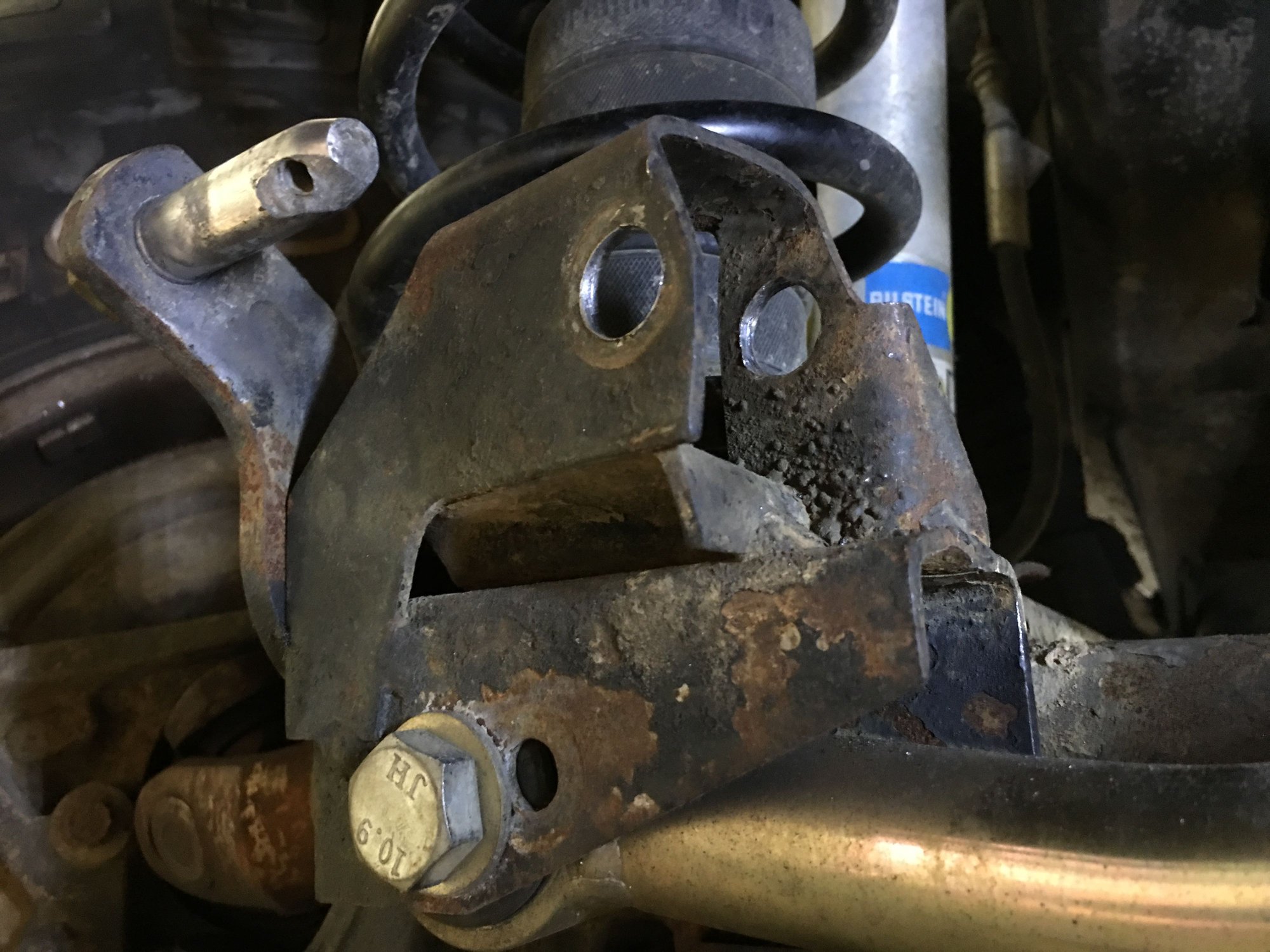

This is factory.
Holds up incredibly well for heavy sheet metal!
Baddad is offline
Reply With Quote
Old 06-02-2018, 10:18 PM
  #3
Member
Thread Starter

Join Date: Feb 2013
Location: Seattle
Posts: 214
Year: 1990
Model: Cherokee
Engine: 4.0
Default

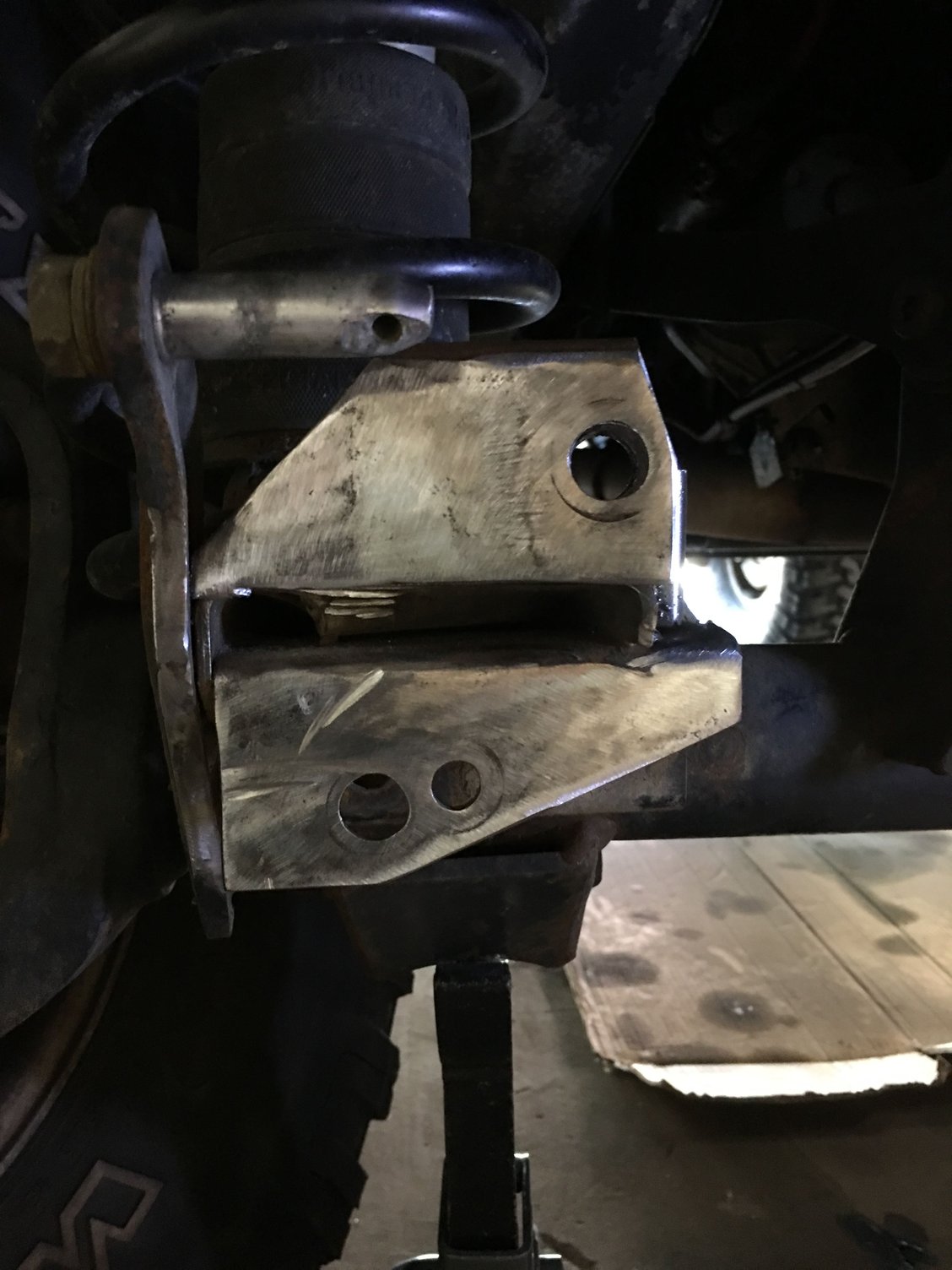

Started by cutting this chunk out.
Cleaned up the surfaces.

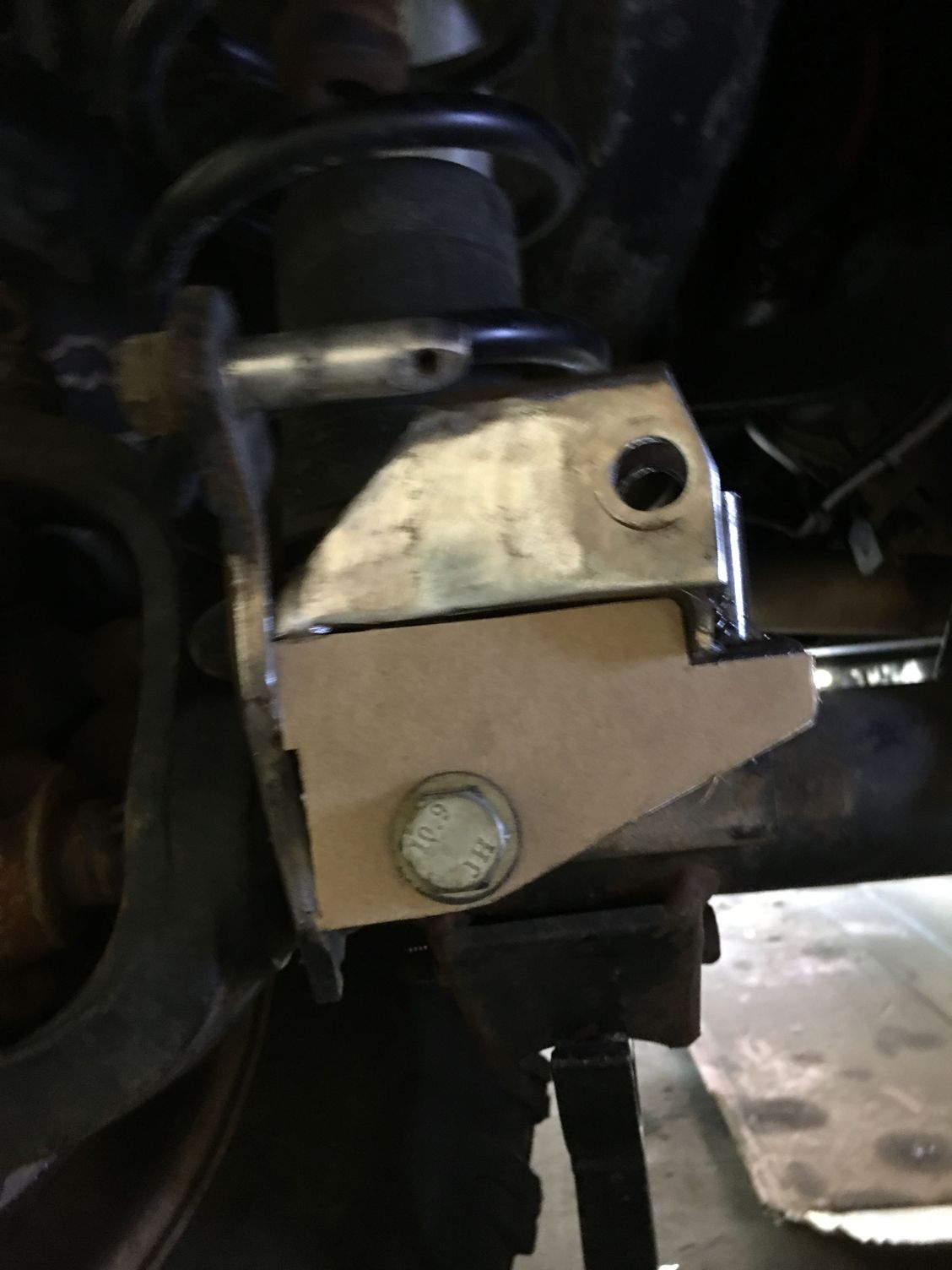

Used more cad design!
And cut the piece out of 1/4 plate.
Baddad is offline
Reply With Quote
Old 06-02-2018, 10:21 PM
  #4
Member
Thread Starter

Join Date: Feb 2013
Location: Seattle
Posts: 214
Year: 1990
Model: Cherokee
Engine: 4.0
Default

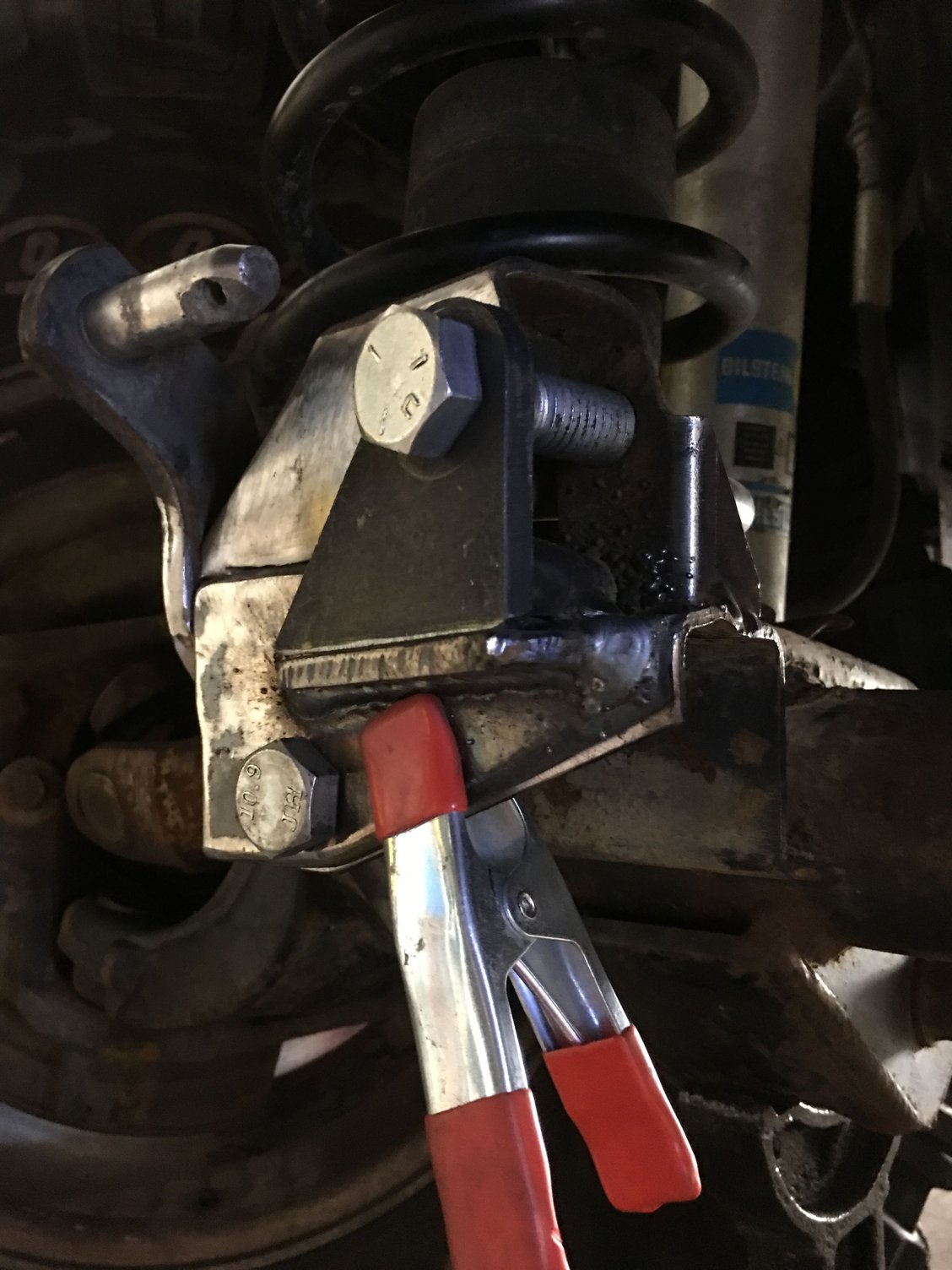

I utilized the mounting tabs from the kit. Since the stabilizer mount is at an angle from the track bar mount, I needed a shelf to mount the tab.


Baddad is offline
Reply With Quote
Old 06-02-2018, 10:23 PM
  #5
Member
Thread Starter

Join Date: Feb 2013
Location: Seattle
Posts: 214
Year: 1990
Model: Cherokee
Engine: 4.0
Default

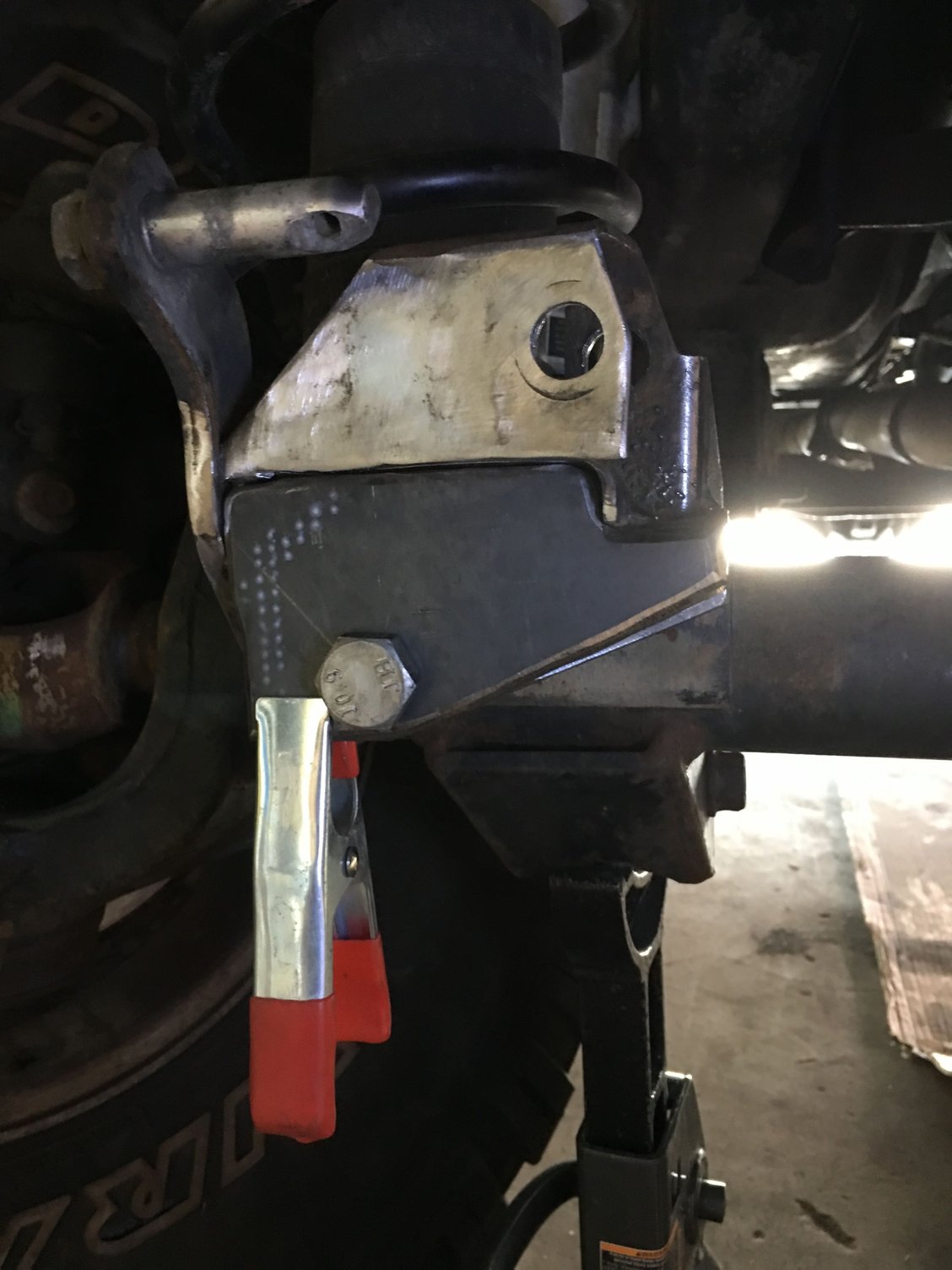

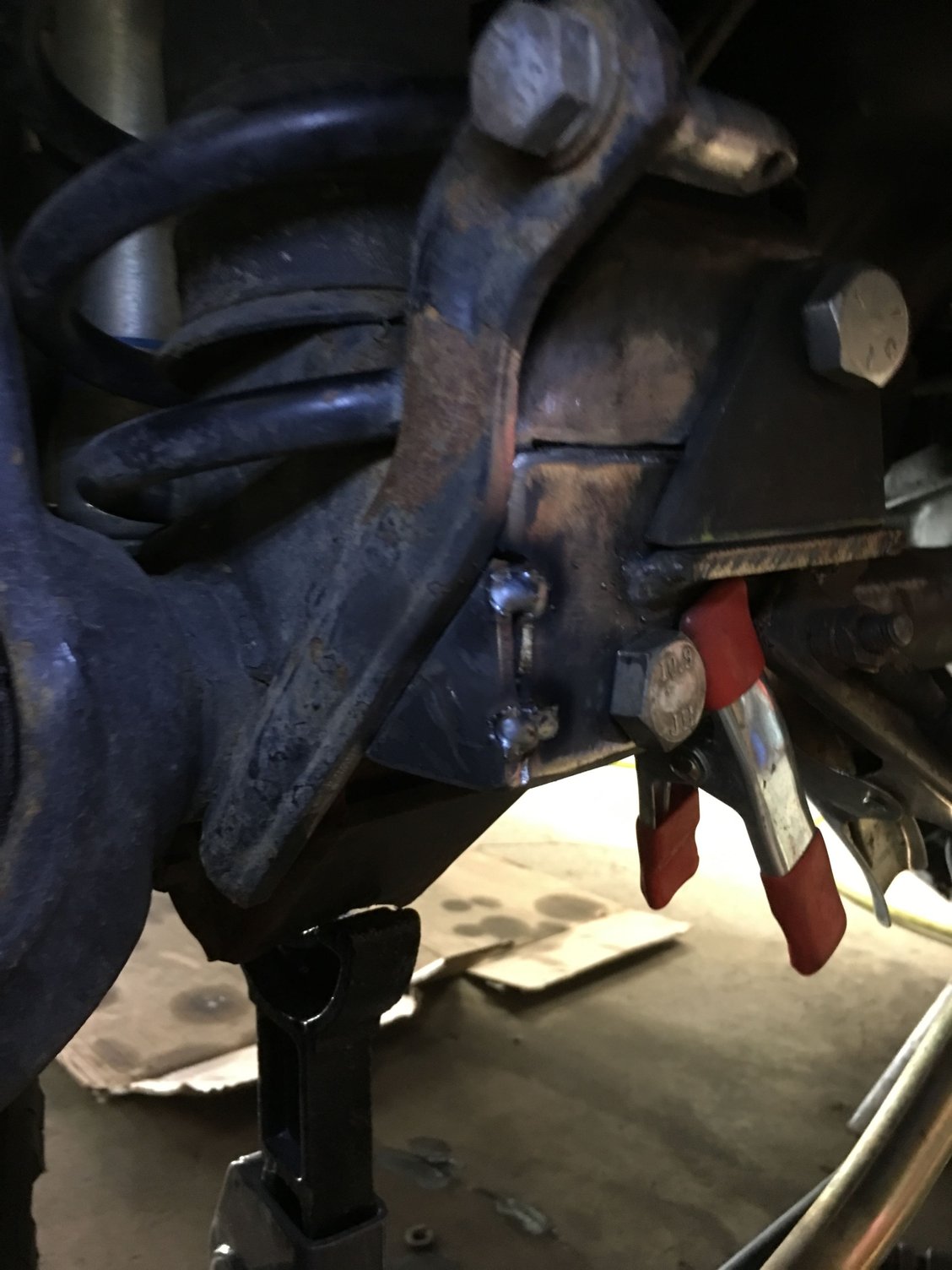

I decided to tie in this area for more strength.
Like this.
Baddad is offline
Reply With Quote
Old 06-02-2018, 10:26 PM
  #6
Member
Thread Starter

Join Date: Feb 2013
Location: Seattle
Posts: 214
Year: 1990
Model: Cherokee
Engine: 4.0
Default

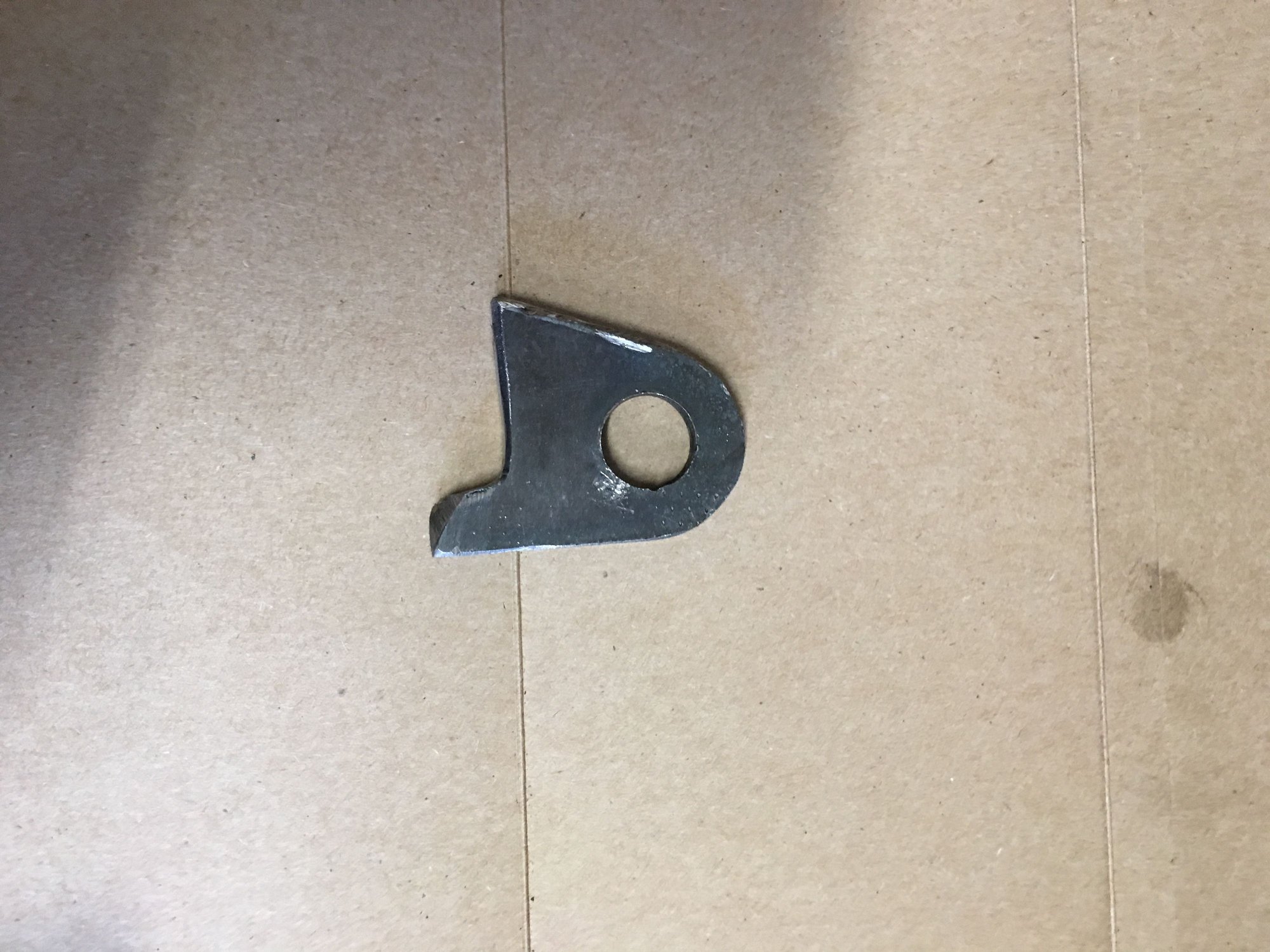

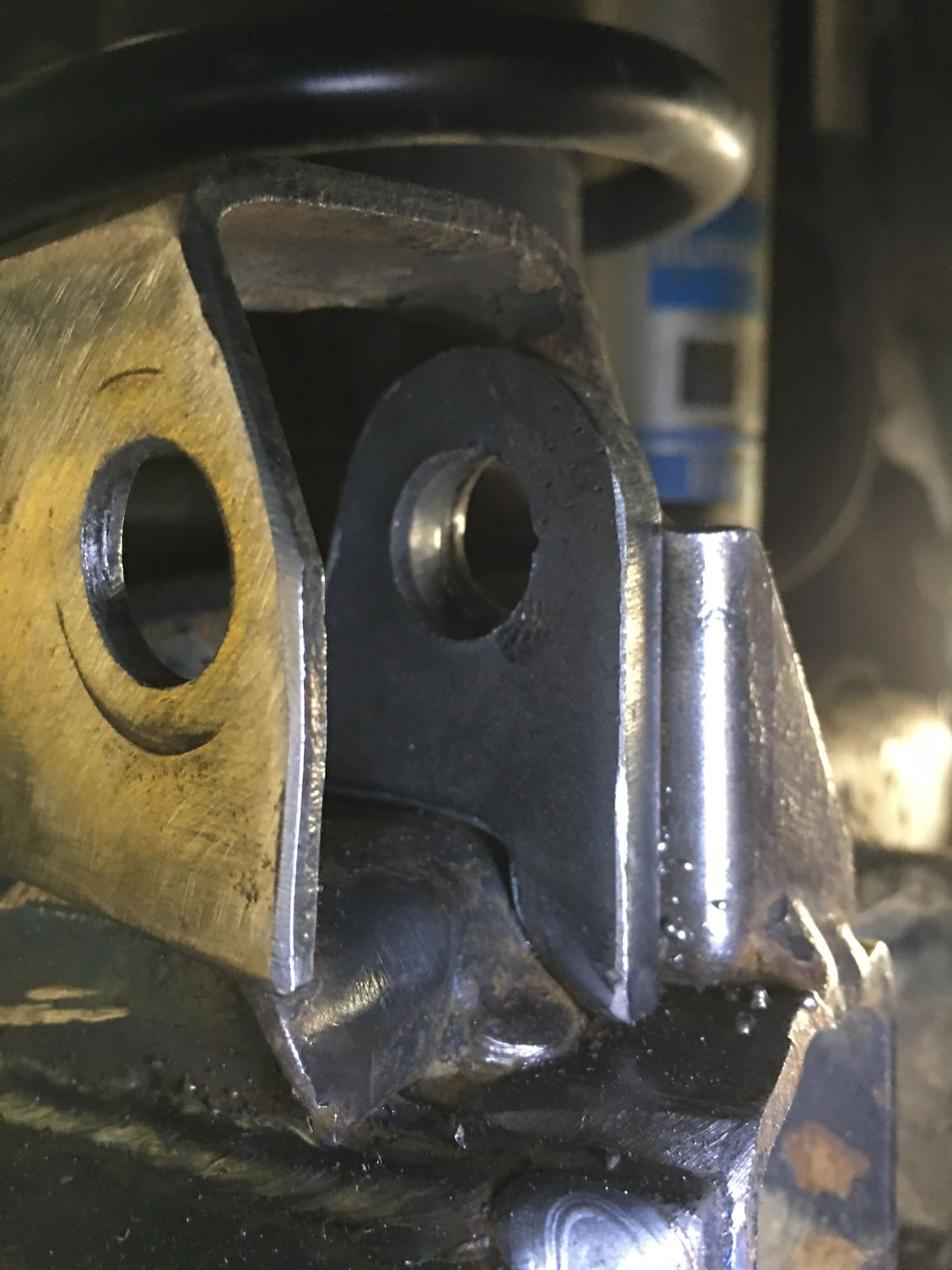

The inner mount was more tricky. Cut a piece like this.
Fits into the mount like this

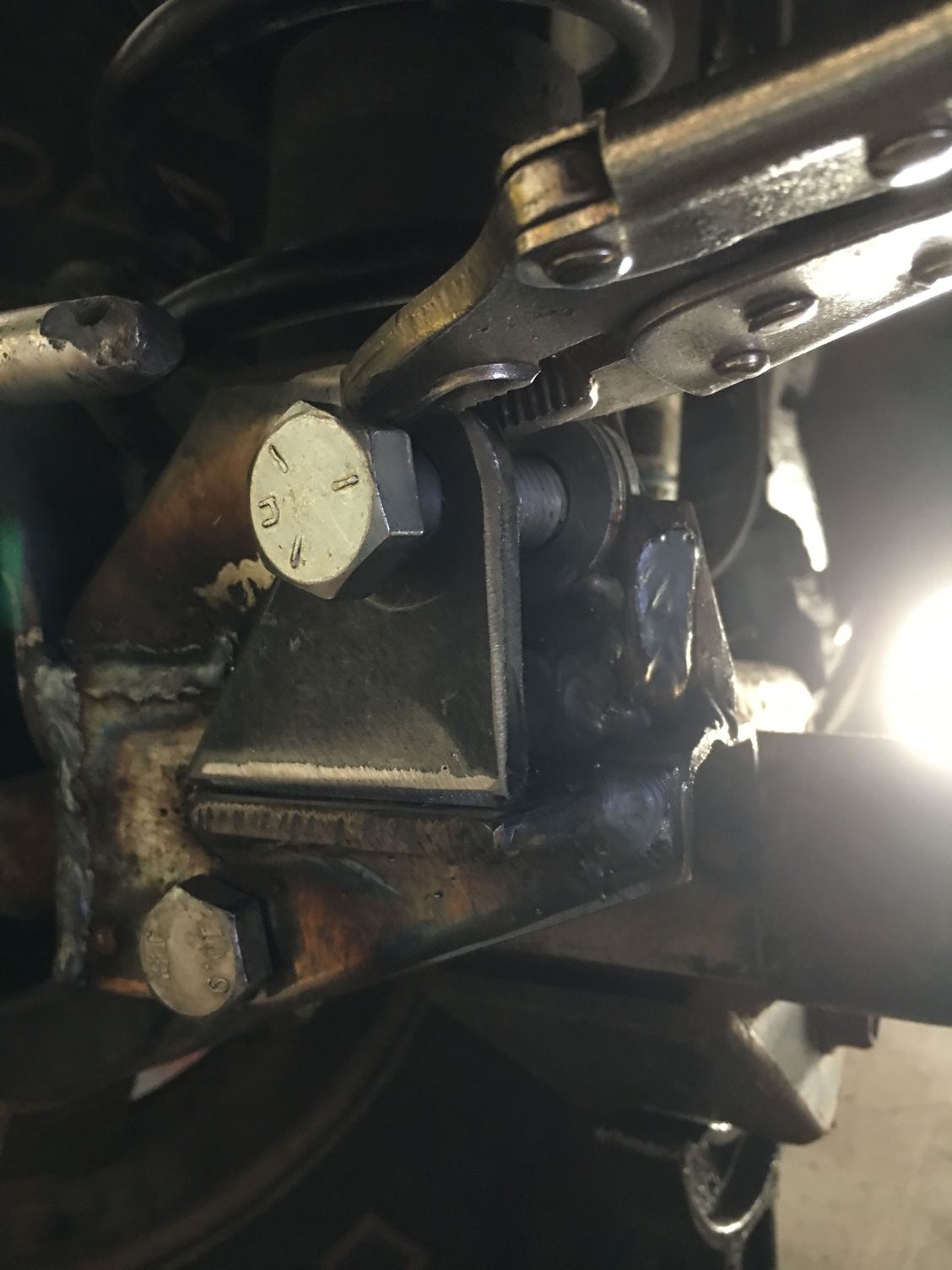

And welded it in. I added a couple washers tacked on for spacers.
Baddad is offline
Reply With Quote
Old 06-02-2018, 10:29 PM
  #7
Member
Thread Starter

Join Date: Feb 2013
Location: Seattle
Posts: 214
Year: 1990
Model: Cherokee
Engine: 4.0
Default

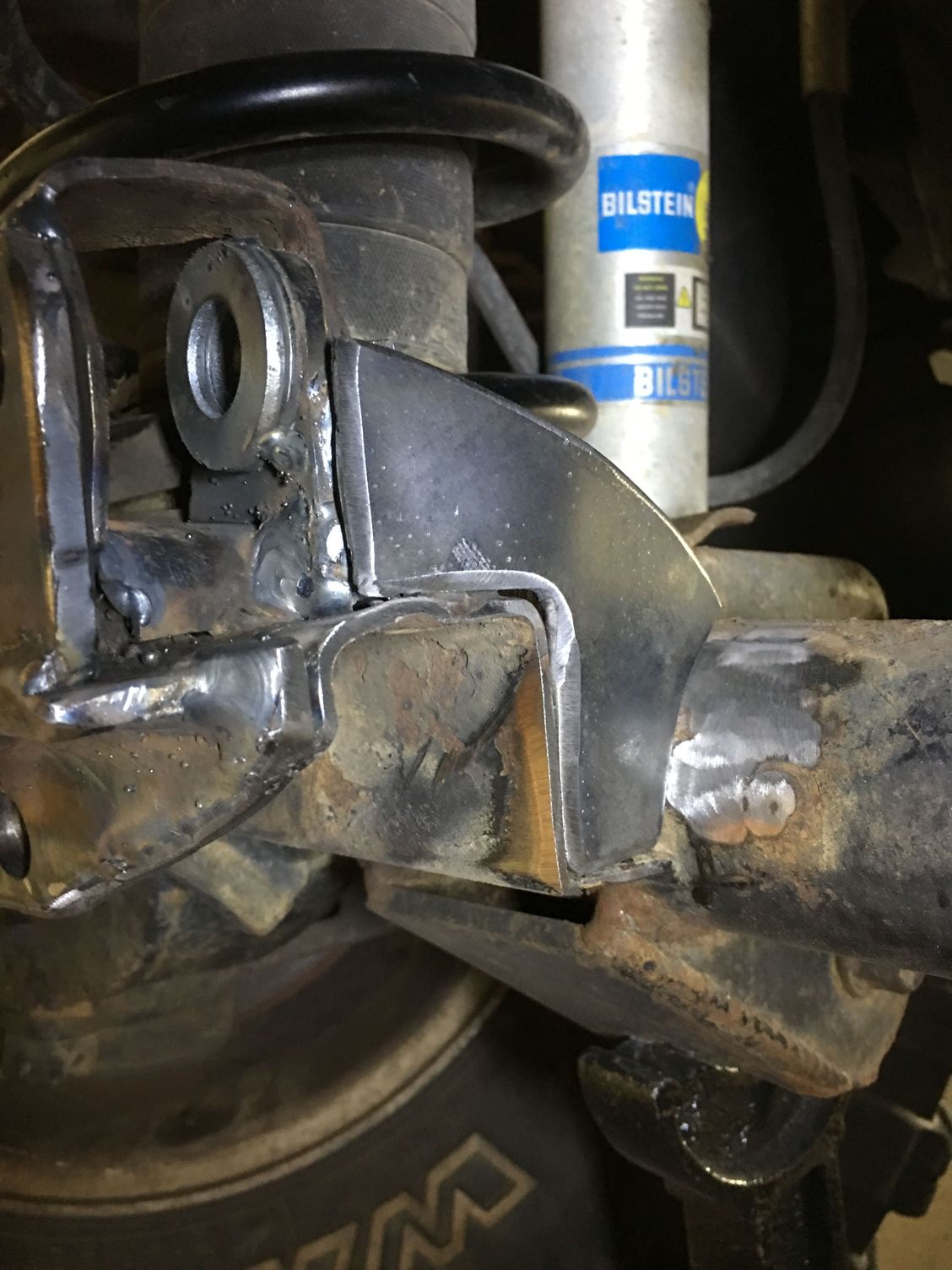

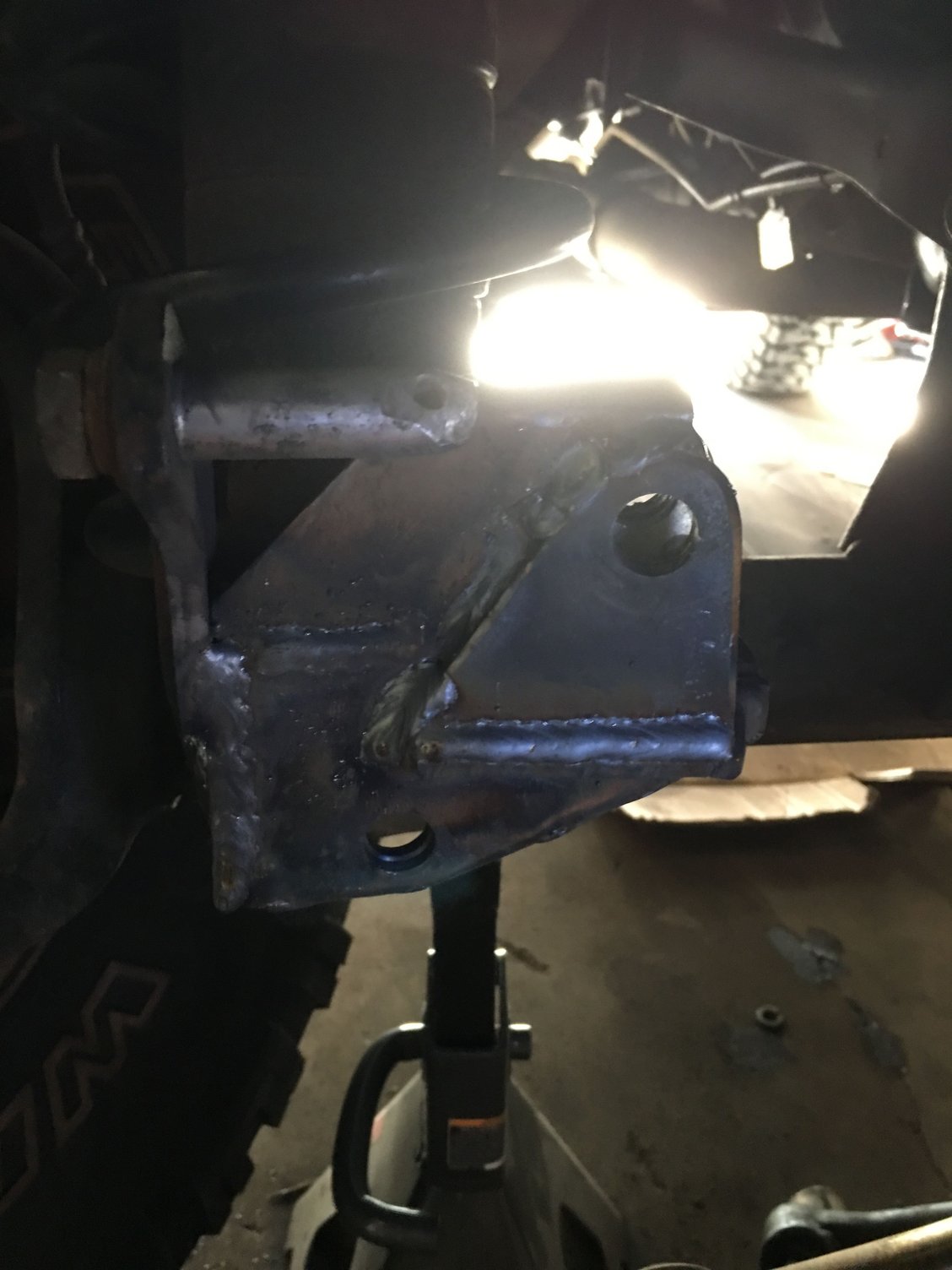

Then I fully welded in the rest.
Think it turned out ok.

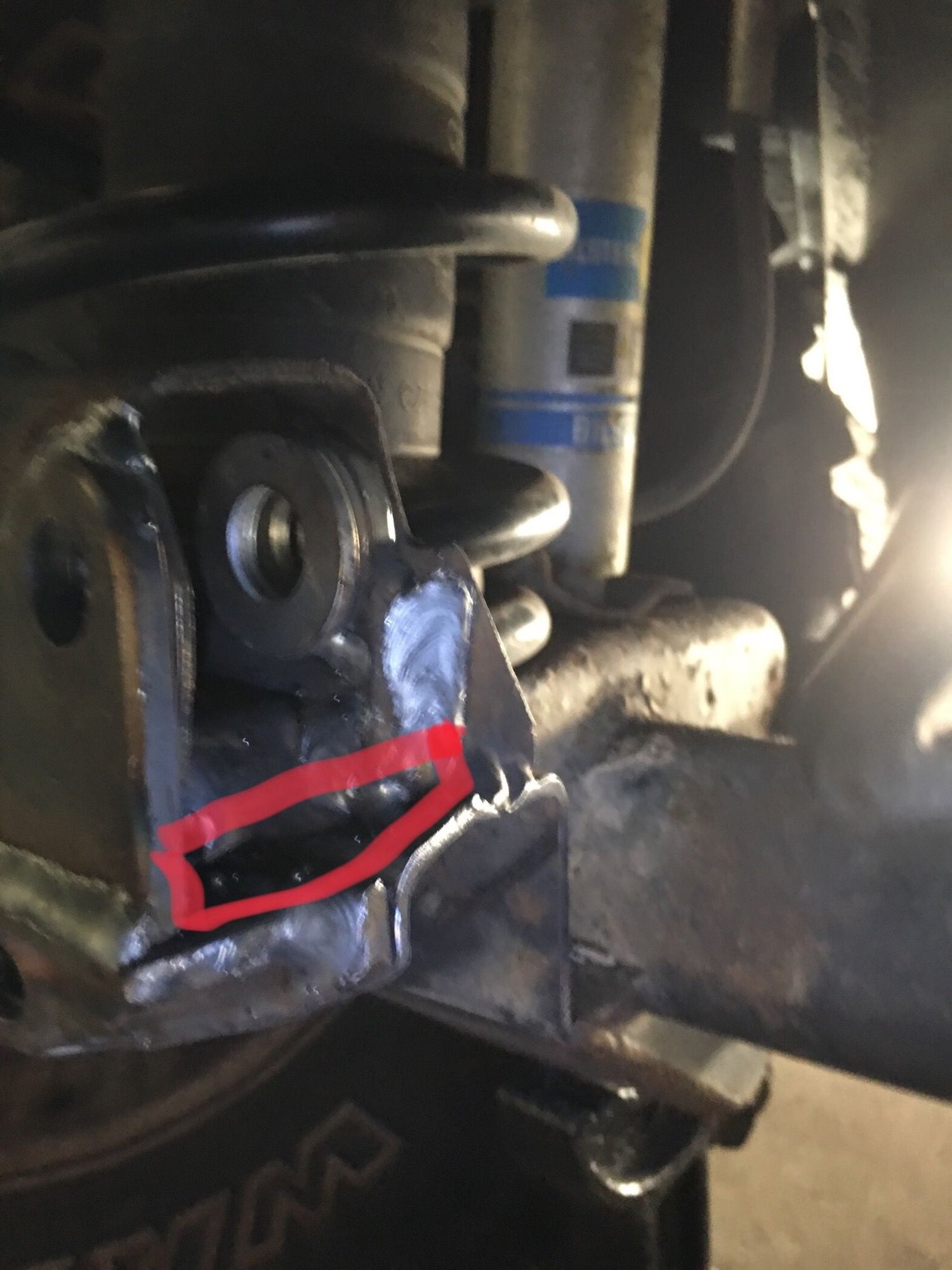

I ran outta time tonight, but Ill add a small piece here to gusset it al together.
Baddad is offline
Reply With Quote
Old 06-05-2018, 07:56 PM
  #8
Member
Thread Starter

Join Date: Feb 2013
Location: Seattle
Posts: 214
Year: 1990
Model: Cherokee
Engine: 4.0
Default

Decided it would be better to reinforce at the back of the mount.
Did the normal CAD pattern, and cut out this piece. It needed a slight bend for the angle to work but since this is 3/16 plate I was able to do it with a hammer in the bench vise.
Then welded it in.

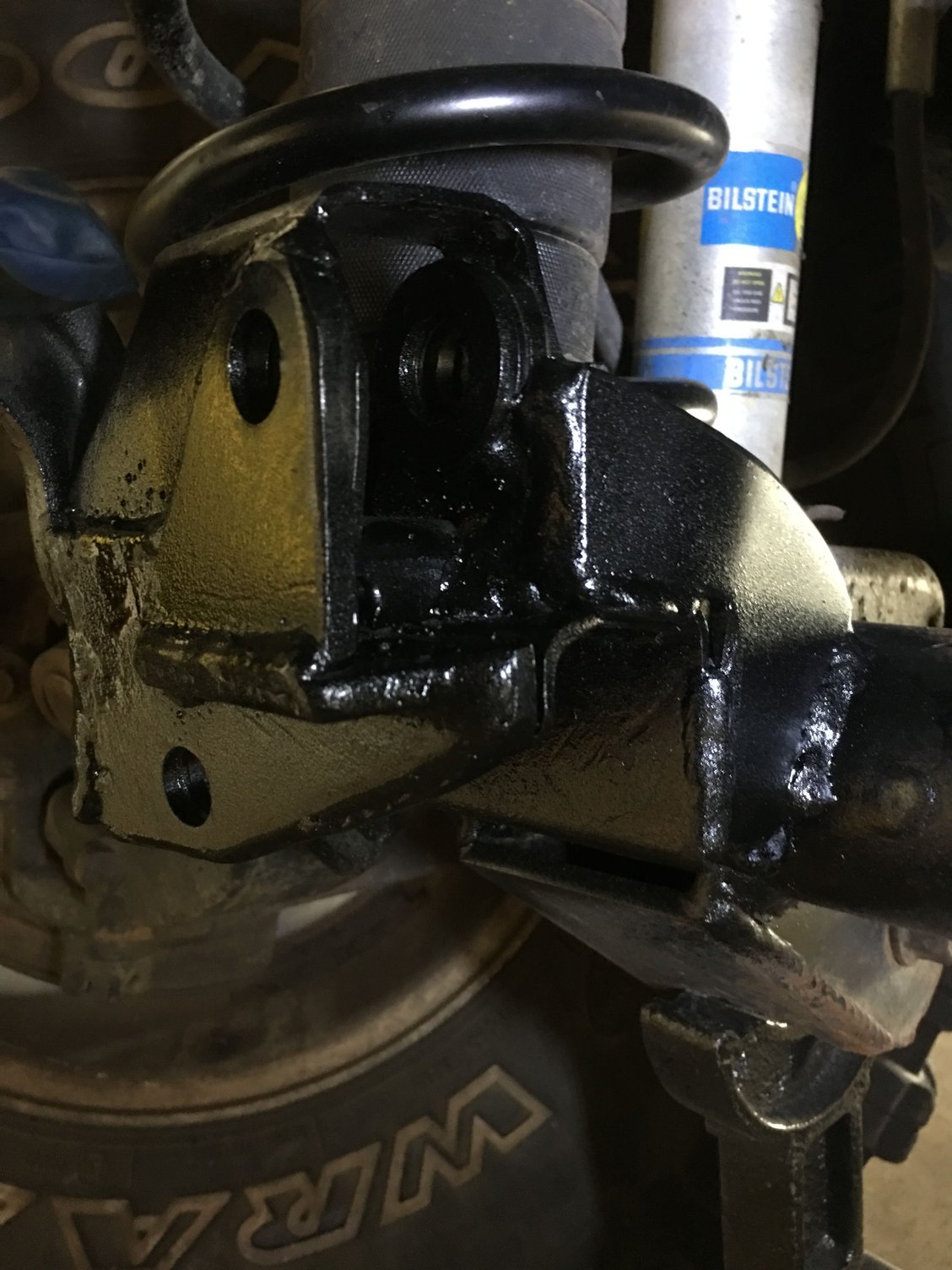

No project is done until its got bedliner on it! I put that s**t on everything! 🤣
Baddad is offline
Reply With Quote
Old 06-08-2018, 02:40 AM
  #9
Member
Thread Starter

Join Date: Feb 2013
Location: Seattle
Posts: 214
Year: 1990
Model: Cherokee
Engine: 4.0
Default

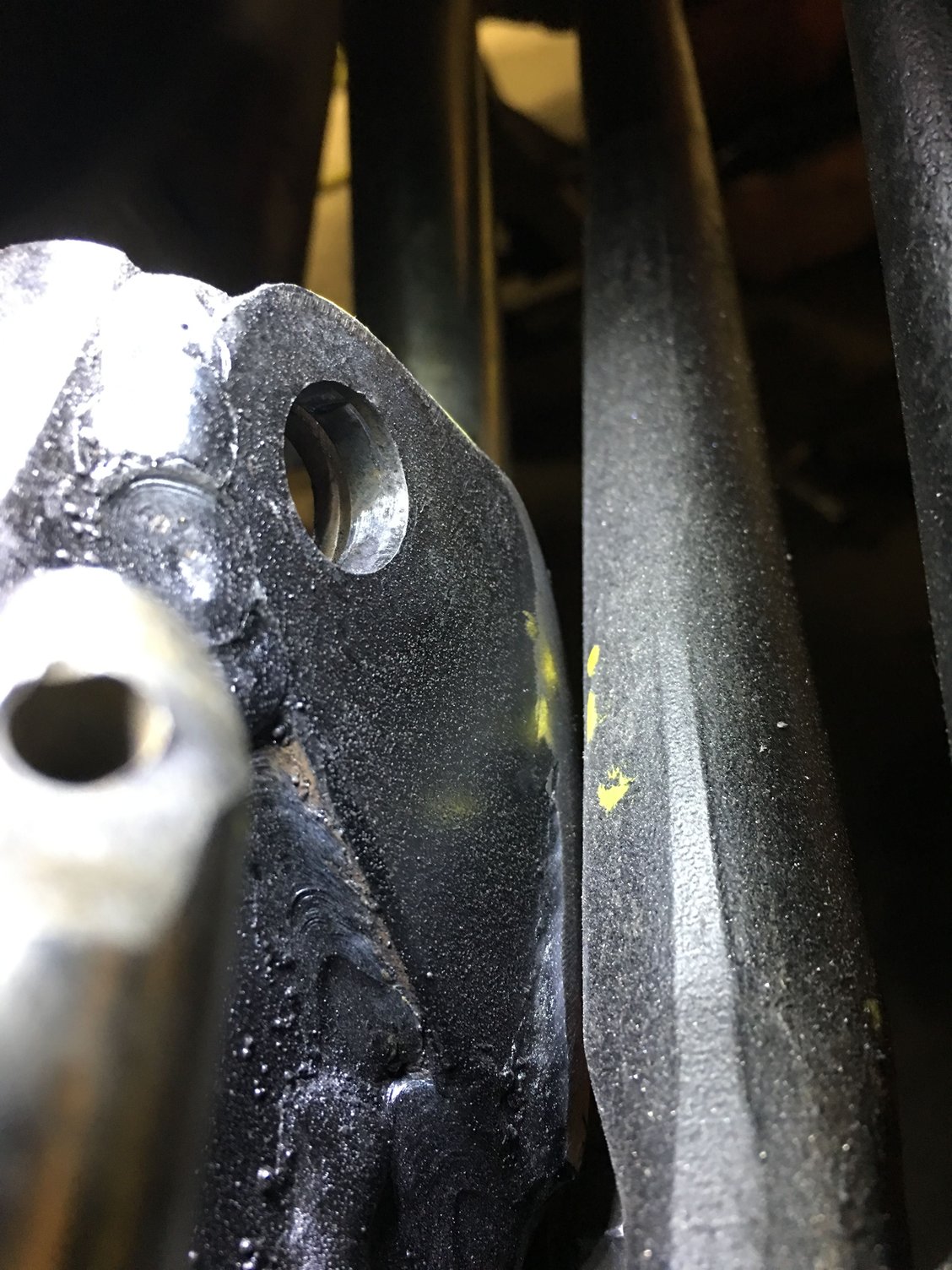

Ran into a bit of clearance issue. With my stock type steering setup, the drag link was hitting my bracket.
So I had to cut about 1/4 off and taper it to the left. If I were to do this again Id raise the shelf 1/4-3/8 higher and the steering would have cleared. Live and learn...
Baddad is offline
Reply With Quote
Old 06-08-2018, 02:49 AM
  #10
Member
Thread Starter

Join Date: Feb 2013
Location: Seattle
Posts: 214
Year: 1990
Model: Cherokee
Engine: 4.0
Default

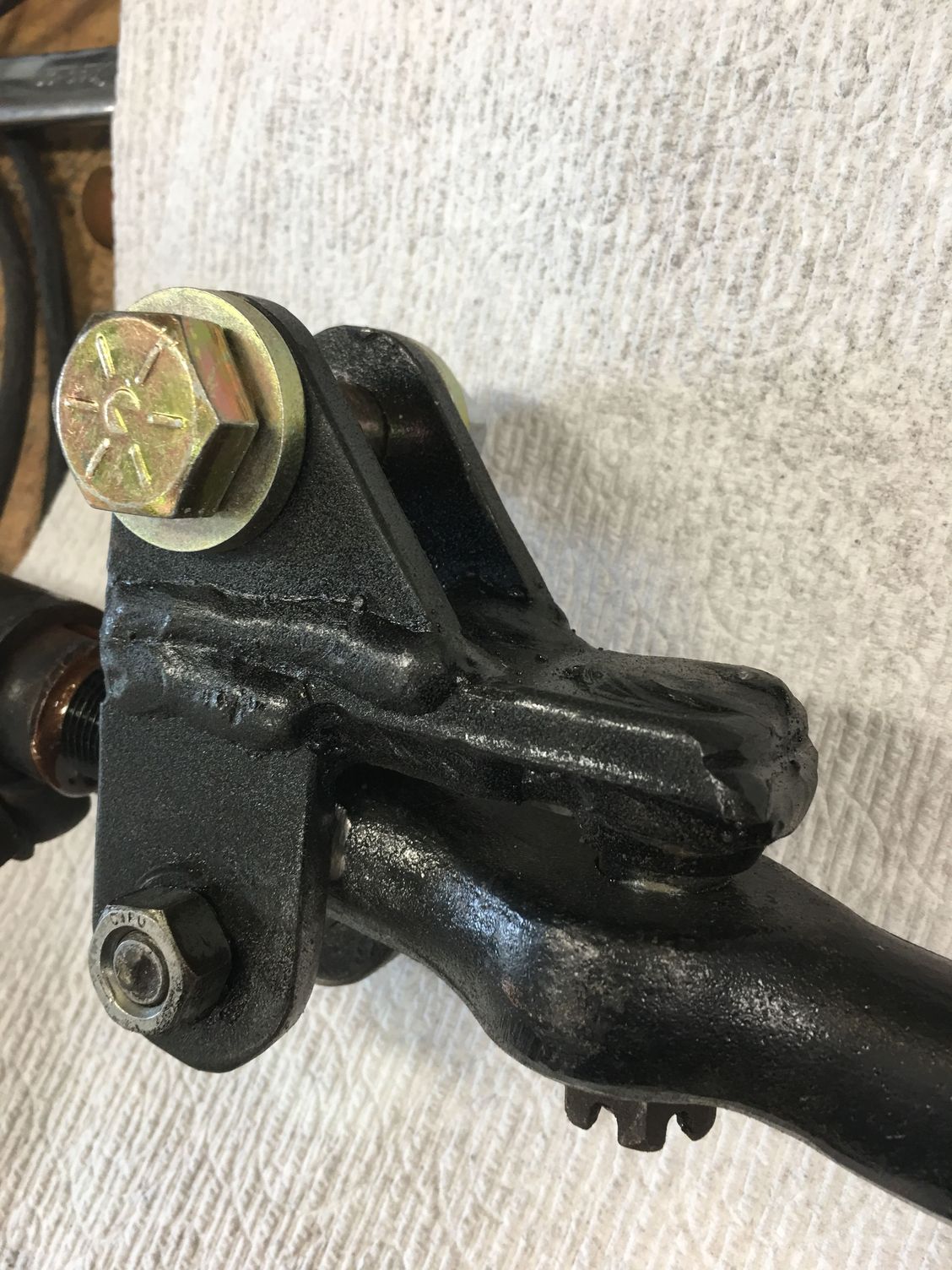

So, Im gonna get a lot of grief for this but I decided to try the hydro steer setup on my stockish steering. I do have the ZJ V8 tierod so well see how it holds up. This is the bracket I built to attach the ram to the draglink.
I dont have build pics but I used a steering stabilizer stud with the straight wall end cut off, drilled and welded it into a 5/16 plate piece, then welded the tabs to it. On the other side I put another set of tabs and fashioned a cam bolt at arrangement so I could tighten the bracket snug against the drag link.
Im curious to see how this holds up. Not the brackets, but the steering linkage itself. Ill report back after a trail run.
Baddad is offline
Reply With Quote
Old 06-08-2018, 10:11 AM
  #11
aka Wade-O

89eliminator's Avatar

Join Date: Dec 2008
Location: SE WI
Posts: 3,652
Year: 1989 Comanche
Model: Cherokee
Engine: 4.0
Default

i'll be curious about that will hold up. get in a bind and the ram may overpower the strength of the draglink and bend it.
89eliminator is offline
Reply With Quote
Old 06-09-2018, 07:13 AM
  #12
Member
Thread Starter

Join Date: Feb 2013
Location: Seattle
Posts: 214
Year: 1990
Model: Cherokee
Engine: 4.0
Default

Originally Posted by 89eliminator View Post
i'll be curious about that will hold up. get in a bind and the ram may overpower the strength of the draglink and bend it.
Yea, me to. More concerned with the tierod. But well see what happens 🤞. Gonna be conscious of it on the trail and try not to stress it to much. As soon as the budget allows, thinking of going with the IRO setup.
Baddad is offline
Reply With Quote
Old 06-10-2018, 12:15 PM
  #13
CF Veteran

unidentifiedbomb's Avatar

Join Date: May 2011
Location: DE
Posts: 5,309
Year: 1988
Model: Cherokee
Engine: I6 4.0
Default

Following. This is interesting lol good idea with an interesting execution with that tie rod
unidentifiedbomb is offline
Reply With Quote
Old 06-12-2018, 07:56 PM
  #14
CF Veteran

Join Date: Apr 2016
Location: Pasquotank, NC
Posts: 1,550
Year: 1990
Model: Cherokee
Engine: 4.0
Default

Looking good.
bad_idea is offline
Reply With Quote
Old 06-14-2018, 09:43 PM
  #15
Member
Thread Starter

Join Date: Feb 2013
Location: Seattle
Posts: 214
Year: 1990
Model: Cherokee
Engine: 4.0
Default

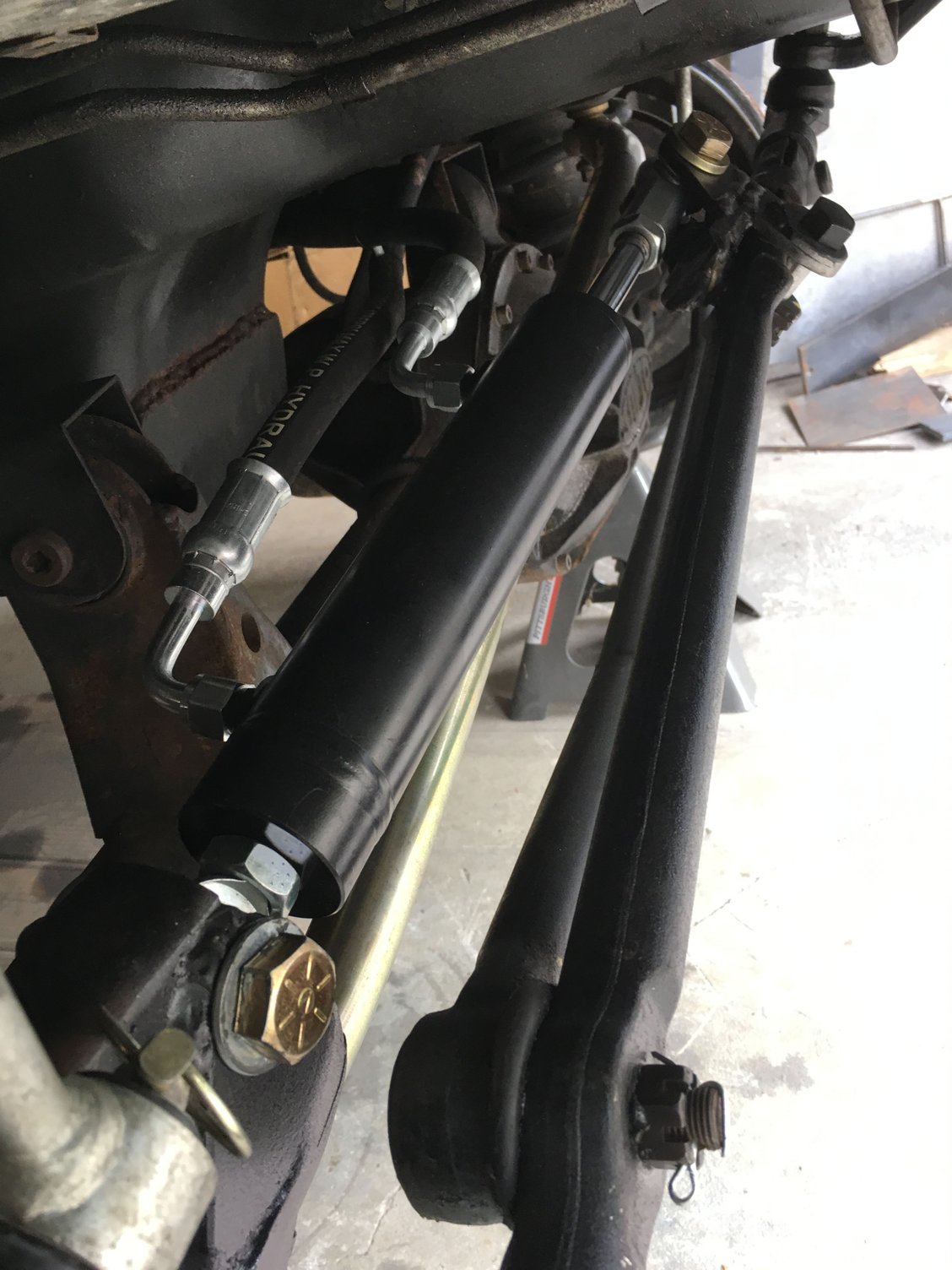

Got it all mounted up and plumbed. Drives great! It really does act as a super steering damper 😋 dont feel any bumps in the steering wheel!
The boost is nice at slow speeds. Heading out for a week long off road adventure the end of June. Ill report back on how it held up and worked.
