Driveshaft Length

Reply




Old 09-10-2018, 11:15 AM
  #1
Seasoned Member
Thread Starter

Join Date: Dec 2017
Location: Calgary, AB
Posts: 424
Year: 1998
Model: Grand Cherokee (ZJ)
Engine: 5.2
Default Driveshaft Length

Ok so I am working on my ZJ and discovered the front drive shaft will not work for the rear as a replacement after I put the lift and a 231 with a HNT flange on.

So I am now looking to get a replacement I know I could talk to Tom or Adam about their stuff but I'm Canadian and that would just cause a lot of issues on its own. So I hope maybe we have some experts on the matters in here and could give me an idea of what I need to do.

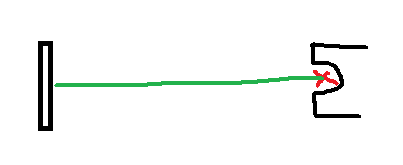

So from flat of flange to center of cap on the rear pinion I am looking at around 38.5" but where my question comes in is that there is a double cardan on this so that would be 38.5" extended and if you subtract the double cardan... say 3"... that leaves you around the 36" mark.

So would I need a driveshaft that is 36" compressed? Or 38" extended?

Thoughts? This whole driveshaft stuff hurts my brain.


firebane is offline
Reply With Quote
Old 09-10-2018, 12:01 PM
  #2
CF Veteran

investinwaffles's Avatar

Join Date: Oct 2013
Location: Tarpon Springs, FL / Denver, CO
Posts: 1,999
Year: '98
Engine: 4.0 I6
Default

I think the HD driveshafts (Adams, Tattons, Tom Woods, Etc) all come with extended splines.
I would ask them because all they do is build driveshafts for Jeeps and would probably know. Most of them have instructions on measuring for a custom DriveShaft.
investinwaffles is online now
Reply With Quote
Old 09-10-2018, 12:03 PM
  #3
Seasoned Member
Thread Starter

Join Date: Dec 2017
Location: Calgary, AB
Posts: 424
Year: 1998
Model: Grand Cherokee (ZJ)
Engine: 5.2
Default

Originally Posted by investinwaffles View Post
I think the HD driveshafts (Adams, Tattons, Tom Woods, Etc) all come with extended splines.
I would ask them because all they do is build driveshafts for Jeeps and would probably know. Most of them have instructions on measuring for a custom DriveShaft.
Yes I have measured and I have been in touch with both though email as phone calls etc are to much for us Canadians lol.

But their measurements and how things work does not allow me to understand how things work :P

I understand the measurement is what you need for OVERALL length.. but does that mean fully collapsed or extended? OR how much spline shaft sticking out etc.
firebane is offline
Reply With Quote
Old 09-10-2018, 02:28 PM
  #4
Seasoned Member

Join Date: Feb 2011
Location: orrville ohio
Posts: 483
Year: 1994
Model: Cherokee
Engine: 4.0
Default

check the junkyard for full size chevy front driveshafts from the late 80s I think they might work
tinytrax78 is offline
Reply With Quote
Old 09-10-2018, 02:56 PM
  #5
Seasoned Member
Thread Starter

Join Date: Dec 2017
Location: Calgary, AB
Posts: 424
Year: 1998
Model: Grand Cherokee (ZJ)
Engine: 5.2
Default

Originally Posted by tinytrax78 View Post
check the junkyard for full size chevy front driveshafts from the late 80s I think they might work
I'm most likely going to have to get mine extended from the majority of the research I'm doing. I need to gain at least 10" more on what I have already lol.
firebane is offline
Reply With Quote
