2x6 rock slider mount question

Old 04-16-2018, 07:50 PM
  #1
Seasoned Member
Thread Starter

Join Date: Jan 2017
Location: Southern MD
Posts: 255
Model: Cherokee
Default 2x6 rock slider mount question


We made up 2x6 rock sliders,
welded 1.5" angle to the new INNER rockers for the 2x6 to rest on.
I have one of the sliders mocked up (not welded yet.
It is tight against the inner rocker the whole length.
The slider sticks out approx. 1/2" more at the front as opposed to the rear.
I do not see this in pictures of other peoples 2x6 sliders??
How are others dealing with this??
Attached Thumbnails 2x6 rock slider mount question-dscn2767.jpg
Slackdaddy is offline
Old 04-17-2018, 09:03 AM
  #2
CF Veteran

unidentifiedbomb's Avatar

Join Date: May 2011
Location: DE
Posts: 5,600
Year: 1988
Model: Cherokee
Engine: I6 4.0
Default

It's because the body is narrower up front. Both my buddy's and my own jeep were like that. Used several welding clamps to make everything as tight as possible and welded it up. Going on 2 years now it no issues. Make sure you run supports to your uniframe to tie it all together, I suggest stiffeners too.
unidentifiedbomb is offline
Old 04-17-2018, 01:02 PM
  #3
Seasoned Member
Thread Starter

Join Date: Jan 2017
Location: Southern MD
Posts: 255
Model: Cherokee
Default

Does it look "funny" once the doors are on? is it noticeable?
Any Pictures with the doors on?
It looks really bad to me right now.


Slack
Slackdaddy is offline
Old 04-17-2018, 05:03 PM
  #4
CF Veteran

unidentifiedbomb's Avatar

Join Date: May 2011
Location: DE
Posts: 5,600
Year: 1988
Model: Cherokee
Engine: I6 4.0
Default

You forget about it easily. I forgot honestly. Here is a good angle at them. If you look for it you can see that the front sticks out more.
unidentifiedbomb is offline
Old 08-31-2018, 10:53 PM
  #5
Junior Member

Join Date: Aug 2018
Location: Idaho
Posts: 42
Year: 89
Model: Cherokee (XJ)
Engine: 4.0
Default

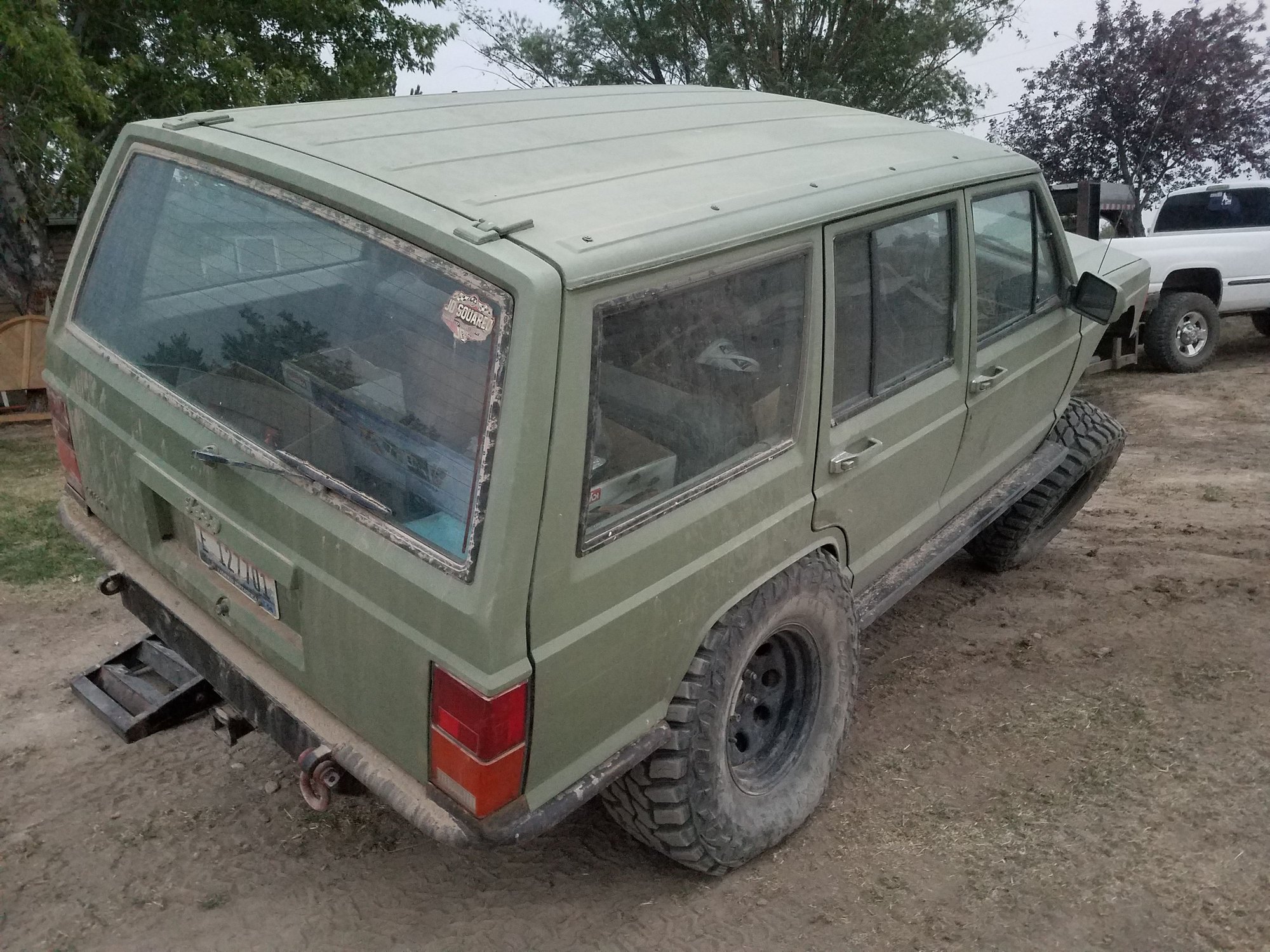

Mine are 2x8 if you look close you can see it
EvanM is offline
Old 09-01-2018, 05:31 PM
  #6
Seasoned Member
Thread Starter

Join Date: Jan 2017
Location: Southern MD
Posts: 255
Model: Cherokee
Default

I ended up cutting my down longwise, welding some 2" band onto them to make them "Taper" so they have a even reveal.

Slackdaddy is offline
Old 09-02-2018, 11:37 AM
  #7
Member

Join Date: Feb 2013
Location: Seattle
Posts: 249
Year: 1990
Model: Cherokee
Engine: 4.0
Default

Thatís some dedication to your body lines right there! Good job 👍
Baddad is offline
Old 09-02-2018, 04:58 PM
  #8
CF Veteran

unidentifiedbomb's Avatar

Join Date: May 2011
Location: DE
Posts: 5,600
Year: 1988
Model: Cherokee
Engine: I6 4.0
Default

NOISE!
unidentifiedbomb is offline
Old 09-09-2018, 07:49 AM
  #9
Seasoned Member
Thread Starter

Join Date: Jan 2017
Location: Southern MD
Posts: 255
Model: Cherokee
Default

Thanks,,
This is one of those builds that you look back and say,, "Way to much work,, If I had worked those hours at McD's,, I would be driving a brand new XXXXXXX"

Slack
Slackdaddy is offline
Old 09-09-2018, 10:53 AM
  #10
Junior Member

Join Date: Aug 2018
Location: Idaho
Posts: 42
Year: 89
Model: Cherokee (XJ)
Engine: 4.0
Default

This is one of those builds that makes you become better than you were before tackling it.. better fabricator, welder and thinkin


I've not found anything worth buying that comes off the one size fits all cookie sheet
EvanM is offline
Old 09-09-2018, 04:43 PM
  #11
Seasoned Member
Thread Starter

Join Date: Jan 2017
Location: Southern MD
Posts: 255
Model: Cherokee
Default

Evan,
Yup, this project is making me think and making me refine my skills past being a "Grinder"
Slackdaddy is offline
