Project Patience....a 90 MJ DD/Trail Sleeper.

Old 02-25-2017, 05:22 PM
  #61
CF Veteran
Thread Starter

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Gillette Wyoming
Posts: 1,278
Year: 1990
Model: Comanche (MJ)
Engine: 4.0
Default

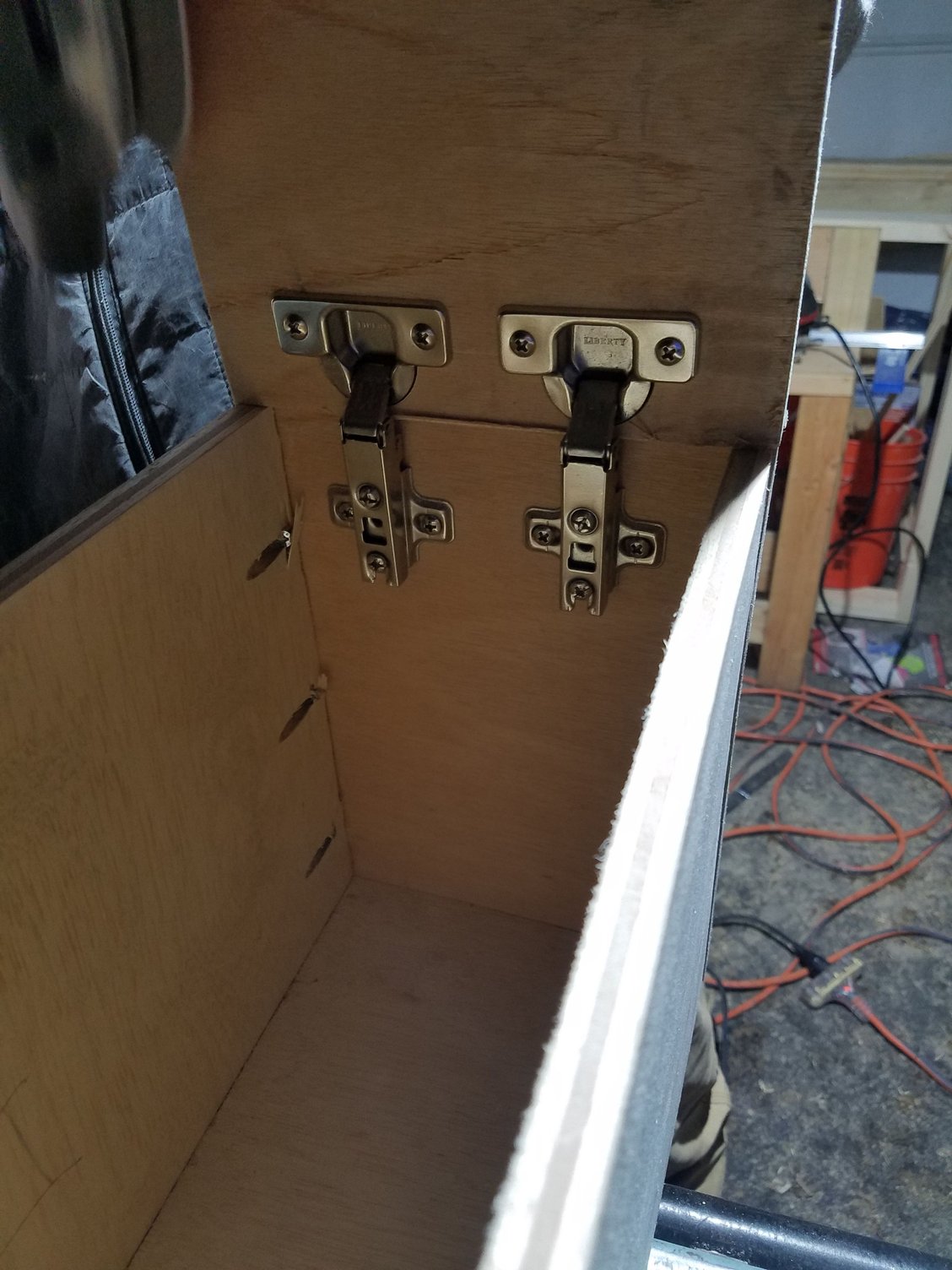

Version 3 of the center console...still finishing the details.

WyoCherokee is offline
Old 03-07-2017, 09:58 AM
  #62
CF Veteran
Thread Starter

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Gillette Wyoming
Posts: 1,278
Year: 1990
Model: Comanche (MJ)
Engine: 4.0
Default

Cav Fab 3 link and crossover steering is on its way ! YEEHAW!
WyoCherokee is offline
Old 03-17-2017, 10:44 AM
  #63
CF Veteran
Thread Starter

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Gillette Wyoming
Posts: 1,278
Year: 1990
Model: Comanche (MJ)
Engine: 4.0
Default

Love it when the brown Santa shows up!
WyoCherokee is offline
Old 03-21-2017, 07:56 PM
  #64
CF Veteran
Thread Starter

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Gillette Wyoming
Posts: 1,278
Year: 1990
Model: Comanche (MJ)
Engine: 4.0
Default

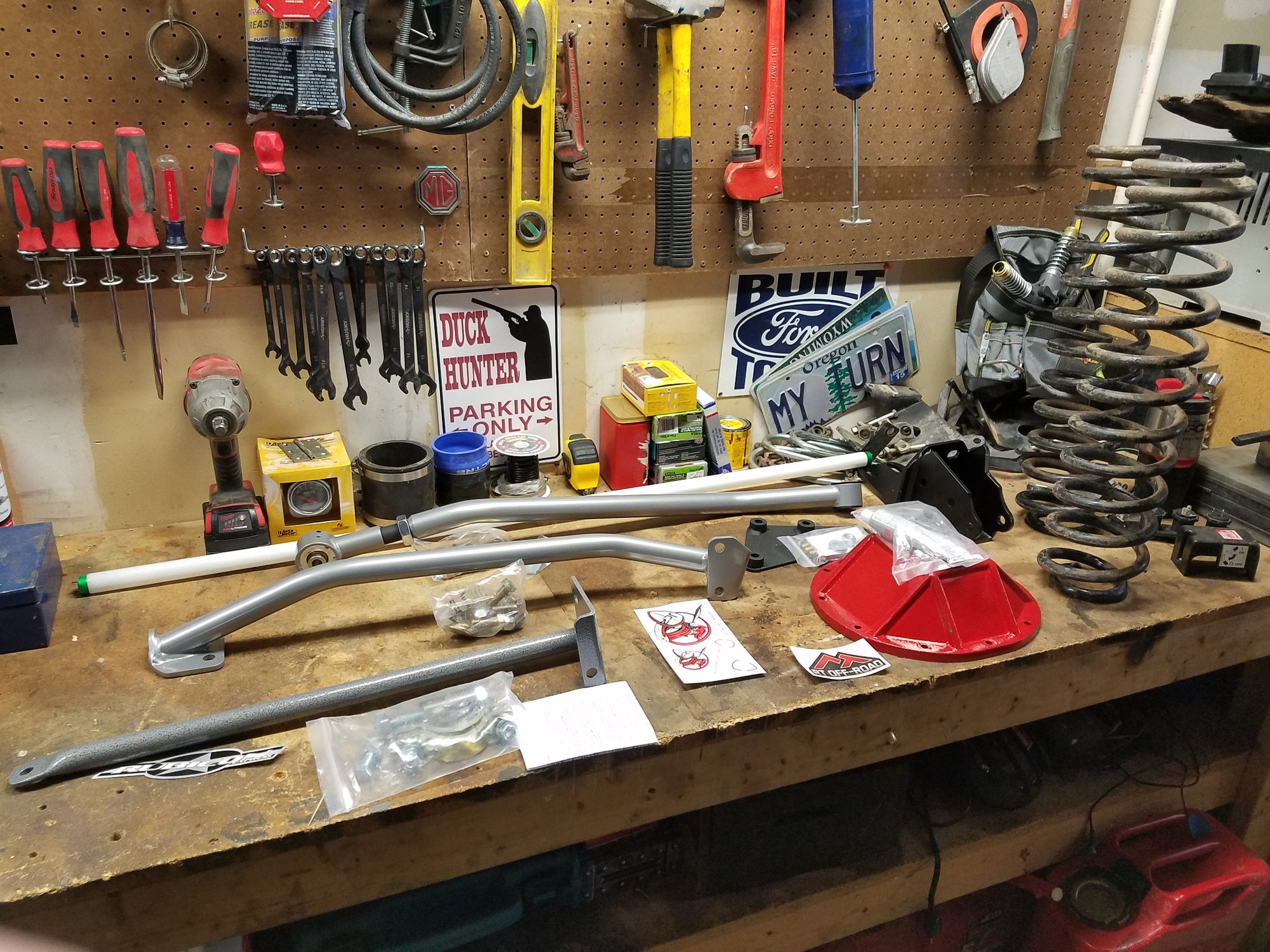

I love it when the parts guy shows up! Rubicon express TB, brace and bracket. M.o.r.e steering brace, RT off-road diff cover, jcr steering spacer, rusty 6.5"coils

Last edited by WyoCherokee; 03-21-2017 at 07:59 PM.
WyoCherokee is offline
Old 03-25-2017, 09:21 PM
  #65
CF Veteran
Thread Starter

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Gillette Wyoming
Posts: 1,278
Year: 1990
Model: Comanche (MJ)
Engine: 4.0
Default

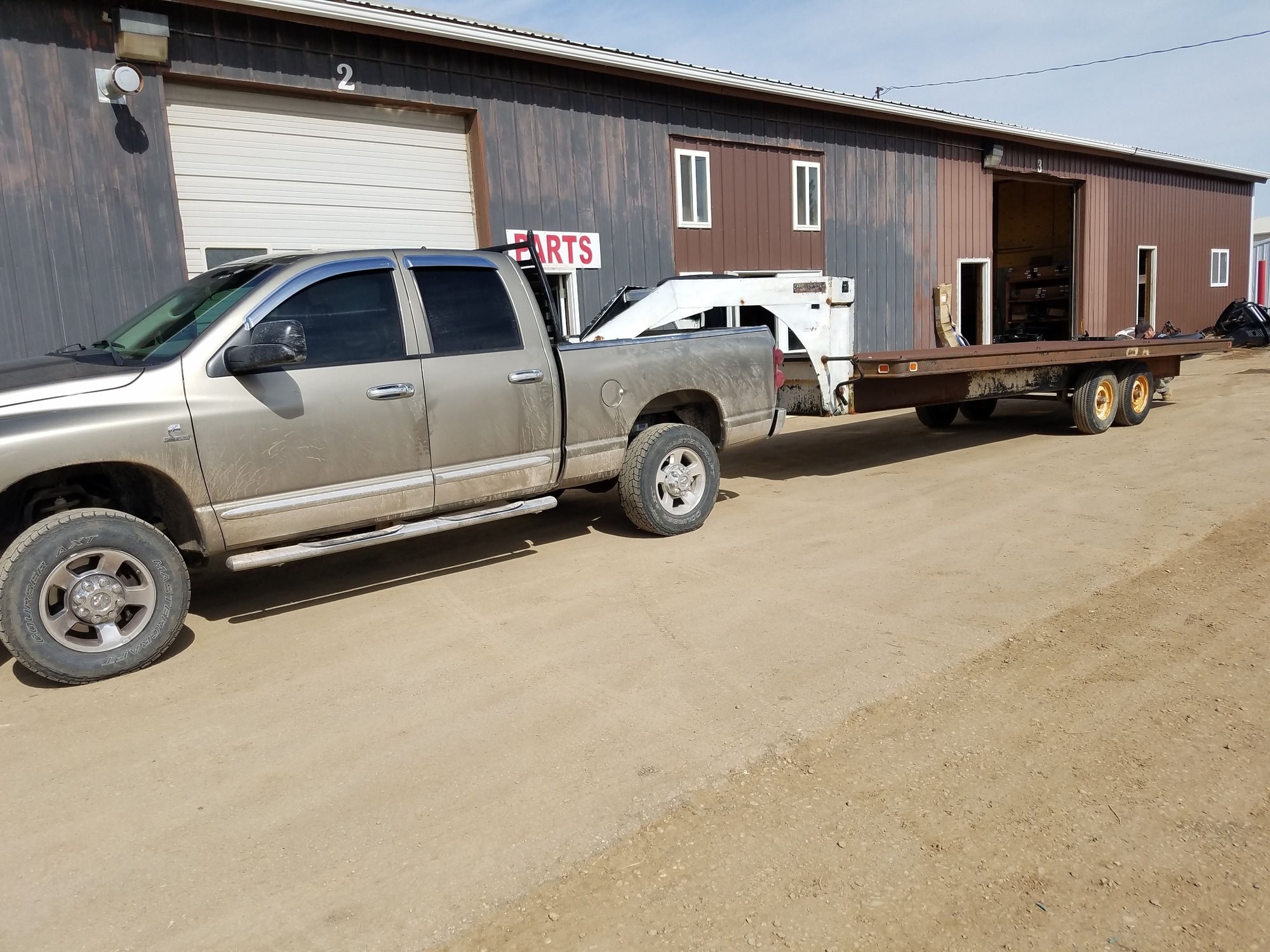

Well brought home a new to me trailer today. Got a price I couldn't pass up. Needs some work, but easy stuff. It's a 22ft rollback deck on a gooseneck frame and a pair of 5k lb tandem axles.
WyoCherokee is offline
Old 04-02-2017, 12:22 PM
  #66
CF Veteran
Thread Starter

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Gillette Wyoming
Posts: 1,278
Year: 1990
Model: Comanche (MJ)
Engine: 4.0
Default CavFab!!

Picked up my crossover steering today!

WyoCherokee is offline
Old 04-02-2017, 12:45 PM
  #67
CF Veteran
Thread Starter

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Gillette Wyoming
Posts: 1,278
Year: 1990
Model: Comanche (MJ)
Engine: 4.0
Default

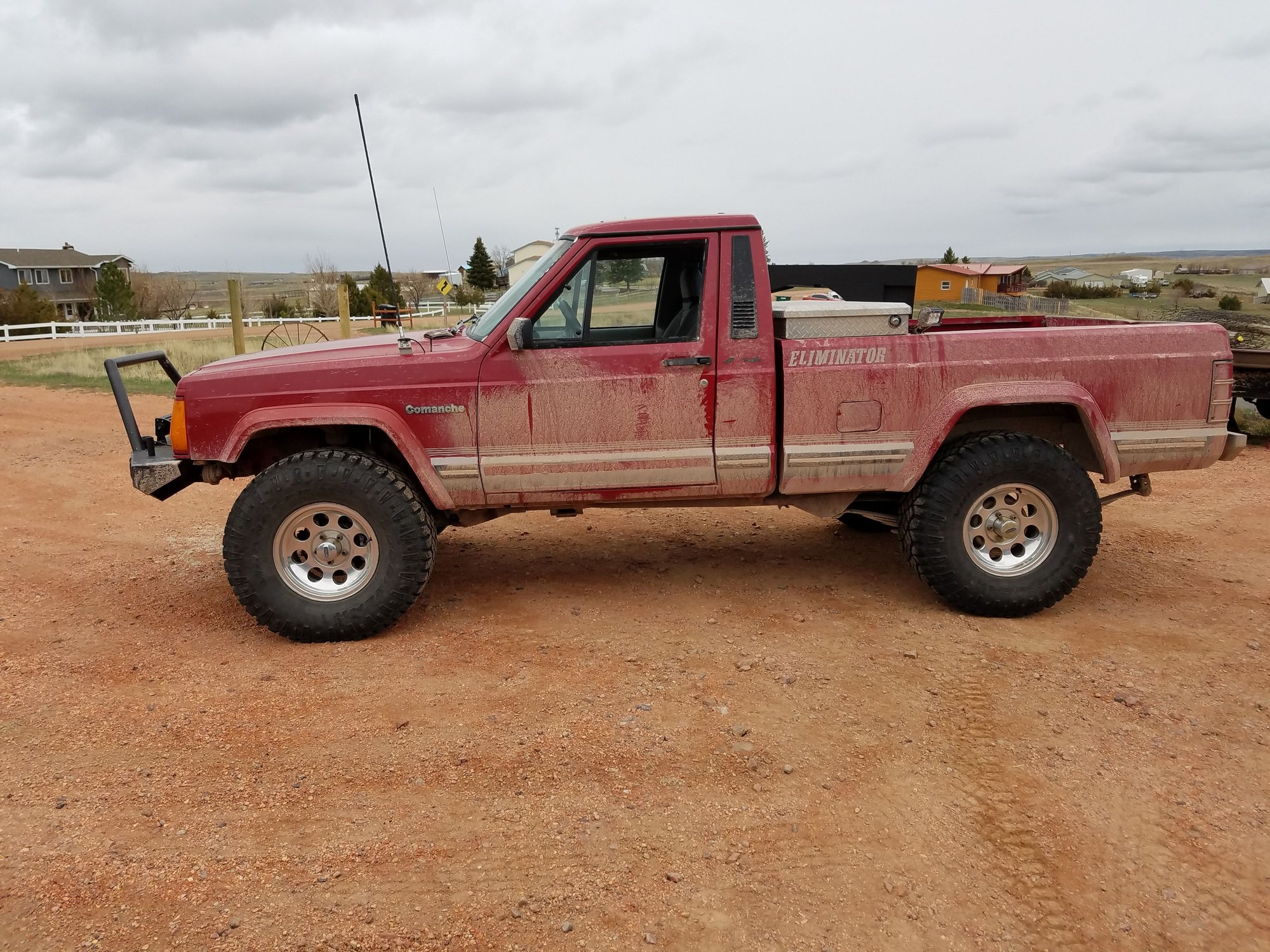

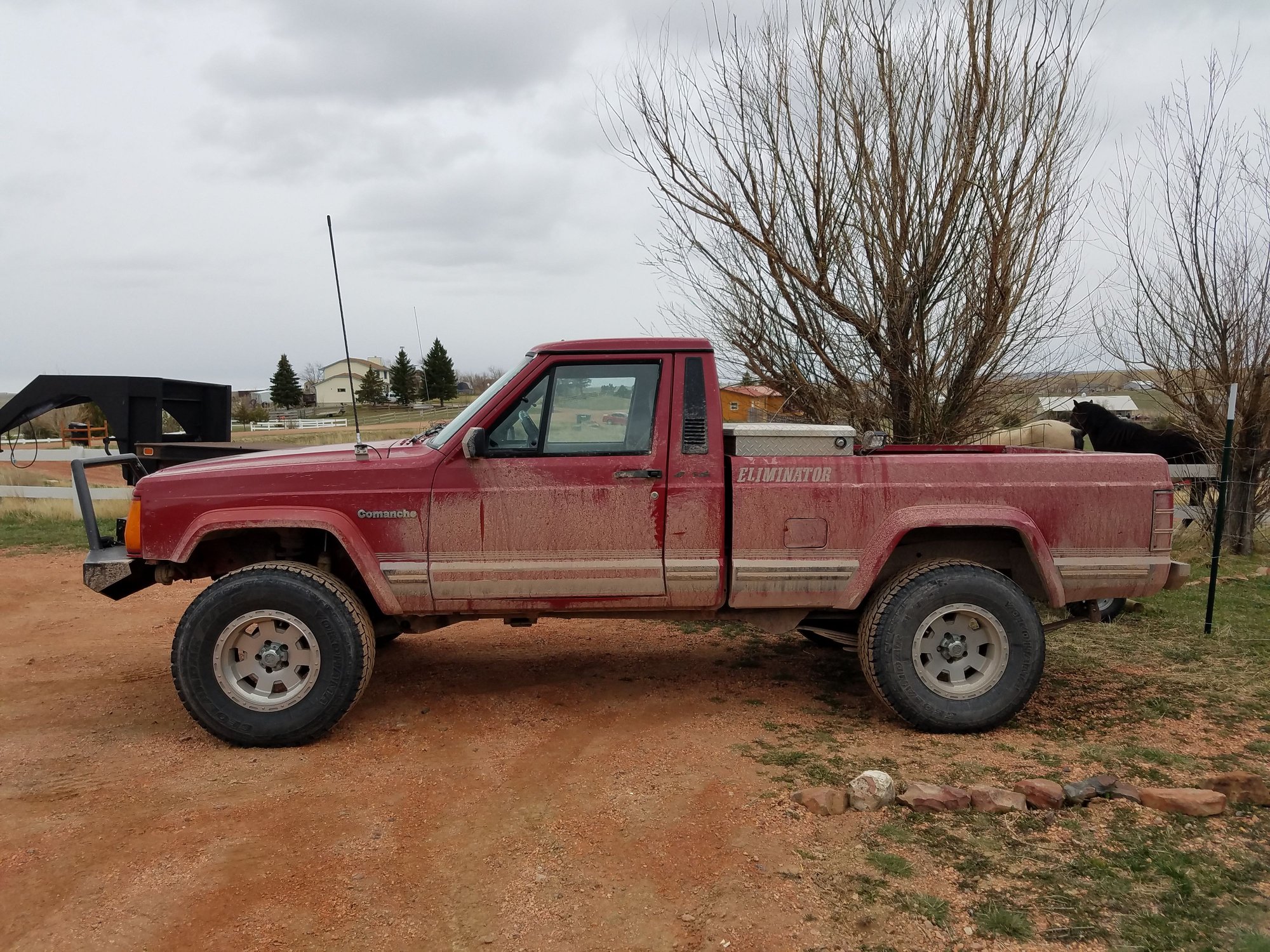

From 31 10.5s to 33 12.5s on 4" not sure on wheel backspacing. It runs the control arms at full turn. Some spacers will fix that. It also just barely tags the flares. Nobdoubt will rub bad when flexing. I am doing the cut n fold anyways, so not to worried about that right now.



Last edited by WyoCherokee; 04-02-2017 at 01:10 PM.
WyoCherokee is offline
Old 04-03-2017, 08:50 PM
  #68
CF Veteran
Thread Starter

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Gillette Wyoming
Posts: 1,278
Year: 1990
Model: Comanche (MJ)
Engine: 4.0
Default

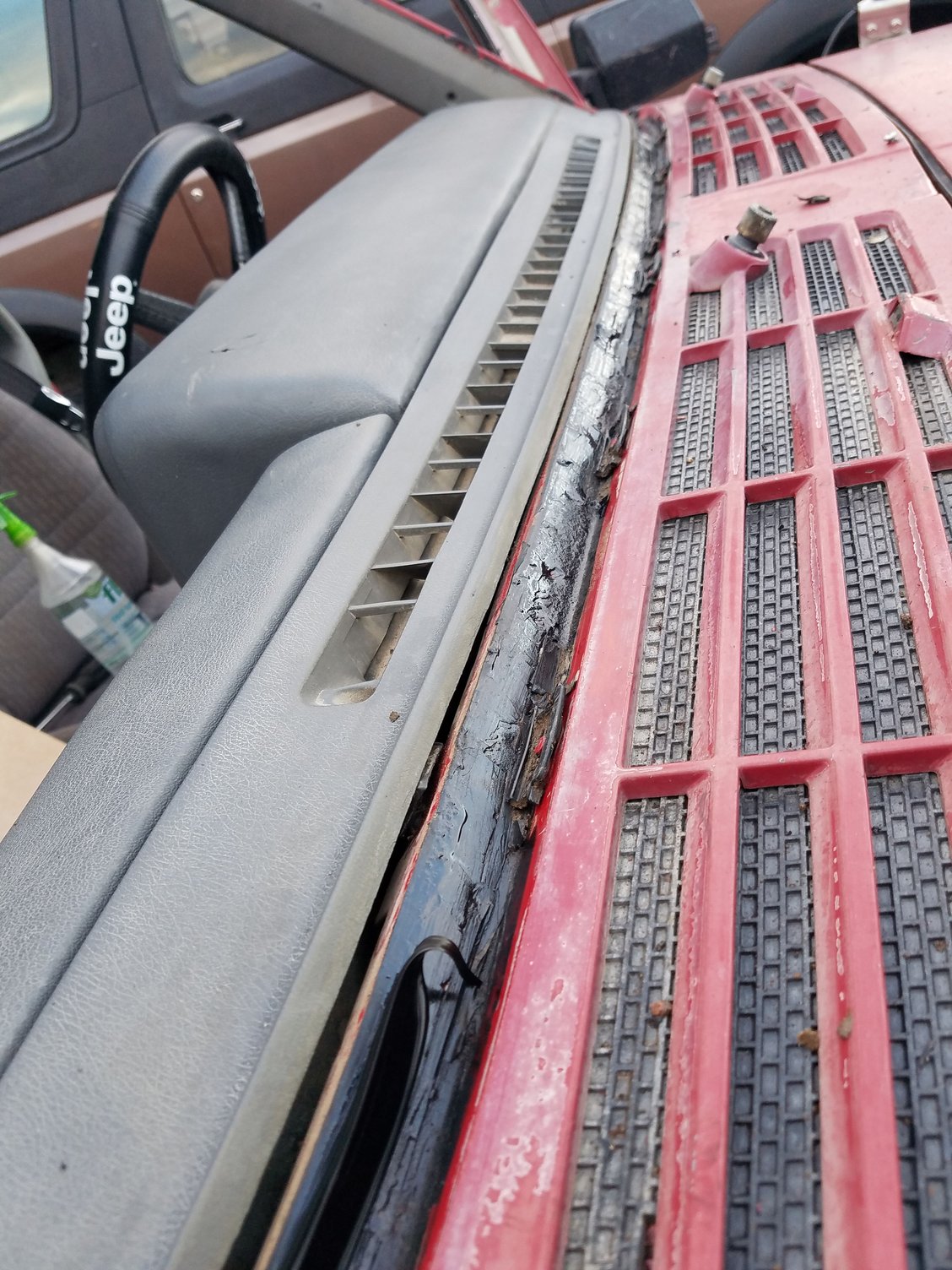

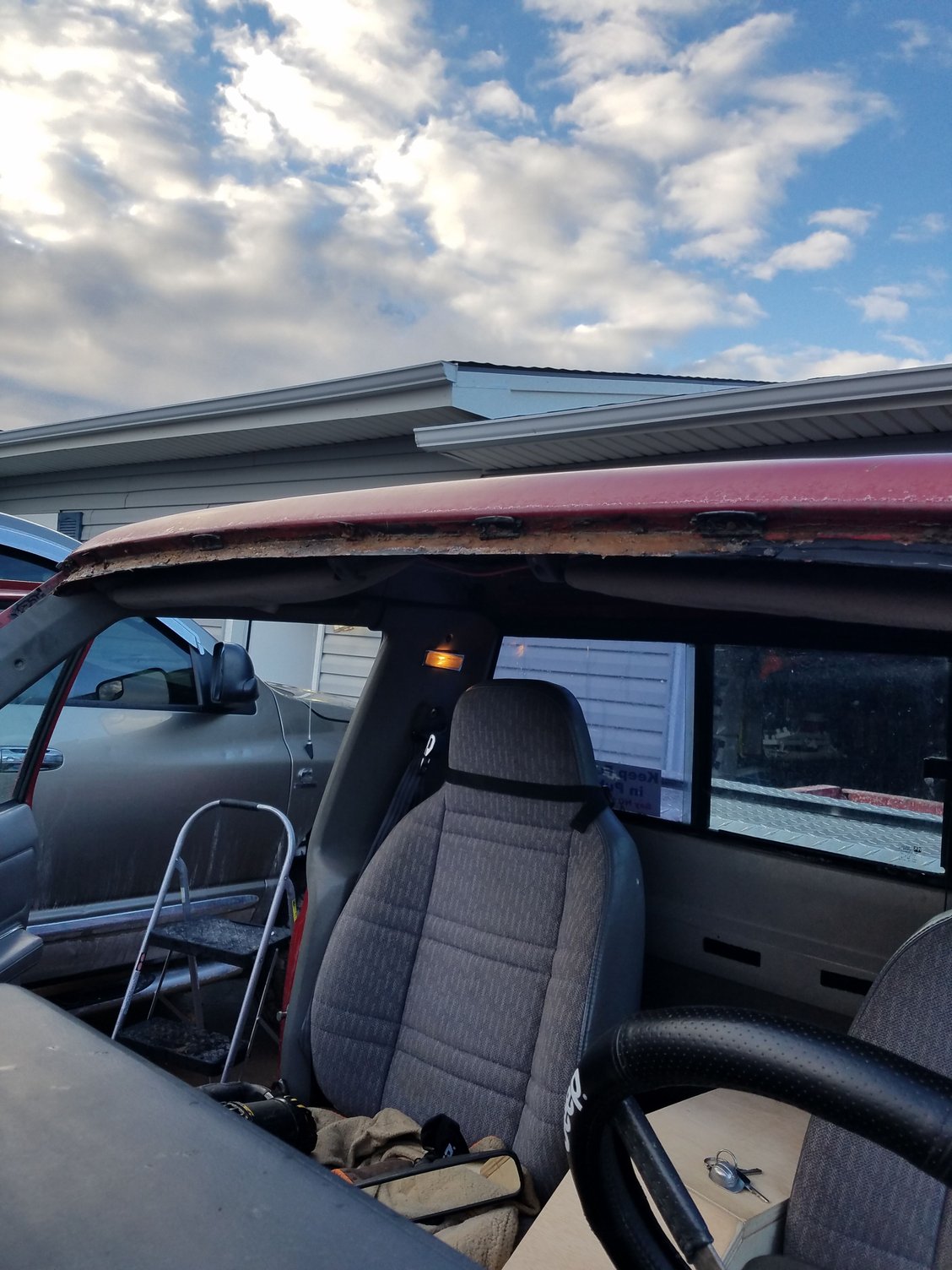

Got a new windshield in. Some minor rust on the windshield frame.

WyoCherokee is offline
Old 04-06-2017, 08:13 PM
  #69
CF Veteran
Thread Starter

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Gillette Wyoming
Posts: 1,278
Year: 1990
Model: Comanche (MJ)
Engine: 4.0
Default

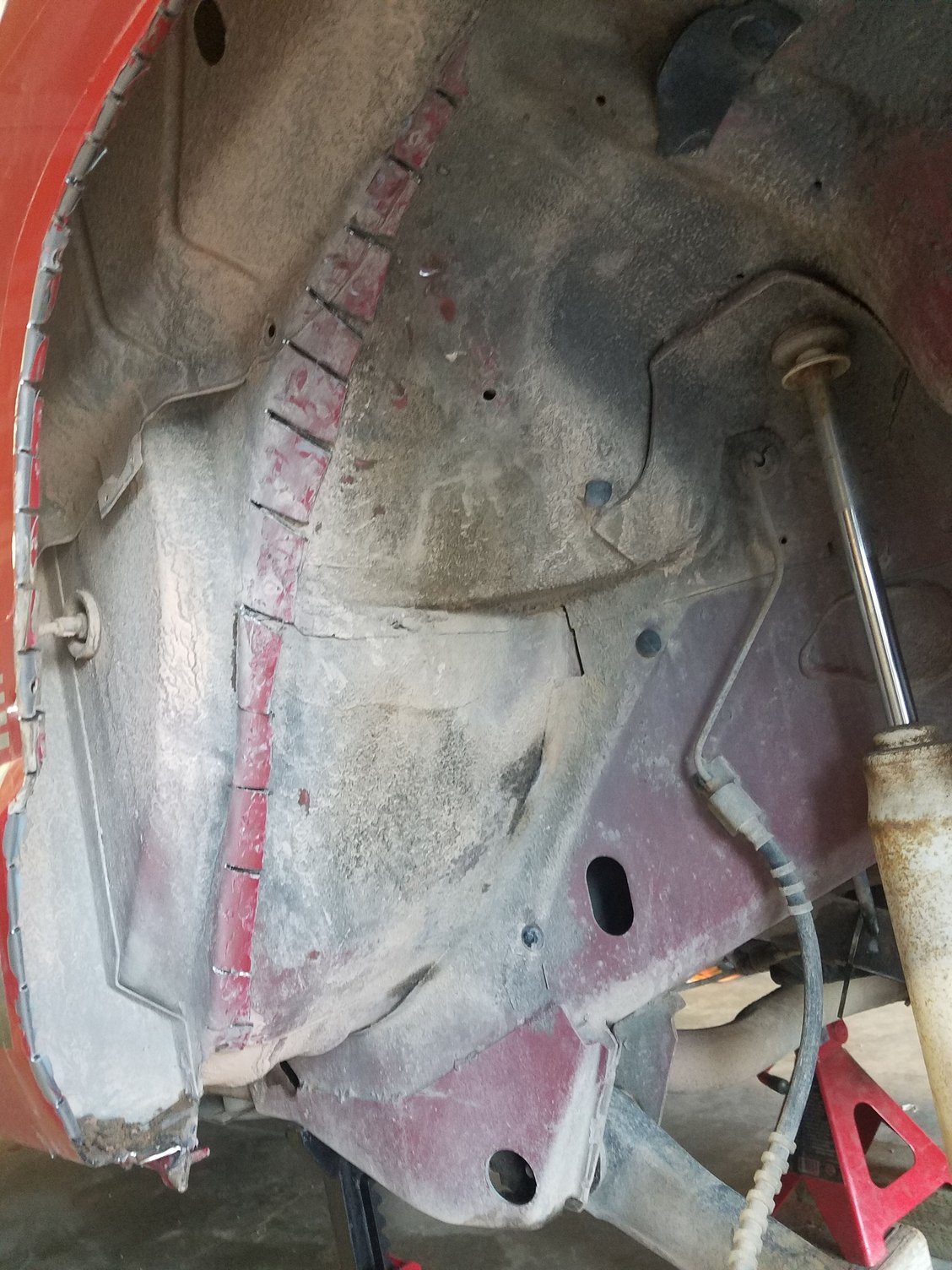

Getting some quality grinder time in.


WyoCherokee is offline
Old 04-06-2017, 10:46 PM
  #70
CF Veteran
Thread Starter

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Gillette Wyoming
Posts: 1,278
Year: 1990
Model: Comanche (MJ)
Engine: 4.0
Default

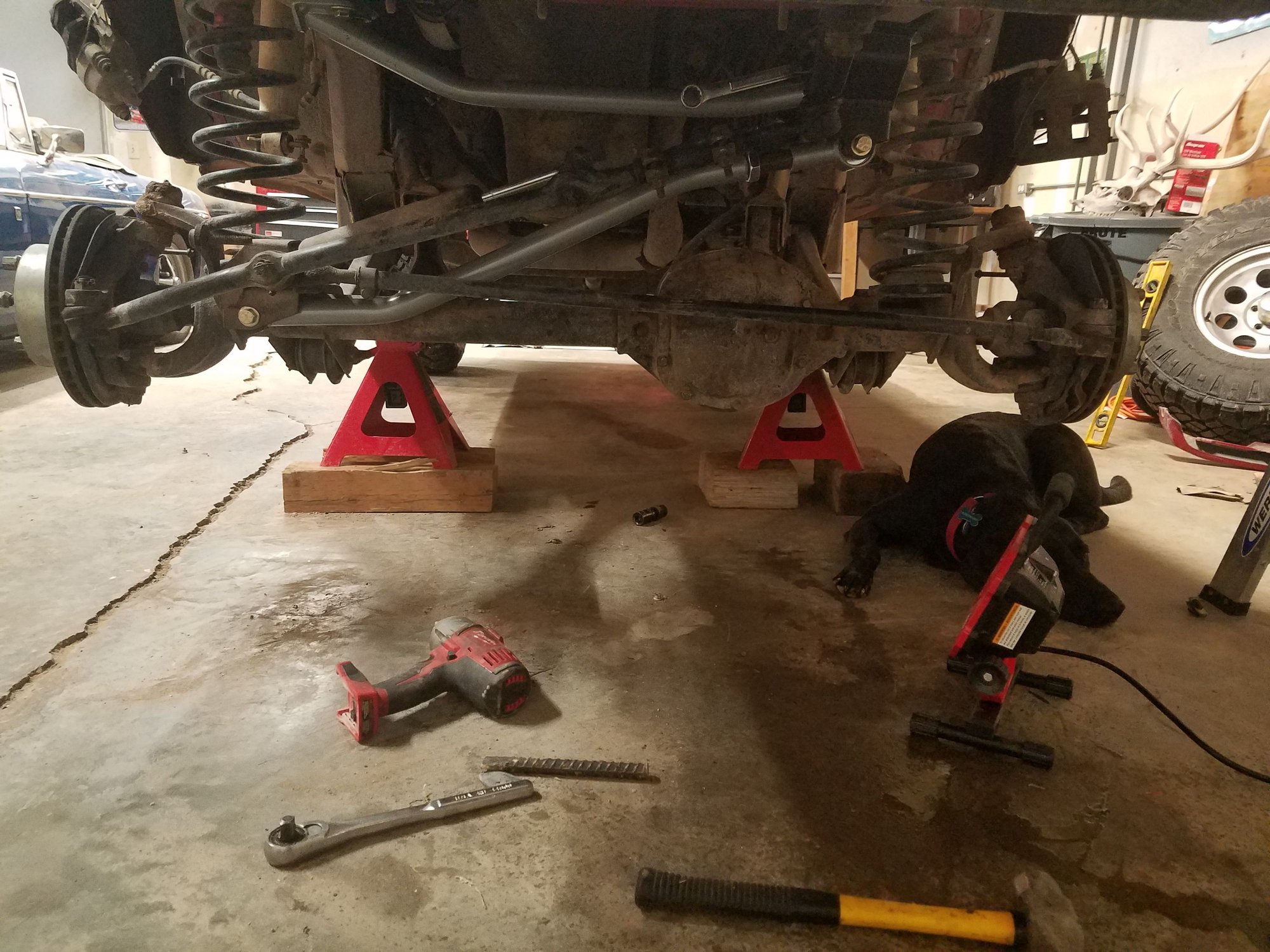

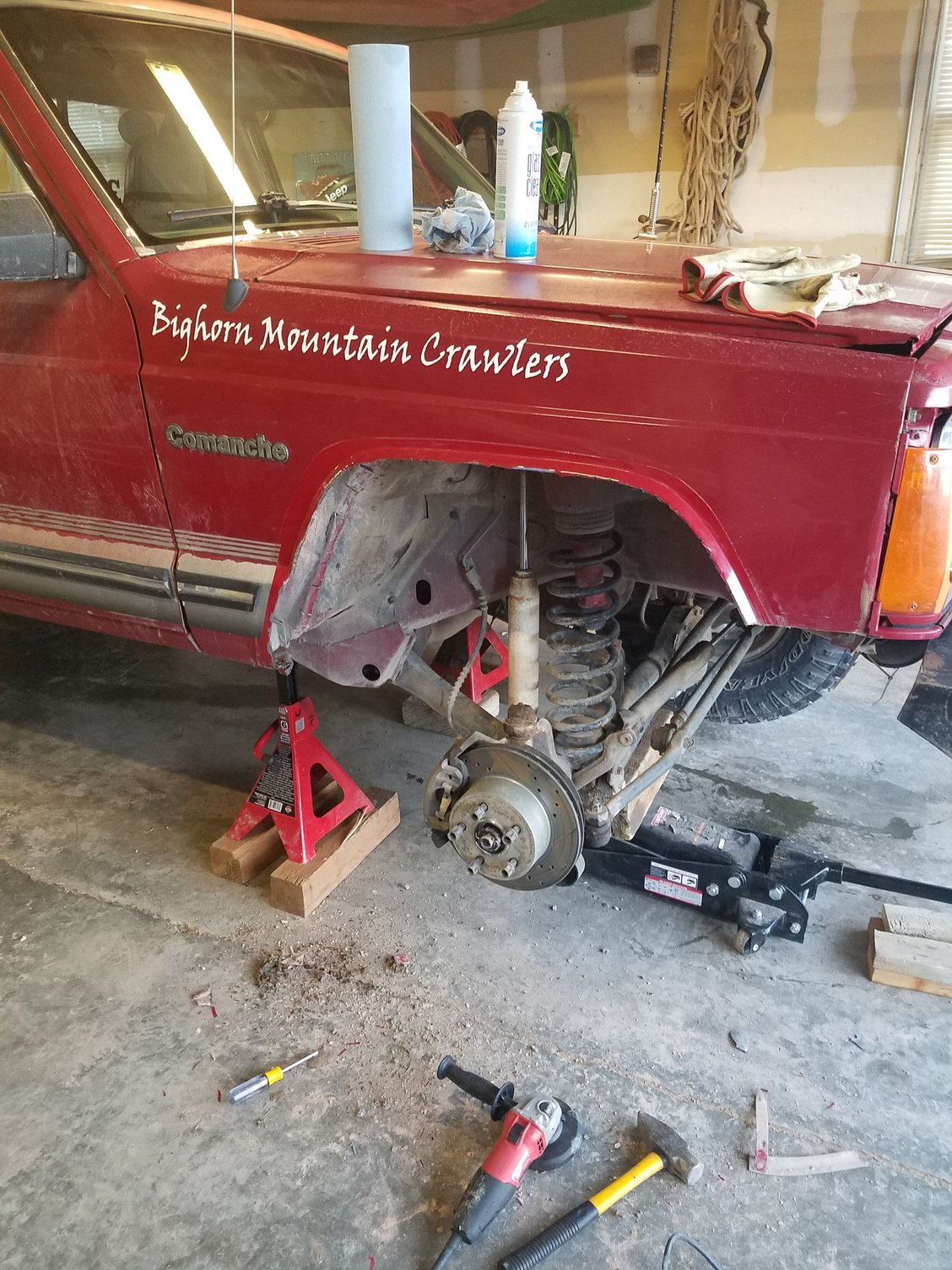

Track bar and frame brace are in. I got 3/4 wrench stuck on the bolt head inside the bracket.....so I called it a night.
WyoCherokee is offline
Old 04-07-2017, 08:18 AM
  #71
Senior Member

Join Date: Apr 2016
Location: Maple Heights, Ohio
Posts: 517
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Damn! Comanche looks like a beast on those 33s. Very nice!
MWMahoneyJr is offline
Old 04-07-2017, 09:02 AM
  #72
CF Veteran
Thread Starter

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Gillette Wyoming
Posts: 1,278
Year: 1990
Model: Comanche (MJ)
Engine: 4.0
Default

Originally Posted by MWMahoneyJr View Post
Damn! Comanche looks like a beast on those 33s. Very nice!
Thanks! Wait till i get the cut n fold, the 3 link, and the 4.5" springs under it. Going for the low/sleeper look with a good amount of droop and proper bumpstops!
WyoCherokee is offline
Old 04-07-2017, 09:30 PM
  #73
CF Veteran
Thread Starter

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Gillette Wyoming
Posts: 1,278
Year: 1990
Model: Comanche (MJ)
Engine: 4.0
Default

Let's have some Cav-Fab steering fun shall We!
The knuckles and arm need to be drilled out to a 5/8 size. This can be done without removing the arm or knuckles

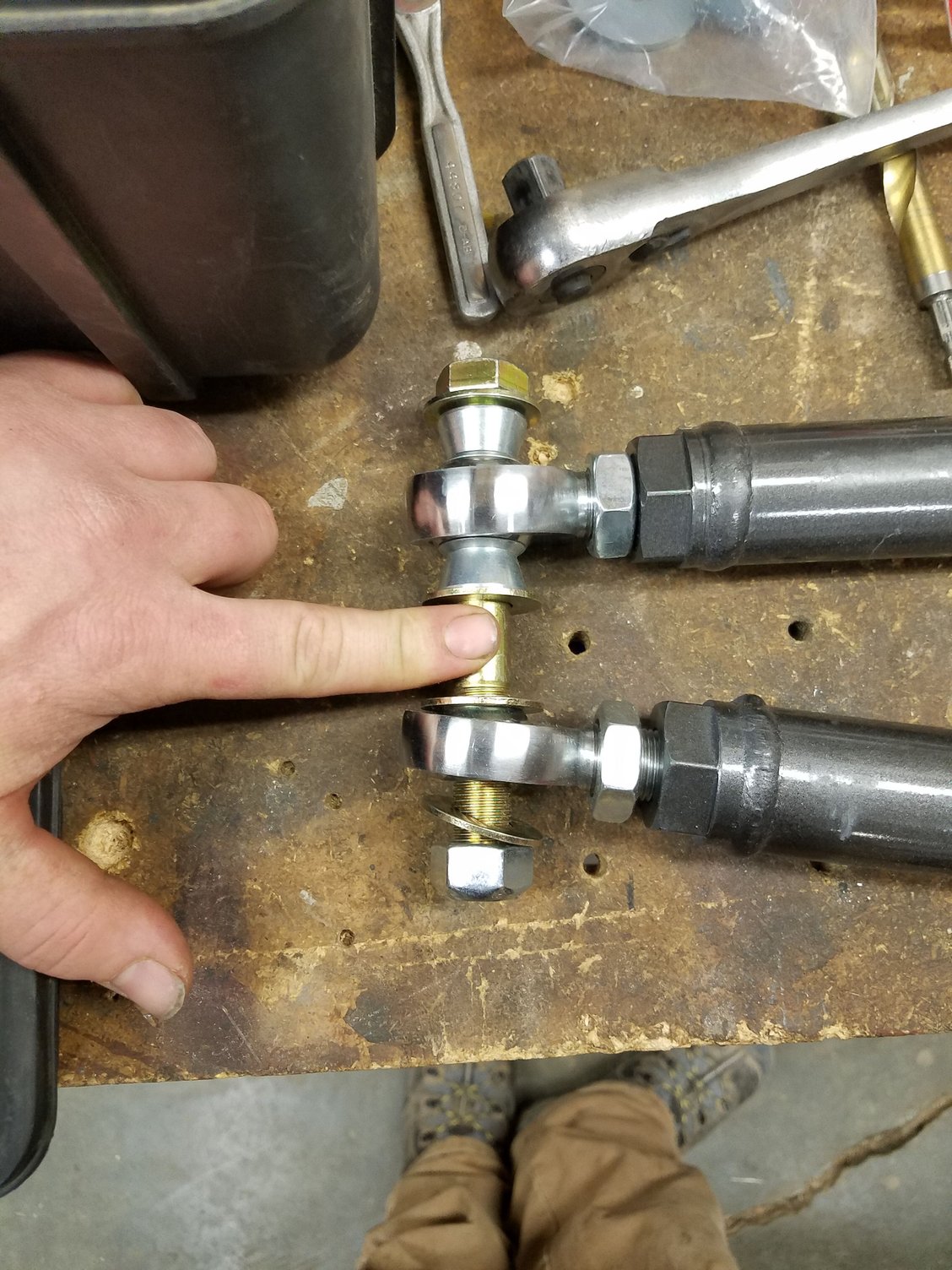

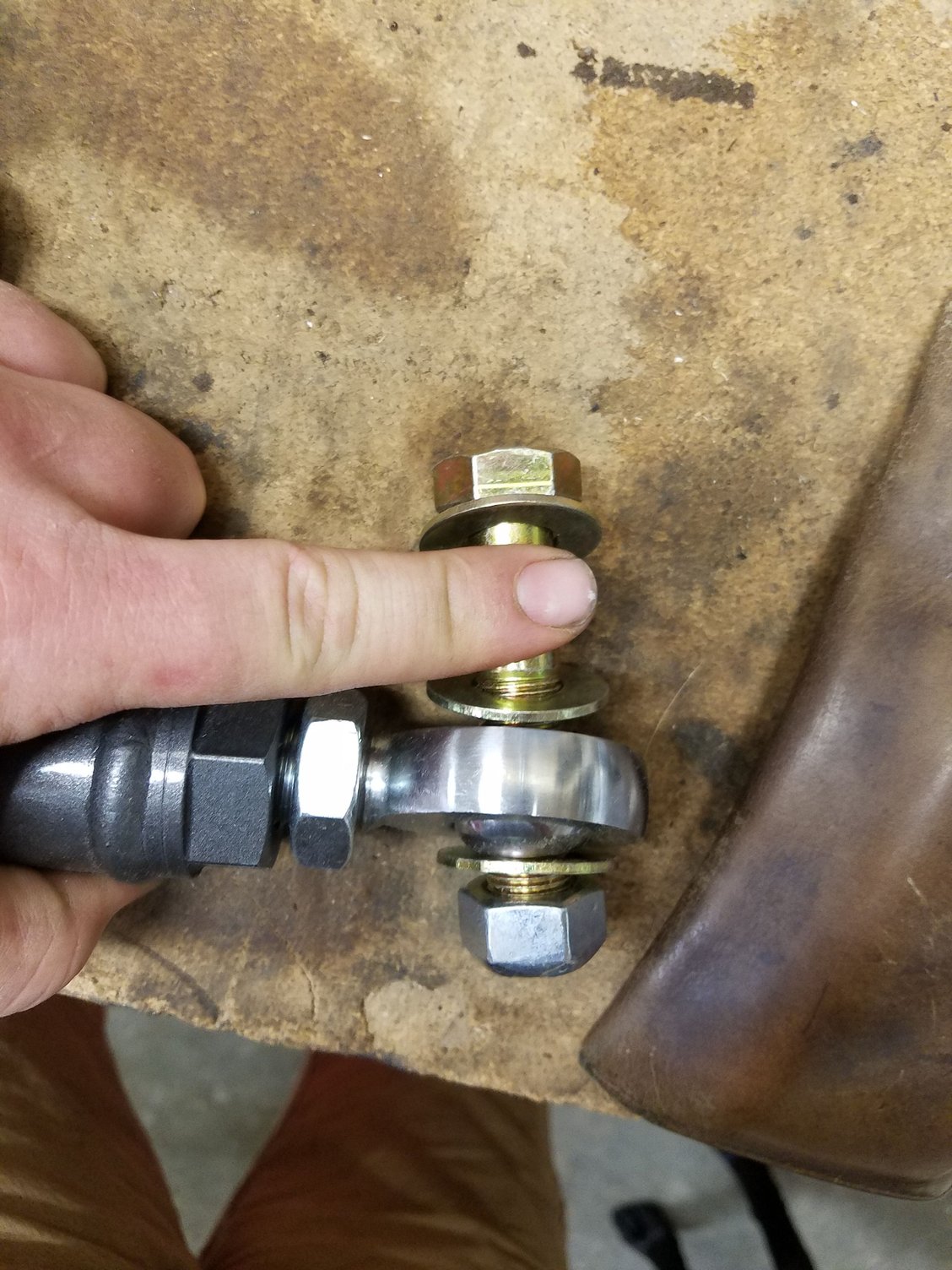

My finger indicated where the knuckle or pitman arm goes

Passenger side:


Drivers side:


Pitman arm
WyoCherokee is offline
Old 04-07-2017, 09:53 PM
  #74
CF Veteran
Thread Starter

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Gillette Wyoming
Posts: 1,278
Year: 1990
Model: Comanche (MJ)
Engine: 4.0
Default

Annnnd a mock up Below pitman arm
Over the arm
WyoCherokee is offline
Old 04-08-2017, 07:17 AM
  #75
CF Veteran

unidentifiedbomb's Avatar

Join Date: May 2011
Location: DE
Posts: 5,547
Year: 1988
Model: Cherokee
Engine: I6 4.0
Default

Looks great. I love mine. Also have it over the arm.
