In deep with DAT JEEP -- Lots of pictures
#151
CF Veteran
Join Date: Feb 2015
Location: North Carolina
Posts: 1,528
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
Ordered my new rear bumper from Affordable Offroad. Video Link: http://www.ebay.com/itm/171715029554?_trksid=p2057872.m2749.l2649&ssPageNa me=STRK%3AMEBIDX%3AIT Video Link: https://www.youtube.com/watch?v=xnys6T5Z0TI&list=PLU1wm4vEyd9bXmyjqL8WEalu rCa-kk2bn&index=27 Hopefully my install goes better than his Ordered some roof cab running lights just because Going to be ordering my front winch bumper w/prerunner bars in the next few days. Video Link: https://www.youtube.com/watch?v=Mj6g_6k1ySQ&list=PLU1wm4vEyd9bXmyjqL8WEalu rCa-kk2bn&index=28 More updates coming soon....
#152
Seasoned Member
Thread Starter
Join Date: Sep 2015
Location: Rochester, MN
Posts: 363
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1998
Model: Cherokee
Engine: 4.0 L6
Aluminum triple fan shroud - Fan mounting
Mounting up my cooling fans to my aluminum fan shroud.
Laid out the fans and marked all the mounting locations using a center punch.
Drilled all the holes using a 1/8" bit, then a 1/4" bit.
Mounted the fans using 1/4" bolts 3/4" length, lock washers and nuts.
Here's a radiator side view.
engine side view
The following users liked this post:
Wanderlust (08-10-2020)
#155
Seasoned Member
Thread Starter
Join Date: Sep 2015
Location: Rochester, MN
Posts: 363
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1998
Model: Cherokee
Engine: 4.0 L6
Bad blower motor & resistor
old blower motor was non-functioning
Your removal won't be as easy as mine was, since I don't have AC I no longer have any AC components.
new motor installed and i'm happy and warm again
replaced old blower motor resistor - always replace the resistor when replacing a blower motor
looks delicious
the blower motor resistor is located on the passenger side under the glove box.
there is a plastic kick plate/cover that will just pop off.
the electrical connector has a red tamper proof plug that Chrysler loves to use just pop that off and press the tab to release the connector.
#156
Junior Member
Join Date: Sep 2013
Location: Franklin, Pa
Posts: 51
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Ordered my new rear bumper from Affordable Offroad.
Video Link: http://www.ebay.com/itm/171715029554?_trksid=p2057872.m2749.l2649&ssPageNa me=STRK%3AMEBIDX%3AIT
Video Link: https://www.youtube.com/watch?v=xnys6T5Z0TI&list=PLU1wm4vEyd9bXmyjqL8WEalu rCa-kk2bn&index=27
Hopefully my install goes better than his
Ordered some roof cab running lights just because
Going to be ordering my front winch bumper w/prerunner bars in the next few days.
Video Link: https://www.youtube.com/watch?v=Mj6g_6k1ySQ&list=PLU1wm4vEyd9bXmyjqL8WEalu rCa-kk2bn&index=28
More updates coming soon....
Video Link: http://www.ebay.com/itm/171715029554?_trksid=p2057872.m2749.l2649&ssPageNa me=STRK%3AMEBIDX%3AIT
Video Link: https://www.youtube.com/watch?v=xnys6T5Z0TI&list=PLU1wm4vEyd9bXmyjqL8WEalu rCa-kk2bn&index=27
Hopefully my install goes better than his
Ordered some roof cab running lights just because
Going to be ordering my front winch bumper w/prerunner bars in the next few days.
Video Link: https://www.youtube.com/watch?v=Mj6g_6k1ySQ&list=PLU1wm4vEyd9bXmyjqL8WEalu rCa-kk2bn&index=28
More updates coming soon....
#157
Seasoned Member
Thread Starter
Join Date: Sep 2015
Location: Rochester, MN
Posts: 363
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1998
Model: Cherokee
Engine: 4.0 L6
New Affordable Offroad Rear Bumper - bragging pictures!!!
The rear bumper measures 60"wide x 9"deep x 6"high and is also made from 3"x 4"x 1/8" steel tubing with closed ends. It comes with a 10,000 lb Receiver Hitch and 1" Clevis Mounts.
INSTALLATION COMING SOON!!!
GETTING IT POWDER-COATED SOON!!!
#158
CF Veteran
Join Date: Oct 2013
Location: Greenville, SC
Posts: 5,920
Likes: 0
Received 190 Likes
on
165 Posts
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
If that bumper only uses the stock 8 bolts, I wouldn't trust it pulling a trailer, or being recovered. They only mount to a thin metal crossmember and I've seen many pictures of the mounts ripping off.
#159
CF Veteran
I came across a bumper/tire carrier that mounted much the same way. But it also has some angle iron tying the bumper under the frame much like a tow hitch does. Thanks to someone on here sharing his experience with his tire carrier that tied into the frame the same way. (It almost ripped completely off). I decided to do like so many others and make something to slide into the frame rail and reinforce the bumper mounts. So far it is holding up well.
#161
CF Veteran
Join Date: Oct 2013
Location: Greenville, SC
Posts: 5,920
Likes: 0
Received 190 Likes
on
165 Posts
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
if you order from area fab, they didn't even offer frame tie ins till I made him make me a custom set. I wasn't about to tow from those dinky 8 bolts. I twisted my 3/16 plate bumper. Imagine what would've happened if I only had those 8 bolts there.
#162
Seasoned Member
Thread Starter
Join Date: Sep 2015
Location: Rochester, MN
Posts: 363
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1998
Model: Cherokee
Engine: 4.0 L6
I would have to agree. Bumper looks great, But there is nothing tying it into the frame.
I came across a bumper/tire carrier that mounted much the same way. But it also has some angle iron tying the bumper under the frame much like a tow hitch does. Thanks to someone on here sharing his experience with his tire carrier that tied into the frame the same way. (It almost ripped completely off). I decided to do like so many others and make something to slide into the frame rail and reinforce the bumper mounts. So far it is holding up well.
I came across a bumper/tire carrier that mounted much the same way. But it also has some angle iron tying the bumper under the frame much like a tow hitch does. Thanks to someone on here sharing his experience with his tire carrier that tied into the frame the same way. (It almost ripped completely off). I decided to do like so many others and make something to slide into the frame rail and reinforce the bumper mounts. So far it is holding up well.
Great minds think alike
#163
Seasoned Member
Thread Starter
Join Date: Sep 2015
Location: Rochester, MN
Posts: 363
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1998
Model: Cherokee
Engine: 4.0 L6
Hi-Lift
hi lift jack was delivered today
60" model - black & red for obvious reasons
4XRAC Jack Mounting System to attach to the side of my roof rack

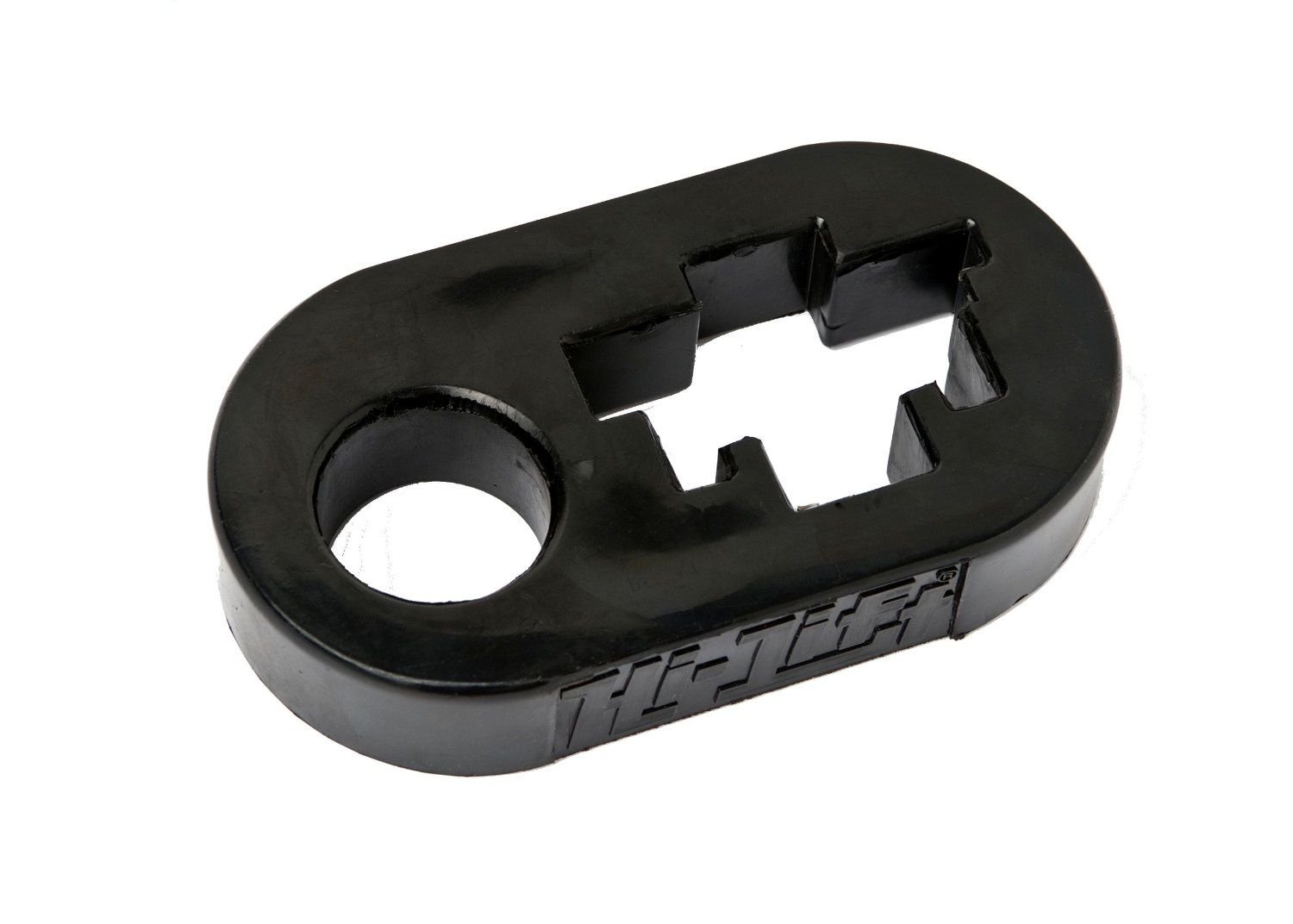

Jack handle isolator
#164
Seasoned Member
Thread Starter
Join Date: Sep 2015
Location: Rochester, MN
Posts: 363
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1998
Model: Cherokee
Engine: 4.0 L6
LED headlights - UPGRADE!!
It worked great, way better than stock, but it was time to move up to LED.
Cree LED H4 Headlight Lighting system
30w H4 LED Headlight bulbs
Pretty slick setup
3 LED system
the top 2 are for low beam and all 3 are for high beam
Plug-and-play
Very bright - I was seeing spots for a while after this picture
INSTALLATION TIME!!!
bezel removed
housing removed
new LED installed
Looks good
New light on drivers side - low beam
New light on drivers side - high beam
New lights - low beam
New lights - high beam
