Technical Write-Up/How To Section This section is designed for both Cherokee and Grand Cherokee technical articles.

Extra Grounds

Reply



Thread Tools Search this Thread
Old 09-27-2016, 08:28 AM   #1
Newbie
Thread Starter

Join Date: Jul 2016
Posts: 18

View limproved's Photo Album My Photos
Model: Cherokee
Default Extra Grounds

I added some extra grounds to a '96 Cherokee with 4.0 HO. I hadn't came across Cruiser54's tips yet, but I think maybe these pics might save somebody some time. less than $10, 20 minutes or less unless your tools are scattered Here we go let's start here:

Unhook the battery negative first.
limproved is offline   Reply With Quote
Old 09-27-2016, 08:31 AM   #2
Newbie
Thread Starter

Join Date: Jul 2016
Posts: 18

View limproved's Photo Album My Photos
Model: Cherokee
Default

Locate the the battery ground on engine. Its under the AC.


Battery ground on engine under AC
limproved is offline   Reply With Quote
Old 09-27-2016, 08:33 AM   #3
Newbie
Thread Starter

Join Date: Jul 2016
Posts: 18

View limproved's Photo Album My Photos
Model: Cherokee
Default

Here's a closer view. There is another ground immediately forward of the battery ground.

A closer look at two grounds.
limproved is offline   Reply With Quote
Old 09-27-2016, 08:35 AM   #4
Newbie
Thread Starter

Join Date: Jul 2016
Posts: 18

View limproved's Photo Album My Photos
Model: Cherokee
Default

Remove the nuts from both


denutted
limproved is offline   Reply With Quote
Old 09-27-2016, 08:37 AM   #5
Newbie
Thread Starter

Join Date: Jul 2016
Posts: 18

View limproved's Photo Album My Photos
Model: Cherokee
Default

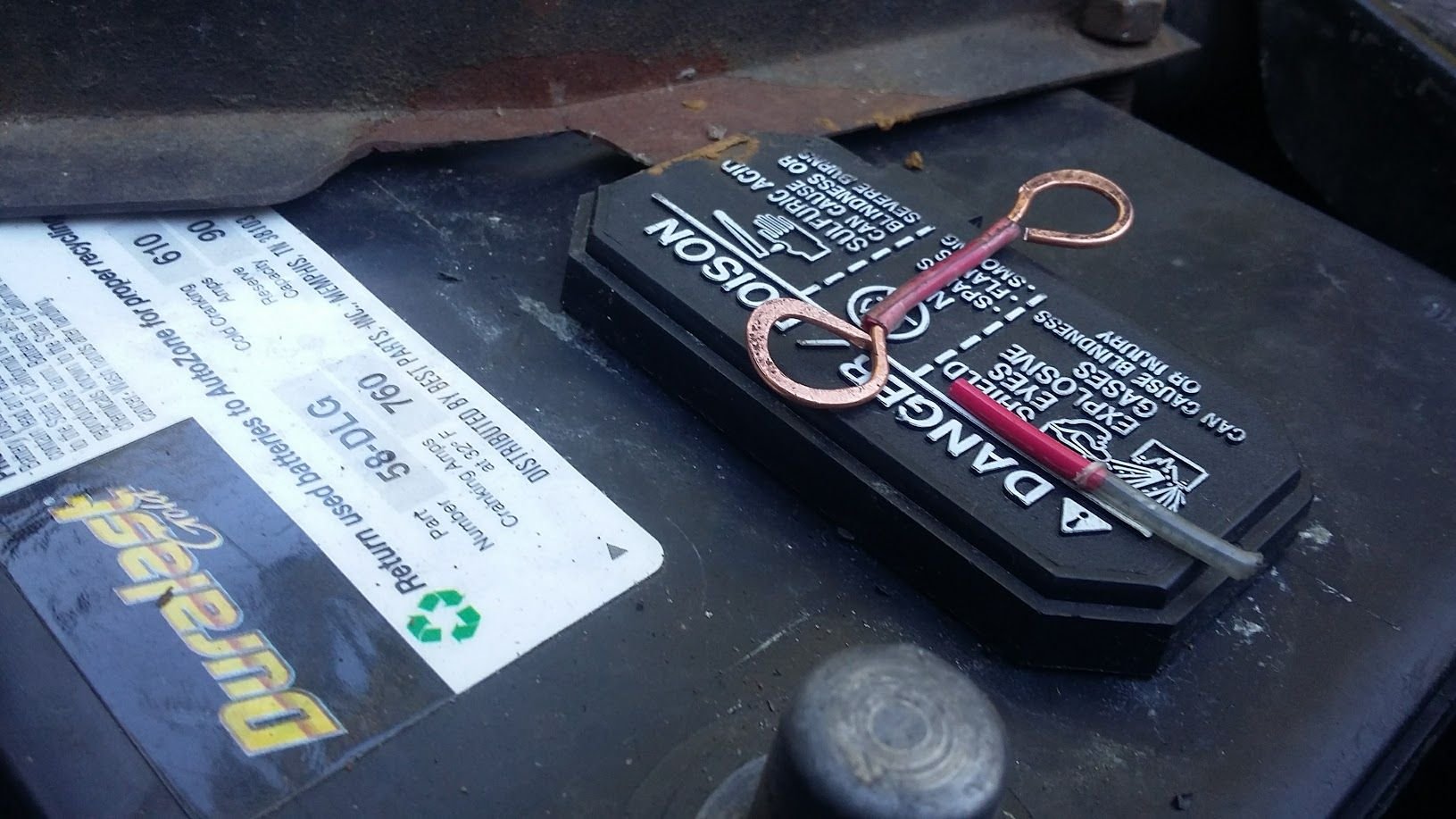

Now strip and wrap a solid core 10 or 12 guage wire to connect these two grounds.

Wire smashed flat to hold shape and offer better connection
limproved is offline   Reply With Quote
Old 09-27-2016, 08:40 AM   #6
Newbie
Thread Starter

Join Date: Jul 2016
Posts: 18

View limproved's Photo Album My Photos
Model: Cherokee
Default

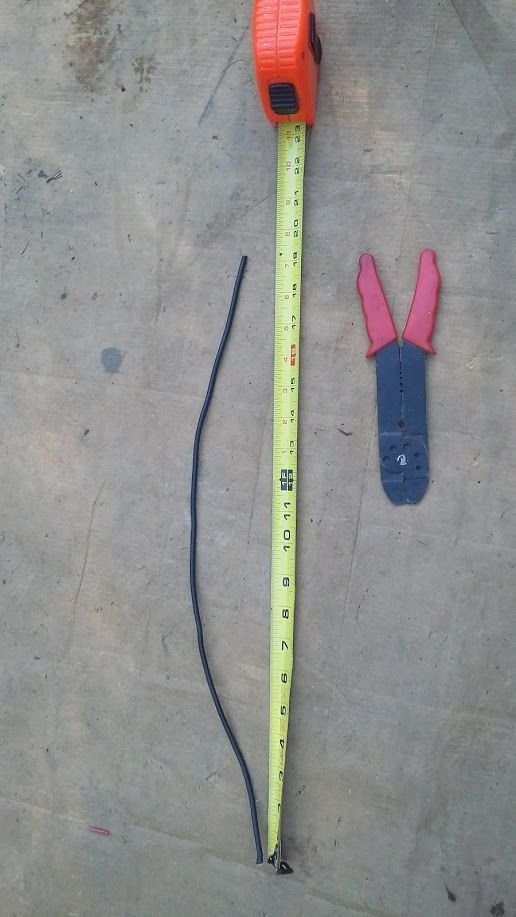

Now make your next connector from 10 guage wire


10 Guage 18 to 19 inches long
limproved is offline   Reply With Quote
Old 09-27-2016, 08:41 AM   #7
Newbie
Thread Starter

Join Date: Jul 2016
Posts: 18

View limproved's Photo Album My Photos
Model: Cherokee
Default

Crimp on the 3/8 stud eyelets


Eyelets crimped on both ends.
limproved is offline   Reply With Quote
Old 09-27-2016, 08:46 AM   #8
Newbie
Thread Starter

Join Date: Jul 2016
Posts: 18

View limproved's Photo Album My Photos
Model: Cherokee
Default

One end will go to the battery ground stud on engine. The other end will go behind distributor if equipped to the critical ground by the dipstick tube.


Clean the nuts, tighten everything back up.
Hook your battery back up, reset your clock. Happy motoring
limproved is offline   Reply With Quote
Old 01-01-2017, 09:24 AM   #9
Someone stole my badge!

Basslicks's Avatar

Join Date: Mar 2011
Location: Ocala, FL
Posts: 10,184

View Basslicks's Photo Album My Photos
Year: 1992
Model: Cherokee(XJ)
Engine: 4.0 HO
Default

So essentially, you're bonding the grounds more so than adding extra grounds, right?
Basslicks is offline   Reply With Quote
Old 01-01-2017, 08:03 PM   #10
Senior Member

Join Date: Nov 2015
Location: syracuse ny
Posts: 937

View 97grand4.0's Photo Album My Photos
Year: 1997
Model: Grand Cherokee
Engine: 4.0
Default

Or you could cut off the old lugs and solder on some new copper ones for 6 AWG, and wire wheel the **** out of the block, because if you don't do any of that connecting the grounds wont help much.
97grand4.0 is offline   Reply With Quote
Old 01-01-2017, 08:09 PM   #11
☠CF-K9 Unit☠

Dumajones's Avatar

Join Date: Apr 2012
Location: Alaska
Posts: 4,836

View Dumajones's Photo Album My Photos
Year: 2000 sport
Engine: New 4.0l from s&j engines
Default

Quote:
Originally Posted by Basslicks View Post
So essentially, you're bonding the grounds more so than adding extra grounds, right?
That's what it looks like to me..
Dumajones is offline   Reply With Quote
Old 07-18-2017, 01:00 AM   #12
Banned

Join Date: Oct 2016
Posts: 1,553

View nujeepguy's Photo Album My Photos
Year: 2000 and 1998
Model: Cherokee
Engine: 4.0
Default

Quote:
Originally Posted by 97grand4.0 View Post
Or you could cut off the old lugs and solder on some new copper ones for 6 AWG, and wire wheel the **** out of the block, because if you don't do any of that connecting the grounds wont help much.

Quote:
solder on some new copper ones
right! i never crimp solid wire, it always works loose.
nujeepguy is offline   Reply With Quote
Old 07-20-2017, 07:24 PM   #13
Senior Member

Join Date: Jan 2017
Location: usa
Posts: 799

View moparado's Photo Album My Photos
Year: 2000
Model: Cherokee
Engine: 6 cylinder
Default

Quote:
Originally Posted by nujeepguy View Post
right! i never crimp solid wire, it always works loose.
Correct!
Solid wire should be always be soldered to the terminal.
Hell even with heavier gauge stranded, i crimp and then solder them too.
moparado is offline   Reply With Quote
Old 07-24-2017, 05:21 AM   #14
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,528

View freegdr's Photo Album My Photos
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 746 volvo injectors
Default

Did any thing get different after this ?
