Extra Grounds
I added some extra grounds to a '96 Cherokee with 4.0 HO. I hadn't came across Cruiser54's tips yet, but I think maybe these pics might save somebody some time. less than $10, 20 minutes or less unless your tools are scattered ;) Here we go let's start here:https://cimg4.ibsrv.net/gimg/www.che...af9c38090b.jpg
Unhook the battery negative first. |

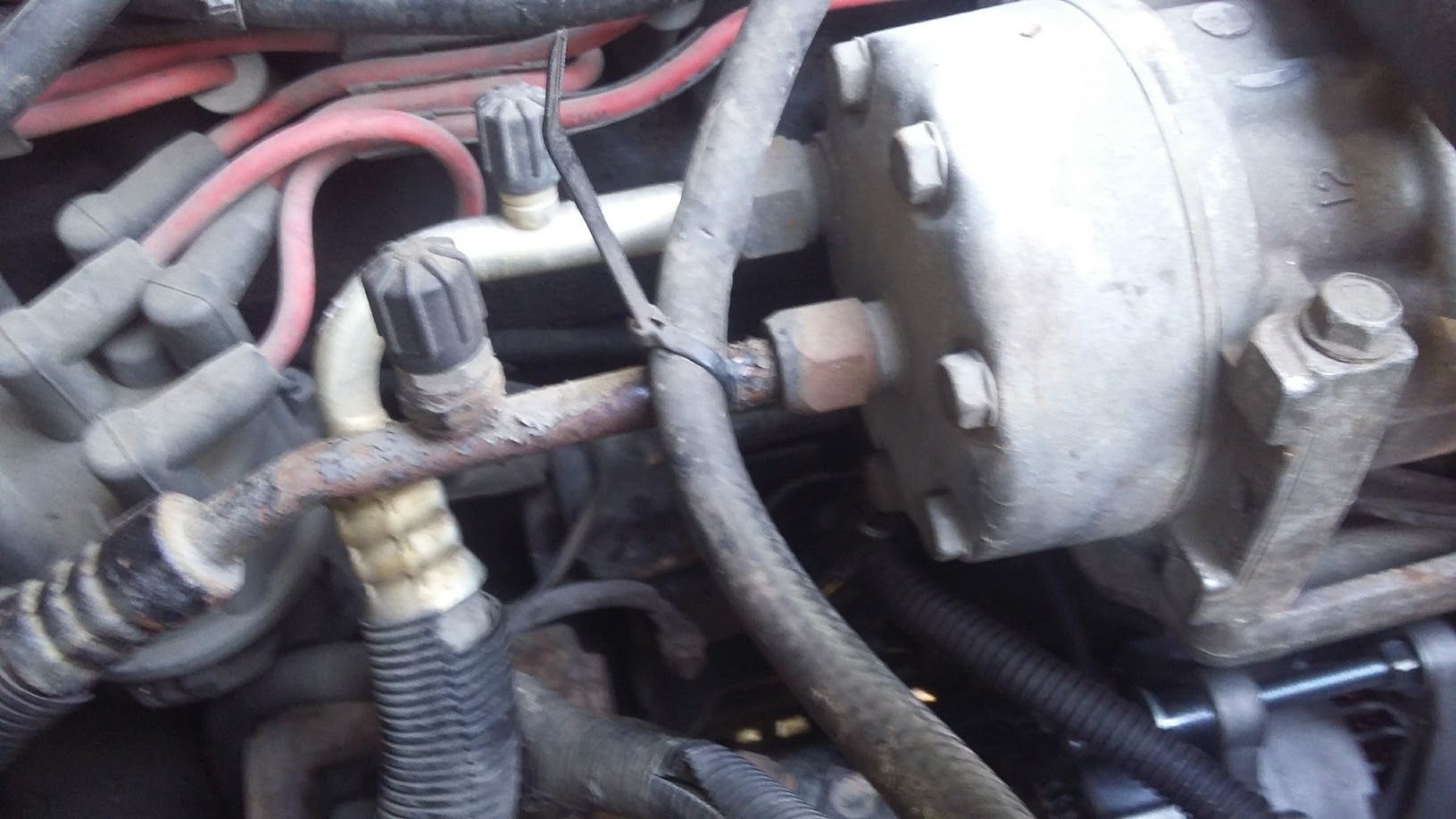

Locate the the battery ground on engine. Its under the AC.
https://cimg6.ibsrv.net/gimg/www.che...26d41e23e7.jpg Battery ground on engine under AC |
Here's a closer view. There is another ground immediately forward of the battery ground.https://cimg7.ibsrv.net/gimg/www.che...07fef1a40c.jpg
A closer look at two grounds. |
|
Now strip and wrap a solid core 10 or 12 guage wire to connect these two grounds.https://cimg1.ibsrv.net/gimg/www.che...28b5bba4b1.jpg
Wire smashed flat to hold shape and offer better connection |
Now make your next connector from 10 guage wire
https://cimg8.ibsrv.net/gimg/www.che...bf2c9f987c.jpg 10 Guage 18 to 19 inches long |
Crimp on the 3/8 stud eyelets
https://cimg7.ibsrv.net/gimg/www.che...2e460ed8ee.jpg Eyelets crimped on both ends. |
One end will go to the battery ground stud on engine. The other end will go behind distributor if equipped to the critical ground by the dipstick tube.
https://cimg1.ibsrv.net/gimg/www.che...b531d87ec3.jpg Clean the nuts, tighten everything back up. Hook your battery back up, reset your clock. Happy motoring :tank: |
So essentially, you're bonding the grounds more so than adding extra grounds, right?
|
Or you could cut off the old lugs and solder on some new copper ones for 6 AWG, and wire wheel the **** out of the block, because if you don't do any of that connecting the grounds wont help much.
|
Originally Posted by Basslicks
(Post 3343308)
So essentially, you're bonding the grounds more so than adding extra grounds, right?
|
Originally Posted by 97grand4.0
(Post 3343488)
Or you could cut off the old lugs and solder on some new copper ones for 6 AWG, and wire wheel the **** out of the block, because if you don't do any of that connecting the grounds wont help much.
solder on some new copper ones |
Originally Posted by nujeepguy
(Post 3408332)
right! i never crimp solid wire, it always works loose.
Solid wire should be always be soldered to the terminal. Hell even with heavier gauge stranded, i crimp and then solder them too. |
Did any thing get different after this ?
|
