transfer case seal help!
#1
Senior Member
Thread Starter
Join Date: Dec 2009
Location: zeeland mi
Posts: 538
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
transfer case seal help!
got a 231j transfer case and i replaced the rear output shaft seal and there is a c-clip groove just before it goes into the houseing and the seal must have grabed the lip and folded the seal over now poring fluid out of it when driveing does anyone know how to get it by the groove so the seal sets corectly
#2
Member
Join Date: Jan 2010
Location: Denver
Posts: 196
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: I6
I replaced mine but didn't have to take anything off but the seal. I got it started...My hammer did the rest. It looks like you took the whole output off.
#3
Seasoned Member
Join Date: Nov 2009
Location: sarasota Fl
Posts: 279
Likes: 0
Received 0 Likes
on
0 Posts
Year: 91
Model: Cherokee
Engine: 5.9
Rub the ridge with some emory cloth to smooth it down a bit and put plenty of oil on it instead of the red grease. Also after every few taps of the hamer on the seal rotate the shaft afew times, should help it on.
#4
Senior Member
Thread Starter
Join Date: Dec 2009
Location: zeeland mi
Posts: 538
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1997
Model: Cherokee
Engine: 4.0

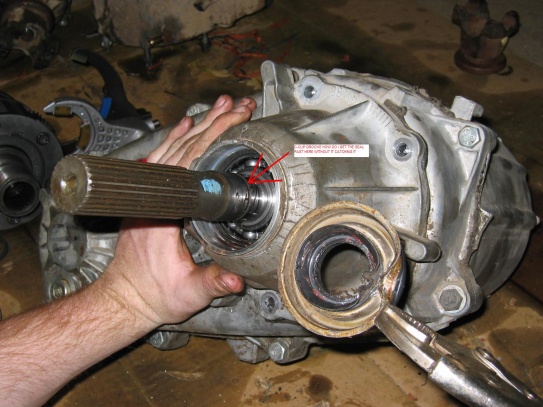

sorry thats not my case just used a pic to show the groove i was thinking of cutting a pop bottle up and puting it over the shaft and useing lithium greese to slide it in all the way
