Spark plug diode length... does it matter?

Reply



Thread Tools Search this Thread
Old 07-15-2017, 02:17 PM   #1
Junior Member
Thread Starter

Join Date: Oct 2009
Posts: 50

View kaws's Photo Album My Photos
Model: Cherokee
Default Spark plug diode length... does it matter?


I went to good ol' rockauto for tune up parts and got the reliable champion copper plugs I've been using for years. When I received them I saw that they were a different size than the ones I currently had in the vehicle. New plug on the left, old one on the right. Would it be acceptable to run the longer plug?
kaws is offline   Reply With Quote
Old 07-15-2017, 02:41 PM   #2
CF Veteran

alpine.adrenaline's Avatar

Join Date: Aug 2009
Location: 9000 ft, CO
Posts: 1,065

View alpine.adrenaline's Photo Album My Photos
Year: 1999 XJ
Model: Cherokee
Engine: I6 4.0L
Default

If either of those are your old spark plugs then you don't need new ones.
alpine.adrenaline is offline   Reply With Quote
Old 07-15-2017, 02:42 PM   #3
Banned

Join Date: Oct 2016
Posts: 1,553

View nujeepguy's Photo Album My Photos
Year: 2000 and 1998
Model: Cherokee
Engine: 4.0
Default

Quote:
Originally Posted by kaws View Post

I went to good ol' rockauto for tune up parts and got the reliable champion copper plugs I've been using for years. When I received them I saw that they were a different size than the ones I currently had in the vehicle. New plug on the left, old one on the right. Would it be acceptable to run the longer plug?

totally different heat range, and might get smashed by piston?? looks longer
nujeepguy is offline   Reply With Quote
Old 07-15-2017, 02:48 PM   #4
CF Veteran

alpine.adrenaline's Avatar

Join Date: Aug 2009
Location: 9000 ft, CO
Posts: 1,065

View alpine.adrenaline's Photo Album My Photos
Year: 1999 XJ
Model: Cherokee
Engine: I6 4.0L
Default

The longer one is a hotter plug, but they'll both work. If after a couple thousand miles you see carbon buildup around the plug, you can switch to the hotter plug. I think, though, that the 12ECC is better suited to post '00 4.0L's with the coil packs. Better still, I'd recommend NGK ZF5YN's.
alpine.adrenaline is offline   Reply With Quote
Old 07-15-2017, 04:05 PM   #5
Junior Member
Thread Starter

Join Date: Oct 2009
Posts: 50

View kaws's Photo Album My Photos
Model: Cherokee
Default

My jeep is a 99 so I have a traditional distributor ignition system. By "Old" I meant that those are what I currently have in my rig- the one in the picture I just had a spare of. My biggest concern is interference with the piston, but I would also like to know what having a "hotter" plug means thanks for your help!
kaws is offline   Reply With Quote
Old 07-15-2017, 05:35 PM   #6
CF Veteran

Join Date: May 2012
Location: Lost in the wilds of Virginia
Posts: 3,541

View BlueRidgeMark's Photo Album My Photos
Year: 1994 and 1997
Model: Cherokee
Engine: 4.0
Default

Diodes?

There are no diodes in spark plugs. What part is that you think is a diode?
BlueRidgeMark is offline   Reply With Quote
Old 07-15-2017, 07:35 PM   #7
Junior Member
Thread Starter

Join Date: Oct 2009
Posts: 50

View kaws's Photo Album My Photos
Model: Cherokee
Default

Quote:
Originally Posted by BlueRidgeMark View Post
Diodes?

There are no diodes in spark plugs. What part is that you think is a diode?
in my picture I thought it's that ceramic piece where the spark occurs and I'm showing 2 different sizes up. PleAse let me know the correct terminology
kaws is offline   Reply With Quote
Old 07-15-2017, 08:26 PM   #8
Banned

Join Date: Oct 2016
Posts: 1,553

View nujeepguy's Photo Album My Photos
Year: 2000 and 1998
Model: Cherokee
Engine: 4.0
Default

Quote:
Originally Posted by kaws View Post
in my picture I thought it's that ceramic piece where the spark occurs and I'm showing 2 different sizes up. PleAse let me know the correct terminology
thats the insulator for the center high voltage rod.
id avoid any much longer than the stock old ones, ??
nujeepguy is offline   Reply With Quote
Old 07-15-2017, 08:28 PM   #9
CF Veteran

Join Date: May 2012
Location: Lost in the wilds of Virginia
Posts: 3,541

View BlueRidgeMark's Photo Album My Photos
Year: 1994 and 1997
Model: Cherokee
Engine: 4.0
Default

Quote:
Originally Posted by nujeepguy View Post
id avoid any much longer than the stock old ones, ??


Agreed!
BlueRidgeMark is offline   Reply With Quote
Old 07-15-2017, 09:11 PM   #10
Member

Join Date: May 2017
Posts: 135

View GreaseMonkey17's Photo Album My Photos
Model: Cherokee
Default

From what I read the new plugs are what's meant for your rig the ones you're running now are what was ran pre 99 the more I read the more confused I got a lot of conflicting info on the internet.
GreaseMonkey17 is offline   Reply With Quote
Old 07-15-2017, 09:35 PM   #11
Senior Member

Join Date: Dec 2015
Location: PA
Posts: 778

View fb97xj1's Photo Album My Photos
Year: 1997
Model: Cherokee
Engine: 4.0L
Default

Name:  Spark%20Plug%20Application%20Chart%2008_22_2016.jpg
Views: 26
Size:  349.0 KB
fb97xj1 is offline   Reply With Quote
Old 07-16-2017, 07:59 AM   #12
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 34,643

View cruiser54's Photo Album My Photos
Year: 1990
Model: Comanche
Engine: 4.0
Default

I use ZFR5Ns in all the Jeeps I work on.Even old Renix stuff.

The projected tip works as a hotter plug at low speeds and cooler plug at higher engine speeds.


Oh, it's electrode, not diode......

Last edited by cruiser54; 07-16-2017 at 08:08 AM.
cruiser54 is offline   Reply With Quote
Old 07-16-2017, 04:55 PM   #13
CF Veteran

Join Date: May 2012
Location: Lost in the wilds of Virginia
Posts: 3,541

View BlueRidgeMark's Photo Album My Photos
Year: 1994 and 1997
Model: Cherokee
Engine: 4.0
Default

Ah, got it. Electrode, diode. We were all newbies once.

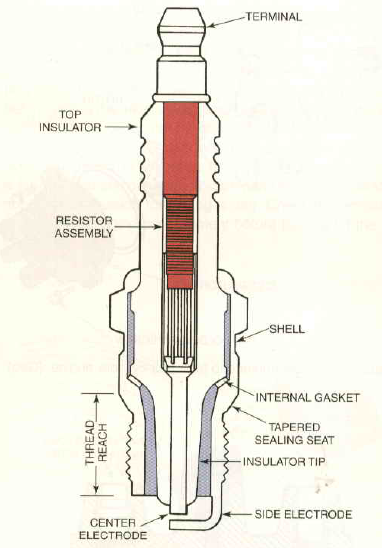

This should help on the correct terms.

BlueRidgeMark is offline   Reply With Quote
Old 07-17-2017, 09:30 AM   #14
Junior Member
Thread Starter

Join Date: Oct 2009
Posts: 50

View kaws's Photo Album My Photos
Model: Cherokee
Default

Quote:
Originally Posted by cruiser54 View Post
I use ZFR5Ns in all the Jeeps I work on.Even old Renix stuff.

The projected tip works as a hotter plug at low speeds and cooler plug at higher engine speeds.


Oh, it's electrode, not diode......
ill take your word for it! My biggest concern for the longer ceramic insulation was interference. If you're using it on old Renix stuff then I don't see it being a problem anymore. I wonder what happened to make the plug type change for 99+!
kaws is offline   Reply With Quote
Old 07-17-2017, 09:35 AM   #15
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 34,643

View cruiser54's Photo Album My Photos
Year: 1990
Model: Comanche
Engine: 4.0
Default

Quote:
Originally Posted by kaws View Post
ill take your word for it! My biggest concern for the longer ceramic insulation was interference. If you're using it on old Renix stuff then I don't see it being a problem anymore. I wonder what happened to make the plug type change for 99+!
Maybe they decided to go with a better spark plug than Chumpions.......
cruiser54 is offline   Reply With Quote
