Shifting
07-03-2018, 07:13 PM
#1
Newbie
Thread Starter
Join Date: Jul 2018
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee (XJ)
Shifting
I have a 98 Jeep Cherokee stock, the other day I was on the highway and the Jeep wouldn’t shift out of third (other than 2nd and 1st.) It has happened a few more times since then. I am curious if it has anything to do with the speed sensors or something like that. And what other jeeps I could try to pull one from from the pull apart. Thanks
07-04-2018, 08:14 AM
#2
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Do this first:

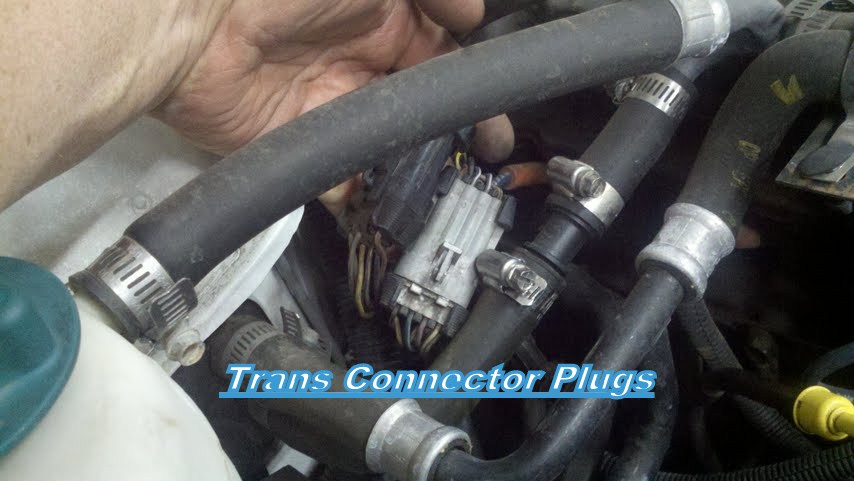

Over near the transmission dipstick tube are 2 rather large connectors. One is black and goes to the NSS and the gray connector goes to the transmission itselfTCU fuse TCU location
. These 2 connectors carry all the info between TPS, TCU, NSS, speed sensor, and transmission solenoids.
Unplug each one, visually inspect for corrosion or bent pins, spray them out with electrical contact cleaner and plug them back in.
Over near the transmission dipstick tube are 2 rather large connectors. One is black and goes to the NSS and the gray connector goes to the transmission itselfTCU fuse TCU location
. These 2 connectors carry all the info between TPS, TCU, NSS, speed sensor, and transmission solenoids.
Unplug each one, visually inspect for corrosion or bent pins, spray them out with electrical contact cleaner and plug them back in.
07-04-2018, 10:03 AM
#3
Newbie
Thread Starter
Join Date: Jul 2018
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee (XJ)
Do this first:
Over near the transmission dipstick tube are 2 rather large connectors. One is black and goes to the NSS and the gray connector goes to the transmission itselfTCU fuse TCU location
. These 2 connectors carry all the info between TPS, TCU, NSS, speed sensor, and transmission solenoids.
Unplug each one, visually inspect for corrosion or bent pins, spray them out with electrical contact cleaner and plug them back in.
Over near the transmission dipstick tube are 2 rather large connectors. One is black and goes to the NSS and the gray connector goes to the transmission itselfTCU fuse TCU location
. These 2 connectors carry all the info between TPS, TCU, NSS, speed sensor, and transmission solenoids.
Unplug each one, visually inspect for corrosion or bent pins, spray them out with electrical contact cleaner and plug them back in.
awesome. Thank you. I’ll do that today.
07-04-2018, 11:13 AM
#4
Member
You might want to check your shift solenoid, if your harnesses check out good. There are three of the inside the transmission. You will have to drop the transmission pan to inspect them
07-04-2018, 11:34 AM
#5
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
07-04-2018, 05:33 PM
#6
CF Veteran
Join Date: Jan 2014
Location: District of Columbia
Posts: 1,287
Received 274 Likes
on
205 Posts
Year: 1998
Model: Cherokee (XJ)
Engine: 4.0
Do this first:
Over near the transmission dipstick tube are 2 rather large connectors. One is black and goes to the NSS and the gray connector goes to the transmission itselfTCU fuse TCU location
. These 2 connectors carry all the info between TPS, TCU, NSS, speed sensor, and transmission solenoids.
Unplug each one, visually inspect for corrosion or bent pins, spray them out with electrical contact cleaner and plug them back in.
Over near the transmission dipstick tube are 2 rather large connectors. One is black and goes to the NSS and the gray connector goes to the transmission itselfTCU fuse TCU location
. These 2 connectors carry all the info between TPS, TCU, NSS, speed sensor, and transmission solenoids.
Unplug each one, visually inspect for corrosion or bent pins, spray them out with electrical contact cleaner and plug them back in.
Also this. For instructions on how to check the solenoids, check out this thread. https://www.cherokeeforum.com/f2/doe...rans-problem-d
I ended up replacing my solenoids, and it's worked great ever since. Same year keep and same symptoms.
Trending Topics
07-05-2018, 06:14 PM
#8
Newbie
Join Date: Jun 2018
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee (XJ)
Do this first:
Over near the transmission dipstick tube are 2 rather large connectors. One is black and goes to the NSS and the gray connector goes to the transmission itselfTCU fuse TCU location
. These 2 connectors carry all the info between TPS, TCU, NSS, speed sensor, and transmission solenoids.
Unplug each one, visually inspect for corrosion or bent pins, spray them out with electrical contact cleaner and plug them back in.
Over near the transmission dipstick tube are 2 rather large connectors. One is black and goes to the NSS and the gray connector goes to the transmission itselfTCU fuse TCU location
. These 2 connectors carry all the info between TPS, TCU, NSS, speed sensor, and transmission solenoids.
Unplug each one, visually inspect for corrosion or bent pins, spray them out with electrical contact cleaner and plug them back in.
07-05-2018, 06:39 PM
#9
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
07-05-2018, 06:44 PM
#10
Newbie
Join Date: Jun 2018
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee (XJ)
07-05-2018, 06:47 PM
#11
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Totally diffferent animal.
Click this link for the forum for your grand.
https://www.cherokeeforum.com/f5/
Click this link for the forum for your grand.
https://www.cherokeeforum.com/f5/
