Radiator for manual tarns

Old 05-04-2019, 08:27 PM
  #1
Newbie
Thread Starter

Join Date: May 2019
Posts: 3
Model: Cherokee (XJ)
Default Radiator for manual tarns

Need to replace rad for my 98 4.0l manual trans xj. Every part store in area seems to only carry ones with extra fitttings I believe are for the auta trans cooling? Can I cap these fittings? Any suggestions would be great thank you!
joe wood is offline
Old 05-04-2019, 08:50 PM
  #2
Senior Member

Join Date: Jun 2016
Location: Santa Clarita California
Posts: 774
Year: 2001
Model: Cherokee
Engine: 4.0L
Default

I don't think they make radiator for a manual trans , they all come with a trans cooler you don't have to hook it up to anything . It wont leak coolant .
tech is offline
Old 05-04-2019, 08:57 PM
  #3
Newbie
Thread Starter

Join Date: May 2019
Posts: 3
Model: Cherokee (XJ)
Default

Ok I was worried the lower hose fitting would leak, anyway of finding out for sure?. Just want to make sure before I put one in and can't return it if it doesn't work. Thanks again
joe wood is offline
Old 05-04-2019, 10:56 PM
  #4
CF Veteran

Join Date: Dec 2015
Location: PA
Posts: 1,898
Year: 1997
Model: Cherokee
Engine: 4.0L
Default

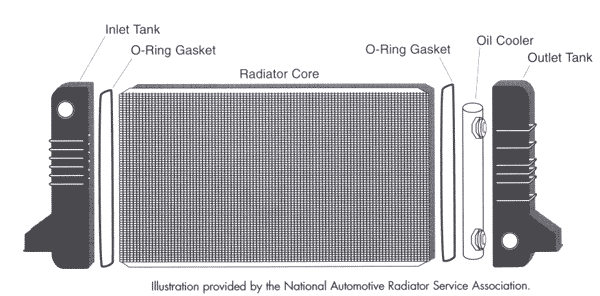

Those two fittings are connected to a tube inside the side tank of the radiator, which is sealed off from the rest of the radiator. No coolant flows thru that tube.
fb97xj1 is offline
Old 05-04-2019, 10:58 PM
  #5
gat
Senior Member

Join Date: Mar 2016
Location: Oklahoma
Posts: 562
Year: 1992
Model: Cherokee
Engine: 4.0L L6 PowerTech (stock)
Default

A radiator for an automatic or manual will still be useable for your Jeep. If you have a manual, then ignore the holes for the transmission oil cooler lines. That is a separate radiator in the same housing. It doesn't cross fluids with the engine's coolant. Even some automatic Jeep's might not use those lines because an aftermarket cooler is used in it's stead. Just ensure that you also get a new cap which fits the new radiator.
gat is offline
Old 05-05-2019, 07:03 AM
  #6
Senior Member

67 GMC's Avatar

Join Date: May 2012
Location: Fort Erie, CANADA
Posts: 932
Year: 1987
Model: Cherokee
Engine: 4.0
Default

Originally Posted by fb97xj1 View Post
Those two fittings are connected to a tube inside the side tank of the radiator, which is sealed off from the rest of the radiator. No coolant flows thru that tube.
This exactly-If you have no automatic trans cooler lines from the trans, no fluid would be supplied to the fitting on the radiator. The fittings are a separate circuit and would be full of transmission fluid if attached to the trans. The radiator coolant goes around the tube inside the tank (not through them). You can actually unscrew them and buy some proper brass plugs from a plumbing supply place if they really bother you by not being attached to anything. Or just put some rubber caps on them.

67 GMC is offline
Old 05-05-2019, 12:02 PM
  #7
Newbie
Thread Starter

Join Date: May 2019
Posts: 3
Model: Cherokee (XJ)
Default

Ok awesome thank you guys! Much appreciated, hopefully I'll be on the road soon
joe wood is offline
Old 05-05-2019, 01:47 PM
  #8
CF Veteran

Join Date: May 2012
Location: Lost in the wilds of Virginia
Posts: 4,527
Year: 1998 Classic (I'll get it running soon....) and 96 (just purchased) and 02 Grand
Model: Cherokee (XJ)
Engine: 4.0
Default

I'd cap them with something just to keep critters out, though. Even some tape that will stay put.
BlueRidgeMark is offline
