HD Rocker

what do you guys think about this

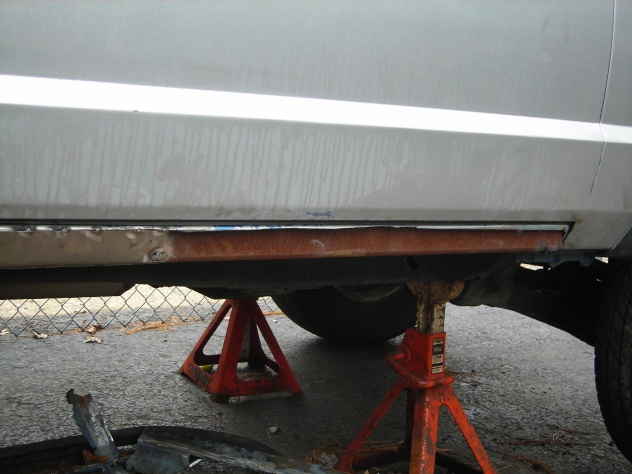

2x4 .25 thick steel for rockers and then cover with stainless steel.
added braces to the unibody and then painting them

Attached Images

Reply Like

11-15-2008, 11:50 PM

gmsween

Member

Join Date: Nov 2008

Posts: 180

Likes: 0

Received 2 Likes on 2 Posts

Year: 1991

Model: Cherokee

Engine: I-6 H.O

how hard was it to get the tubing molded in. i made rock sliders for my cherokee, but i dont want to put them on anymore and also because my rocker panels are rusted out. i have had this idea for a while now but i just havent had the time to get around to it. i thought it would be a great idea because it saves ground clearance on the sides and it strengthens it.
thanks

Reply Like

11-15-2008, 11:54 PM

Mudhunter241

Member

Thread Starter

Join Date: Oct 2008

Posts: 130

Likes: 0

Received 0 Likes on 0 Posts

Year: 91

Model: Cherokee

Engine: 4.0

once you cut them out the steel slides right into place. Then I welded the sheet and steel together, added the stainless to make it look stock. Now I have to make the braces to the unibody.

Last edited by Mudhunter241; 11-15-2008 at 11:57 PM.

Reply Like

11-16-2008, 12:51 AM

ktmracer419

CF Veteran

Join Date: Sep 2007

Posts: 4,869

Likes: 0

Received 14 Likes on 10 Posts

i did the same with 2x6

the further it sticks out the better it protects the doors

Reply Like

11-16-2008, 01:10 AM

BlueXJ

Renix Super Guru

Join Date: Mar 2008

Location: In yourz postez fissin jurr spelinzs

Posts: 24,653

Likes: 0

Received 16 Likes on 12 Posts

Year: 1990XJ/1989MJ

Model: Comanche

Engine: 4.0L Renix

That is a variation of what Stryker did on his. Also a variation of boatsides. Looks like you did a good job of it. Hard to weld stainless and make it look good.
