Does this sound like the CPS?
I've been having a no-start condition a couple times a month. It will crank and crank but if I do it long enough it putters and starts up.
I hear most people with cps problems talking about stalling but it never does once it's started.
I have a renix, I did the tests and I got .1 ohms and 0 volts when cranking. If it's really that bad how could it work fine most of the time?
I hear most people with cps problems talking about stalling but it never does once it's started.
I have a renix, I did the tests and I got .1 ohms and 0 volts when cranking. If it's really that bad how could it work fine most of the time?
#2
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
I've been having a no-start condition a couple times a month. It will crank and crank but if I do it long enough it putters and starts up.
I hear most people with cps problems talking about stalling but it never does once it's started.
I have a renix, I did the tests and I got .1 ohms and 0 volts when cranking. If it's really that bad how could it work fine most of the time?
I hear most people with cps problems talking about stalling but it never does once it's started.
I have a renix, I did the tests and I got .1 ohms and 0 volts when cranking. If it's really that bad how could it work fine most of the time?
What year Renix?
If it were me, I would go to www.cruiser54.com and complete Tips 1 through 5 first as a preventative measure. Might just fix it also.
#4
Newbie
Thread Starter
Join Date: Oct 2016
Posts: 5
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0
It's an 89'
Yes cranking with it unplugged. My multimeter doesn't show anything at all. I used the right connector.
I've done cruiser54's tips.. Guess i'll put in a mopar and see what happens.
Yes cranking with it unplugged. My multimeter doesn't show anything at all. I used the right connector.
I've done cruiser54's tips.. Guess i'll put in a mopar and see what happens.
#5
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0

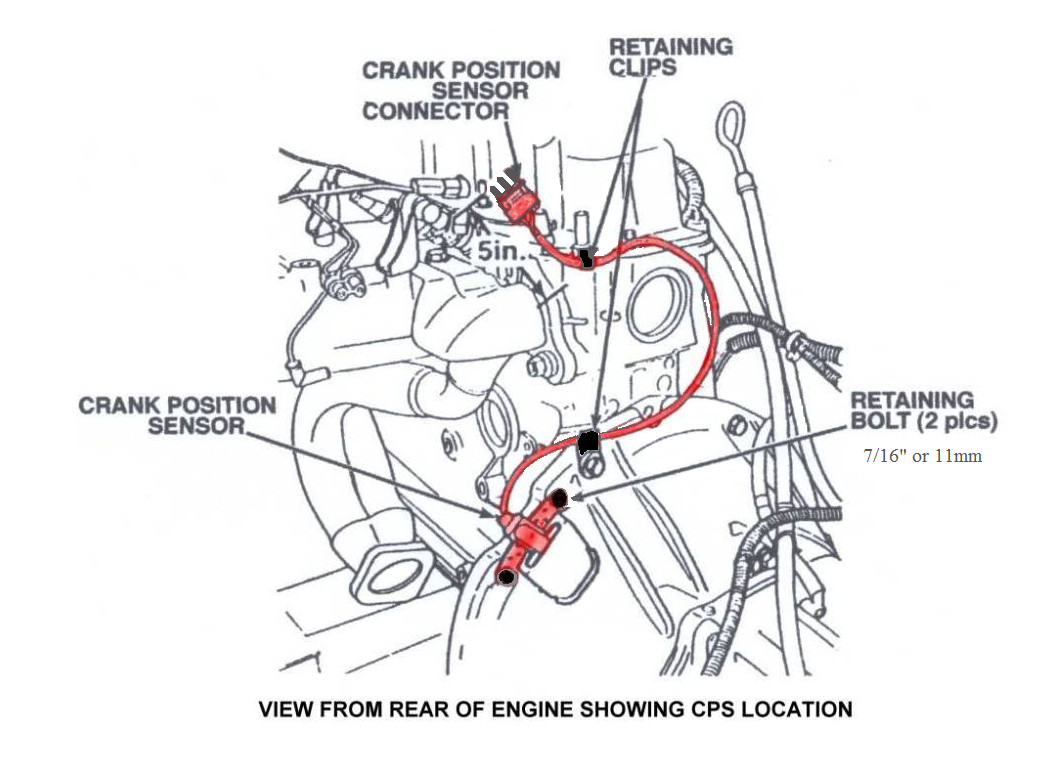

Please be sure there aren't 2 CPS connectors and you're plugged into the wrong one. Here's why:
There was a TSB on replacing the CPS with a different harness. The tech was supposed to cut off the old plug. Many times they didn't.
#6
Newbie
Thread Starter
Join Date: Oct 2016
Posts: 5
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0
Yes set on AC volts connected to the unplugged CPS. I followed the connector back and tried again it's the right one. The JEEP has been running great though.
