Connector Problem, maybe ABS? Please help identify
#1
Junior Member
Thread Starter
Join Date: Jul 2016
Location: MA
Posts: 41
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Connector Problem, maybe ABS? Please help identify
Hey guys, I tried looking around for a good pic to confirm and even the service manual from the factory doesnt have a good pic of the ABS connections.
I was replacing my throttle body when I noticed that the clip in the yellow box was disconnected. At first I only noticed the white clipped end and then saw the black cable lying below. i traced it down to the brakes so Im pretty sure its ABS.

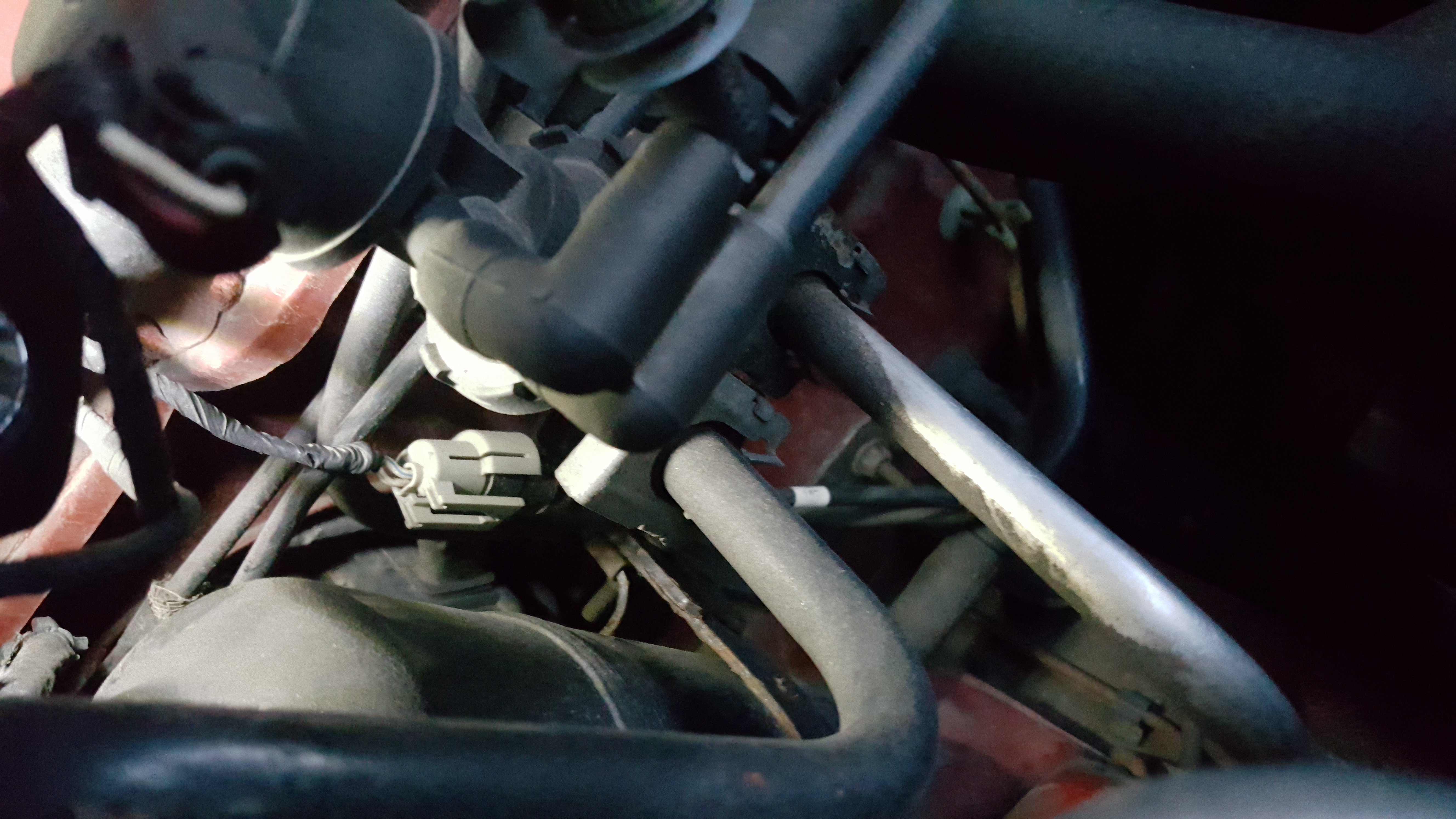

The second pic is a closeup of the yellow square and the third pic is a closeup of the red square. I found the same setup already plugged together on the left side and the cable runs down to the brakes so based on that I put the cables "back" together. Now, when braking I sometimes get a little ABS chatter when hitting the brakes while moving in slow traffic. When I am at normal speeds and hit the brakes I get no ABS reaction and a firm pedal. Could the previous owner have removed that connector if the abs unit on that wheel is not working? And without it connected will it just function as a normal disc brake?
Thanks in advance!
I was replacing my throttle body when I noticed that the clip in the yellow box was disconnected. At first I only noticed the white clipped end and then saw the black cable lying below. i traced it down to the brakes so Im pretty sure its ABS.
The second pic is a closeup of the yellow square and the third pic is a closeup of the red square. I found the same setup already plugged together on the left side and the cable runs down to the brakes so based on that I put the cables "back" together. Now, when braking I sometimes get a little ABS chatter when hitting the brakes while moving in slow traffic. When I am at normal speeds and hit the brakes I get no ABS reaction and a firm pedal. Could the previous owner have removed that connector if the abs unit on that wheel is not working? And without it connected will it just function as a normal disc brake?
Thanks in advance!
#3
CF Veteran
Join Date: Jan 2012
Location: Ocean County, NJ
Posts: 2,208
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
Yes, If the wheel speed sensor or the tone ring are broken than that may trigger low-speed abs activation. Simply disconnecting the sensor is just throwing a bandaid at the situation but this should trigger an ABS light on the dashboard. This means the ABS system senses a fault and is deactivated. Inspect the tone ring on the axle for damage. It's also possible for the sensor to be dirty or caked with mud/grease. Clean that up and test. These are things to do before replacing the sensor.
#4
Junior Member
Thread Starter
Join Date: Jul 2016
Location: MA
Posts: 41
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Thanks man, much appreciated. I'm pretty sure the previous owner had it disconnected because i remember the light was on before I found it disconnected. I'll check out the tone ring and possible grime and go from there.
