Does anyone have the CHRY-1 adapter for the Snapon MT2500 or Solus Pro?

I'm in need of knowing which pin on one end is linked to the other to make an adapter as my kti didn't come with one.



Thanks



Lots on ebay.



There is but when you factor postage and import costs on top, it can come to £40/$50+ which I don't see as worth doing when I have about 10+ adapters I can modify 4 wires onto.

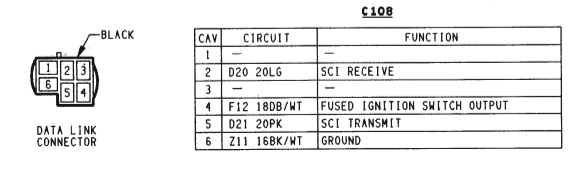

Disclaimer : Not a electronics guy. Unplugged I took ohms readings off the plug for you ? Right side numbers are the blue side of connector.

2 < no reading from any pin
4 < 2 pin
6 < 4 pin
3 < 14 pin
1 < 1 pin
5 < 1 & 8 pin show resistance



Rather strange that pin 2 has no reading. Thanks for the info.



Yeh it seemed odd to me too. Chalked it up to something inside that needs voltage to open up ? I never tore any of mine apart to see whats inside, maybe a chip board in there ? Might explain 5 pin too.



Unless the personality keys are only for OBD2, I though their job was to do stuff like that.

Not that it would confirm anything on the CHRY-1 adapter, but I have a lot of duplicates that came with my kit and even more that a friend passed to me. I might have a go at opening, or smashing open one. I mean, who needs 3 TOY-2 adapters anyway?
