check trans fluid in park or neutral?
01-01-2016, 09:36 PM
#1
Junior Member
Thread Starter
Join Date: Sep 2015
Posts: 40
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
check trans fluid in park or neutral?
96 gc with a 4.0...do you check the trans fluid in park pr neutral?....in every other car i had it was always in park but some on here say neutral...if i check it in park its full..if i check it in neutral its low
01-01-2016, 09:39 PM
#2
CF Veteran
Join Date: Jan 2015
Location: Oregon Coast
Posts: 1,508
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L I6
They are functionally the same. Park is just neutral with a locking pawl engaged. Makes sure you look at the correct size of the dipstick.
01-02-2016, 05:50 AM
#5
CF Veteran
Join Date: Oct 2015
Posts: 7,355
Likes: 0
Received 1,530 Likes
on
1,173 Posts
Year: 2000
Model: Cherokee (XJ)
Hot and in neutral on level ground.
01-02-2016, 06:55 AM
#6
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Here's an idea. Read what it says on the dipstick.................
01-02-2016, 07:24 AM
#7
Newbie
Join Date: Oct 2015
Location: Michigan
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Trending Topics
01-02-2016, 07:37 AM
#8
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
No. READ what's on the dipstick. The instructions for checking the level are almost always engraved on the dipstick.
The following users liked this post:
BillyBoy (10-15-2019)
01-02-2016, 08:01 AM
#9
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Here's a scan of my '99 Owner's Manual that describes the AW4 trans fluid check procedures.
Note that is says to check it in PARK (4.0) and in NEUTRAL (2.5 only).
I think the procedure originally had you checking the AW4 in NEUTRAL but the Daimler Chrysler attorneys changed to PARK.
Note also that it calls for DEXRON II or MERCON fluid. Dexron II was superseded by Dexron III and blended with Mercon. Do not use Dexron II fluid.
Also, it says the fluid should be between the two holes - not on the '97-'01 dipstick. This may have been applicable to earlier dipsticks but not later versions. The fluid level should be between the hole in the OK range and the MAX line.
The 'dipsticks' that wrote the '99 Owner's Manual just carried over previous instructions.

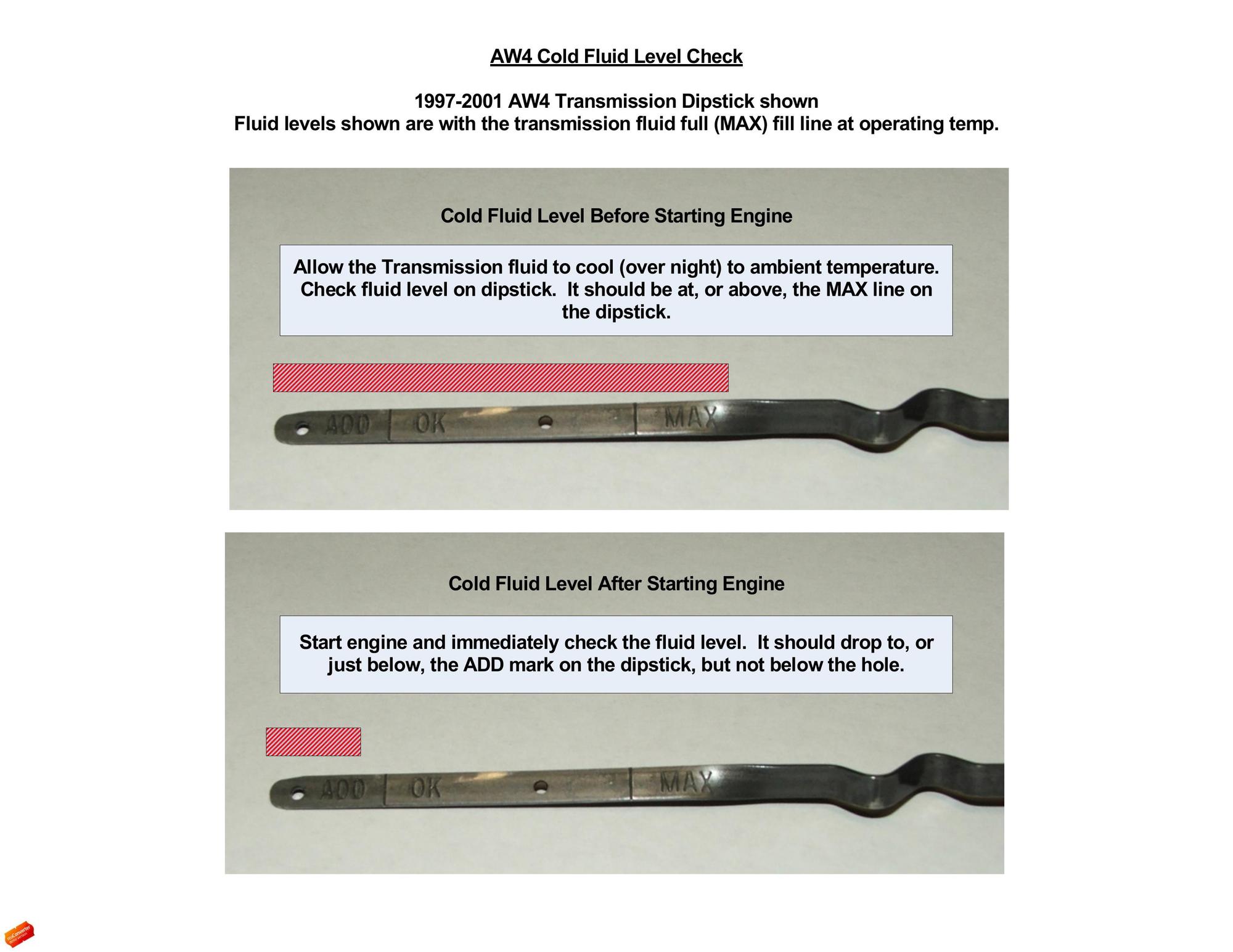

'97-'01 dipstick:
Note that is says to check it in PARK (4.0) and in NEUTRAL (2.5 only).
I think the procedure originally had you checking the AW4 in NEUTRAL but the Daimler Chrysler attorneys changed to PARK.
Note also that it calls for DEXRON II or MERCON fluid. Dexron II was superseded by Dexron III and blended with Mercon. Do not use Dexron II fluid.
Also, it says the fluid should be between the two holes - not on the '97-'01 dipstick. This may have been applicable to earlier dipsticks but not later versions. The fluid level should be between the hole in the OK range and the MAX line.
The 'dipsticks' that wrote the '99 Owner's Manual just carried over previous instructions.
'97-'01 dipstick:
Last edited by CCKen; 01-02-2016 at 09:15 AM.
The following 2 users liked this post by CCKen:
BillyBoy (10-15-2019),
JeeperScott (05-11-2021)
01-02-2016, 08:32 AM
#10
CF Veteran
Join Date: Apr 2009
Posts: 4,734
Likes: 0
Received 9 Likes
on
9 Posts
Year: 2015, 2012
Model: Grand Cherokee (WK2)
Engine: 3.6L
The OP has a Grand Cherokee. It doesn't have an AW4. It's got a 42RE.
My '97 Grand 4.0 said to check it in neutral at hot idle. (Set parking brake!)
It also used ATF +4.
My '97 Grand 4.0 said to check it in neutral at hot idle. (Set parking brake!)
It also used ATF +4.
01-03-2016, 05:51 AM
#12
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
I wanna know if the instructions are on the dipstick......
