Cam sensor mistake.
Long time reader, new member, and first post. Not new to XJ's but I did something yesterday and don't know how to proceed.
I'm putting a 98 4.0 in my 00 xj. I go to change the distributor to the oil pump drive/cam sensor. I had both engines in the #1 firing position. I knew what to do and had a punch ready but forgot to put it in the sensor. What can I say, I'm old school. I yank a distributor and get it right when I put it in. I knew what I did just as it cleared the block but too late.
How do I get this right? Can I turn it like a setting timing with a distributor or do I not need to try to start it until I get it right. I'm at a loss as what I need to do.
I'm putting a 98 4.0 in my 00 xj. I go to change the distributor to the oil pump drive/cam sensor. I had both engines in the #1 firing position. I knew what to do and had a punch ready but forgot to put it in the sensor. What can I say, I'm old school. I yank a distributor and get it right when I put it in. I knew what I did just as it cleared the block but too late.
How do I get this right? Can I turn it like a setting timing with a distributor or do I not need to try to start it until I get it right. I'm at a loss as what I need to do.
#2
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Long time reader, new member, and first post. Not new to XJ's but I did something yesterday and don't know how to proceed.
I'm putting a 98 4.0 in my 00 xj. I go to change the distributor to the oil pump drive/cam sensor. I had both engines in the #1 firing position. I knew what to do and had a punch ready but forgot to put it in the sensor. What can I say, I'm old school. I yank a distributor and get it right when I put it in. I knew what I did just as it cleared the block but too late.
How do I get this right? Can I turn it like a setting timing with a distributor or do I not need to try to start it until I get it right. I'm at a loss as what I need to do.
I'm putting a 98 4.0 in my 00 xj. I go to change the distributor to the oil pump drive/cam sensor. I had both engines in the #1 firing position. I knew what to do and had a punch ready but forgot to put it in the sensor. What can I say, I'm old school. I yank a distributor and get it right when I put it in. I knew what I did just as it cleared the block but too late.
How do I get this right? Can I turn it like a setting timing with a distributor or do I not need to try to start it until I get it right. I'm at a loss as what I need to do.
What are trying to say? Are you asking how to install the OPDA/CMP in your motor?
#3
Newbie
Thread Starter
Join Date: Oct 2015
Location: Bell Buckle ,TN
Posts: 11
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
#4
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
You'll have to find Top Dead Center Compression stroke on #1 cylinder.
Remove #1 spark plug.
Remove the electric radiator fan to get a direct view of the Crankshaft Damper and the timing marks on the timing chain cover.
Locate and outline the timing slot on the damper.
Have a helper hold their finger over the #1 spark plug hole while you turn the damper clockwise using the damper bolt.
When air pressure can be felt as you turn the damper, #1 is coming up on its compression stroke.
Watch the timing slot on the damper as it approaches the zero (O) mark on the timing chain cover. Bump the wrench until the damper slot aligns with the (O) mark on the timing chain cover. If you go past it, back the damper up about 90 degrees and slowly come at it again. See pic.

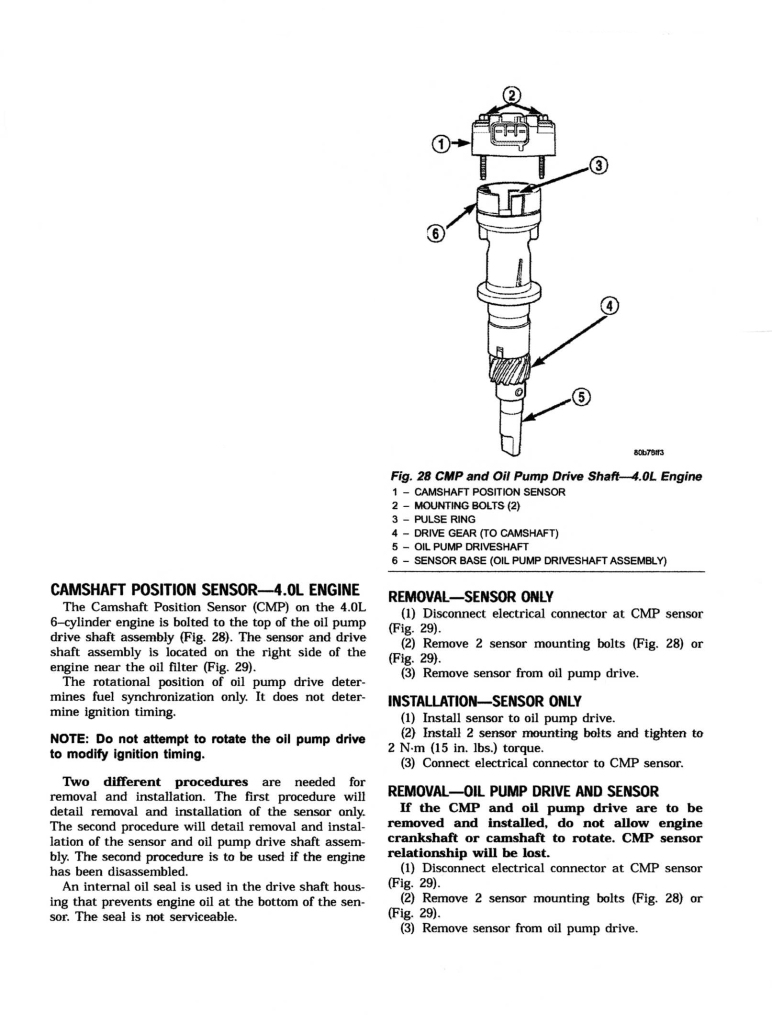

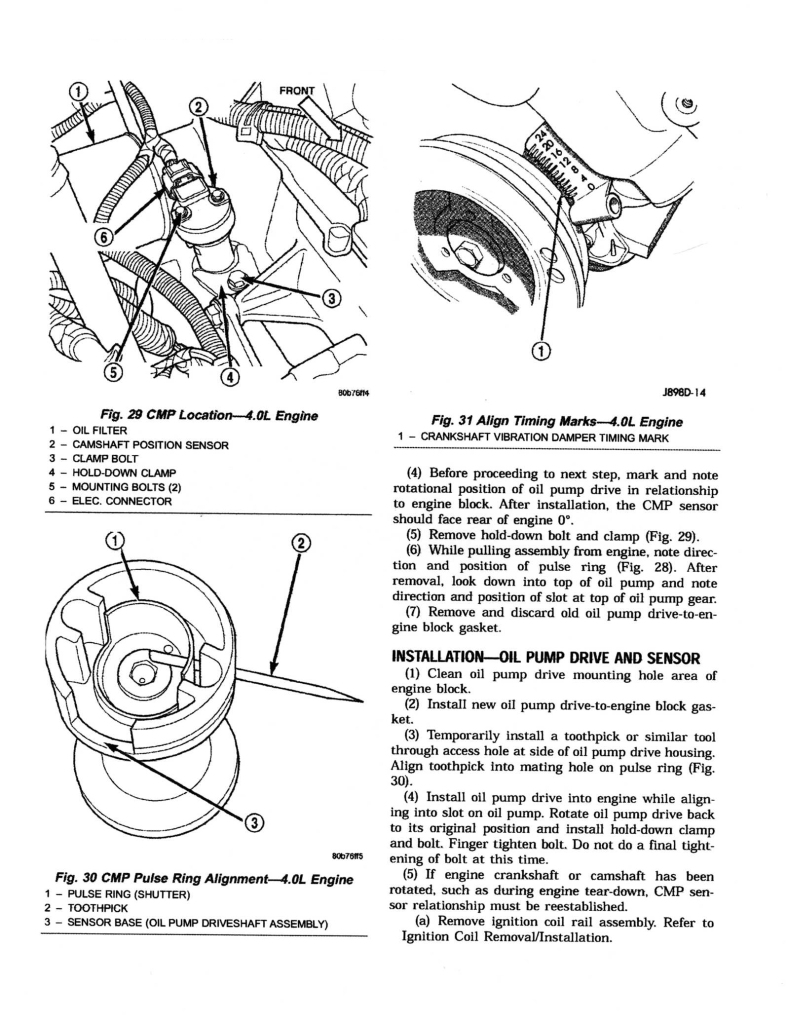

Now, go by these instructions:
Note that the instructions say to use a DRB tool to do the final check of the installation (dealer).

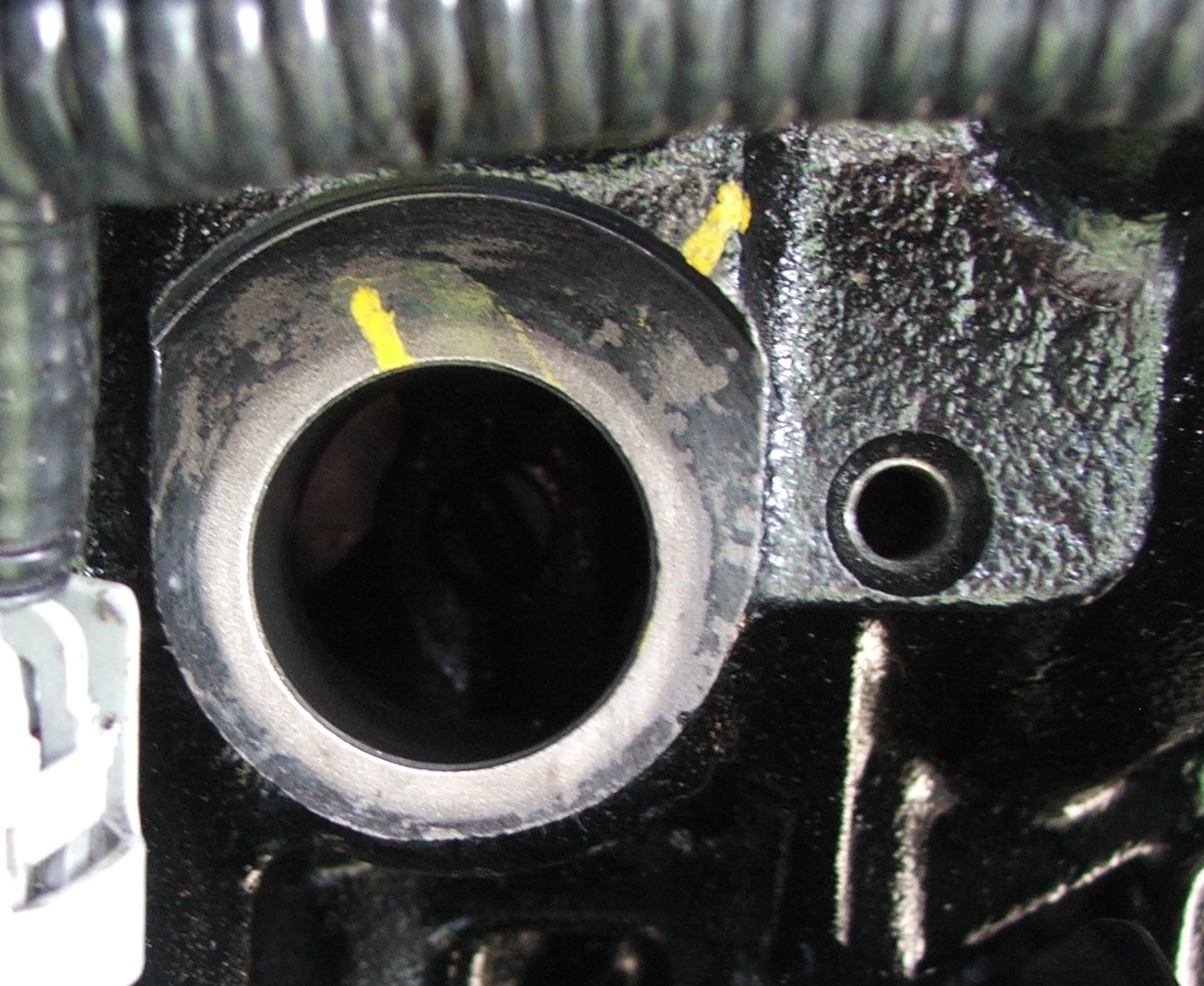

Here's a pic of the alignment marks I made on my engine distributor mount hole for the purpose of aligning the oil pump drive slot. Mark is at the 11:00 o'clock position.
#7
Newbie
Thread Starter
Join Date: Oct 2015
Location: Bell Buckle ,TN
Posts: 11
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Worked like a charm. Just barely turned over and started right up. I figured it was simple but did not know the procedure. I think I have a really good engine here so I'm pretty happy right now. Thanks again CCKen.
