Air compressor not engaging
#1
Seasoned Member
Thread Starter
Join Date: Dec 2009
Location: Wichita, KS
Posts: 429
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0l I6
I have checked the fuses ran the jeep with the switches on and off. I can never tell if the compressor is turning on or off so I can only assume it is not turning on. I did check the refill point and it reads 100 but The compressor is not kicking on so I cant get an accurate measurement. Ideas of what to do next?
#2
Senior Member
Join Date: Mar 2013
Location: Texas
Posts: 691
Likes: 0
Received 2 Likes
on
1 Post
Year: 1993
Model: Cherokee
Engine: 4.0L
What exactly is your problem? A/C in your '99 is not blowing cold air and you are trying to charge it with a 134a kit from the parts store? Has the A/C been working in the past but losing refrigerant?
What is "refill point" of 100? If this is an indication of charge status, you are correct in that it is meaningless w/o compressor running.
What is "refill point" of 100? If this is an indication of charge status, you are correct in that it is meaningless w/o compressor running.
#3
CF Veteran
Join Date: Sep 2011
Location: new mexico
Posts: 1,874
Likes: 0
Received 1 Like
on
1 Post
Year: 88
Engine: 4.0
My guess would be one of those AC pro can with the gauge. One thing with AC you can't just "top it off" so to speak you need evacuate the air out of the system and draw a vacuum in order to fully charge a AC system correctly
Yes I have done it but just "topping it off" but I also have a full gauge set to read, high and low pressures it can be done but its not really recommended.
Have you jumped your pressure switch to fool the compressor as if it has enough pressure. If jumping it helps then you might not have enough freon but it sounds like you have air in the system and is causing you this problem.
Yes I have done it but just "topping it off" but I also have a full gauge set to read, high and low pressures it can be done but its not really recommended.
Have you jumped your pressure switch to fool the compressor as if it has enough pressure. If jumping it helps then you might not have enough freon but it sounds like you have air in the system and is causing you this problem.
#4
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Here's how to fool the AC system into engaging the compressor:
Hook up your refill bottle setup to the AC low pressure servicing port (Charge Port).

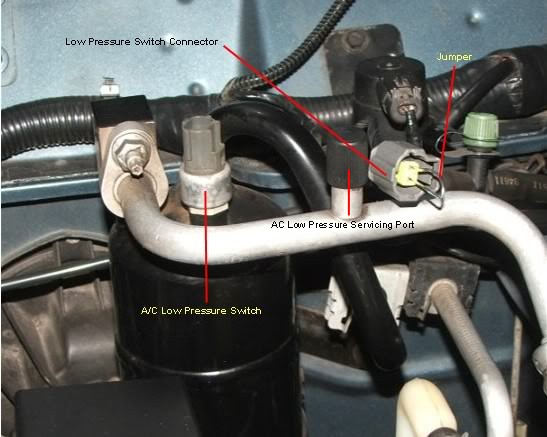

Remove the connector from the Low Pressure Cycling Switch on top of the Accumulator and jumper the pin cavities in the connector using a small paperclip. See pic.
Set the climate control mode selector to an AC setting, start the engine, the compressor should engage and the Radiator Electric Fan should run.
Monitor the refill bottle gauge for pressure. You're reading the low pressure side of the Freon system. Fill as required. Caution: If the pressure reads zero you should not run the compressor but for a few seconds without refilling to prevent the compressor running without lube.
Temp/Pressure chart:
Hook up your refill bottle setup to the AC low pressure servicing port (Charge Port).
Remove the connector from the Low Pressure Cycling Switch on top of the Accumulator and jumper the pin cavities in the connector using a small paperclip. See pic.
Set the climate control mode selector to an AC setting, start the engine, the compressor should engage and the Radiator Electric Fan should run.
Monitor the refill bottle gauge for pressure. You're reading the low pressure side of the Freon system. Fill as required. Caution: If the pressure reads zero you should not run the compressor but for a few seconds without refilling to prevent the compressor running without lube.
Temp/Pressure chart:
