1998 Jeep Cherokee OBD question


Hey all,

I recently bought a 1998 Jeep Cherokee. I wanted to know if anyone knew what version of OBD does it have?

I have a bluetooth reader and I would like to use it in this truck. I've used it in all my other cars but they're much newer.

Thanks


Steve.

Not sure of the version.....a '98 is OBD-II. We use a ScanGauge....it just plugs into the ALDL port under the dash.

The '98 XJ uses a JTEC (Jeep/Truck Engine Controller) and a J1962 Data Link Connector. Not sure of the protocol, maybe J1850.

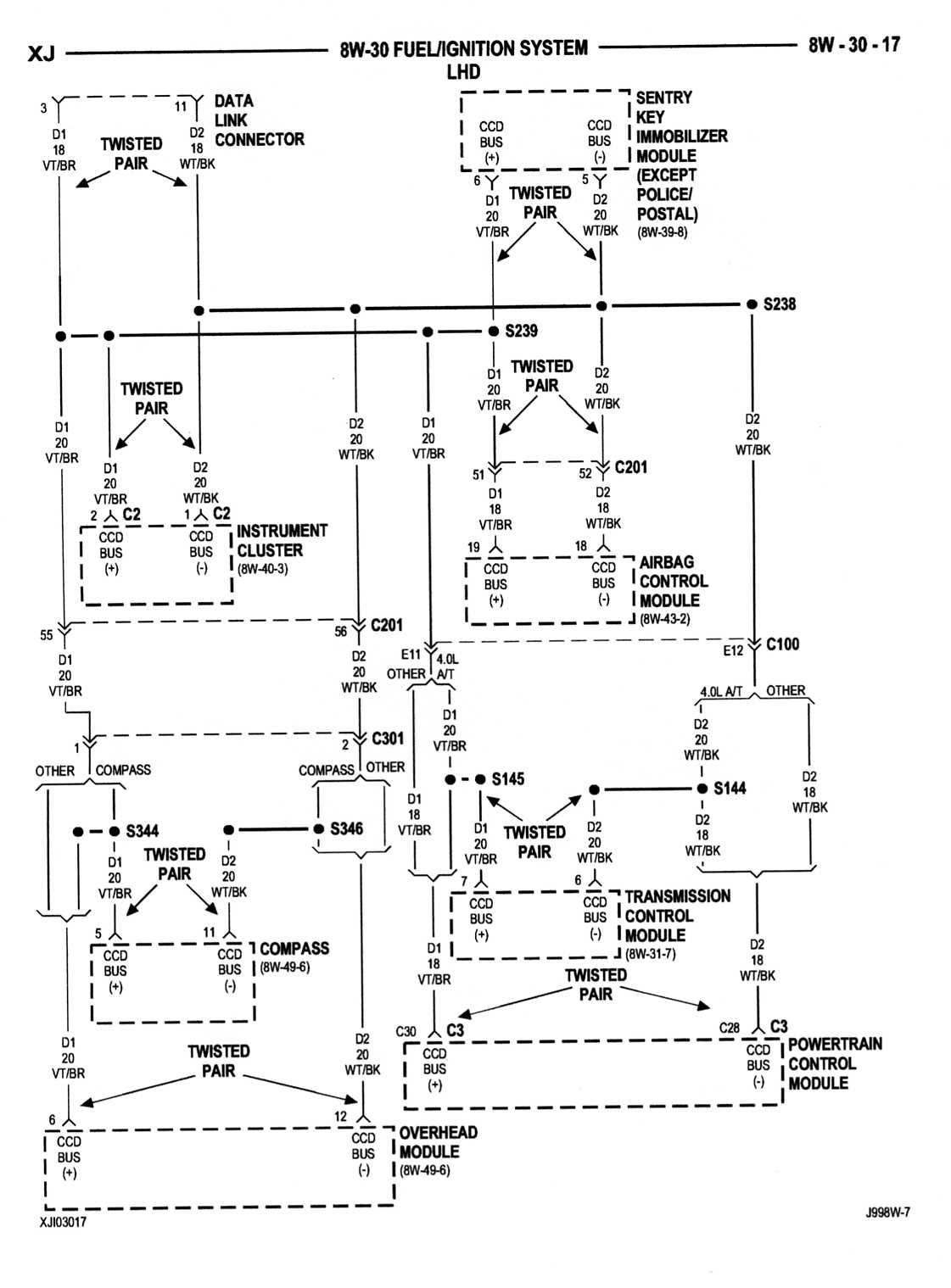

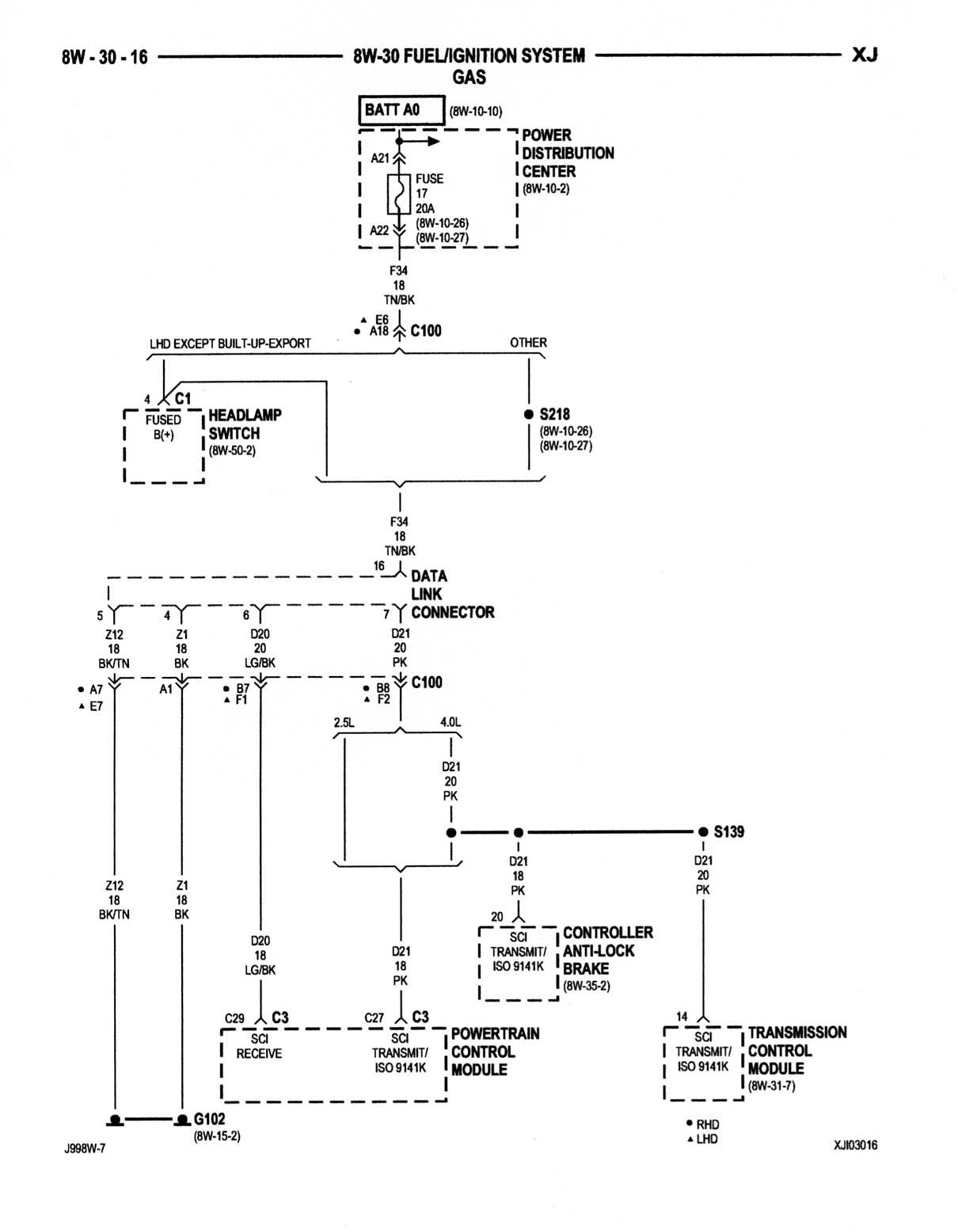

The system has ports to the CCD Data Bus and two pci (J9141K). See schematics below.

Attachment 319375

Attachment 319376

The '98 probably doesn't have a SKIM.

Attachment 319377

Yea I got it working. It was acing wierd but I can now use torque on my note 3 to see all the readouts I want

Excellent.
