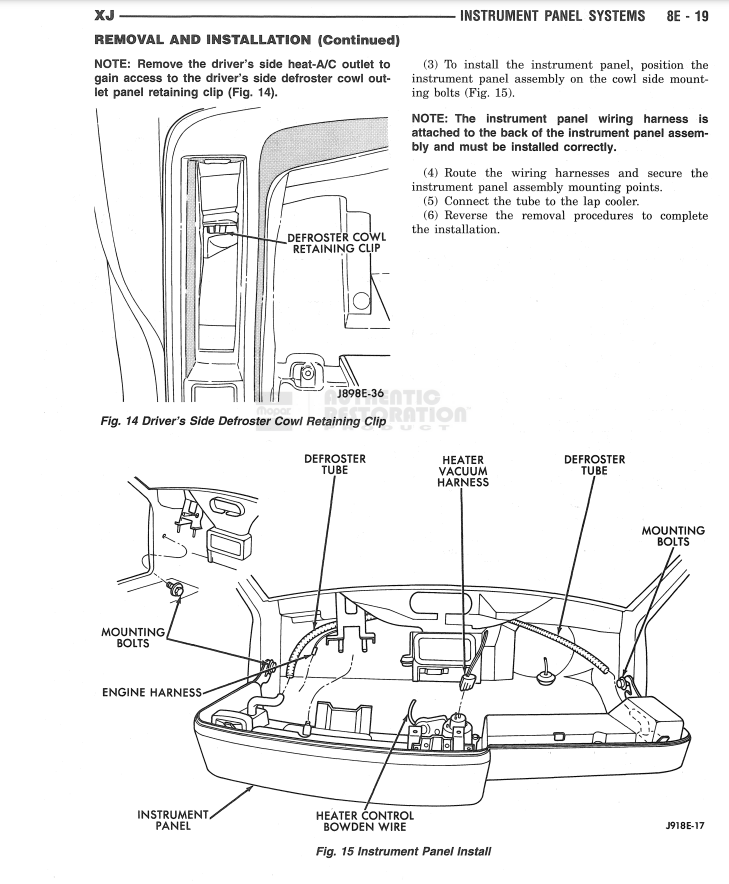

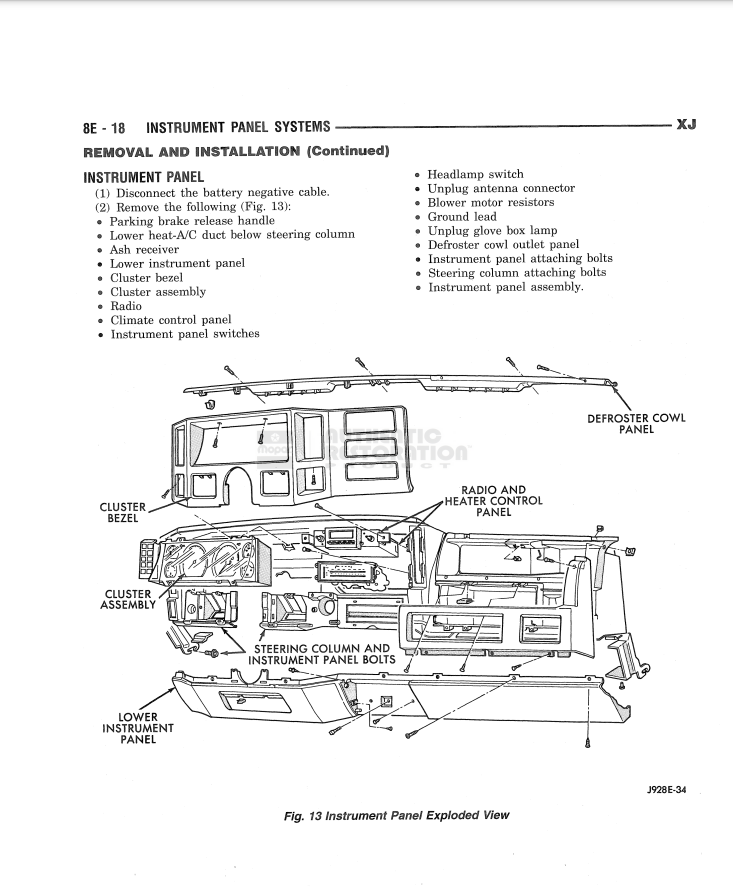

Important note: When they say "remove the center console" they mean remove the floor console, since I didn't find "center console" used anywhere in that section.
I am wondering how much of this stuff does not really need to be disconnected. Like if the Center Cluster Assembly of gauges can be left in there, but disconnect all the HVAC related stuff, and the items attached to the firewall, of course, and then remove the dash mounting bolts and hold it all up with ratchet straps.

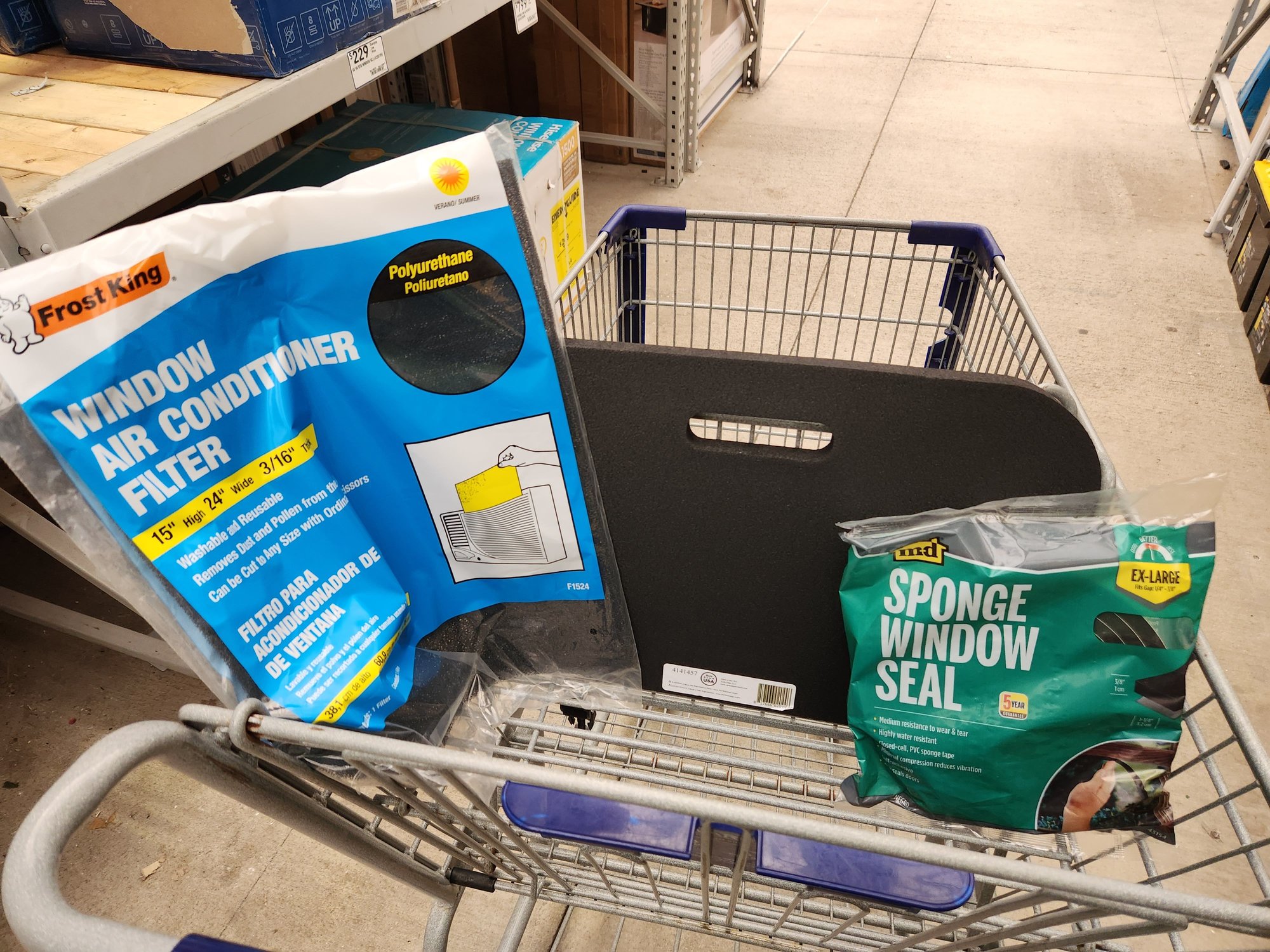

This looks like it might work to replace the foam on the face of the evaporator core that seems to be gone whenever anybody cracks one of these air boxes open. https://www.lowes.com/pd/Frost-King-...Filter/1196229
Probably don't need to drain the coolant, that seems like more work than necessary. I just unplugged the hoses 1 at a time and caught the coolant that dripped in a container, and then plugged the hoses. Didn't lose that much honestly, a couple fluid oz maybe.
On my '01 I also got away with unbolting the dash and swinging it out rather than completely disassembling and removing it. You have to take the kick plates off underneath the steering wheel, unbolt the column, and unplug a few harnesses but it's doable.
The HVAC box is a PITA to get out but if you rotate it a bit you can get an angle. Just use caution swinging the dash out that you don't stress anything too much, it'll be tight but it shouldn't feel like you're going to break something.
Probably don't need to drain the coolant, that seems like more work than necessary. I just unplugged the hoses 1 at a time and caught the coolant that dripped in a container, and then plugged the hoses. Didn't lose that much honestly, a couple fluid oz maybe.
On my '01 I also got away with unbolting the dash and swinging it out rather than completely disassembling and removing it. You have to take the kick plates off underneath the steering wheel, unbolt the column, and unplug a few harnesses but it's doable.
The HVAC box is a PITA to get out but if you rotate it a bit you can get an angle. Just use caution swinging the dash out that you don't stress anything too much, it'll be tight but it shouldn't feel like you're going to break something.
Hope this helps, best of luck!
Yes, I have had the bypass on the heater hoses since early in the year so no need to fuss with coolant.
I was planning on nylon ratchet straps rather than bungees, unless there is a specific reason for bungees.
Probably don't need to drain the coolant, that seems like more work than necessary. I just unplugged the hoses 1 at a time and caught the coolant that dripped in a container, and then plugged the hoses. Didn't lose that much honestly, a couple fluid oz maybe.
On my '01 I also got away with unbolting the dash and swinging it out rather than completely disassembling and removing it. You have to take the kick plates off underneath the steering wheel, unbolt the column, and unplug a few harnesses but it's doable.
The HVAC box is a PITA to get out but if you rotate it a bit you can get an angle. Just use caution swinging the dash out that you don't stress anything too much, it'll be tight but it shouldn't feel like you're going to break something.
Are you please imagine you are doing this job on a RHD drive vehicle, and imagine if there would be a significant differences ?
The reason I say that is I have heard the job can be done on a RHD (mine) using a LHD core from Rock Auto
(RH new cores are hard to obtain and expensive )
I cant remember what they said they did about the pipes, and it would imply the holes un the firewall are centrally located ?
Thank you in anticipation for your indulgence
Its hot for 6mths of the year here, very humid in summer, working A/C is a neccesity
I have already swapped the compressor, condensor and other parts from a previous XJ to keep this one cold, eventually I will need to fit a new evaporator, and probably heater matrix, so I need to work out in advance
Are you please imagine you are doing this job on a RHD drive vehicle, and imagine if there would be a significant differences ?
The reason I say that is I have heard the job can be done on a RHD (mine) using a LHD core from Rock Auto
(RH new cores are hard to obtain and expensive )
I cant remember what they said they did about the pipes, and it would imply the holes un the firewall are centrally located ?
Thank you in anticipation for your indulgence
Its hot for 6mths of the year here, very humid in summer, working A/C is a neccesity
I have already swapped the compressor, condensor and other parts from a previous XJ to keep this one cold, eventually I will need to fit a new evaporator, and probably heater matrix, so I need to work out in advance
I have no idea. The manual on Archive.Org is linked above, but I didn't notice if RHD was addressed in that manual. The pipes are definitely not centrally located on my LHD Jeep, they are on the passenger side and the blower motor is behind the washer fluid bottle.
In my case it was, I couldn't get the trim panel that goes around the radio and HVAC controls off without removing the center console first due to clearance. It's pretty simple and just held on by a few screws.
Another note when removing the console, make sure you're in the right gear to get the gearshifter in a place where you can get the console off. I believe (double check this) that I had to be in 1-2 on the gearshifter and at least 4H or N on the t case shifter so that when you get the center console loose you can lift it up over these handles. In their P and 2H state, they are both angled too far forward to allow you to maneuver the console up and over them.
one trick I learned is to have my digicam handy and take sequential pics of each fastener as it is about to come out, even one when it is out, interspersed with video clips for wiring harness etc etc
This has saved my backside so many times, even on simple jobs
For this job, its a 100% needed imo, (I did find it disturbing how much I sound like a moron on my videos)
one trick I learned is to have my digicam handy and take sequential pics of each fastener as it is about to come out, even one when it is out, interspersed with video clips for wiring harness etc etc
This has saved my backside so many times, even on simple jobs
For this job, its a 100% needed imo, (I did find it disturbing how much I sound like a moron on my videos)
Yeah definitely second this, I ziploc bagged up each set of fasteners, labeled, and taped them to whatever they came off of. Organization can kill you on this one.
