1991 spark plug change over.
I am curious why the transition to obd changed to the champion rc12LYC from the renix with the rc9YC? Why was an extended tip needed?
03-29-2016, 10:30 PM
#4
CF Veteran
Join Date: Apr 2012
Location: Wisconsin
Posts: 5,302
Likes: 0
Received 19 Likes
on
16 Posts
Model: Cherokee
From what I've read, the air/fuel mix is more uniform near the center of the cylinder (away from the walls). The extended reach plugs try to hit that sweet spot. Less unburned fuel = better emissions.
03-30-2016, 08:50 AM
#5
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,872
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0

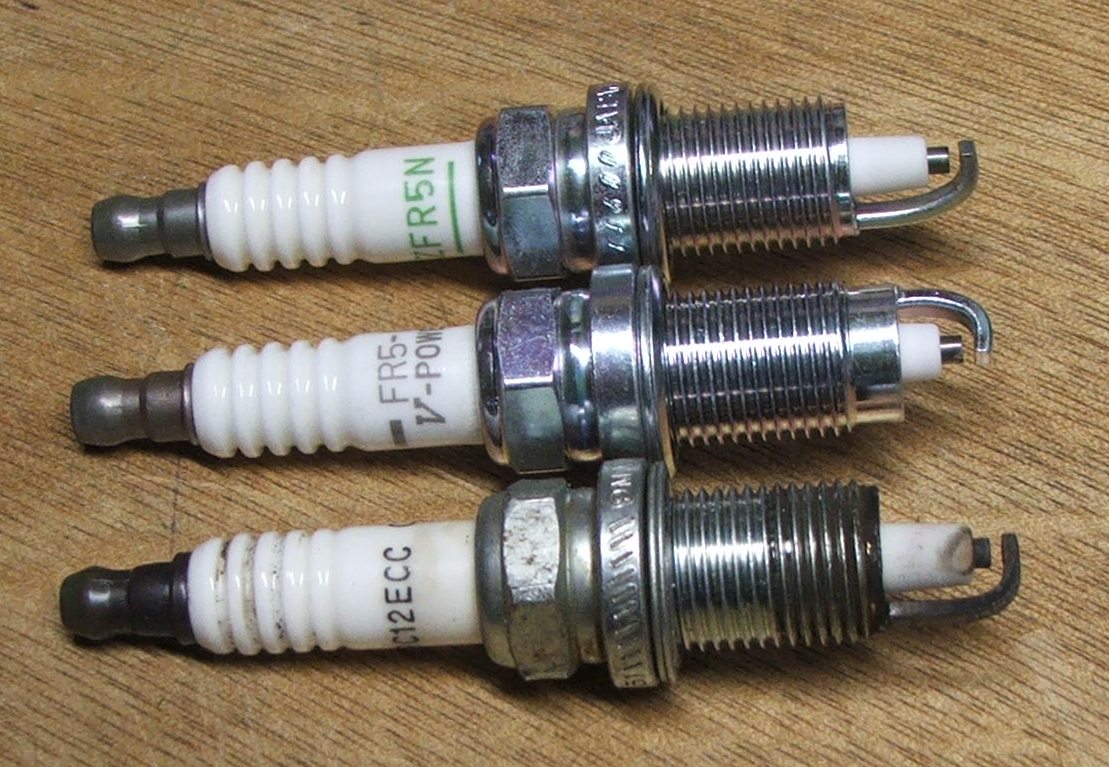

I use the NGK plugs for the later models in all my 4.0s. ZFR5N
03-30-2016, 01:05 PM
#6
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0

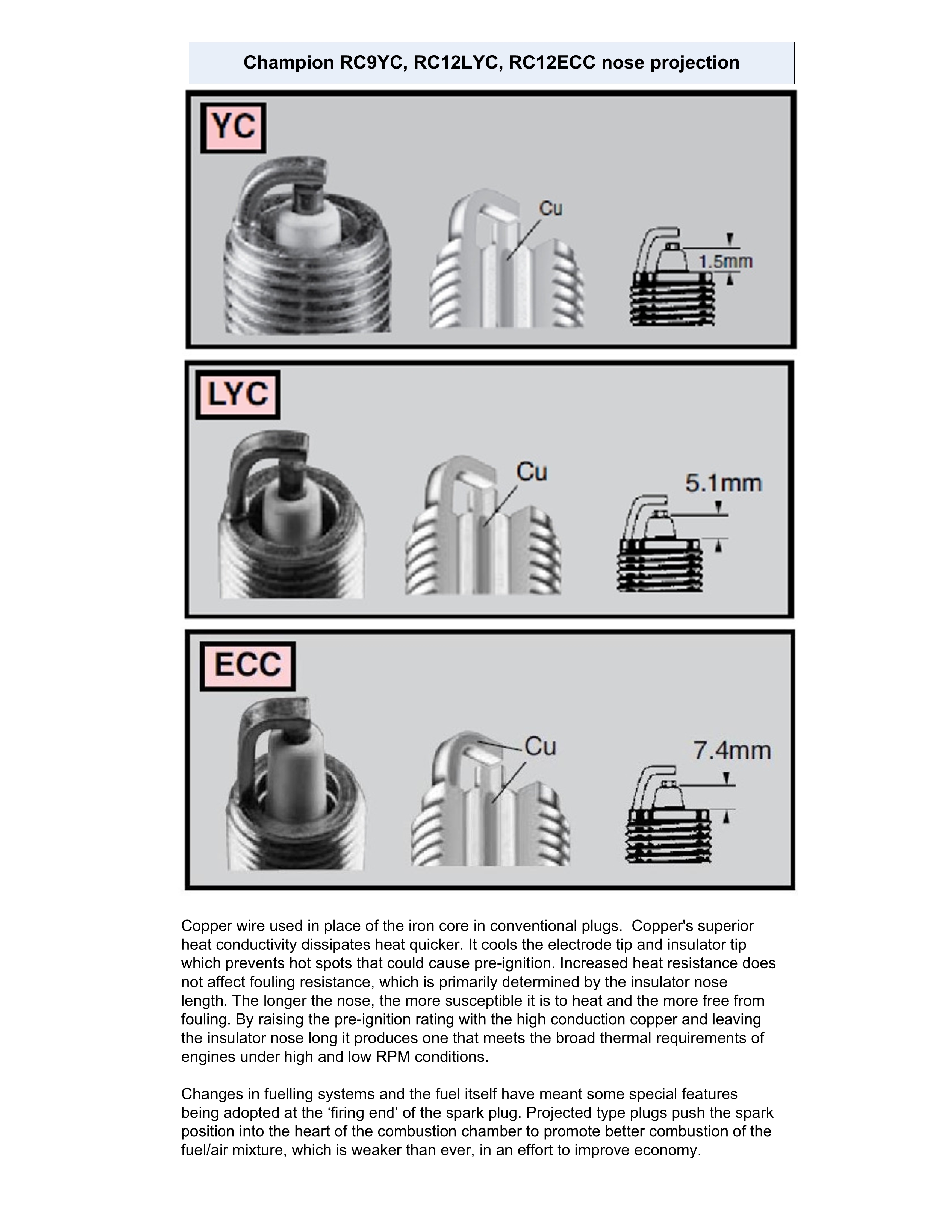

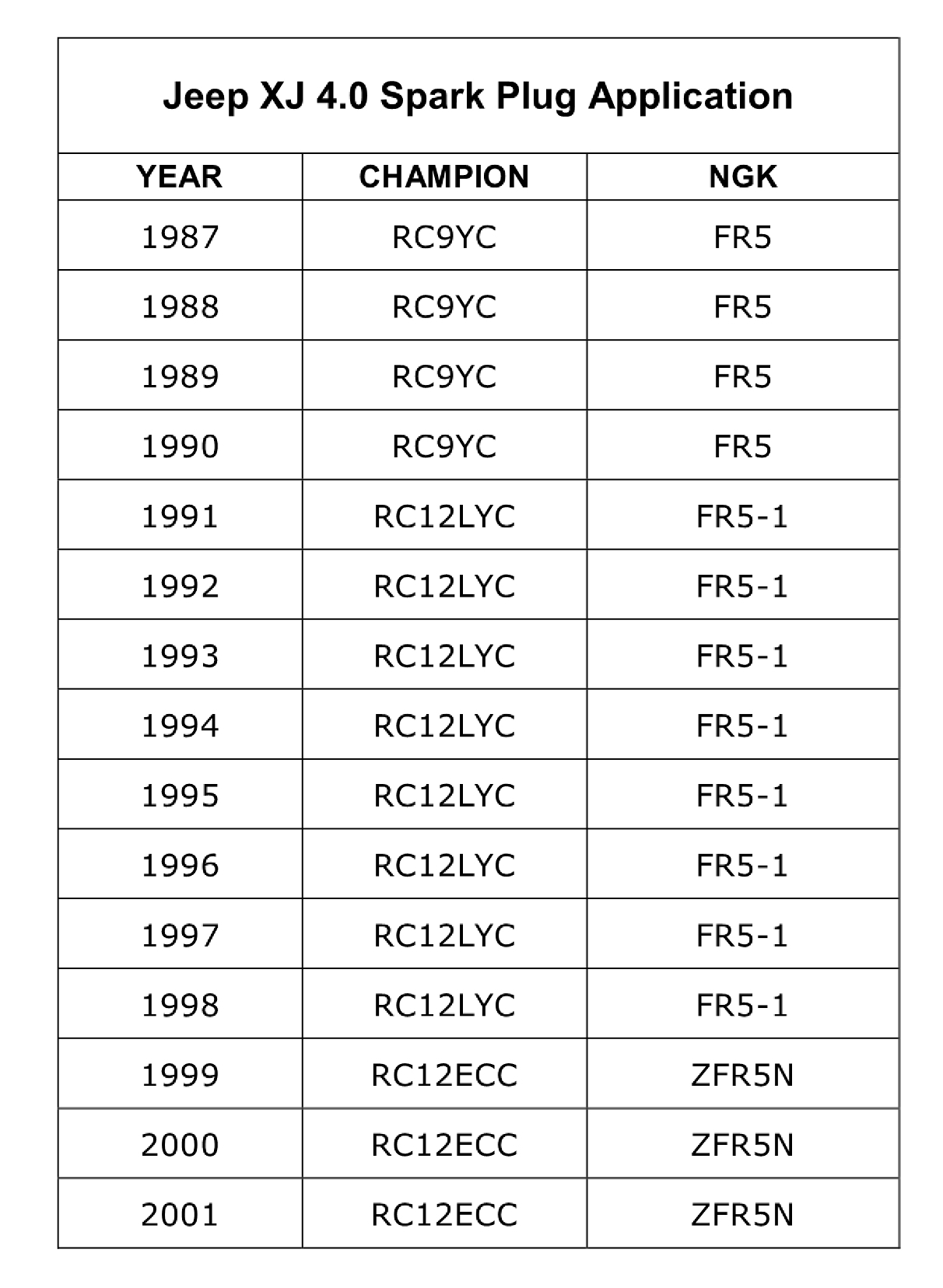

See if the below data will help.
I think when OBDII came along (California initiated) there was an effort to decrease pollution and increase fuel economy fleet wide so I think that is the reason for longer projection plugs.

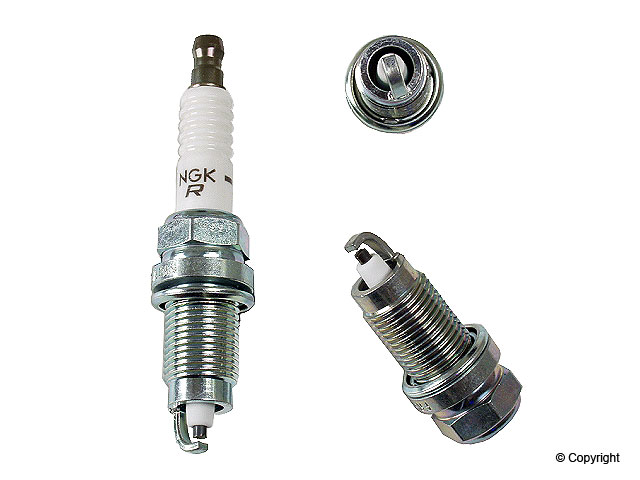

NGK's answer to the Champion RC12LYC was the FR5-1. Talking to NGK Tech Support, their claim was that the extended shell was a request from Chrysler.
FR5-1
.
I think when OBDII came along (California initiated) there was an effort to decrease pollution and increase fuel economy fleet wide so I think that is the reason for longer projection plugs.
NGK's answer to the Champion RC12LYC was the FR5-1. Talking to NGK Tech Support, their claim was that the extended shell was a request from Chrysler.
FR5-1
.
03-30-2016, 01:29 PM
#7
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Also,
I see that the cylinder head changed in 1991 from the 1990 C/N 2686 head to the 1991 C/N 7120 head (different exhaust ports).
The intake and exhaust manifold changed from 1990 to 1991.
The O2S changed in 1991 to an O2S with a longer pigtail (for the new exhaust manifold I guess).
Fuel injectors changed.
PCM changed.
I see that the cylinder head changed in 1991 from the 1990 C/N 2686 head to the 1991 C/N 7120 head (different exhaust ports).
The intake and exhaust manifold changed from 1990 to 1991.
The O2S changed in 1991 to an O2S with a longer pigtail (for the new exhaust manifold I guess).
Fuel injectors changed.
PCM changed.
