The CavFab Alpha Series 3 Link
#316
Junior Member
Join Date: Dec 2013
Location: Shallowater Texas
Posts: 41
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0 Inline Six
Crossmember
I got my crossmember in today, haven't gotten to check it out yet though. hopefully my links ship soon.
#317
Member
Join Date: Nov 2011
Location: Canonsburg, PA
Posts: 153
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L
Attachment 301080Attachment 301081 hope to get some wheeling pictures soon
#318
CF Veteran
Join Date: Oct 2013
Location: Greenville, SC
Posts: 5,920
Likes: 0
Received 190 Likes
on
165 Posts
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Originally Posted by jbdpayne
Looks good. Did you ever figure out if you got the first batch of links? Wondered since you weren't able to run your sway bar. Still waiting on my 3 link and the high Clarence crossover I ordered hoping it ships out soon
#319
Member
Join Date: Nov 2011
Location: Canonsburg, PA
Posts: 153
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L
ahh I gotcha, I was curious you'll have to keep us posted. As for me I have been waiting by I haven't gotten an official set of days off since November...good times!
#321
Member
Join Date: Jan 2017
Location: Anthem, AZ
Posts: 125
Likes: 0
Received 2 Likes
on
2 Posts
Year: 2001
Model: Cherokee
How long are your lower links eye to eye when all the way collapsed? I had the same issue with stretch, couldn't run my swaybar and was hitting my track bar bracket. I was the first to install this and after I reported it they said they made the links too long and shortened them for all the next kits they shipped. The new links I have now got me back to stock wheelbase so I have no issues running the stock swaybar. I'm wondering if you got some of the long links?
By the way, there were no tie in brackets with the links for me either!! Still haven't heard back from CavFab on that, but it's the weekend, so I'll give them until Monday to give me an answer.
#322
CF Veteran
Join Date: Oct 2013
Location: Greenville, SC
Posts: 5,920
Likes: 0
Received 190 Likes
on
165 Posts
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Originally Posted by jbennett
How long are your second set of links they sent to correct your problem?I just got my links yesterday, they measure about 34" at their shortest setting. Curious what you come up with on this as I plan on running 4.5" springs up front as well.
By the way, there were no tie in brackets with the links for me either!! Still haven't heard back from CavFab on that, but it's the weekend, so I'll give them until Monday to give me an answer.
By the way, there were no tie in brackets with the links for me either!! Still haven't heard back from CavFab on that, but it's the weekend, so I'll give them until Monday to give me an answer.
#323
CF Veteran
Join Date: Oct 2013
Location: Miami, fl
Posts: 7,378
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1998
Model: Cherokee
Engine: 4.0

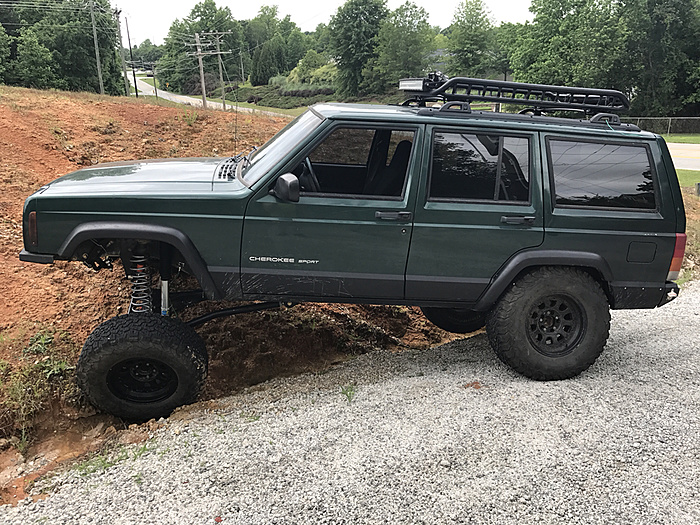

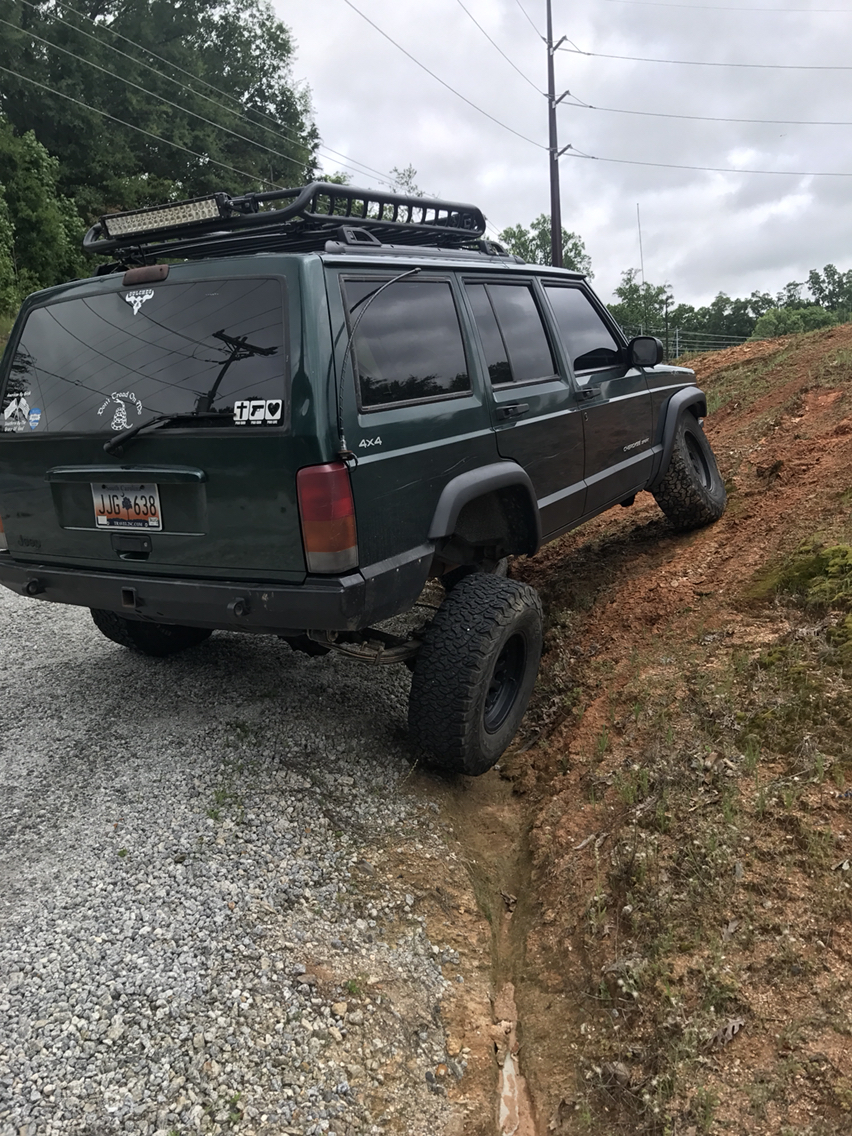

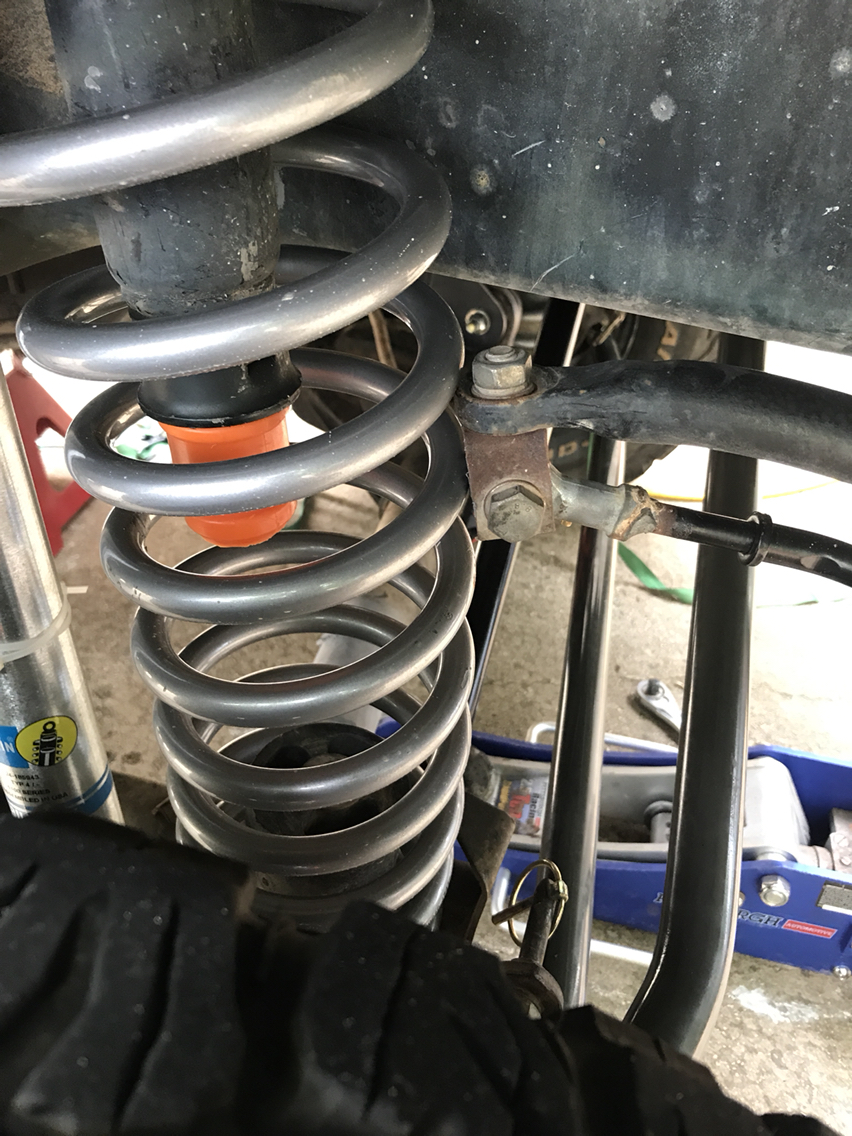

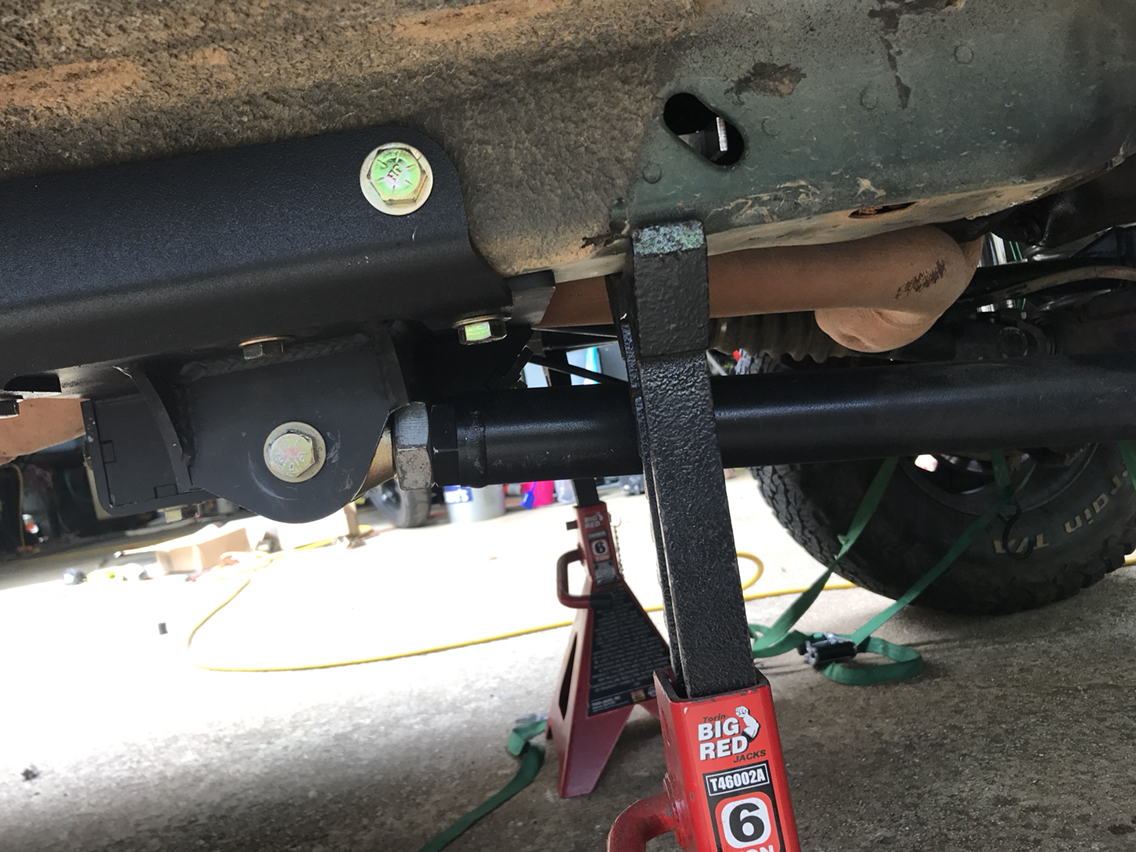

My lower arms are about 34" bolt center to bolt center. Axle is still pushed forward it seems and the coils hit the bumpstop towers, the bumpstops don't line up right which caused my fender flare to be knocked off and I can't use my sway bar.Attachment 301147Attachment 301146Attachment 301142Attachment 301144Attachment 301141Attachment 301143Attachment 301145
#324
CF Veteran
Join Date: Oct 2013
Location: Greenville, SC
Posts: 5,920
Likes: 0
Received 190 Likes
on
165 Posts
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Originally Posted by 88whitecomanche
looks like you still have some adjusting to do, your pictures show that you still have to adjust the lower links to get the coil centered to the bumpstop...
Edit: Also, when it flexes out the bumpstop towers end up behind the extended bumpstops on the axle
Last edited by SatiricalHen; 05-14-2017 at 08:07 AM.
#325
CF Veteran
Join Date: Oct 2013
Location: Miami, fl
Posts: 7,378
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Not sure, but I've learned when trying to adjust pinion angle,
First make sure bumpstop on top is centered in coil then worry about pinion angle after which shouldn't be much to adjust except from the upper link/control arm...
First make sure bumpstop on top is centered in coil then worry about pinion angle after which shouldn't be much to adjust except from the upper link/control arm...
#327
CF Veteran
Join Date: Oct 2013
Location: Greenville, SC
Posts: 5,920
Likes: 0
Received 190 Likes
on
165 Posts
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
I dropped it off at a 4x4 shop. Hopefully they can figure something out that I can't. I mean they work with this kind of stuff every day and do alignments on lifted vehicle and all so we'll see tomorrow after work when I pick it up.
#328
CF Veteran
Join Date: Feb 2013
Location: Belton S.C.
Posts: 1,286
Likes: 0
Received 1 Like
on
1 Post
Year: 1998
Model: Cherokee
Engine: 4.0
I've always heard mixed reviews about Clemson 4wd, but I had a great experience there. They also built a TJ and JK for my wife's tattoo artist. Bro-dozers for sure but well built rigs none the less.
