Connector pin out - climate control module

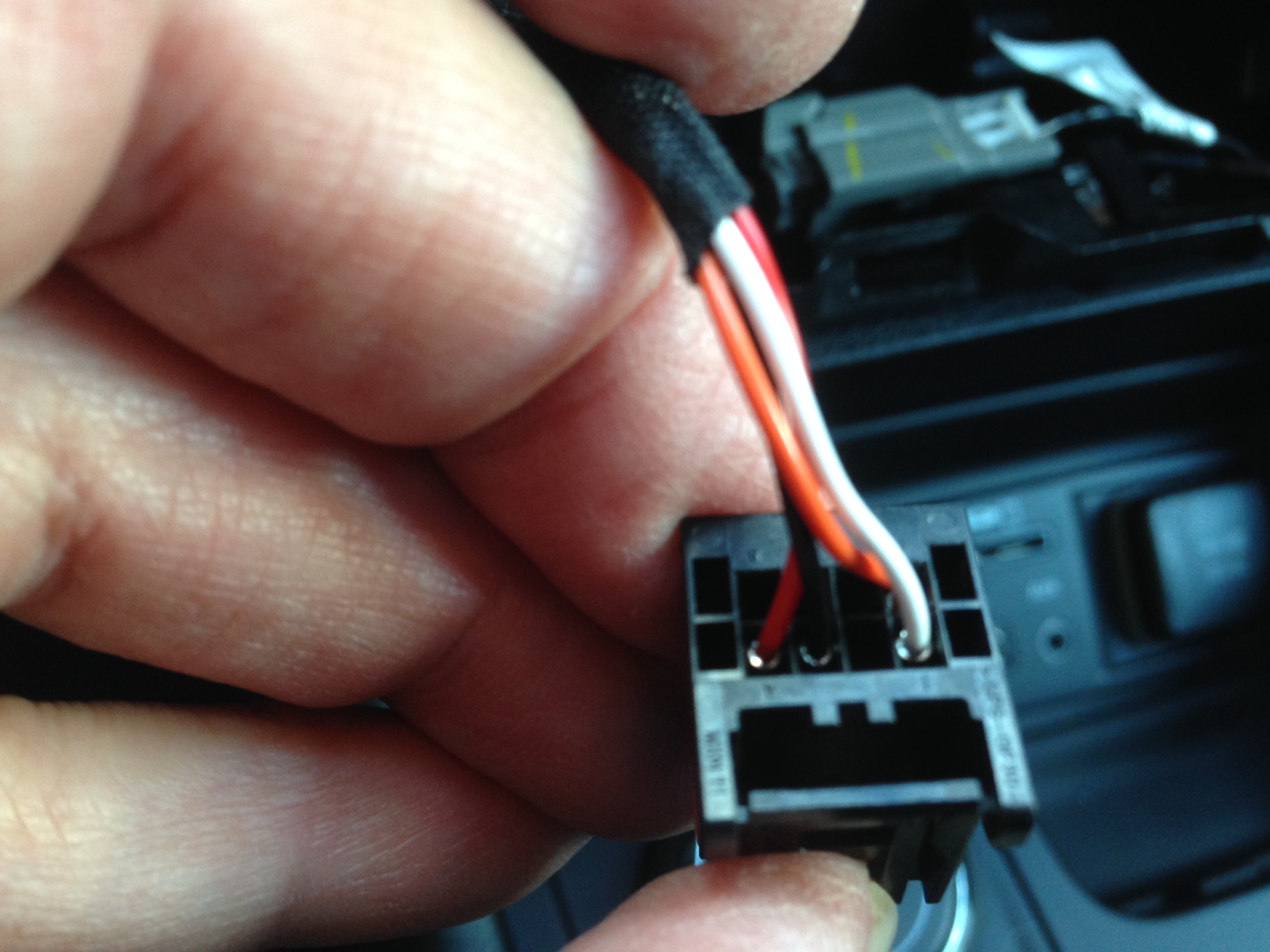

Does anyone know the pin out for the connector on the back of the climate control module (the module with the temp up/down, fan speed, etc that's directly below the radio. On the back side there is a connector with four wires. Two I assume are power and ground (red and black) and the other two must be CANBus - but anyone know which is the positive and negative side of the bus?
2016 Cherokee High Altitude
2016 Cherokee High Altitude
