FS[SouthEast]: Disc brake conversion kit
#1173
CF Veteran
Thread Starter
I don't have any right now. I can go in a few weeks & get some. I'll pm you then. Payment is made thru PayPal.
#1174
I am positive now that my 97 XJ with ABS has a Dana 35. Big David, won't I need the ABS ring from the ZJ axle as well as the sensors to make the ABS work with the disk brakes? I found a write up where someone cut away a part of the axle flange to make the setup work (not enough clearance for the ZJ sensor) and simply used the ZJ axles.
#1175
CF Veteran
Thread Starter
I am positive now that my 97 XJ with ABS has a Dana 35. Big David, won't I need the ABS ring from the ZJ axle as well as the sensors to make the ABS work with the disk brakes? I found a write up where someone cut away a part of the axle flange to make the setup work (not enough clearance for the ZJ sensor) and simply used the ZJ axles.
#1176
http://jeep.blackonyx.net/pdfs/zjreardiscs.pdf
#1178
#1180
CF Veteran
Thread Starter
I will be getting more kits at the end of the month. I have 9 on the list & will get as many as I can.
#1182
No, I don't lick fish.
D35/C8.25 rear axles are not specific to a year... the good news is, if you don't know what axle you have, all you have to do is grind the center bore of the plate out a little with a dremel or a die-grinder.
#1183
Newbie
Join Date: Mar 2017
Location: NC
Posts: 0
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0
Thanks
The only difference in these kits is for what rear axle. The Chrysler 8.25 has a larger axle tube so the bore on the backing plate needs to be larger.
D35/C8.25 rear axles are not specific to a year... the good news is, if you don't know what axle you have, all you have to do is grind the center bore of the plate out a little with a dremel or a die-grinder.
D35/C8.25 rear axles are not specific to a year... the good news is, if you don't know what axle you have, all you have to do is grind the center bore of the plate out a little with a dremel or a die-grinder.
#1184
No, I don't lick fish.
Any time..

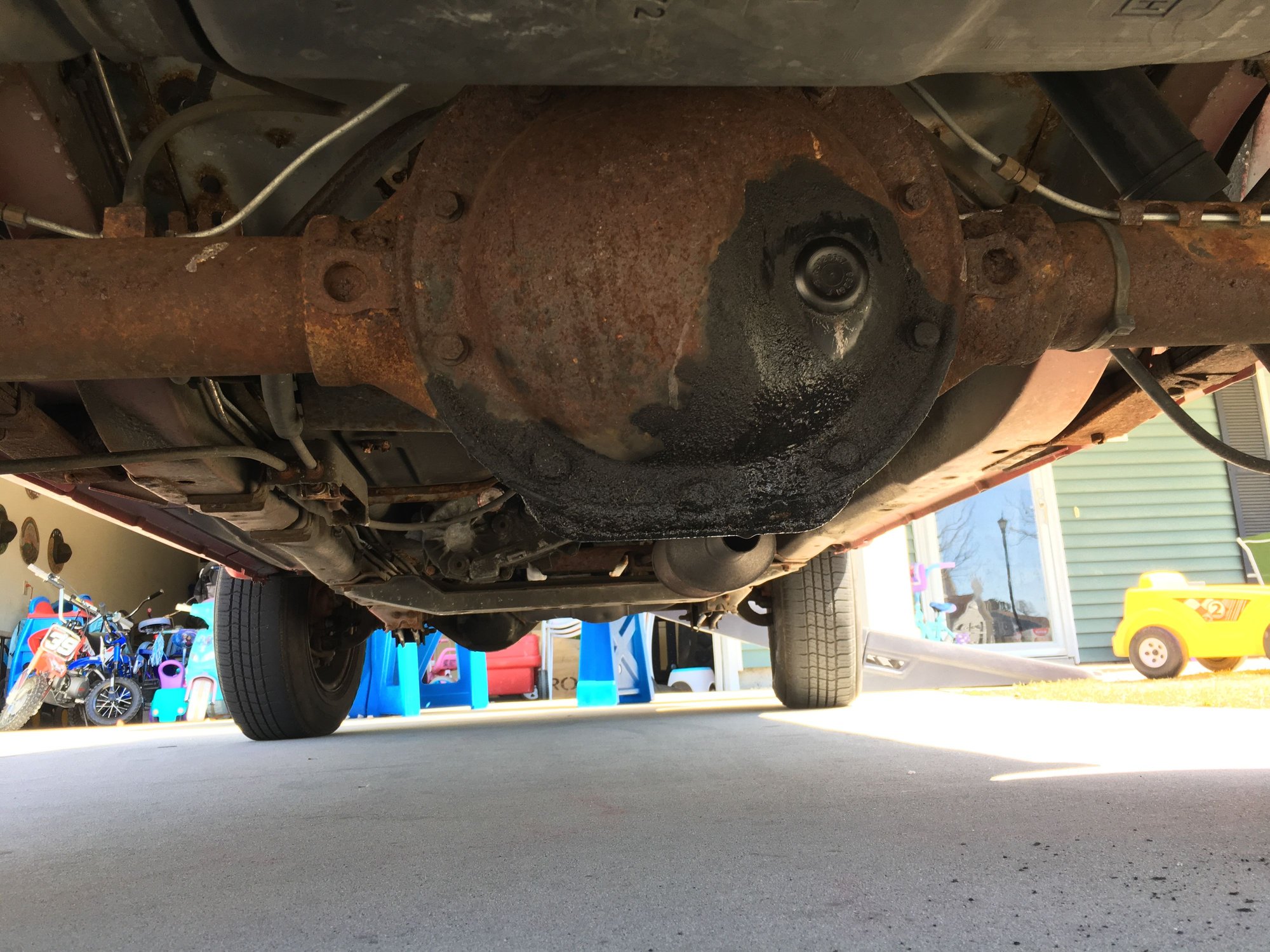

Easiest way to find out is to just look under your Jeep at the diff cover:
and in addition to that pill-shape of the Chrysler 8.25, there's a flat spot on the bottom of the diff housing:
Easiest way to find out is to just look under your Jeep at the diff cover:
and in addition to that pill-shape of the Chrysler 8.25, there's a flat spot on the bottom of the diff housing:
#1185
Newbie
Join Date: Mar 2017
Location: NC
Posts: 0
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0
