Upper shackle bolt stuck/snapped
#1
Member
Thread Starter
Join Date: Jul 2011
Location: Greensburg, Pennsylvania
Posts: 151
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Upper shackle bolt stuck/snapped
I've tried a pipe wrench, vise grips, soaking it in pb blaster. Nothing works.

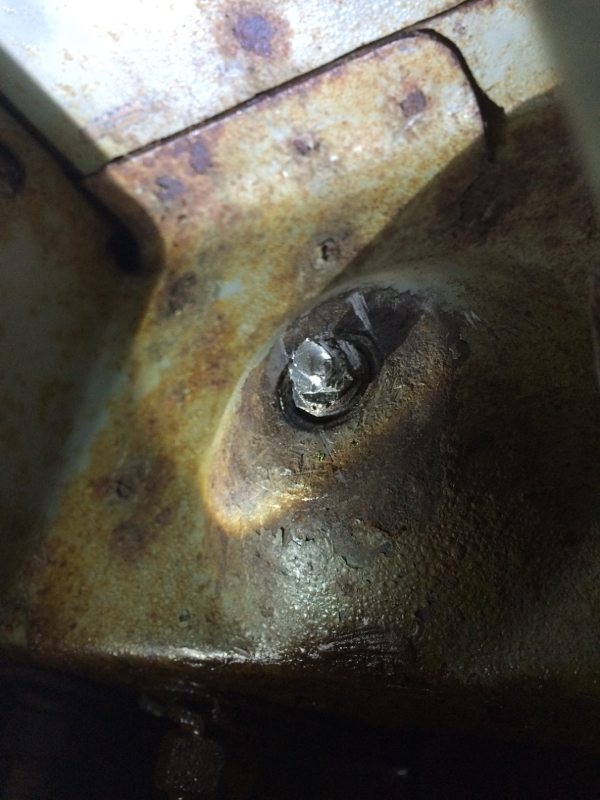

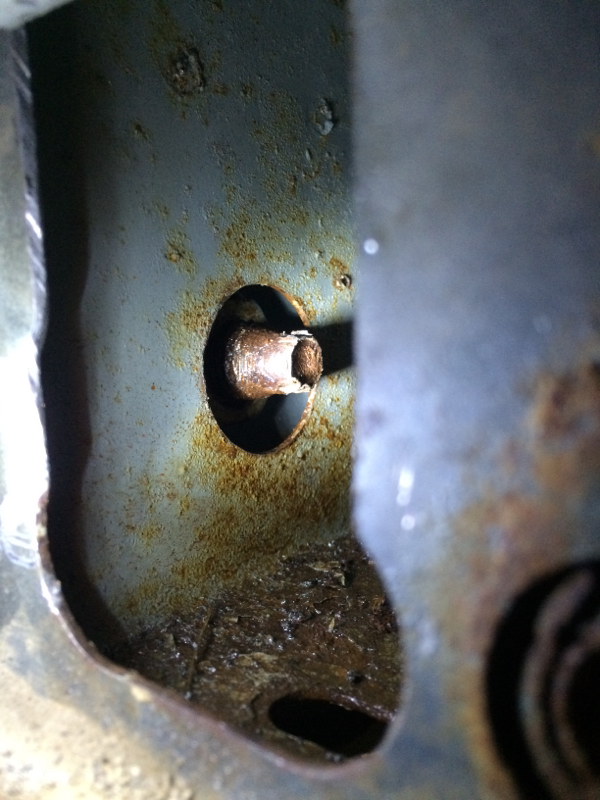

The only thing I haven't tried is heat because my torch nozzle broke and I haven't had a chance to get a new one. But either way the bolt sheared off almost flush with the mount. I opened up the unibody channel behind the bumper but not sure what to do now.
I also tried hitting it with a hammer an chisel to break the welded but free and tried drilling it out, neither worked only burned up the drill bit.
Any help would be greatly appreciated at this point because I'm outta options
The only thing I haven't tried is heat because my torch nozzle broke and I haven't had a chance to get a new one. But either way the bolt sheared off almost flush with the mount. I opened up the unibody channel behind the bumper but not sure what to do now.
I also tried hitting it with a hammer an chisel to break the welded but free and tried drilling it out, neither worked only burned up the drill bit.
Any help would be greatly appreciated at this point because I'm outta options
#3
CF Veteran
Join Date: Jul 2012
Location: Andover, VT
Posts: 2,971
Received 226 Likes
on
176 Posts
Year: 1999
Model: Cherokee (XJ)
Engine: 4.0 L
Hm that looks like an interesting one. I see you already tried to grind/file some flat spots on there. My next move would be to grind/file a bit more to get the best bite possible with vice grips and use your torch to heat that sucker up.
I believe those are 10.9 grade bolts so they're pretty tough to drill through. I've had some luck using left hand drill bits to get bolts out but I don't think it will work unless you get some high quality ones that will cut through that steel.
I believe those are 10.9 grade bolts so they're pretty tough to drill through. I've had some luck using left hand drill bits to get bolts out but I don't think it will work unless you get some high quality ones that will cut through that steel.
#5
CF Veteran
Join Date: Jan 2015
Location: Southern Maryland
Posts: 1,381
Likes: 0
Received 1 Like
on
1 Post
Year: 1991
Model: Cherokee
Engine: 1999 4.0L
Drill through the shackle bushing into the seam of the inner sleeve, and fill it with PB Blaster to break up the corrosion inside. You'll need to tack a head back on that bolt somehow.
Otherwise go through the floor board as described above
Otherwise go through the floor board as described above
#6
Member
Thread Starter
Join Date: Jul 2011
Location: Greensburg, Pennsylvania
Posts: 151
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Hm that looks like an interesting one. I see you already tried to grind/file some flat spots on there. My next move would be to grind/file a bit more to get the best bite possible with vice grips and use your torch to heat that sucker up. I believe those are 10.9 grade bolts so they're pretty tough to drill through. I've had some luck using left hand drill bits to get bolts out but I don't think it will work unless you get some high quality ones that will cut through that steel.
I would tack a nut on what's left but I don't have access to a welder unfortunately
Trending Topics
#8
Senior Member
Join Date: Jan 2012
Location: Port Richey, FL
Posts: 648
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0
I had the same thing happen. Don't know if it will work for you, but this is what I did.
https://www.cherokeeforum.com/f46/in...24675/index10/
https://www.cherokeeforum.com/f46/in...24675/index10/
#13
Member
Thread Starter
Join Date: Jul 2011
Location: Greensburg, Pennsylvania
Posts: 151
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
I'm gonna try griding a slot it what I have left exposed, heating it, and trying a screw driver or somthin.
If that doesn't work I'll try welding a nut on to it if I can borrow a welder off of someone
But either way I was planning on doing no lift shackle relocation boxes from Hd off-road I think because my angles probably gonna be off
If that doesn't work I'll try welding a nut on to it if I can borrow a welder off of someone
But either way I was planning on doing no lift shackle relocation boxes from Hd off-road I think because my angles probably gonna be off
