Rear Shock mount bolts
#1
Member
Thread Starter
Join Date: Aug 2015
Posts: 116
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2020
Rear Shock mount bolts
Hi guys, Doing the lift on my xj and have had one hell of a time getting all this done, at least iam on the final stages atm in getting these rear shocks out but those bolts are rusted out badly and nearly circle. The problem is the Design as well not much room to get into that area, You think I should just drill them out? any tips are welcome thanks.
#2
Seasoned Member
Join Date: Nov 2014
Location: So. Cal.
Posts: 333
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1 9 9 5
Model: Cherokee
Engine: Inline 6, 4.0
If your talking about the upper ones, soak them with PB blaster let sit for a few hours and try again. PB blaster works miracles. If they will not come out you can drill or pop them out with an air chisel, assuming you have that on hand, then theres a way of fishing a nut on a piece of wire through a small opening on the side by the bolt holes to catch with a bolt to install bar pin eliminators. Theres a vid of it somwhere.
Heres two good vids:
Heres two good vids:
Last edited by nicksan; 09-16-2015 at 10:46 AM.
#5
Junior Member
Join Date: Jul 2015
Location: Missouri
Posts: 41
Likes: 0
Received 0 Likes
on
0 Posts
Year: 92
Model: Cherokee
Engine: 4.0
Like XJLIMITEDX99 said. Break them off and drive the nuts out with an air hammer with a punch tip in it. Put a piece of fishing line on the new bolt and fish it through the hole. Takes a little patience but way less work than trying to drill them out.
#6
CF Veteran
Join Date: Aug 2010
Location: Carlisle, PA
Posts: 1,678
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: Inline 6

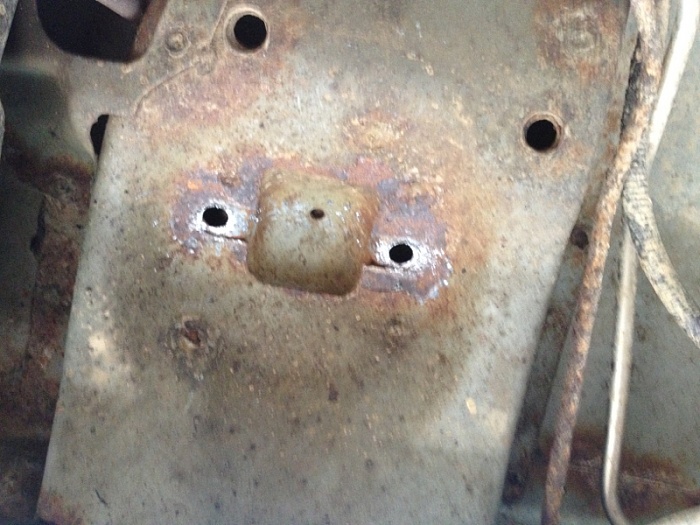

i had to pull up my rear carpet and cut a hole in my floor board to access mine. got new bolts and nuts and be sure to throw some antiseize on em and loctite.
Trending Topics
#8
Senior Member
i dont have air chisel, i just pounded them out the old fashioned way...pita, but can be done
then fished the new bolts in as shown in this thread
then fished the new bolts in as shown in this thread
