I have the 3.5" medium duty kit and I was wondering if anyone has any problems with driveline vibes at 4.5". I am doing 1" jks shackles in the rear and worried about the vibes. And also wondering if anyone else's drives awful on pebbly roads and washboard. Mine shakes and ratlles the whole jeep. Which I think it's the medium duty kit is why it rides so stiff. Thanks!
Yes I had vibes at 4.5" and still got them at 4" after I installed the sye the vibes are almost gone, still need shims.
#257
Everything is installed except for the adjustable track bar from JKS. So far I am VERY happy with the way it is turning out. Having 450 pounds of sakrete in the back of the xj for two weeks made short work of the "settling" aspect of the leaf springs. It looks like I am going to net 3.25 all the way around from the lift and another 1" from the tires. I had a slight snafu with trying to install the wrong brake rotors which had me all bound up but I got that squared away this morning. I will try to get some pics up in the morning. I have to work till 2400 tonight.
I need to do the track bar, straighten the steering wheel, torque the front control arm bolts, install the three factory skids, install the JKS quick disco storage pins in the factory skid and check the alignment, then I am FINALLY going to be able to drive the dang thing.
#258
CF Veteran
Thread Starter
Everything is installed except for the adjustable track bar from JKS. So far I am VERY happy with the way it is turning out. Having 450 pounds of sakrete in the back of the xj for two weeks made short work of the "settling" aspect of the leaf springs. It looks like I am going to net 3.25 all the way around from the lift and another 1" from the tires. I had a slight snafu with trying to install the wrong brake rotors which had me all bound up but I got that squared away this morning. I will try to get some pics up in the morning. I have to work till 2400 tonight.
I need to do the track bar, straighten the steering wheel, torque the front control arm bolts, install the three factory skids, install the JKS quick disco storage pins in the factory skid and check the alignment, then I am FINALLY going to be able to drive the dang thing.
I need to do the track bar, straighten the steering wheel, torque the front control arm bolts, install the three factory skids, install the JKS quick disco storage pins in the factory skid and check the alignment, then I am FINALLY going to be able to drive the dang thing.
#259

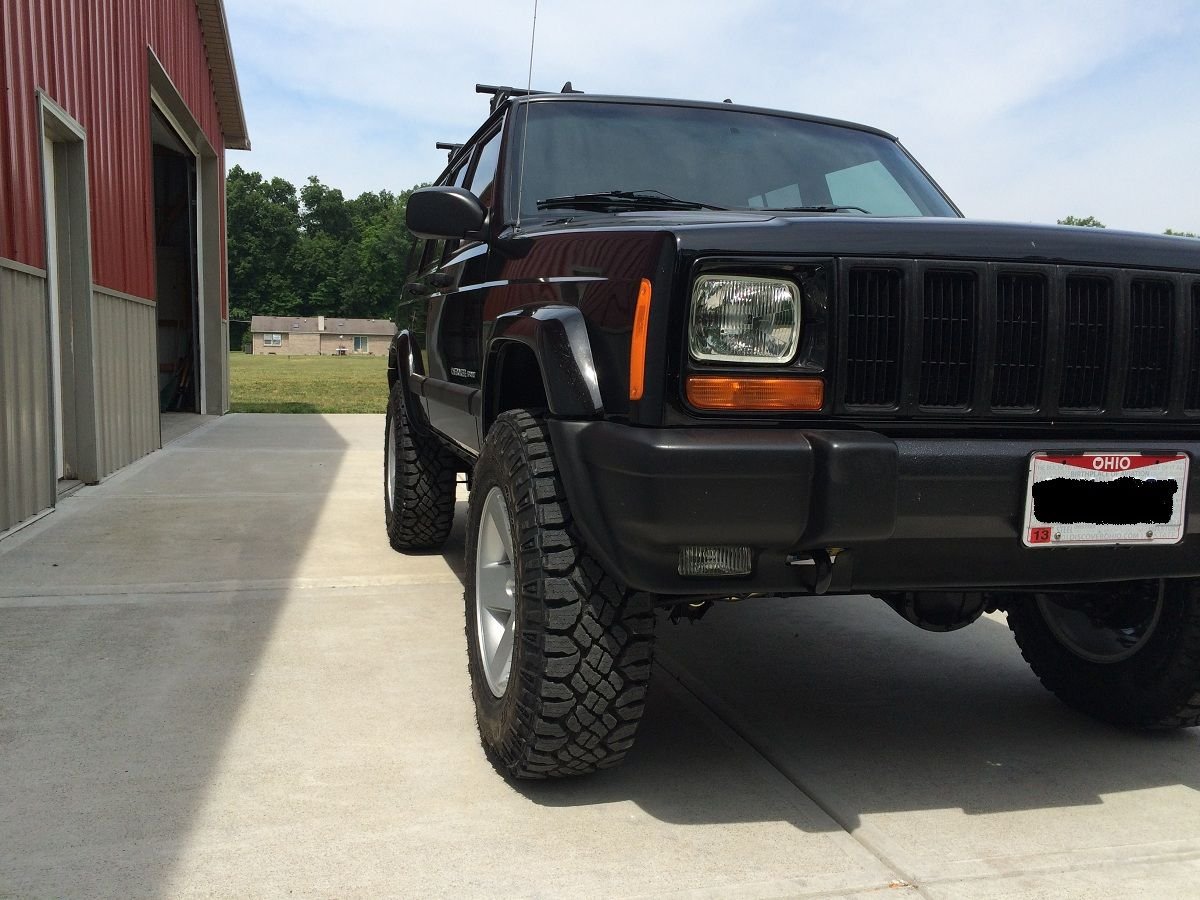

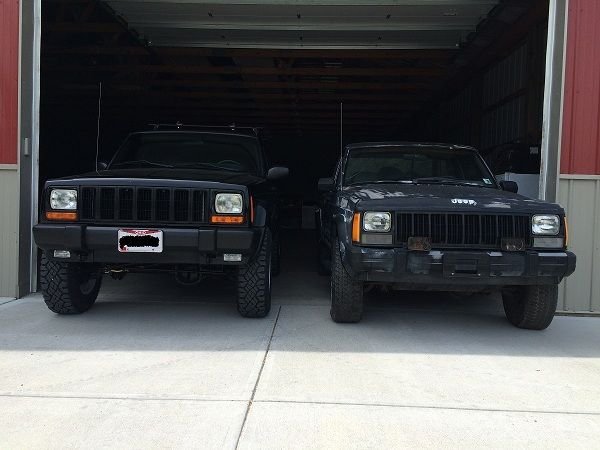

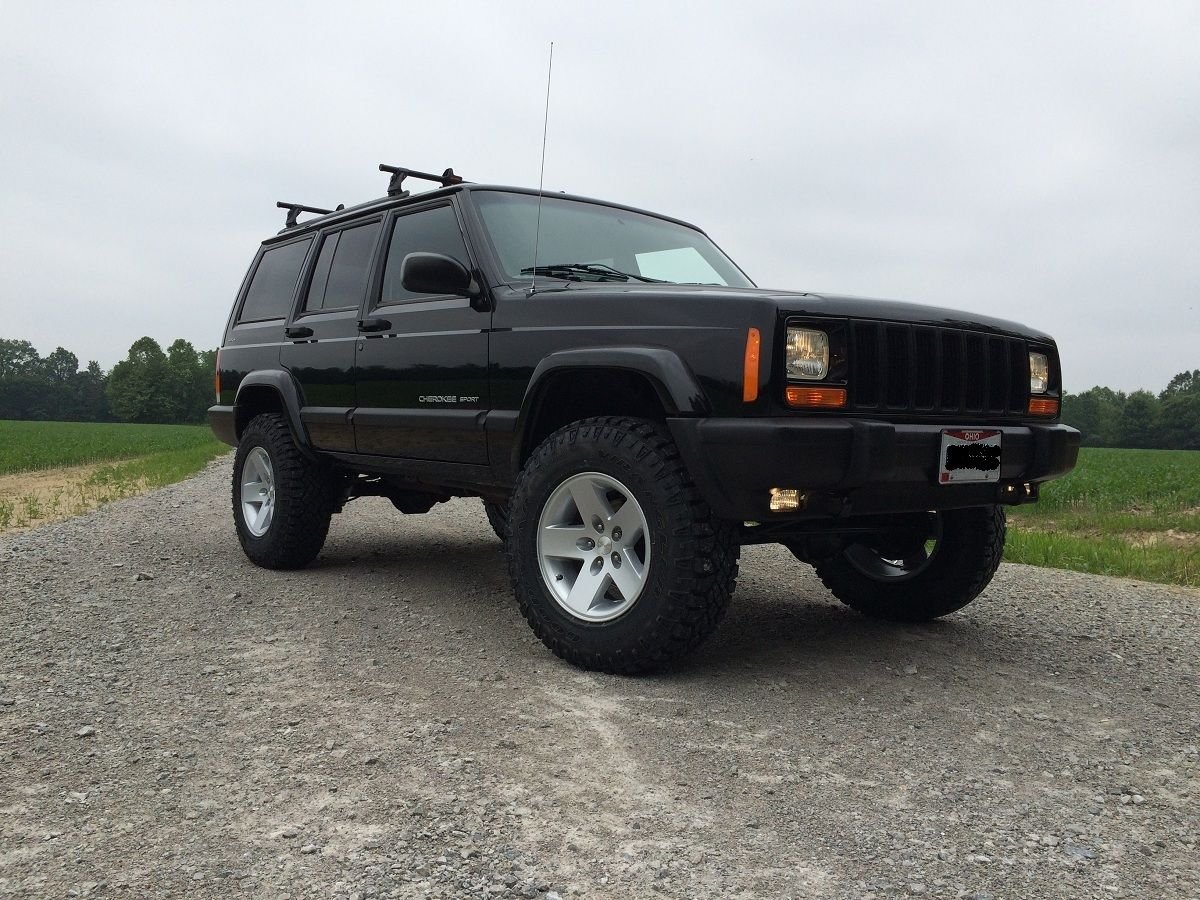

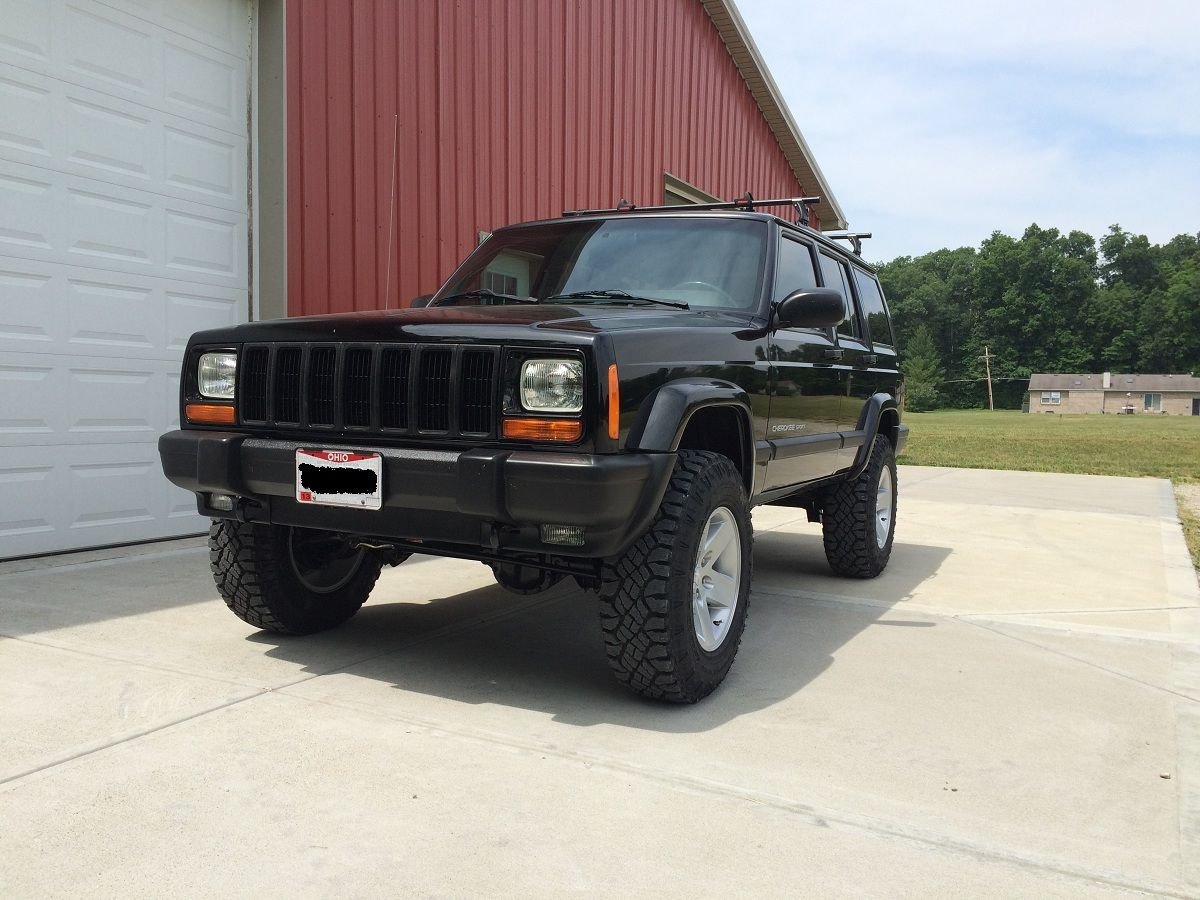

ok gonna try to put up some pictures. All I have left to do is paint and intall the three factory skids and the Yakima fairing. Other than that it is pretty much done. I got right at 3.25 inches of lift all the way around and that is with the ACOS at it's minimum lift and the third leaf out of the pack. I also gained about an inch out of the tires. This thing rides EXCELLENT and with the 4.11 gear ratio it has plenty of power. I am very pleased with the way it turned out.
#262
CF Veteran
Thread Starter
Looks awesome, man! Like the attention to detail on the axles. Already time for relocation brackets?
How's the vibe situation? Or are you good to go without changing anything?

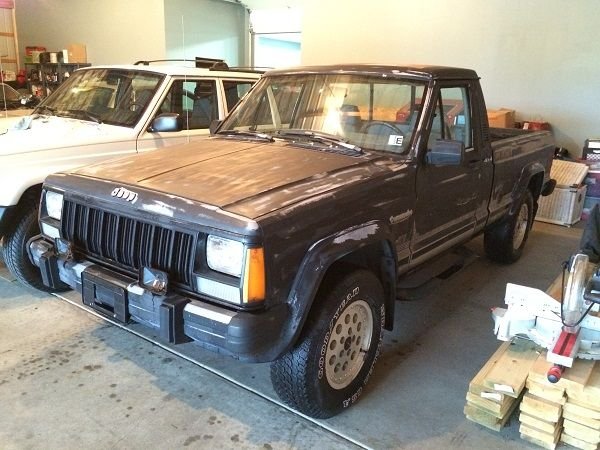

Edit: Jealous of the Comanche by the way!
How's the vibe situation? Or are you good to go without changing anything?
Edit: Jealous of the Comanche by the way!
Last edited by TFitzPat87; 06-07-2015 at 06:07 PM.
#263
Thanks. It turned out pretty much exactly where I wanted it to. EVERY single piece in that front axle is brand new. I went with tru-tracs front and rear as it will only see mild trail riding and most of the 4x4 time will be in snow. I have put about 100 miles on it since installation and I only have very slight vibes when NOT under load. I get just a little when I let off the gas as I approach a light etc. I am going to give it a few more miles and then probably go ahead with an SYE kit. I have a spare front driveshaft already and a set of 4 degree shims.
#264
Senior Member
Join Date: Jul 2014
Location: St. Louis
Posts: 793
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1998
Model: Cherokee
Engine: 4.0 Liter I6 PowerTech
ok gonna try to put up some pictures. All I have left to do is paint and intall the three factory skids and the Yakima fairing. Other than that it is pretty much done. I got right at 3.25 inches of lift all the way around and that is with the ACOS at it's minimum lift and the third leaf out of the pack. I also gained about an inch out of the tires. This thing rides EXCELLENT and with the 4.11 gear ratio it has plenty of power. I am very pleased with the way it turned out.
#265
CF Veteran
Thread Starter
Finally got it installed!
Hi Guys,
So I finally got her in the air! Unfortunately, the rear end is clunking over just about every other bump and dip in the road, and I have some minor vibes from about 10 to 30mph (give or take). Any idea's on the clunky rear?

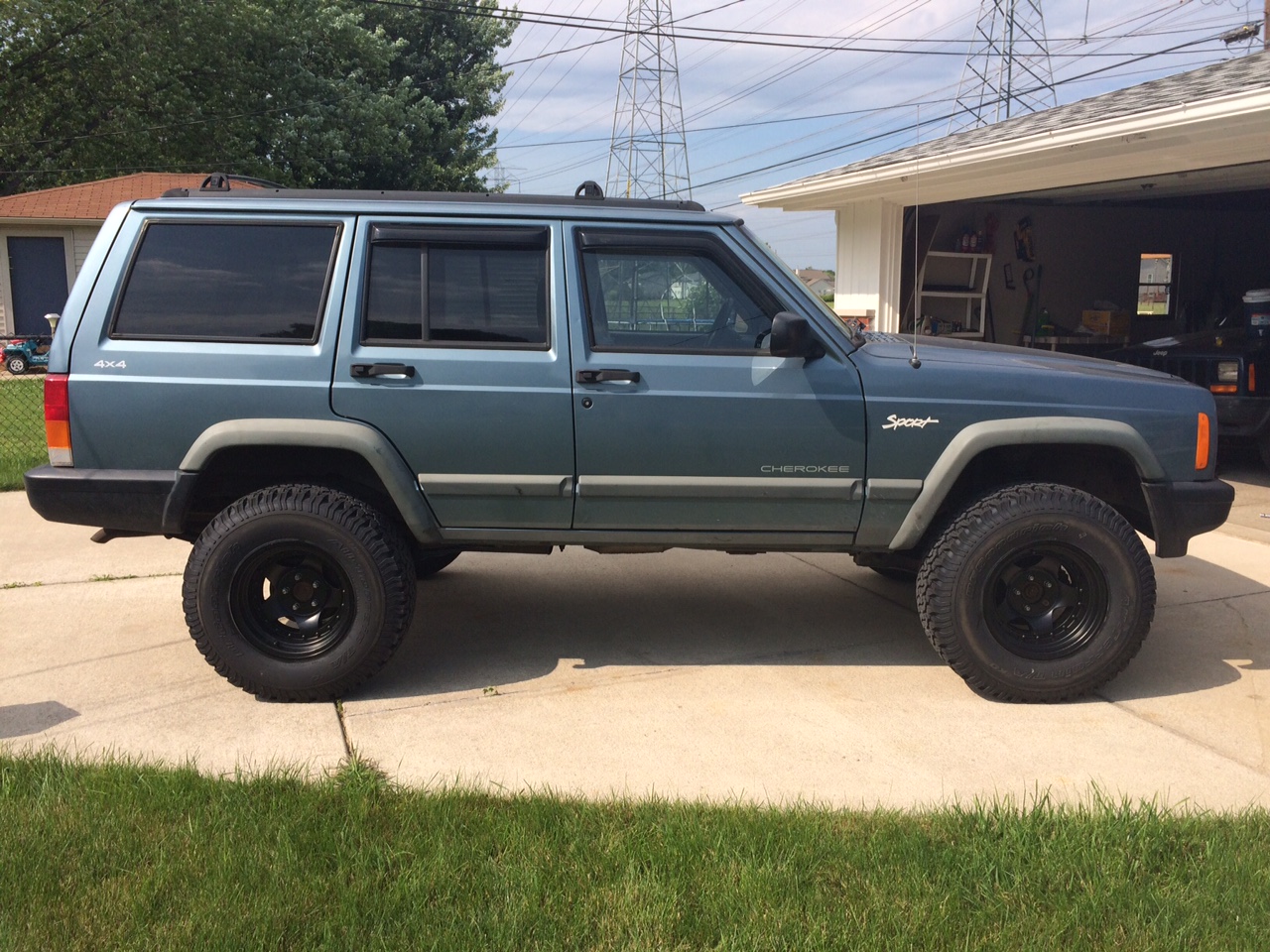

Here's a picture for your viewing pleasure. I didn't get her all cleaned up, but I'll probably post a couple more pics when everything is good and the finish touches are taken care of.
So I finally got her in the air! Unfortunately, the rear end is clunking over just about every other bump and dip in the road, and I have some minor vibes from about 10 to 30mph (give or take). Any idea's on the clunky rear?
Here's a picture for your viewing pleasure. I didn't get her all cleaned up, but I'll probably post a couple more pics when everything is good and the finish touches are taken care of.
Last edited by TFitzPat87; 06-29-2015 at 09:13 PM.
#266
Senior Member
Join Date: Feb 2015
Location: South Georgia
Posts: 514
Likes: 0
Received 15 Likes
on
15 Posts
Year: 1996
Model: Cherokee(XJ)
Engine: 4.0l
Hi Guys,
So I finally got her in the air! Unfortunately, the rear end is clunking over just about every other bump and dip in the road, and I have some minor vibes from about 10 to 30mph (give or take). Any idea's on the clunky rear?
Here's a picture for your viewing pleasure. I didn't get her all cleaned up, but I'll probably post a couple more pics when everything is good and the finish touches are taken care of.
So I finally got her in the air! Unfortunately, the rear end is clunking over just about every other bump and dip in the road, and I have some minor vibes from about 10 to 30mph (give or take). Any idea's on the clunky rear?
Here's a picture for your viewing pleasure. I didn't get her all cleaned up, but I'll probably post a couple more pics when everything is good and the finish touches are taken care of.
Too lazy to fix...right now.
#268
CF Veteran
Thread Starter
Drama, from the pics, it looks like you used new bolts on the shackles, but did you get new bolts for the front leaf spring eyes or use the factory ones? I ask because I used all my factory hardware as it was fine, but they weren't a tight fit in the front leaf spring eye.
#269
TFitz I used the original bolts in the front of the springs. I used new bushings front and rear as well. Everything fit well. I also used anti seize on everything when it went back together.
#270
CF Veteran
Thread Starter
Since we are on the topic, what size bolts did you get for the lower shackle bolt? I assume you went and grabbed grade 8 bolts instead of going to the deal for the factory ones.
