Np242 clocking tips
#1
Seasoned Member
Thread Starter
Np242 clocking tips

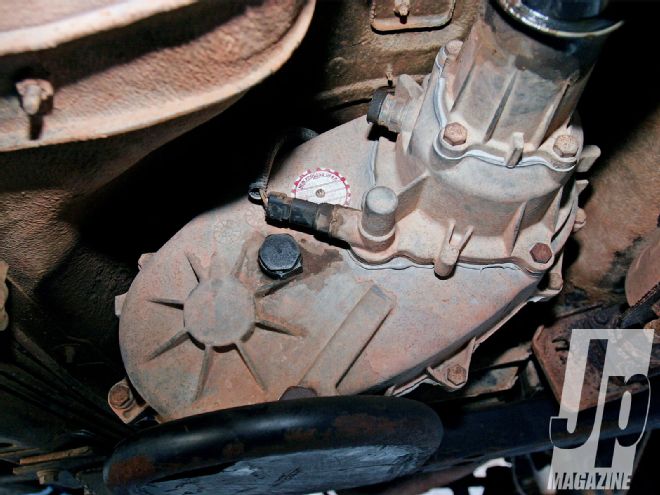

I've been reading how easy it is to clock your t/c. Decided to do mine. What I didn't realize is how much bigger the 242 is than the 231! The 242 is more than 3" taller & 1" longer than the 231. This makes a huge difference in floor board clearance! I had to dent in my floor around an inch plus clearance my 242 to get it to fit!

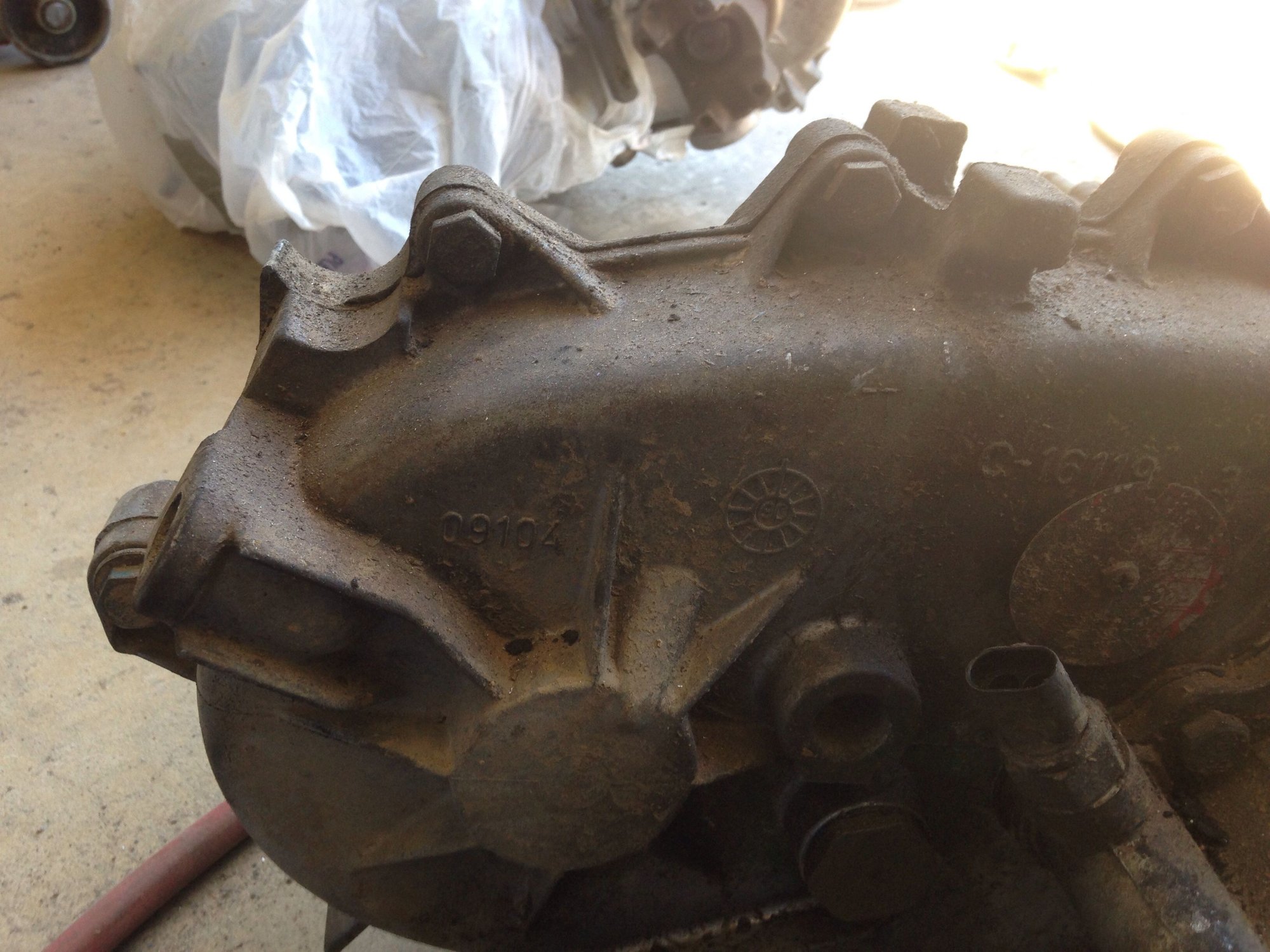

Clearance unused protrusions on t/c

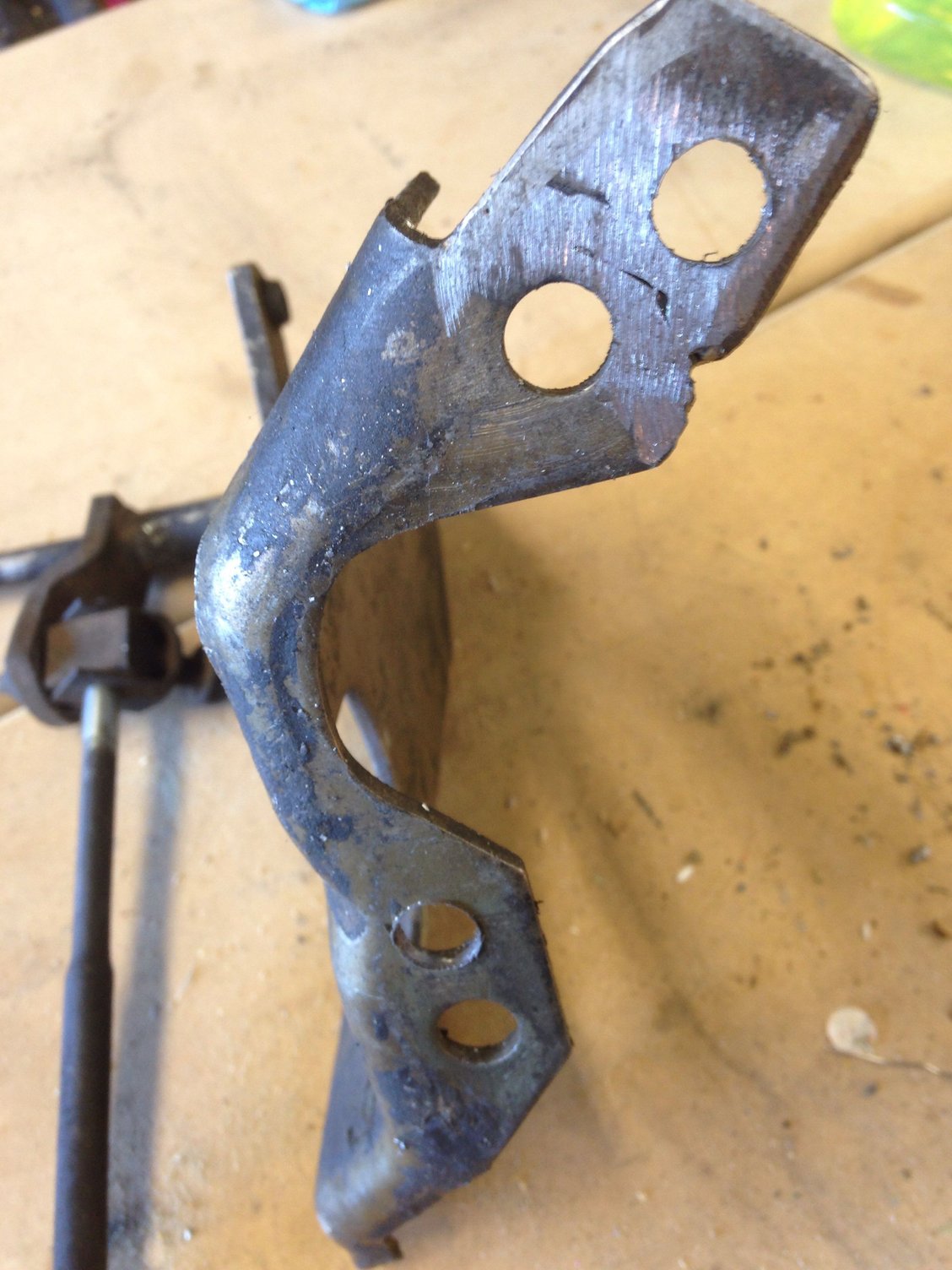

For the shift bracket, I welded a tab to the top, then fitted it in place & marked it for drilling after drilling the t/c clocking holes with the IRO tool.
This kept the shift linkage at the stock angle and location.
Clearance unused protrusions on t/c
For the shift bracket, I welded a tab to the top, then fitted it in place & marked it for drilling after drilling the t/c clocking holes with the IRO tool.
This kept the shift linkage at the stock angle and location.
#4
Seasoned Member
Thread Starter
#6
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors

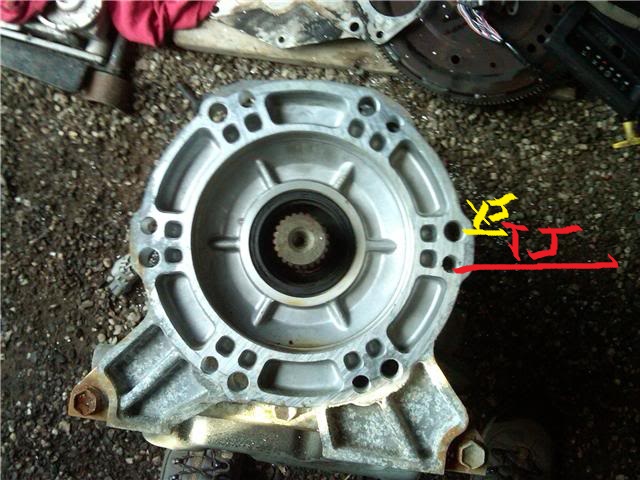

Heres what im saying tj/wrangler trans are drilled different which shifts transfer case higher. Where xj s are drilled lower trans fer case hangs more. I have a nv3550 out of a 2000 tj my crossmeber is dropped all ready so theres no clearence issue. Future plans are to reclock min where xj holes are.
#7
Seasoned Member
Thread Starter
Heres what im saying tj/wrangler trans are drilled different which shifts transfer case higher. Where xj s are drilled lower trans fer case hangs more. I have a nv3550 out of a 2000 tj my crossmeber is dropped all ready so theres no clearence issue. Future plans are to reclock min where xj holes are.
Trending Topics
#8
Seasoned Member
Thread Starter
Why would you use the XJ holes? Seems opposite of what you'd wanna do. Looks like the TJ holes are where my clocked holes are.
#9
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors

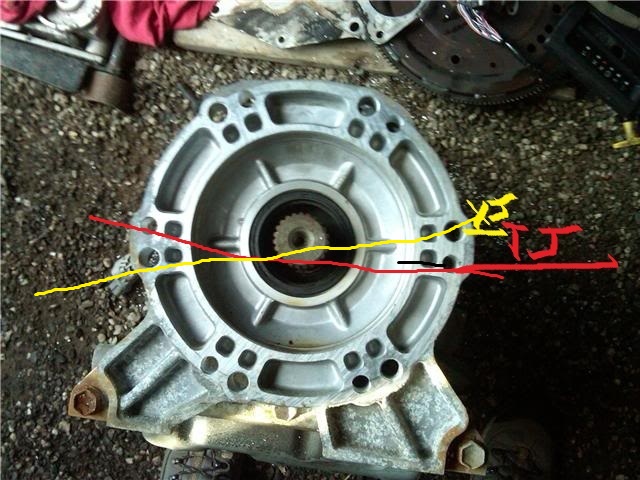

tj hole rotes case clock wise which bring case higher on driver side. Xj holes rotate case counter clock wise which brings driver side lower .
Last edited by freegdr; 08-21-2015 at 06:36 AM.
