Not your normal locker help needed
#1
CF Veteran
Thread Starter
Join Date: Feb 2012
Location: Southern Oregon
Posts: 1,206
Likes: 0
Received 1 Like
on
1 Post
Year: 1990
Model: Cherokee
Engine: 4.0
Not your normal locker help needed
I'm in need of some help REMOVING a lock right locker out of a Dana 35 from a 93 XJ.
Here is what I have done
1. Remove center pin
2. Remove the springs from the locker.
3. Adjust the ratcheting teeth so the little slit for the c-clip to be removed
4. Push the shaft in
a. Tap the shaft in with a hammer
b. Hit the shaft with the hammer
c. Hit the shaft with a 2lb sludge
d. Hit the shaft with a 5lb sludge
e. Wail on the shaft with a 5lb sludge
5. Use a slide hammer on the shaft
6. Come to you guys for help
This has been over the course of a week. When I started the shaft could move about 1/8 inch back and forth, after all I did it still only moves about 1/8 inch back and forth.
Here is what I have done
1. Remove center pin
2. Remove the springs from the locker.
3. Adjust the ratcheting teeth so the little slit for the c-clip to be removed
4. Push the shaft in
a. Tap the shaft in with a hammer
b. Hit the shaft with the hammer
c. Hit the shaft with a 2lb sludge
d. Hit the shaft with a 5lb sludge
e. Wail on the shaft with a 5lb sludge
5. Use a slide hammer on the shaft
6. Come to you guys for help
This has been over the course of a week. When I started the shaft could move about 1/8 inch back and forth, after all I did it still only moves about 1/8 inch back and forth.
Last edited by PNWjeeper; 09-08-2016 at 09:44 AM.
#2
Senior Member
Join Date: Nov 2013
Location: Vernon NJ
Posts: 616
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
You have to pull the cross shaft before you can remove the axle shafts. Once that is out you have enough room to move the axle in and out to get to the C clip. When I did this on my TJ it also helped to get a couple small screw drivers in the teeth of the locker to help spread it, and use a magnet to pull the C clip. The bolt that holds the cross shaft in is an 8mm 12 point.
#5
CF Veteran
Join Date: Jan 2012
Location: Ocean County, NJ
Posts: 2,208
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
You have to pull the cross shaft before you can remove the axle shafts. Once that is out you have enough room to move the axle in and out to get to the C clip. When I did this on my TJ it also helped to get a couple small screw drivers in the teeth of the locker to help spread it, and use a magnet to pull the C clip. The bolt that holds the cross shaft in is an 8mm 12 point.
#6
CF Veteran
Thread Starter
Join Date: Feb 2012
Location: Southern Oregon
Posts: 1,206
Likes: 0
Received 1 Like
on
1 Post
Year: 1990
Model: Cherokee
Engine: 4.0
Originally Posted by dans98xj
You have to pull the cross shaft before you can remove the axle shafts. Once that is out you have enough room to move the axle in and out to get to the C clip. When I did this on my TJ it also helped to get a couple small screw drivers in the teeth of the locker to help spread it, and use a magnet to pull the C clip. The bolt that holds the cross shaft in is an 8mm 12 point.
Trending Topics
#8
CF Veteran
Thread Starter
Join Date: Feb 2012
Location: Southern Oregon
Posts: 1,206
Likes: 0
Received 1 Like
on
1 Post
Year: 1990
Model: Cherokee
Engine: 4.0

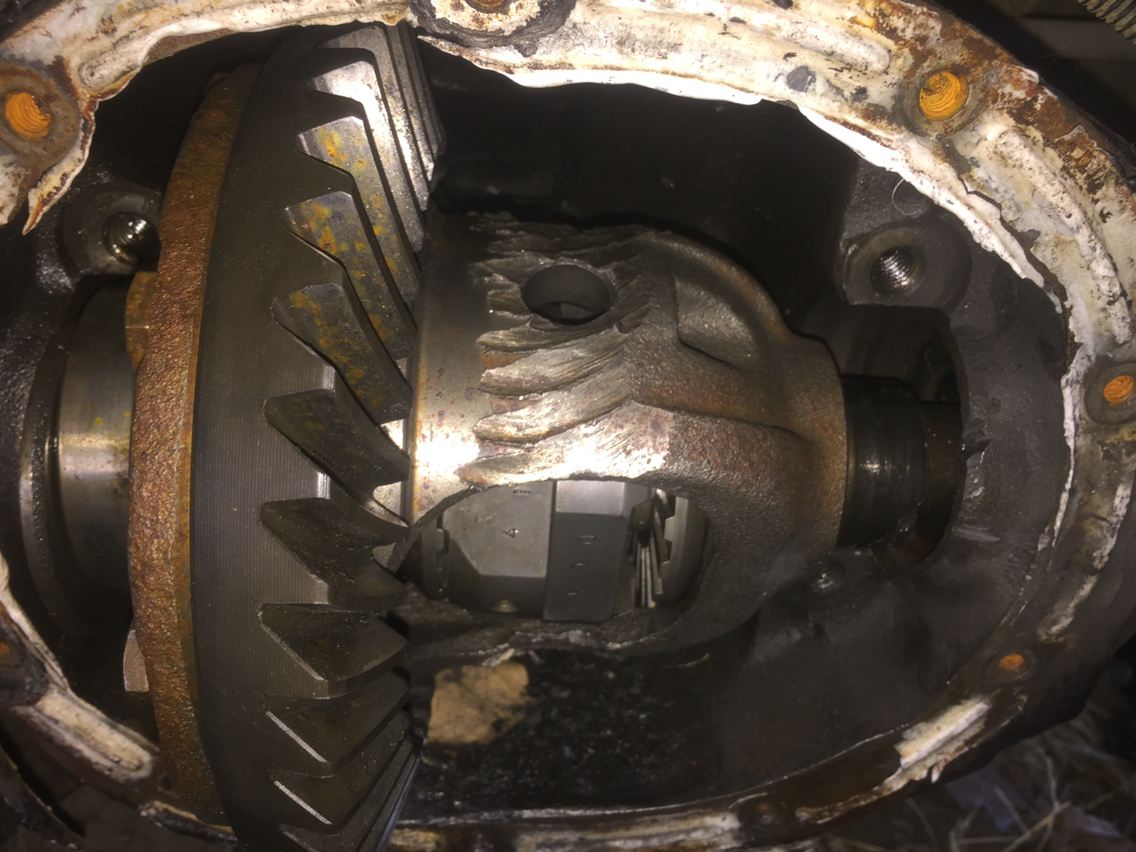

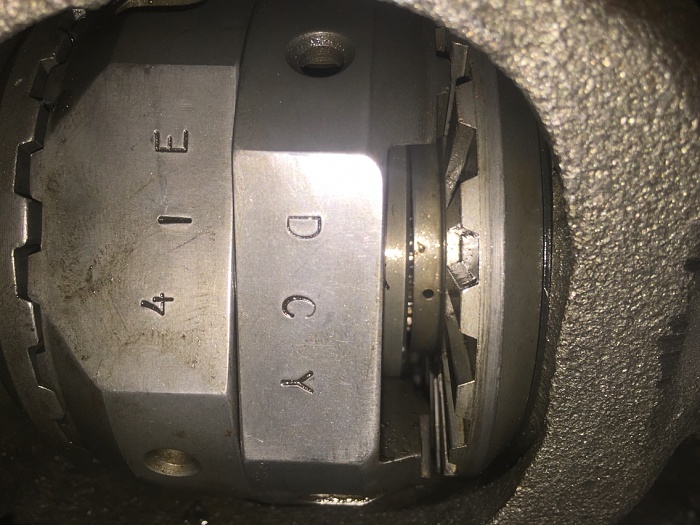

Here are some pics of what I've got. In the close up there is a little spacer/washer thing with a hole on the right side, I can't get that piece to slide evenly towards the middle it always goes in cockeyed.
#9
Senior Member
Join Date: Nov 2013
Location: Vernon NJ
Posts: 616
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Holly molly, what happened to that rear? How did the passenger side bearing come off without removing the axle and case first? the reason why you are having so many problems is that the case is not being supported by anything other than the axle shafts. It will be very hard to get the alinment right to remove the C clips with the axle bearing the weight of the case. It looks like there is already some damage in there from the pinion crashing into the case, so get a couple of 2X4's and put them into the housing under the case and pull down on them to lift the case and try removing the shafts that way. you could even get a pry bar for a breaker bar an try that too. You may need to have a friend help you with this. The C clips should almost fall out when they are aligned right.
#10
Caracticus Potts The Mod
that first picture shows some damage where the bearing belongs....you really need to replace that whole assembly, I would not trust that to be any good with damage like that.
#12
CF Veteran
Thread Starter
Join Date: Feb 2012
Location: Southern Oregon
Posts: 1,206
Likes: 0
Received 1 Like
on
1 Post
Year: 1990
Model: Cherokee
Engine: 4.0
This jeep is for parts and that's the way the axle came. I'm guessing the PO was trying to remove it also, it looks like the bearing was cut off. I'll try and jam it back into place and see if that helps at all, wish I had those clamps.
#13
CF Veteran
Join Date: Jun 2012
Location: California
Posts: 1,250
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1989
Model: Cherokee
Engine: 4.0L
If the c-cplis are off and you're just trying to salvage the locker you could try getting a big slide-hammer and attaching to a wheel lug to get the axles out. Autozone loans them for free. Get the biggest one they have.
#14
CF Veteran
Thread Starter
Join Date: Feb 2012
Location: Southern Oregon
Posts: 1,206
Likes: 0
Received 1 Like
on
1 Post
Year: 1990
Model: Cherokee
Engine: 4.0
the thing is those aren't c-clips in the picture, they are some kind of spacer or something I can spin them completely around no break in them just that little hole.
